Tripp Lite N484-2M24-6M12 100Gb/120Gb to 40Gb Breakout Cassette (x2) 24-Fiber MTP/MPO to (x6) 12-Fiber MTP/MPO

N484-2M24-6M12 - Overview

• Features:

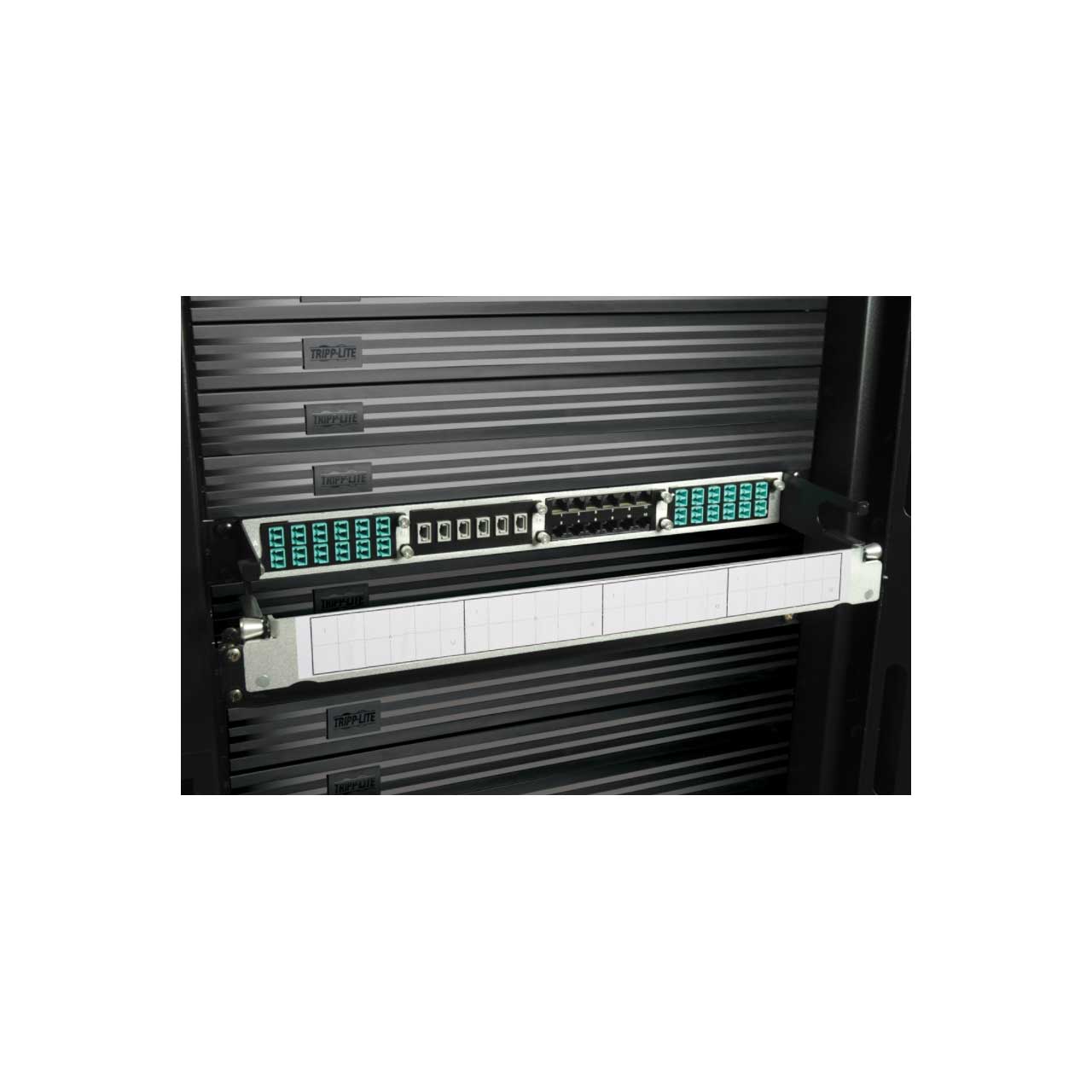

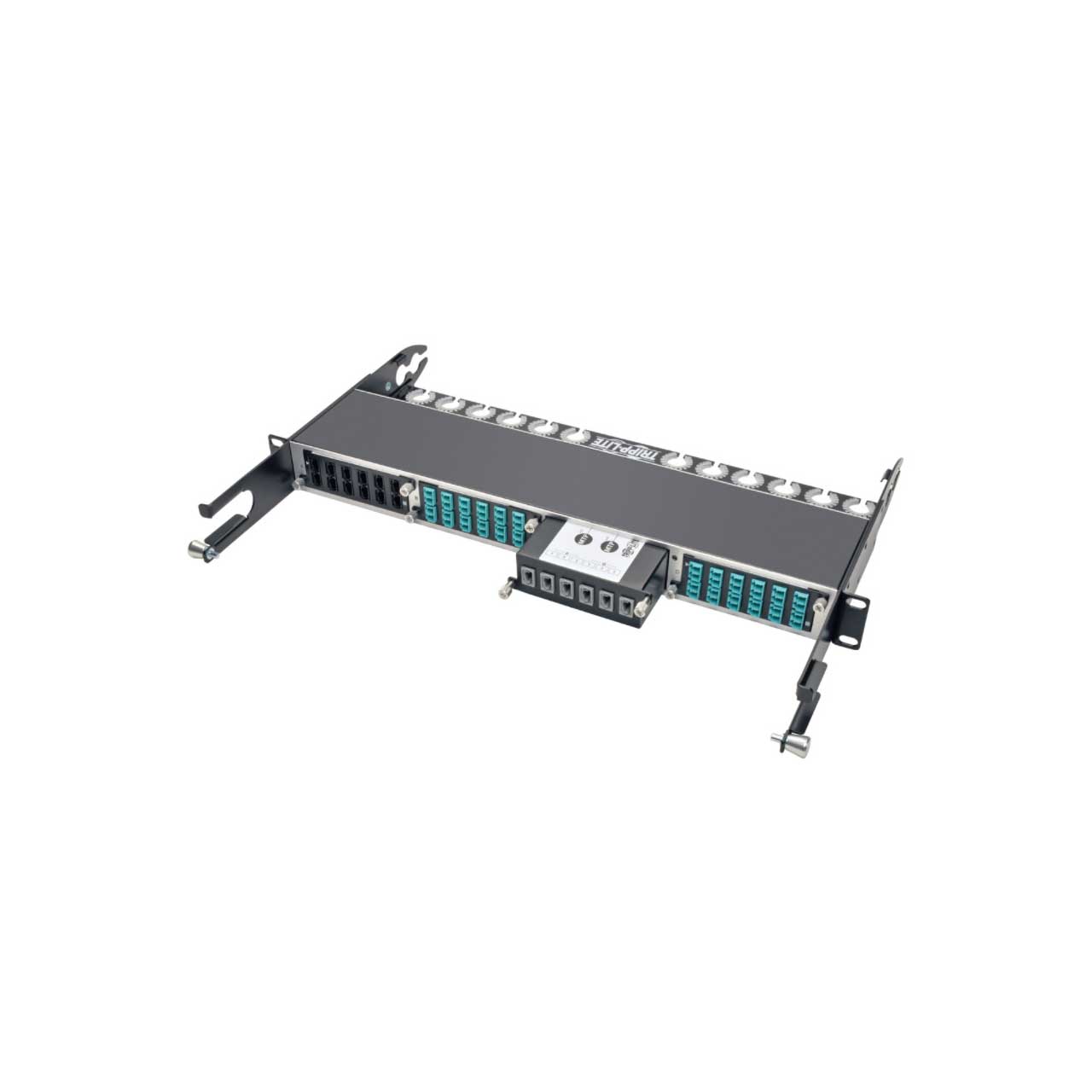

  • High Density Fiber Cassette for use with Tripp Lite's N484-00U and N484-01U chassis'

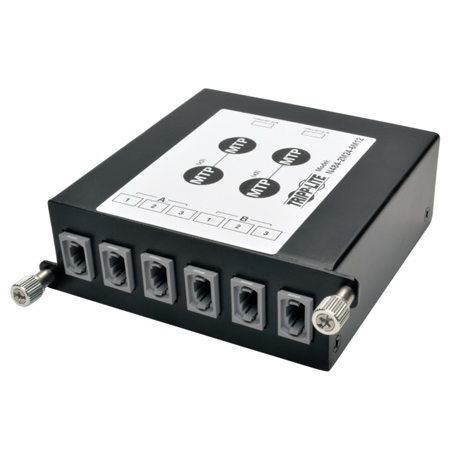

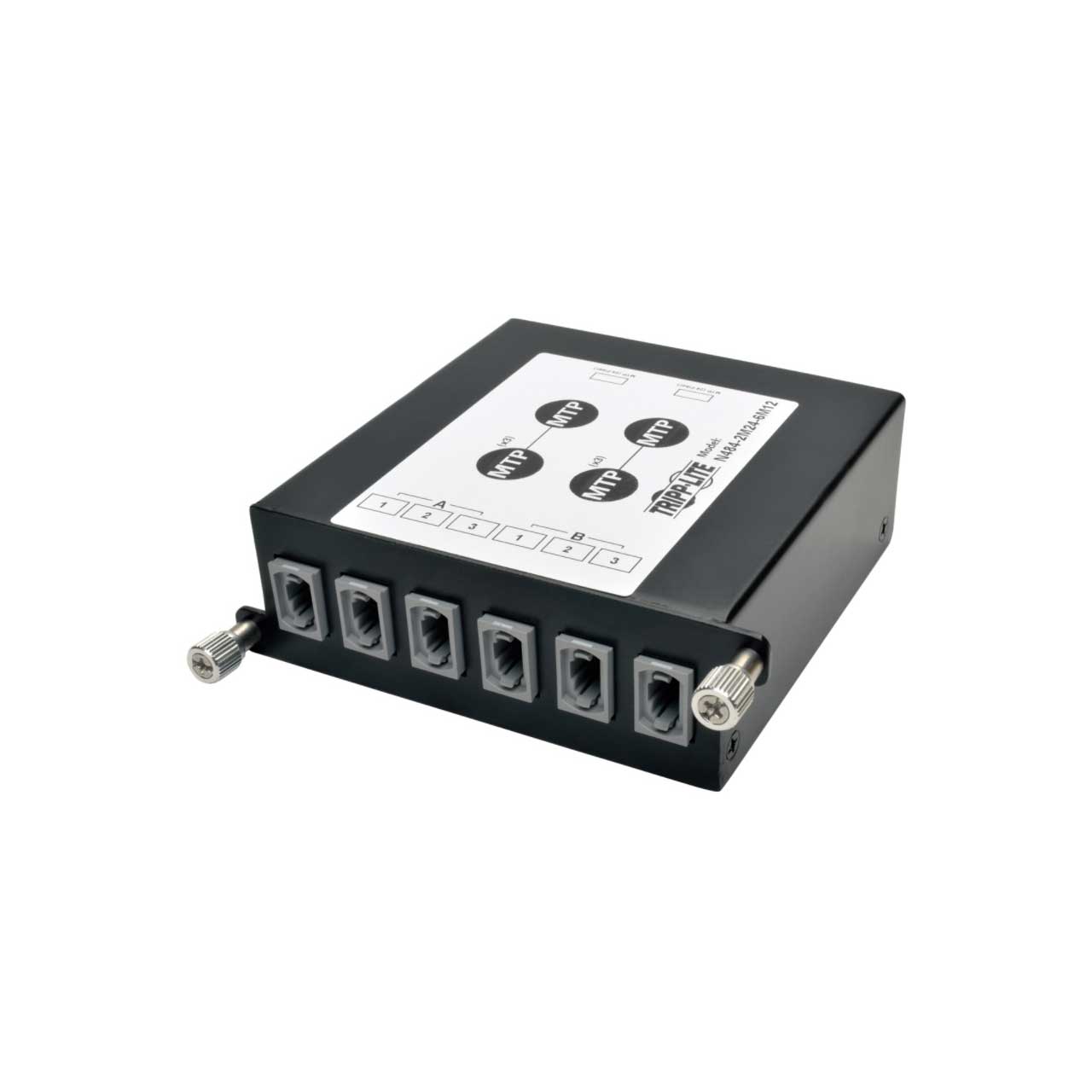

  • 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber MTP/MPO connections
  • Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
  • Type B adapters ( Key up to Key up ) on 12-Fiber side
  • Type A adapters ( Key up to Key down ) on 24-Fiber side
  • Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
  • Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required
  • Each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations
  • Housing made of heavy duty, 1.0mm Cold Rolled Steel
  • Includes dust caps for unused ports


• Specifications:

  • Unit Dimensions (hwd / in.): 1.4 x 4.4 x 3.8
  • Unit Weight (lbs.): 0.7
  • Unit Weight (kg): 0.32
  • Color: Black
  • Operating Temperature Range: -4 to 122 F (-20 to 50 C)
  • Ports: 6

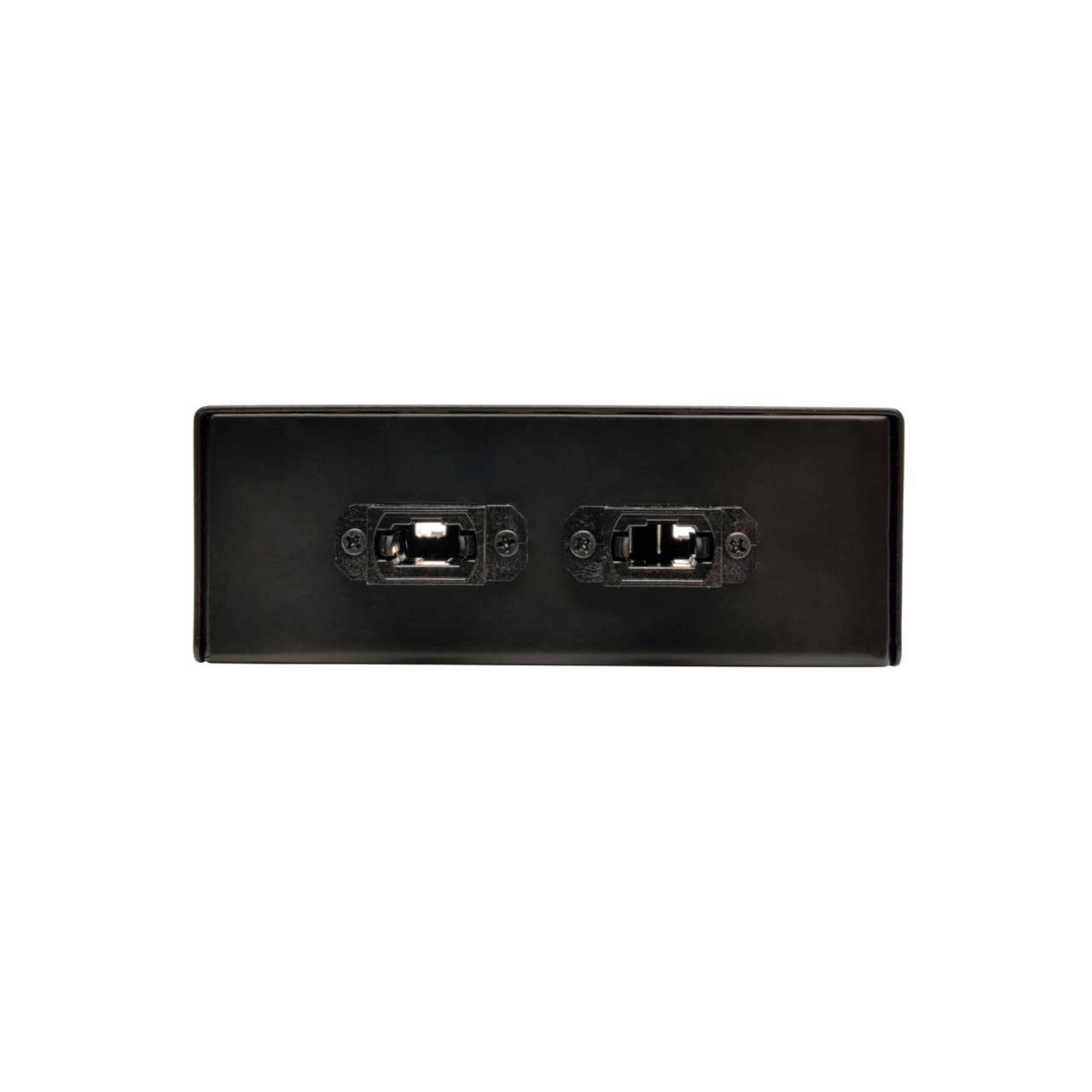

  • Side A - Connector 1: (2) 24-STRAND MTP (FEMALE)
  • Side B - Connector 1: (6) 12-STRAND MTP (FEMALE)
  • Approvals: RoHS, REACH
  • Product Warranty Period (Worldwide): Lifetime limited warranty


• Item Includes:

  • N484-2M24-6M12 100/120Gb to 40Gb Breakout Cassette, (x2) 24-Fiber MTP/MPO to (x6) 12-Fiber MTP/MPO
  • Quick Start Guide


• Warranty:

  • Lifetime


• GTIN:

  0037332187192
