Tripp Lite OMNI700LCD 700VA 420W UPS Battery Back Up Tower LCD AVR 120V USB

ITEM #: TRL-OMNI700LCD MFG #: OMNI700LCD

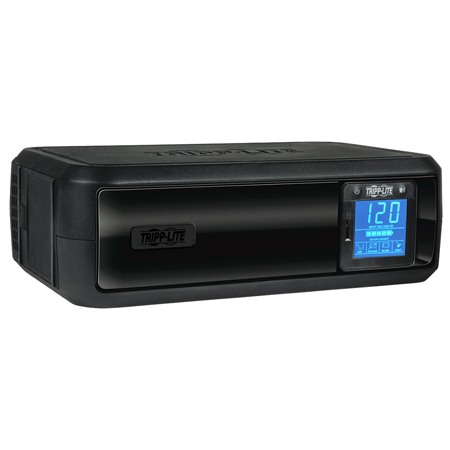

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TRL-OMNI700LCD

OMNI700LCD - Overview

Tripp Lite's OMNI700LCD Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long lasting battery support for personal computers, home entertainment systems and media centers. Internal UPS circuits support entry level PCs for up to 50 minutes or individual VCR/DVR components for as long as 2.5 hours during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. 97% line-mode efficiency saves energy and reduces BTU heat output. Offers complete power protection in an attractive black tower configuration. Includes 4 battery-supported and surge-protected outlets, plus 4 additional surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure. PowerAlert software available via free download from www.tripplite.com. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in audible alarm and large LCD front panel voltage display indicates line power status, battery power status, battery low/replace status and voltage boost operation. The LCD display includes a dimmer switch and can be rotated for easy viewing in any application. 700VA/420 watt power handling ability supports entry-level PCs, home entertainment systems, network workstations, audio/video components. Offers 3.7 minutes battery runtime with a full load of 700VA/420 watts and 11.4 minutes with a half load of 350VA/210 watts. Supports battery replacement via built-in access panel. $200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).

  • Features:

    • LCD Display with dimmer switch indicates input voltage, battery capacity and a variety of operating conditions. Display is rotatable for easy viewing whether UPS is in vertical or horizontal position
    • OMNI700LCD Digital Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support during blackouts
    • Supports entry level PCs up to 50 minutes or single VCR/DVR components for up to 2.5 hours during blackouts
    • 97% line-mode efficiency saves energy and reduces BTU heat output
    • Regulates brownouts as low as 89 volts back to usable levels without using battery power

  • Specifications:

    • Output Volt Amp Capacity (VA) 700
    • Output Watt Capacity (Watts) 420
    • Nominal Output Voltage(s) Supported 115V; 120V
    • Frequency Compatibility 60 Hz
    • Output Voltage Regulation (Battery Mode) 115V (+/- 5%)
    • Output Receptacles (8) 5-15R
    • UPS Output Receptacles (Surge Suppression Only) 4 UPS outlets, 4 surge-only outlets
    • Hot-Swap PDU options PDUB15 (2U / 8 5-15R outlets)
    • Output AC Waveform (AC Mode) Sine wave
    • Output AC Waveform (Battery Mode) PWM sine wave
    • Rated input current (Maximum Load) 12A
    • Nominal Input Voltage(s) Supported 120V AC
    • UPS Input Connection Type 5-15P
    • UPS Input Cord Length (ft.) 6
    • UPS Input Cord Length (m) 1.8
    • Recommended Electrical Service 15A 120V
    • Input Phase Single-Phase
    • Full Load Runtime (min.) 3.7 min. (420w)
    • Half Load Runtime (min.) 11.4 min. (210w)
    • DC System Voltage (VDC) 12
    • Battery Recharge Rate (Included Batteries) Less than 16 hours from 10% to 90%
    • Internal UPS Replacement Battery Cartridge RBC51
    • Battery Access Battery access door
    • Battery Replacement Description Hot-swappable, user replaceable batteries
    • Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
    • Undervoltage Correction Input voltages between 89 and 104 are boosted by 14%
    • Front Panel LCD Display Backlighted LCD screen indicates input voltage, 5-bar battery charge level, overload, AVR, on battery and replace battery status; LCD screen rotates for rack/tower viewing
    • Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; dimmer switch controls LCD brightness
    • Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
    • Audible Alarm Audible alarm indicates power-failure, low-battery and overload status; alarm can be disabled using PowerAlert software
    • LED Indicators Front panel LCD display
    • UPS AC Suppression Joule Rating 870
    • UPS AC Suppression Response Time Instantaneous
    • EMI / RFI AC Noise Suppression Yes
    • Installation Form Factors Supported with Included Accessories Tower
    • Primary Form Factor Tower
    • UPS Power Module Dimensions (hwd, in.) 11.8 x 3.7 x 7.2
    • UPS Power Module Dimensions (hwd, cm) 30.1 x 9.3 x 18.4
    • UPS Power Module Weight (lbs.) 15.1
    • UPS Power Module Weight (kg) 6.86
    • UPS Shipping Dimensions (hwd / in.) 15.55 x 10.43 x 4.8
    • UPS Shipping Dimensions (hwd / cm) 39.5 x 26.5 x 12.3
    • Shipping Weight (lbs.) 15.85
    • Shipping Weight (kg) 7.2
    • UPS Housing Material ABS
    • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load) 61
    • AC Mode Efficiency Rating (100% Load) 0.97
    • Communications Interface USB (HID enabled)
    • PowerAlert Software Free download from www.tripplite.com
    • Communications Cable User supplies USB cable
    • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
    • Network UPS Tools Compatibility Yes
    • Transfer Time 4 milliseconds (AC to Battery); 3 milliseconds (Battery to AC)
    • Low Voltage Transfer to Battery Power (Setpoint) 89
    • High Voltage Transfer to Battery Power (Setpoint) 139
    • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
    • Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS
    • UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
    • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $200,000 Ultimate Lifetime Insurance

  • Warranty:

    • 3-year limited warranty

  • GTIN:

    0037332182678
