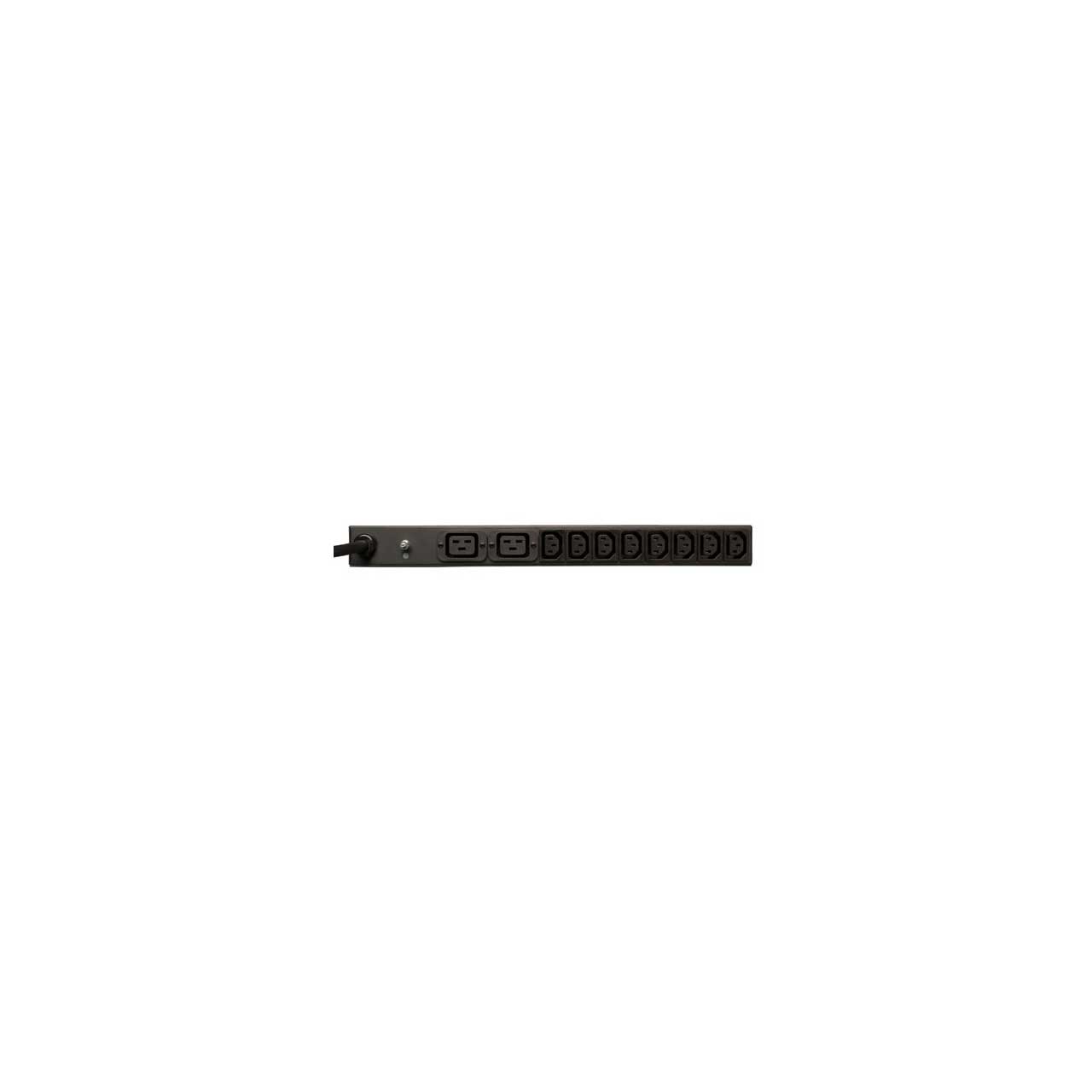

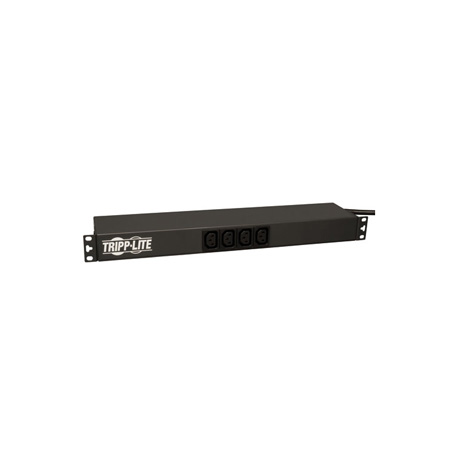

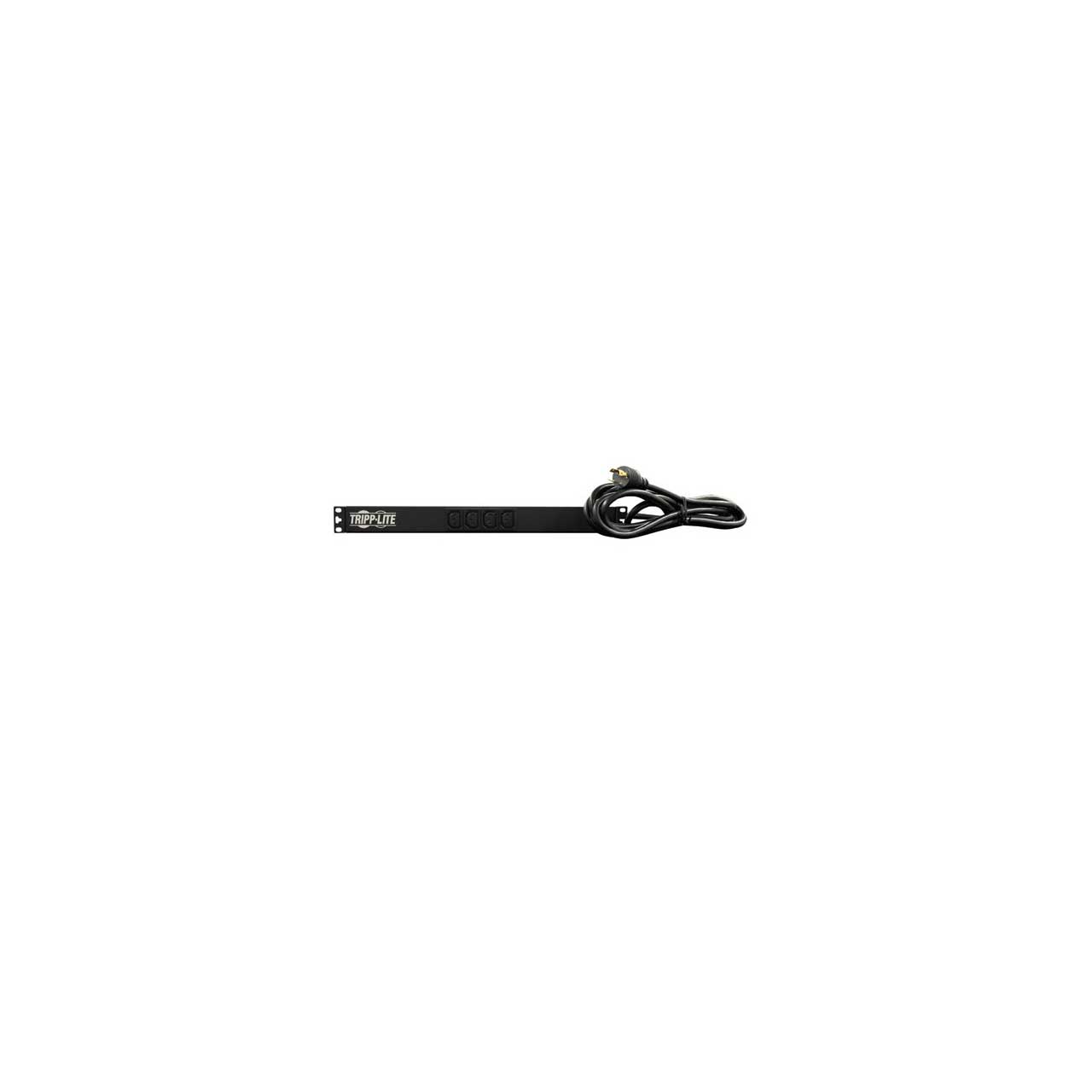

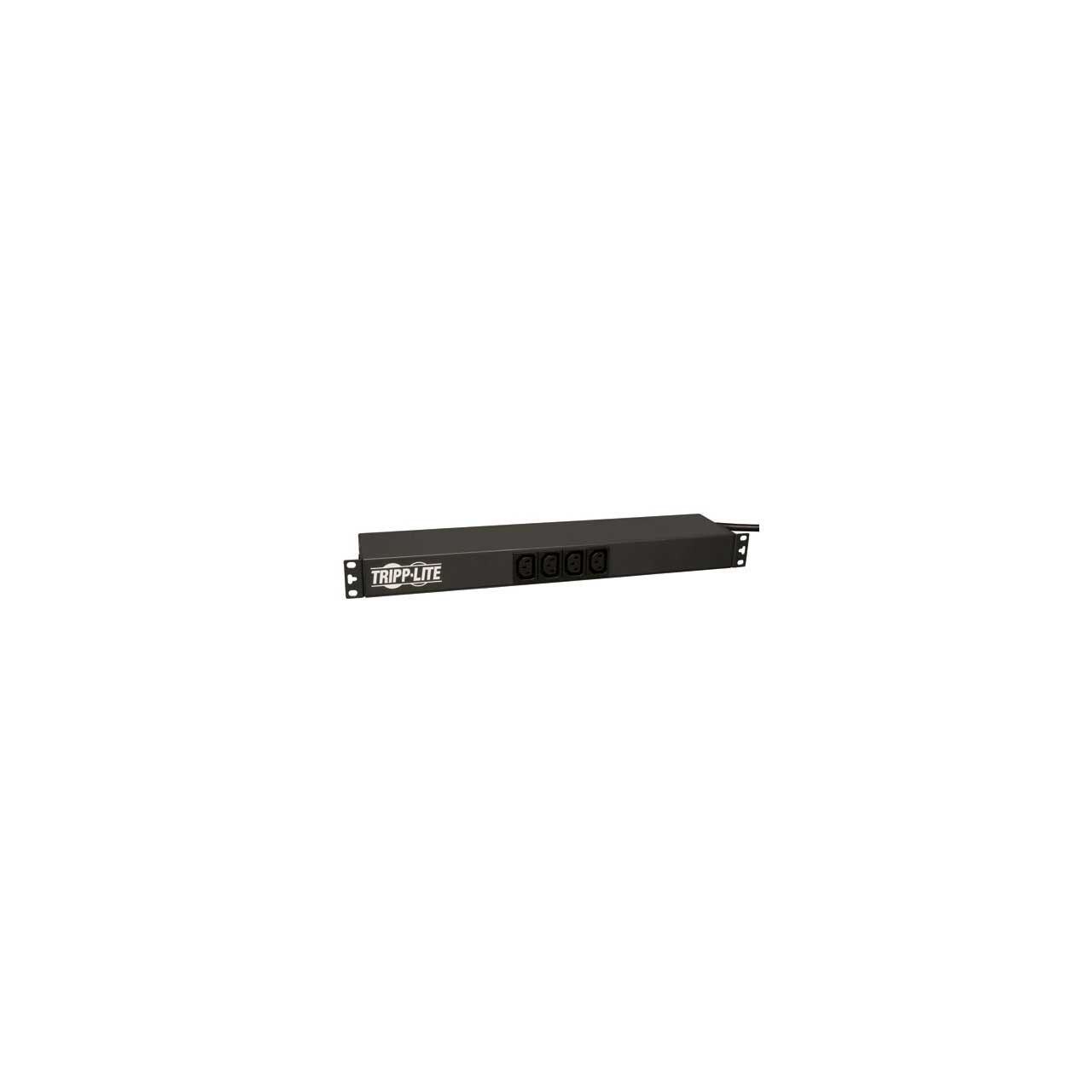

Tripp Lite PDUH20HVL6 3.3/3.8kW Single-Phase Basic PDU 208/240V 20A L6-20P 208/240V Input 15 Foot Cord Rackmount
  • Tripp Lite PDUH20HVL6 3.3/3.8kW Single-Phase Basic PDU 208/240V 20A L6-20P 208/240V Input 15 Foot Cord Rackmount
  • Tripp Lite PDUH20HVL6 3.3/3.8kW Single-Phase Basic PDU 208/240V 20A L6-20P 208/240V Input 15 Foot Cord Rackmount
  • Tripp Lite PDUH20HVL6 3.3/3.8kW Single-Phase Basic PDU 208/240V 20A L6-20P 208/240V Input 15 Foot Cord Rackmount

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite PDUH20HVL6 3.3/3.8kW Single-Phase Basic PDU 208/240V 20A L6-20P 208/240V Input 15 Foot Cord Rackmount

Manufacturer: Tripp Lite

Item #: TRL-PDUH20HVL6   •   MFG #: PDUH20HVL6



List Price:$197.23
Our Price:$145.97

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution for critical IT equipment in wiring closets, server rooms and equipment racks. Supplies continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.


    • Features

      • Reversible housing; 3.75 in. / 9.5cm depth
      • 20A single phase 208/240V Basic Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
      • Attached NEMA L6-20P input with 15 ft. / 4.5m line cord
      • 1U horizontal rackmount format installs in one rack space
      • 14 outlets (2 C19, 12 C13)
      • Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
      • Mounting ears are reversible for front or rear facing rackmount installation
      • Back panel grounding lug

    • Specifications

      • PDU Type: Basic
      • Output Capacity Details: 3.84kW (240V), 3.33kW (208V), 3.2kW (200V) / 20A total capacity (Agency de-rated 16A); 16A max per C19 outlet; 12A max per C13 outlet
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (12) C13; (2) C19
      • Output Nominal Voltage: 200; 208; 240
      • PDU Input Voltage: 200; 208; 240
      • Recommended Electrical Service: 20A 208/240V
      • Maximum Input Amps: 20
      • Maximum Input Amps Details: Agency de-rated to 16A continuous
      • PDU Plug Type: NEMA L6-20P
      • Input Cord Details: Input cable is attached
      • Input Cord Length (ft.): 15
      • Input Cord Length (m): 4.57
      • Input Phase: Single-Phase
      • Minimum Required Rack Depth (inches): 6.8
      • Shipping Dimensions (hwd / in.): 2.25 x 20.5 x 9.5
      • Shipping Weight (lbs.): 5.9
      • Unit Dimensions (hwd / in.): 1.75 x 17.25 x 3.75
      • Unit Weight (lbs.): 3.75
      • Material of Construction: Metal
      • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Outlets Measurement (Center to Center): Distance between front (C13) outlets = 28.75mm; Distance between rear (C19) outlets = 55mm; Distance between rear (C13) outlets = 28.75mm
      • Minimum Required Rack Depth (mm): 173
      • Storage Temperature Range: 5 to 122°F
      • Relative Humidity: 5 to 95% non-condensing
      • Operating Elevation (ft.): 0-10,000
      • TVSS Grounding: Rear grounding lug
      • Certifications: Tested to UL 60950 (USA), CSA (Canada), RoHS Compliant
      • Product Warranty Period (Worldwide): 5-year limited warranty

    • Item Includes

      • PDUH20HVL6 PDU rackmount PDU
      • Owner's manual

    • Warranty

      • 5 Year
