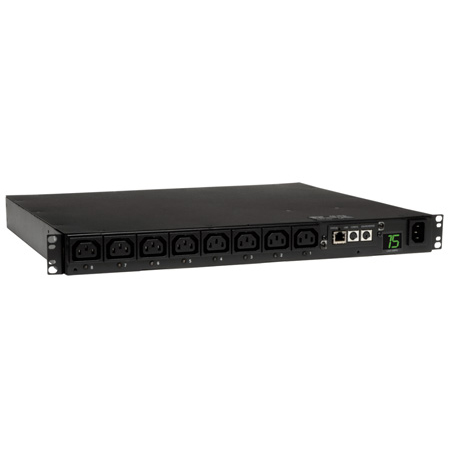

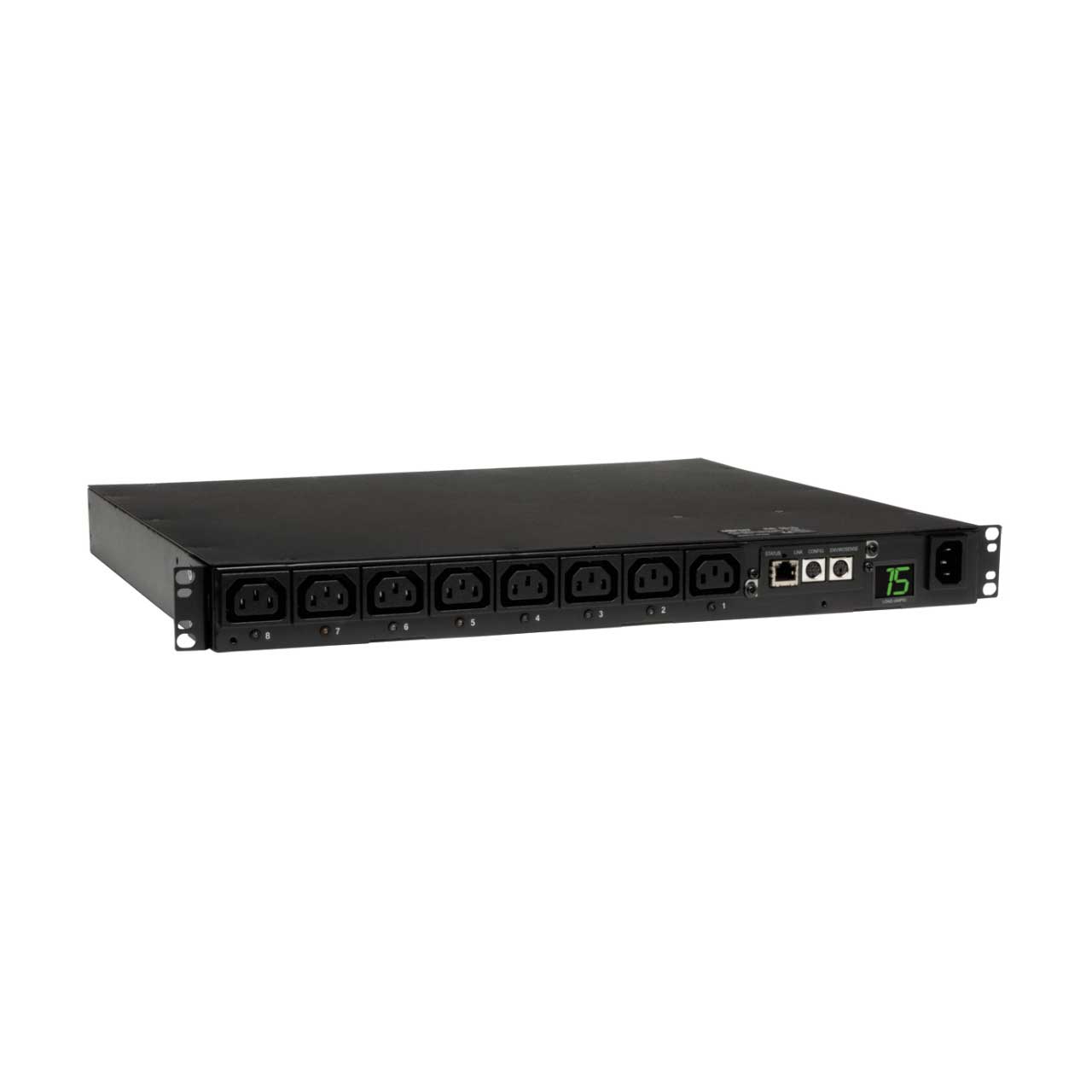

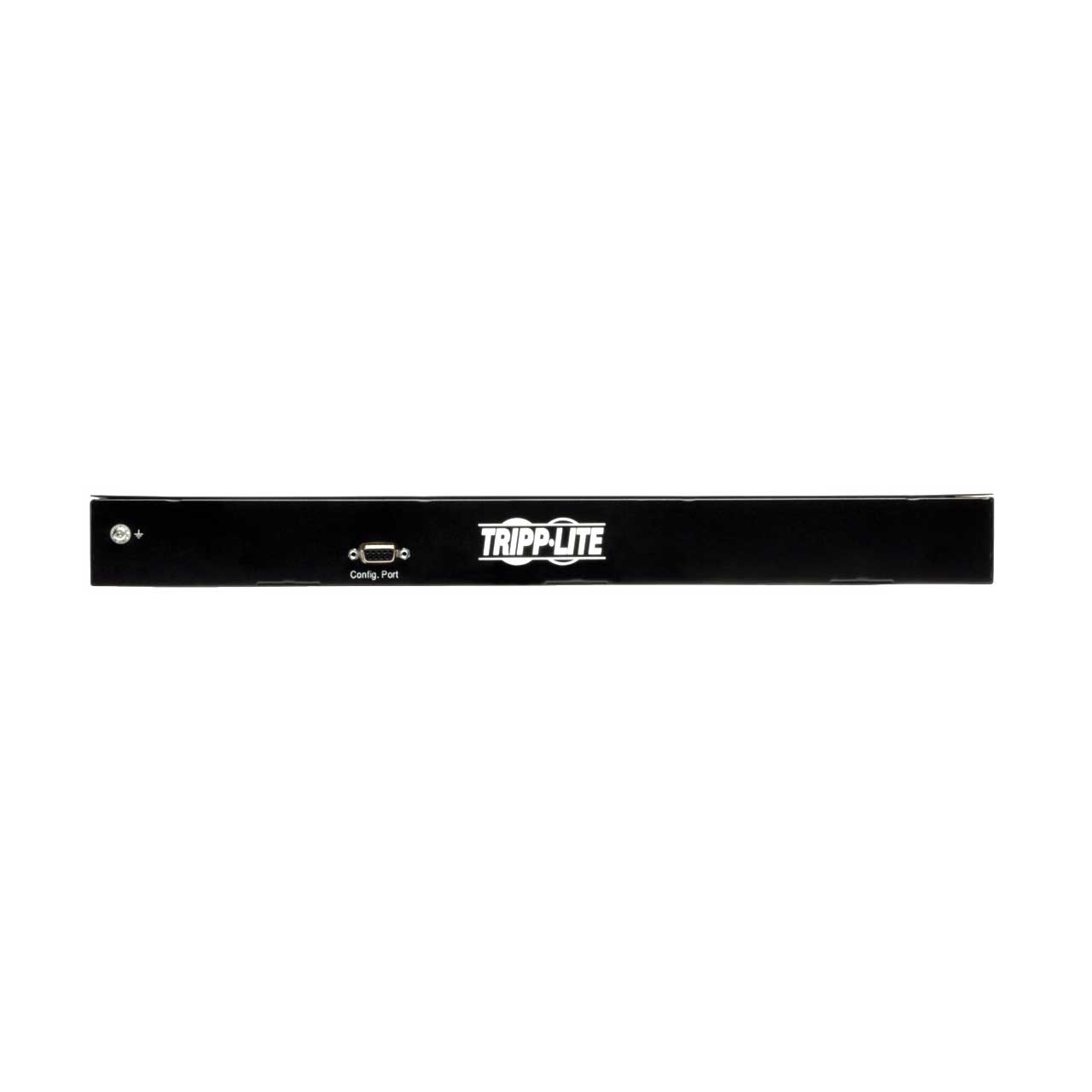

Tripp Lite PDUMH15HVNET PDU Switched 200V - 240V 15A C13 8 Outlet C14 Horizontal 1URM

ITEM #: TRL-PDUMH15HVNET MFG #: PDUMH15HVNET

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$754.42

Our Price:

$494.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PDUMH15HVNET - Overview

    Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

    • Features:

      • 200/208/230/240V Switched Power Distribution Unit / PDU with built-in web/network interface (15A maximum; Agency de-rated to 12A 200/208/240V and 10A at 230V)
      • C14 power inlet accepts a wide variety of worldwide input cord options
      • Includes 6.5 ft. / 2m C14 cable
      • 1U horizontal rackmount form factor
      • 8 switched C13 outlets

    • Specifications:

      • Style Rackmount
      • PDU Type Switched
      • Output Capacity Details 2.5kW (208V), 2.6kW (220V), 2.9kW (240V), 2.4kW (200V), 2.3kW (230V); 15A maximum output at 200/208/220/240V (agency de-rated to 12A continuous) / 10A maximum at 230V
      • Frequency Compatibility 50 / 60 Hz
      • Output Receptacles (8) C13
      • Output Nominal Voltage 200-240V nominal, single phase
      • Overload Protection n/a
      • Outlet Type IEC-C13
      • Customized Load Management Receptacles 8 individually switched output receptacles
      • PDU Input Voltage 200; 208; 220; 230; 240
      • Recommended Electrical Service 10A 230V; 12A 208/240V
      • Maximum Input Amps 15
      • Maximum Input Amps Details Agency de-rated to 12A at 200, 208, 220 & 240V; Agency de-rated to 10A at 230V
      • PDU Plug Type IEC-320 C14
      • Input Cord Length (ft.) 6.5
      • Input Cord Length (m) 2
      • Input Phase Single-Phase
      • Front Panel LCD Display Digital display reports total PDU output current in amps
      • Front Panel LEDs 8 LEDs display power on-off status for each output receptacle
      • Switches n/a
      • Shipping Dimensions (hwd / in.) 5.3 x 20.7 x 23.2
      • Shipping Dimensions (hwd / cm) 13.5 x 52.6 x 37.6
      • Shipping Weight (lbs.) 13.5
      • Shipping Weight (kg) 6.1
      • Unit Dimensions (hwd / in.) 1.75 x 17.3 x 14.8
      • Unit Dimensions (hwd / cm) 2.87 x 43.9 x 37.6
      • Unit Weight (lbs.) 9
      • Unit Weight (kg) 4.1
      • Material of Construction Metal

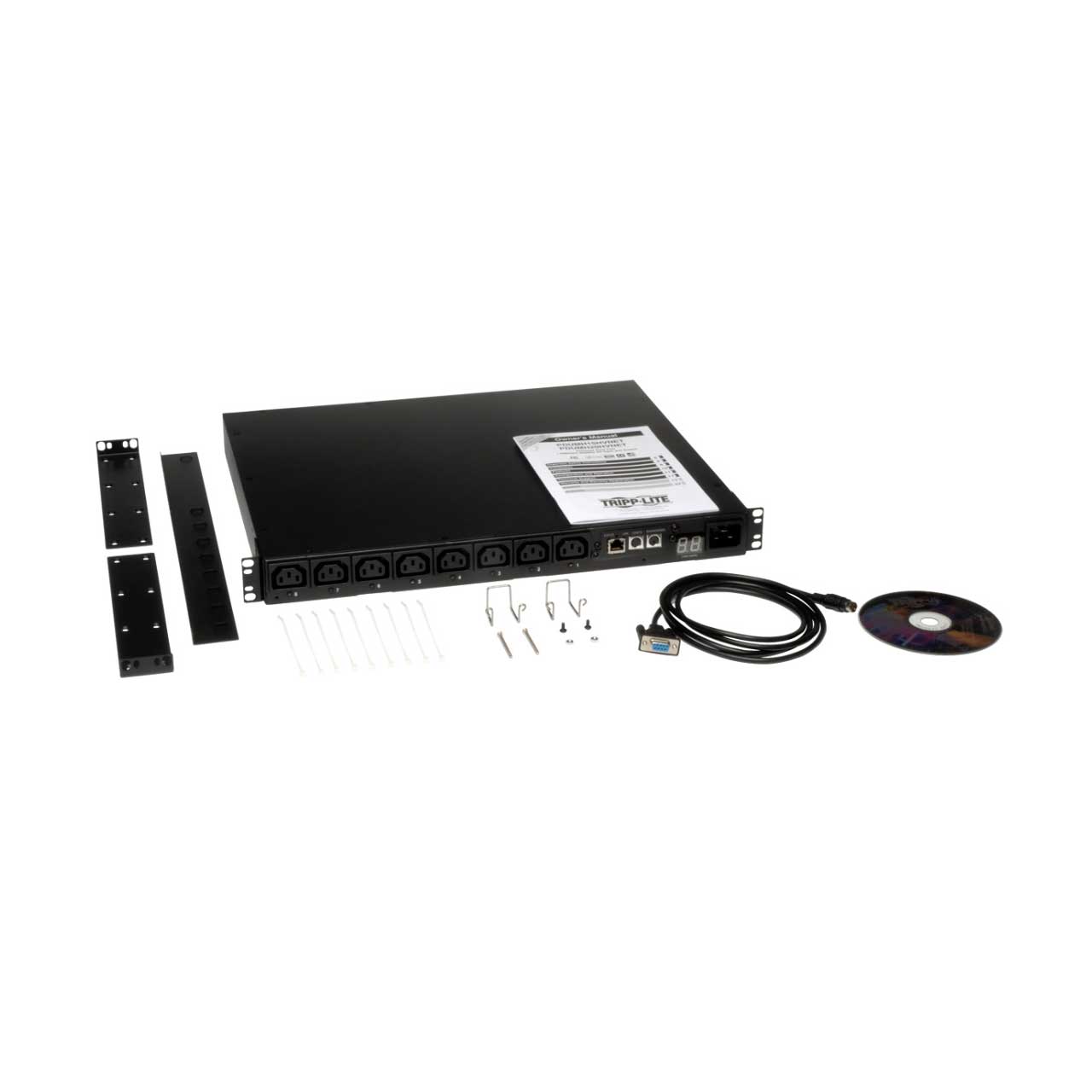

      • Form Factors Supported 1U rackmount. Includes mounting accessories for 2-4 post racks
      • PDU Form Factor Horizontal (1U, 2U, etc)
      • Storage Temperature Range 5 to 122F (-15 to 50C)
      • Relative Humidity 5-95% non-condensing
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000
      • SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually
      • TVSS Grounding Back panel grounding lug
      • Certifications Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950), RoHS compliant

    • Warranty:

      • 2-year limited warranty

    • GTIN:

      0037332139276
