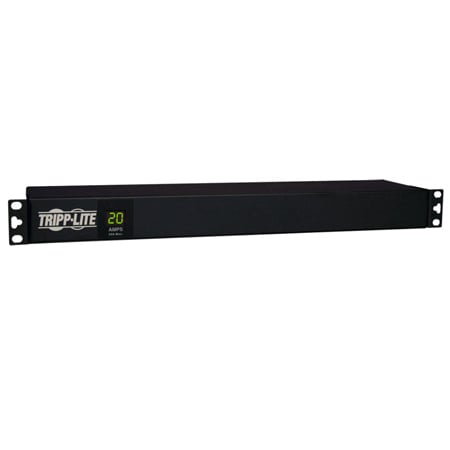

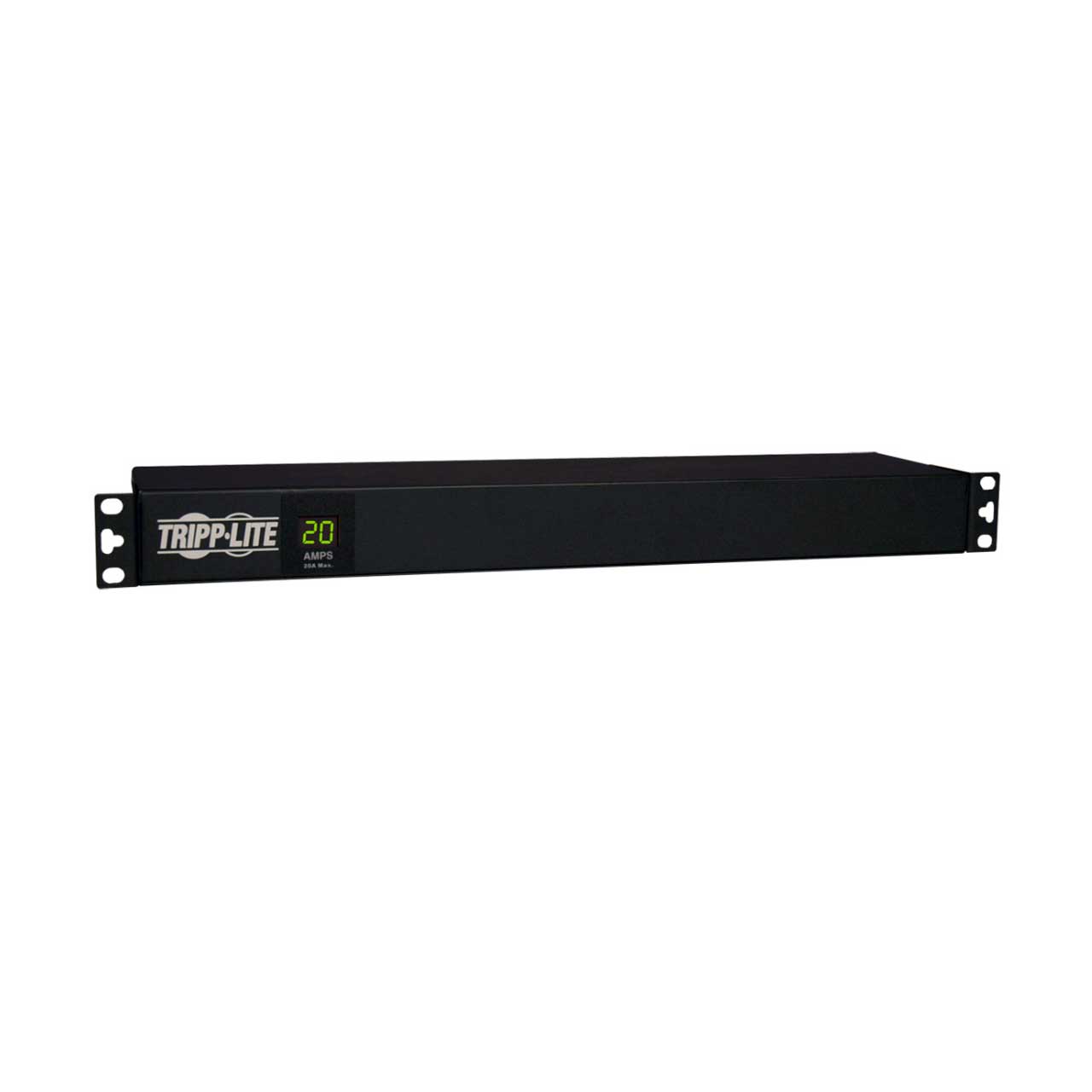

Tripp Lite PDUMH20 PDU Metered 120V 20A 5-15/20R 12 Outlet L5-20P Horizontal 1URM

ITEM #: TRL-PDUMH20 MFG #: PDUMH20

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$260.00

Our Price:

$165.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PDUMH20 - Overview

    Tripp Lite PDUMH20 Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

    • Features:

      • 1U horizontal rackmount form factor
      • 16 switched NEMA 5-15R outlet (8 front / 8 rear)

    • Specifications:

      • Input
      • PDU Input Voltage: 100; 120; 127
      • Recommended Electrical Service: 20A 120V
      • Maximum Input Amps: 20
      • Maximum Input Amps Details: Agency de-rated to 16A continuous
      • PDU Plug Type: NEMA 5-20P; NEMA L5-20P
      • Input Phase: Single-Phase
      • Input Cord Length (ft.): 15

        Output
      • Output Capacity Details: 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
      • Frequency Compatibility: 50 / 60 Hz

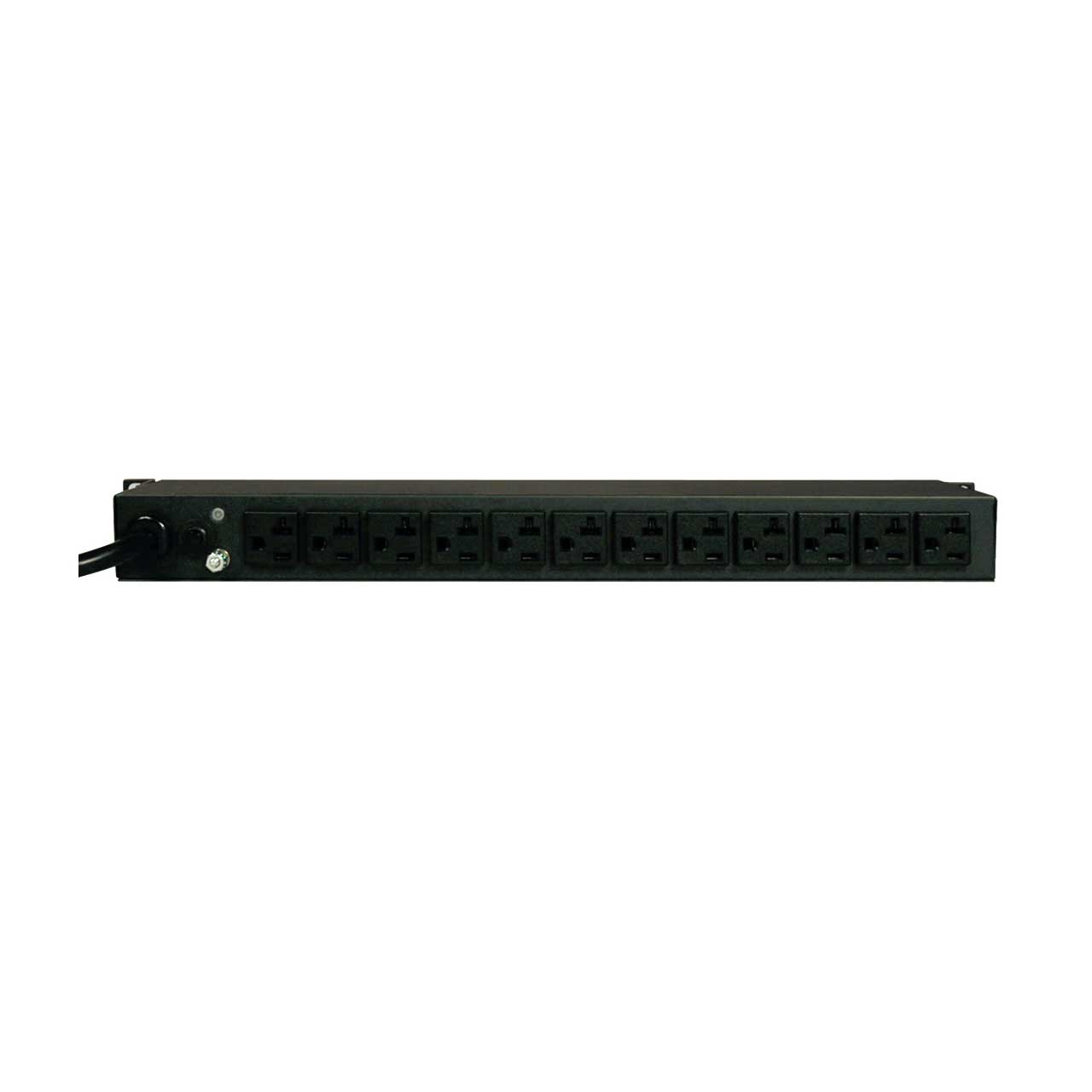

      • Output Receptacles: (12) 5-15/20R
      • Output Nominal Voltage: 100; 120; 127
      • Overload Protection: 20A circuit breaker

        User Interface, Alerts & Controls
      • Front Panel LCD Display: Digital display reports total PDU output current in amps
      • Switches: n/a

        Physical
      • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
      • Material of Construction: Metal
      • Minimum Required Rack Depth (inches): 9.5
      • Outlets Measurement (Center to Center): 30.20mm
      • PDU Form Factor: Horizontal (1U)
      • Shipping Dimensions (hwd / in.): 9.20 x 2.25 x 20.40
      • Shipping Weight (lbs.): 6.40
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4.5
      • Unit Weight (lbs.): 3

        Environmental
      • Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
      • Relative Humidity: 5-95% non-condensing
      • Operating Elevation (ft.): 0-10,000
      • Operating Elevation (m): 0-3000

        Special Features
      • TVSS Grounding: Back panel grounding lug

        Standards & Compliance
      • Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant

    • Item Includes:

      • 1x PDUMH20 Metered rackmount PDU
      • 1x L5-20R to 5-20P plug adapter
      • 1x Owner's manual with warranty information

    • GTIN:

      0037332142504
