Tripp Lite PDUMH20HVATNET PDU Switched ATS 200-240V 16/20A 8 C13 2 C19 C20 Horizontal 1URM

Manufacturer: Tripp Lite

Item #: TRL-PDUMH20HVATN   •   MFG #: PDUMH20HVATNET



List Price:$1,105.20
Our Price:$706.10

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!





    Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.


    • Features

      • 120V 20A Power Distribution Unit (PDU) with Auto-Transfer Switch (ATS) and Switched outlets (Agency de-rated to 16A
      • ATS features provide redundant power for critical network equipment with a single input power cord
      • Switched PDU features enable programmable or real-time control of individual outlets via built-in network interface
      • Visual meter reports output power consumption in amps
      • 16 switched NEMA 5-15/20R outlets; 1U horizontal rackmount form factor; 14.5 in. / 36.8 cm depth

    • Specifications

      • Style Rackmount
      • PDU Type Auto-Transfer Switch; Switched
      • Output Capacity Details 3.33kW (208V), 3.52kW (220V), 3.68kW (230V), 3.84kW (240V), 3.2kW (200V); 20A maximum (Agency de-rated to 16A continuous)
      • Frequency Compatibility 50 / 60 Hz

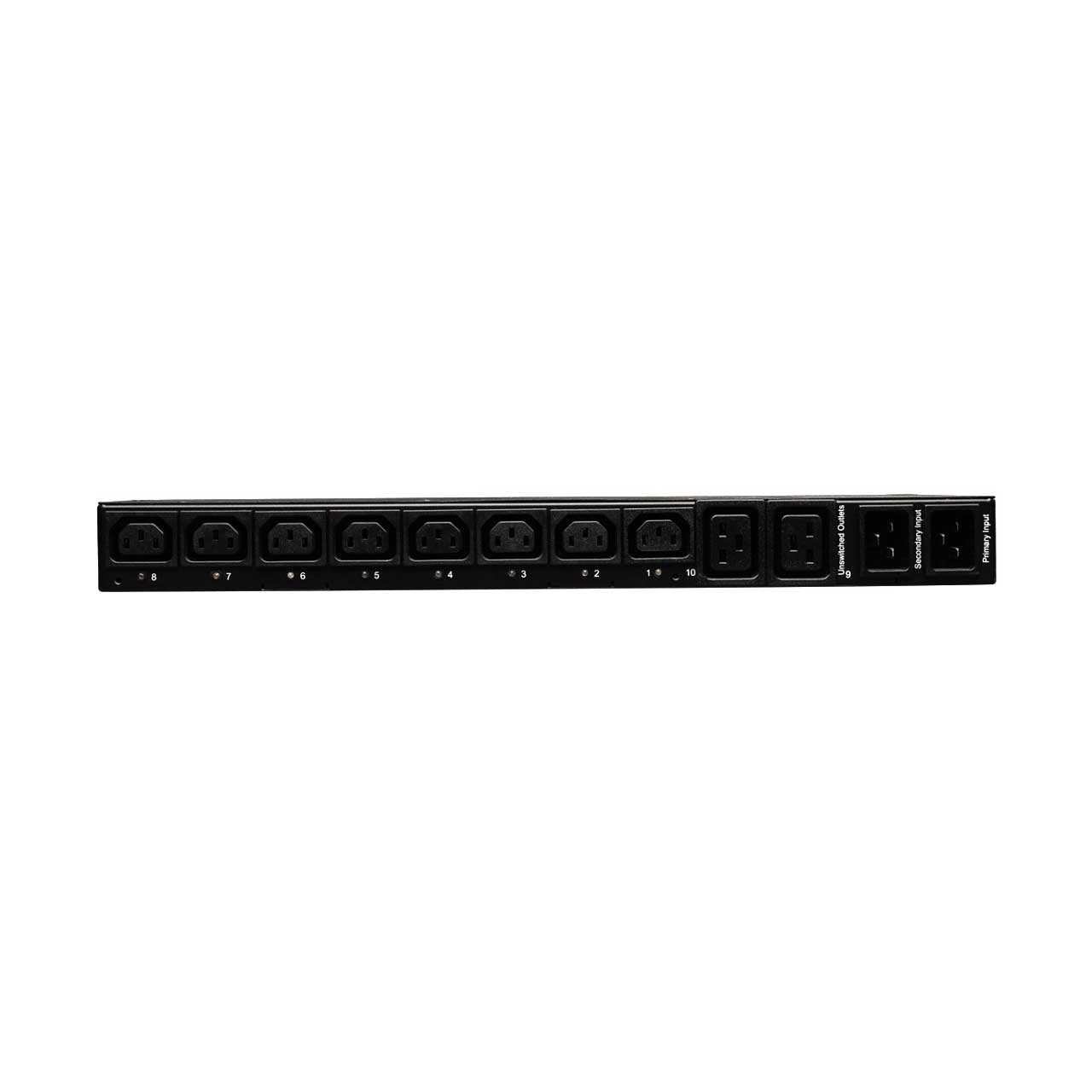

      • Output Receptacles (8) C13; (2) C19
      • Output Nominal Voltage 200-240V nominal, single phase
      • Overload Protection n/a
      • Outlet Type IEC-C13, IEC-C19
      • Customized Load Management Receptacles 8 individually switched C13 output receptacles
      • PDU Input Voltage 200; 208; 220; 230; 240
      • Recommended Electrical Service 20A 208/240V; 16A 230V
      • Maximum Input Amps 20
      • Maximum Input Amps Details Agency de-rated to 16A continuous
      • Input Connection Type Two labelled C20 inlets support Primary and Secondary input connections - two 12 ft. / 3.7m C19 to C20 power cables included
      • PDU Plug Type IEC-320 C20
      • Input Cord Length (ft.) 12
      • Input Cord Length (m) 3.6
      • Input Phase Single-Phase

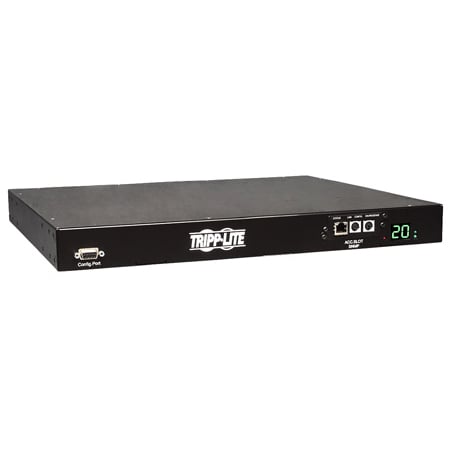

      • Front Panel LCD Display Digital display reports total PDU output current in amps
      • Front Panel LEDs 8 LEDs display power on-off status for each C13 output receptacle, plus 2 additional LEDs to indicate input power status for primary and secondary inputs
      • Switches Toggle switch near digital display enables the setting of "HI" for 220, 230 or 240V nominal applications or "LO" for 200 or 208V applications
      • Shipping Dimensions (hwd / in.) 5.3 x 23.6 x 21
      • Shipping Dimensions (hwd / cm) 13.5 x 59.9 x 53.3
      • Shipping Weight (lbs.) 19.98
      • Shipping Weight (kg) 9.1
      • Unit Dimensions (hwd / in.) 1.72 x 17.3 x 14.8
      • Unit Dimensions (hwd / cm) 4.4 x 43.9 x 37.6
      • Unit Weight (lbs.) 10.3
      • Unit Weight (kg) 4.7
      • Material of Construction Metal
      • Form Factors Supported 1U rackmount
      • PDU Form Factor Horizontal (1U, 2U, etc)
      • Storage Temperature Range 5 to 122F (-15 to 50C)
      • Relative Humidity 5-95% (non-condensing)
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000
      • SNMP Compatibility Yes, via pre-installled SNMPWEBCARD. Provides remote monitoring, outlet control, and automatic power management configurations.
      • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMH20HVATNTAA
      • Certifications Tested to UL 60950 (USA, Canada), CE (Europe), Class A (Emissions), NOM (Mexico), RoHS Complaint
      • Product Warranty Period (Worldwide) 2-year limited warranty
