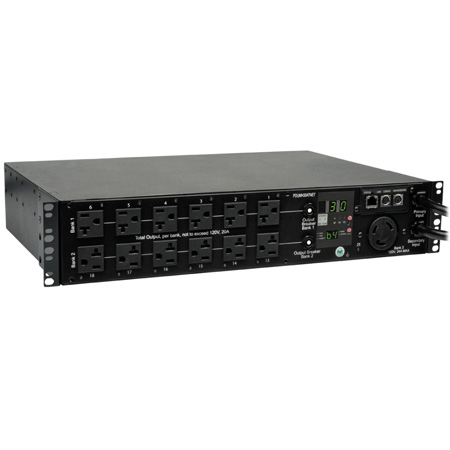

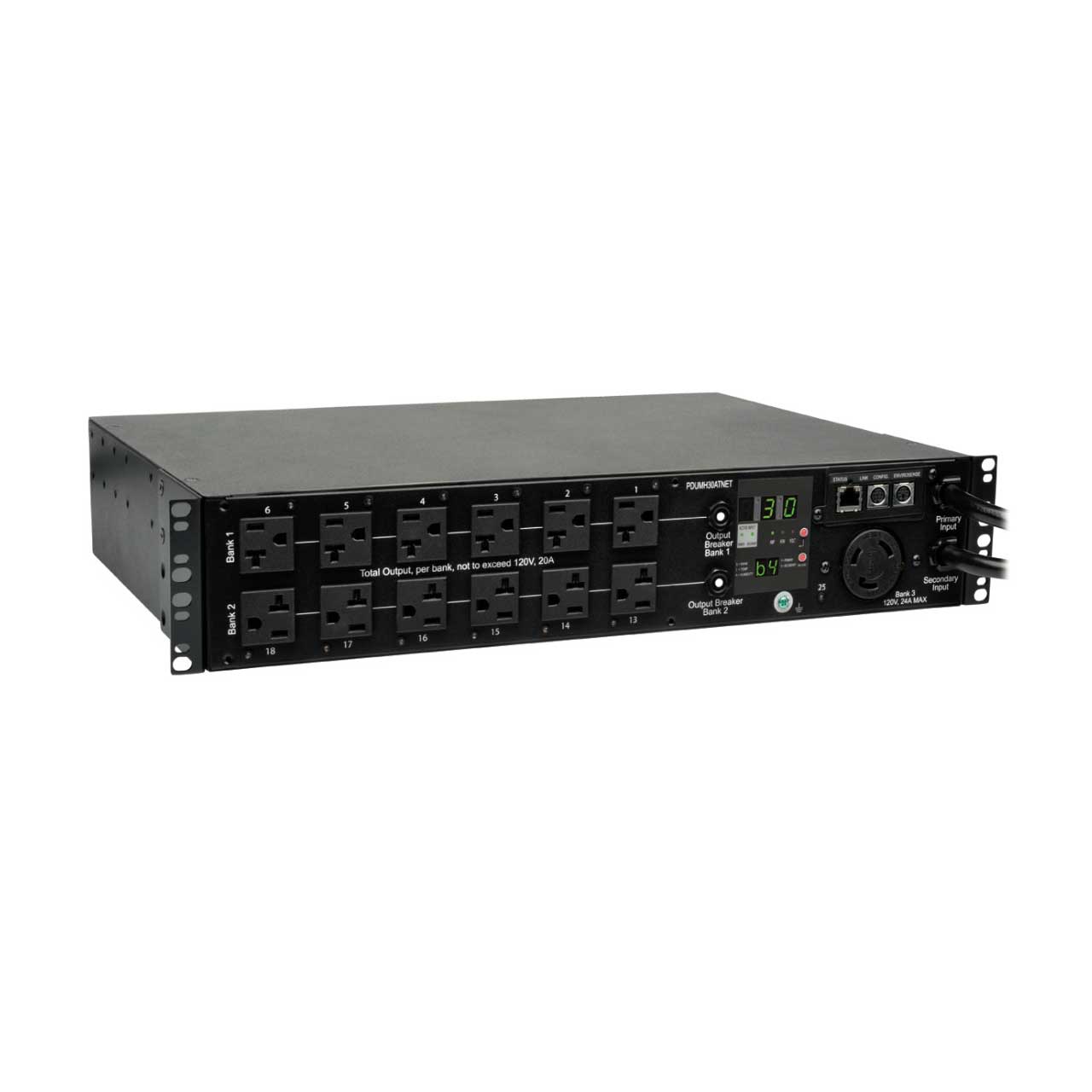

Tripp Lite PDUMH30ATNET PDU Switched ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM

Manufacturer: Tripp Lite

Item #: TRL-PDUMH30ATNET   •   MFG #: PDUMH30ATNET



List Price:$1,380.60
Our Price:$882.05

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.


    • Features

      • 208V 30A Automatic Transfer Switch (ATS) / Metered PDU (Agency de-rated to 24A continuous)
      • Provides a redundant power option for critical networking equipment with a single input power cord
      • Digital display with selection button reports voltage, amperage and kilowatt loading information in four output segments (Segment 1: 8 C13 & 1 C19 outlets / Segment 2: 8 C13 & 1 C19 outlets / Segment 3: L6-30R outlet / Segment 4: total output of all outlets combined)
      • 19 built-in outlets (16 C13, 2 C19, 1 L6-30R)
      • Set of two 10 ft. / 3m NEMA L6-30P input cables support connection to separate PRIMARY and SECONDARY power sources

    • Specifications

      • Style Rackmount
      • PDU Type Auto-Transfer Switch; Switched
      • Output Capacity Details 2.88kW (120V), 3.05kW (127V), 2.4kW (100V); 30A maximum (agency de-rated to 24A continuous)
      • Frequency Compatibility 60 Hz

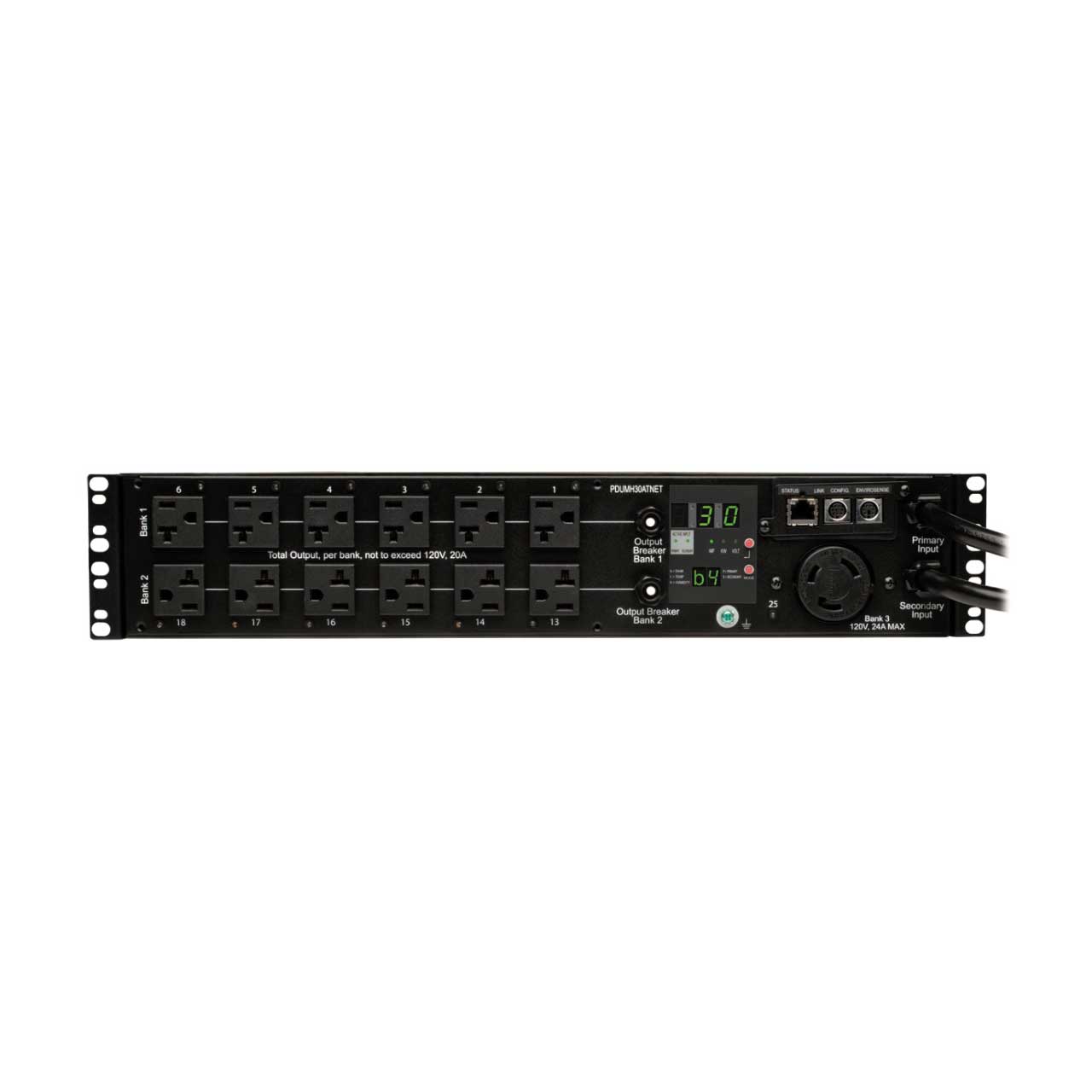

      • Output Receptacles (24) 5-15/20R; (1) L5-30R
      • Output Nominal Voltage 100-127V nominal, single phase
      • Overload Protection Two 20A output breakers protect 12 5-15/20R outlets each
      • Outlet Type 5-15R, L5-30R
      • Customized Load Management Receptacles 25 individually controllable outlets
      • PDU Input Voltage 100; 120; 127
      • Recommended Electrical Service 30A 120V
      • Maximum Input Amps 30
      • Maximum Input Amps Details Agency de-rated to 24A continuous
      • Input Connection Type Two labelled L5-30P inputs support Primary and Secondary input connections
      • PDU Plug Type NEMA L5-30P
      • Input Cord Length (ft.) 10
      • Input Cord Length (m) 3
      • Input Phase Single-Phase

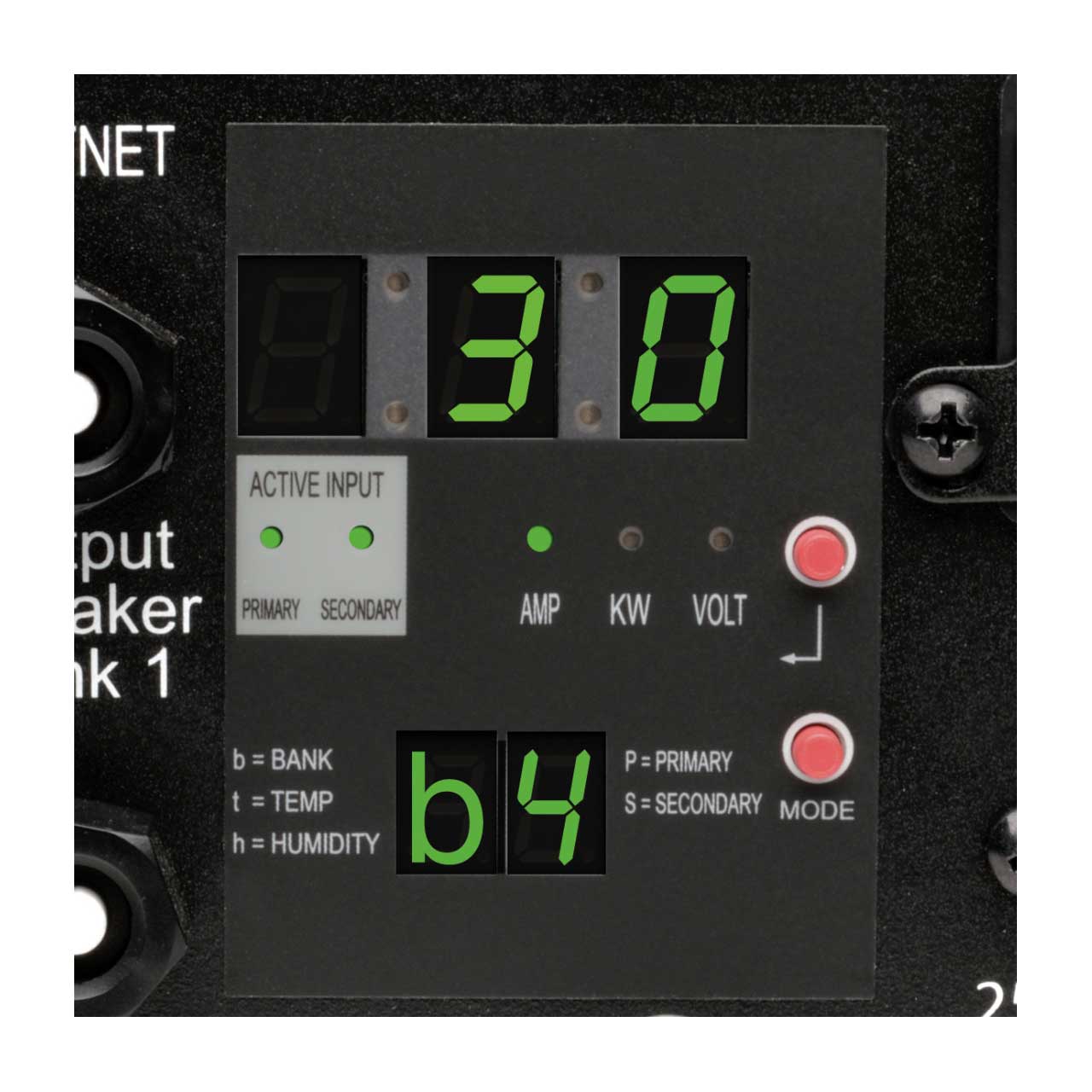

      • Front Panel LCD Display Digital display reports output amps in 4 separately metered loading segments (BANK 1: 5-20R outlets #1-12; BANK 2: 5-20R outlets #13-24; BANK 3: L5-30R outlet #25; BANK 4: Total PDU output), whole-PDU output kW load level, input voltage on primary and secondary lines and *temperature / *humidity data (*with optional ENVIROSENSE sensor)
      • Front Panel LEDs 25 LEDs display power on/off status for each outlet, plus 2 LEDs for power status on Primary and Secondary input connection and 3 additional LEDs to label the displayed numeric value as Amps, kW or Voltage
      • Switches ENTER and MODE switches toggle the digital display to show output amps (Banks 1-4), total kW output, input voltage (primary, secondary) and *temperature / *humidity data (*with optional ENVIROSENSE sensor)
      • Shipping Dimensions (hwd / in.) 8.1 x 20.5 x 17.1
      • Shipping Dimensions (hwd / cm) 20.6 x 52.1 x 43.4
      • Shipping Weight (lbs.) 19.3
      • Shipping Weight (kg) 8.7
      • Unit Dimensions (hwd / in.) 3.4 x 17.3 x 11.9
      • Unit Dimensions (hwd / cm) 8.6 x 43.9 x 43.9
      • Unit Weight (lbs.) 15.3
      • Unit Weight (kg) 6.9
      • Material of Construction Metal
      • Form Factors Supported 2U rackmount
      • PDU Form Factor Horizontal (1U, 2U, etc)
      • Storage Temperature Range 5 to 122F (-15C to 50C)
      • Relative Humidity 5 to 95% (non-condensing)
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000
      • SNMP Compatibility Yes, via pre-installled network interface. Provides remote monitoring, outlet control, and automatic power management configurations.
      • TVSS Grounding Grounding lug
      • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMH30ATNETAA
      • Certifications Tested to UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS Complaint
      • Product Warranty Period (Worldwide) 2-year limited warranty
