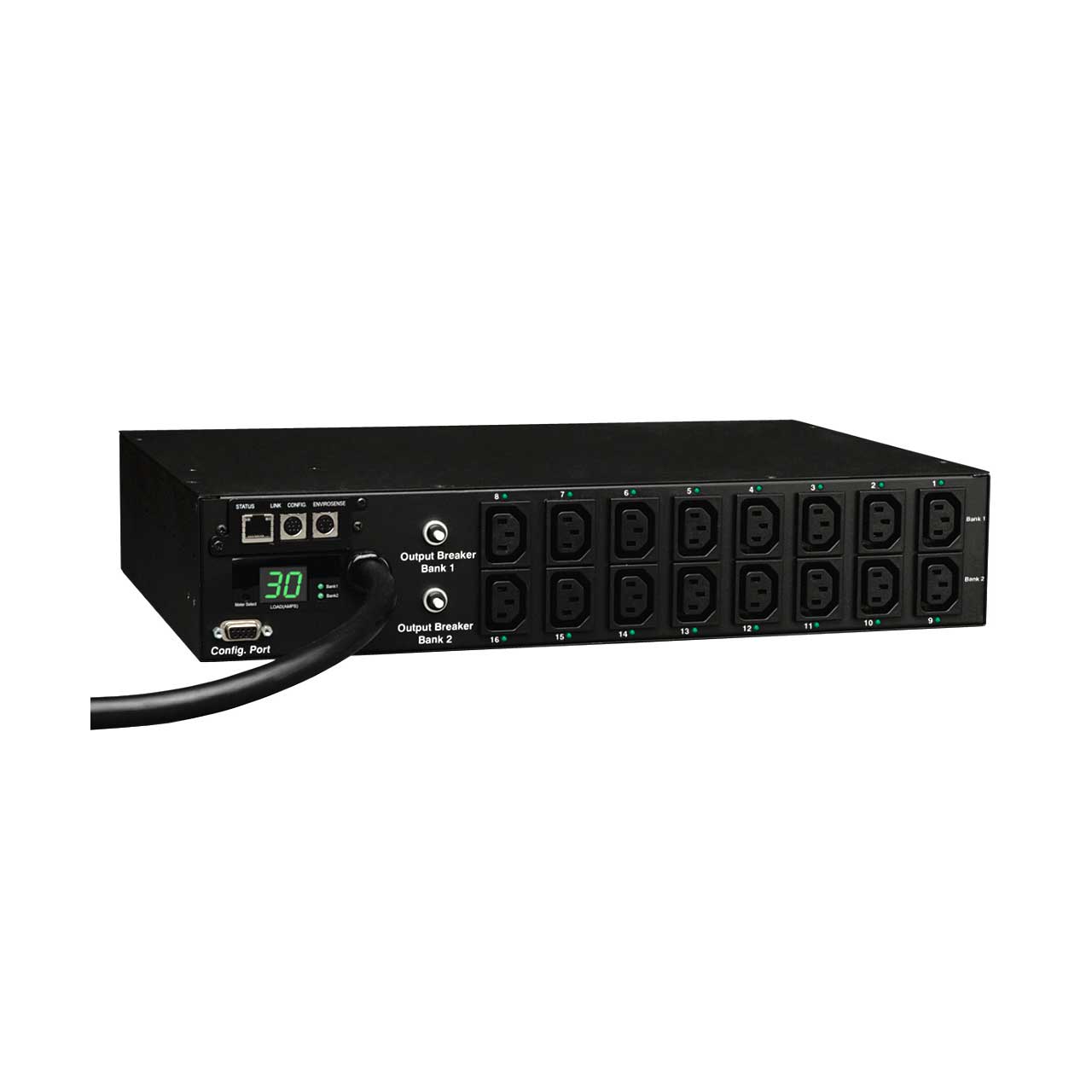

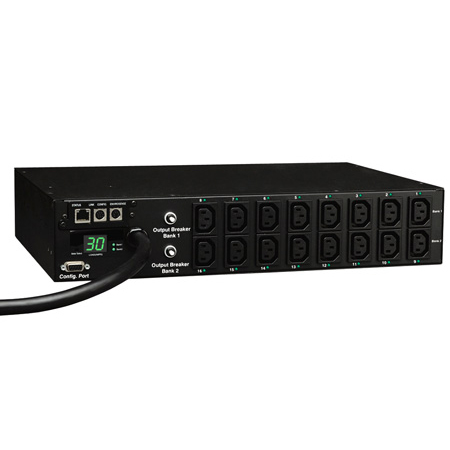

Tripp Lite PDUMH30HVNET PDU Switched 208V-240V 30A C13 16 Outlet L6-30P Horizontal 2URM

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Tripp Lite PDUMH30HVNET PDU Switched 208V-240V 30A C13 16 Outlet L6-30P Horizontal 2URM

    Manufacturer: Tripp Lite

    Item #: TRL-PDUMH30HVNET   •   MFG #: PDUMH30HVNET



    List Price:$1,040.40
    Our Price:$664.70

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.


      • Specifications

        • Style Rackmount
        • PDU Type Switched
        • Output Capacity Details 5kW (208V), 5.8kW (240V), 4.8kW (200V); 30A maximum (agency de-rated to 24A continuous)
        • Frequency Compatibility 50 / 60 Hz
        • Output Receptacles (16) C13
        • Output Nominal Voltage 200-240V nominal, single phase
        • Overload Protection 2 15A breakers protect 8 outlets each
        • Outlet Type IEC-C13
        • Customized Load Management Receptacles Each outlet is individually controllable via remote interface
        • PDU Input Voltage 200; 208; 240
        • Recommended Electrical Service 30A 208/240V
        • Maximum Input Amps 30
        • Maximum Input Amps Details Agency de-rated to 24A continuous
        • PDU Plug Type NEMA L6-30P
        • Input Cord Length (ft.) 12
        • Input Cord Length (m) 3.6
        • Input Phase Single-Phase
        • Front Panel LCD Display Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-8; BANK 2: Outlets #9-16; BANK 3: All outlets combined)
        • Front Panel LEDs 16 power availability LEDs confirm power off/on status for each built-in outlet; Two additional LEDs identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1&2 combined)
        • Switches Pushbutton near the digital current meter advances the display of output current for Bank 1, Bank 2 and Banks 1&2 combined
        • Shipping Dimensions (hwd / in.) 8 x 20.5 x 17
        • Shipping Dimensions (hwd / cm) 20.3 x 113 x 80.6
        • Shipping Weight (lbs.) 17.1
        • Shipping Weight (kg) 7.8
        • Unit Dimensions (hwd / in.) 3.5 x 17.5 x 12.5
        • Unit Dimensions (hwd / cm) 8.9 x 44.5 x 31.75
        • Unit Weight (lbs.) 13.8
        • Unit Weight (kg) 6.3
        • Material of Construction Metal
        • Form Factors Supported 2U rackmount. Includes mounting accessories for 4 post installation, requires optional 2POSTRMKITWM for 2 post rackmount installation)
        • PDU Form Factor Horizontal (1U, 2U, etc)
        • Storage Temperature Range 5 to 122F (-15 to 50C)
        • Relative Humidity 5-95% non-condensing
        • Operating Elevation (ft.) 0-10,000
        • Operating Elevation (m) 0-3000
        • SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually
        • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMH30HVNETAA
        • Certifications Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant
        • Product Warranty Period (Worldwide) 2-year limited warranty
