Tripp Lite PDUMNH20HVAT 3.3/3.8kW Single-Phase 208/240V ATS/Monitored PDU L6-20R Outlet 2 L6-20P Inputs 1U Rackmount

ITEM #: TRL-PDUMNH20HVAT MFG #: PDUMNH20HVAT

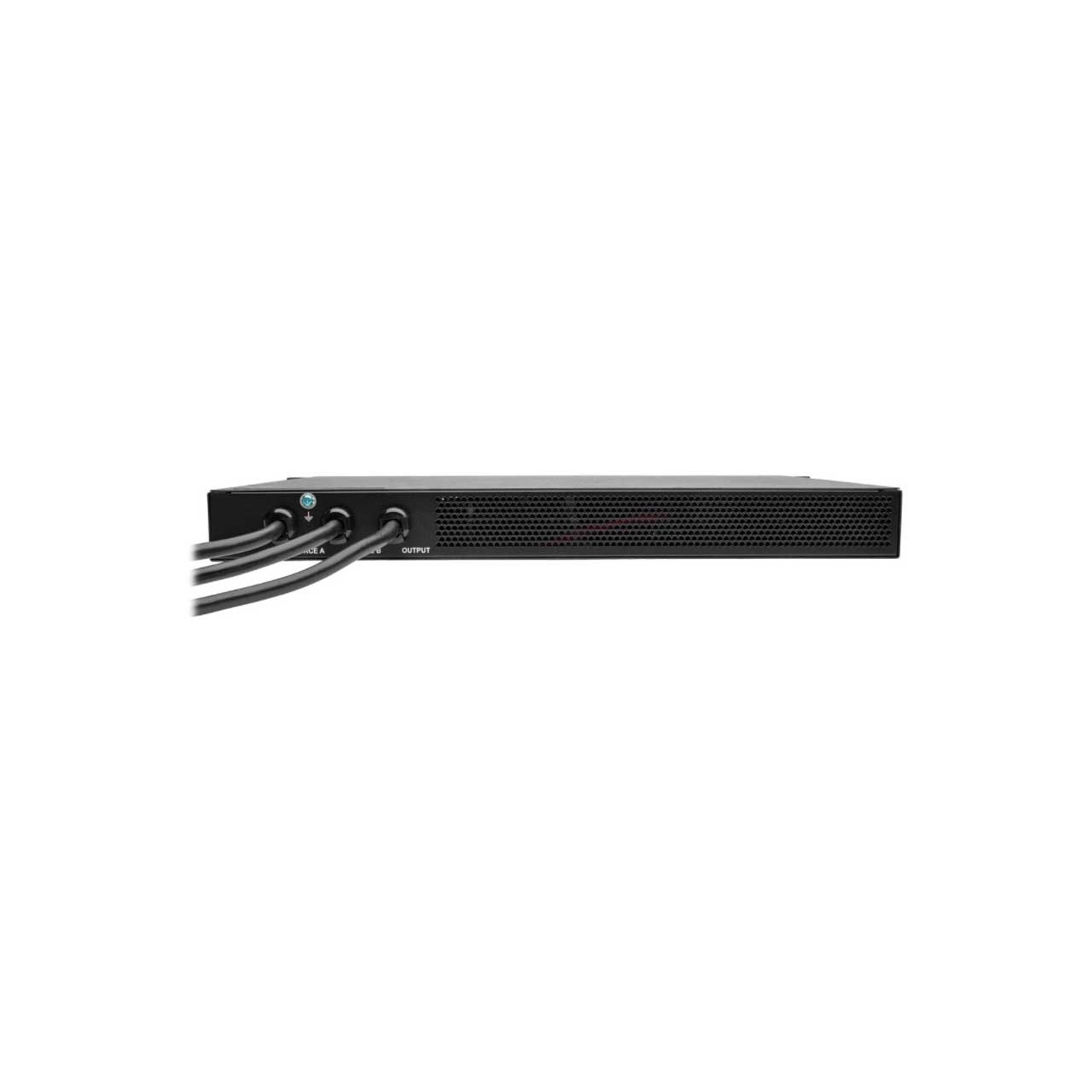

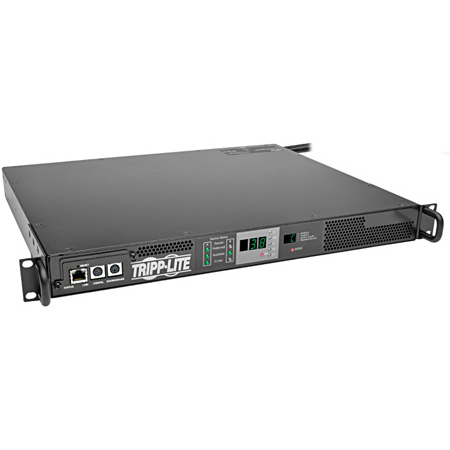

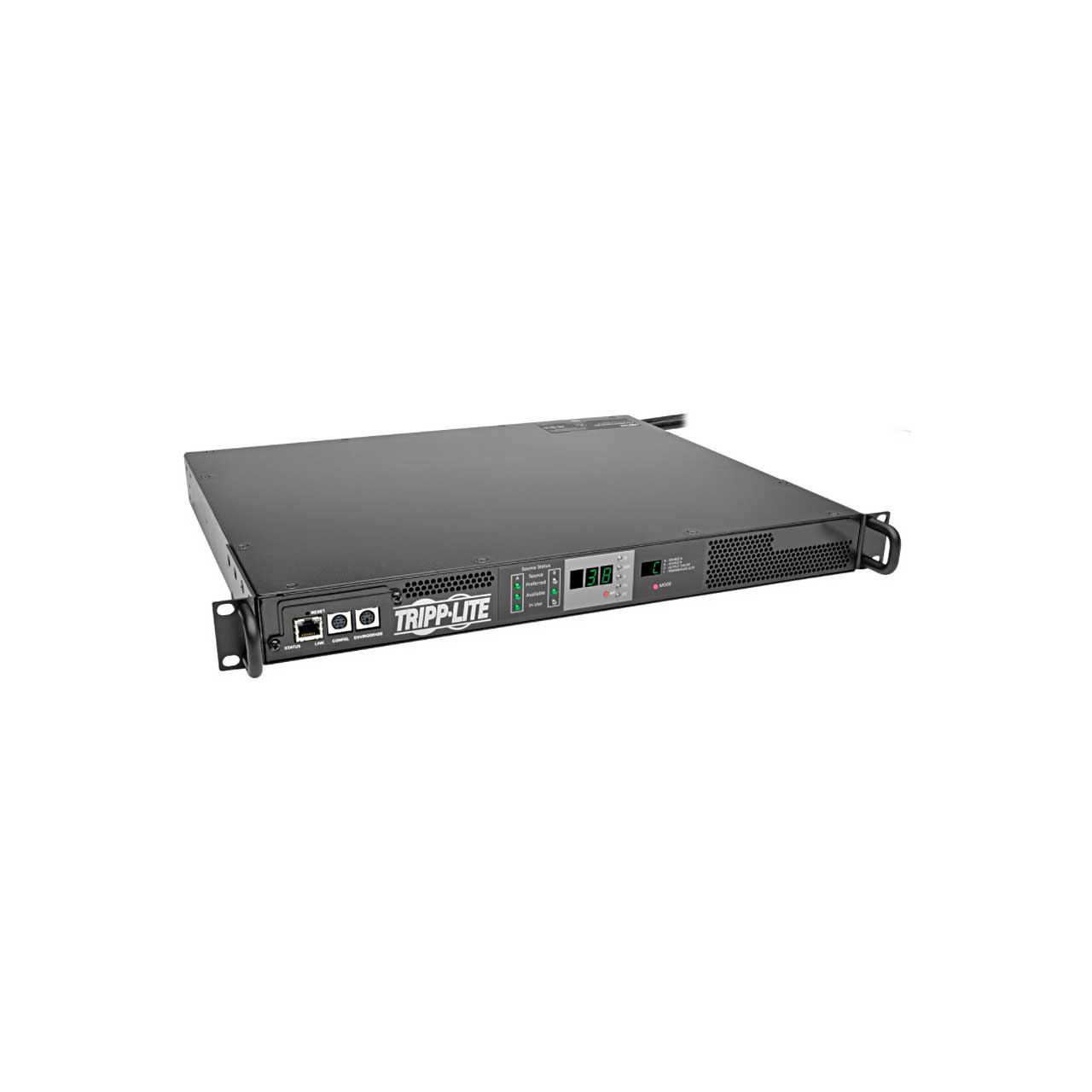

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,377.80

Our Price:

$891.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PDUMNH20HVAT - Overview

    The PDUMNH20HVAT 3.3/3.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-20R outlet—perfect for connecting a single device or a 0U 208/240V PDU with an L6-20P plug. Dual 10-foot input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

    Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy (+/- 1 percent). Tiered access privileges allow both an administrator and a guest to log in. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).

    • Features:

      • Primary and Secondary Inputs for Power Redundancy
      • Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations

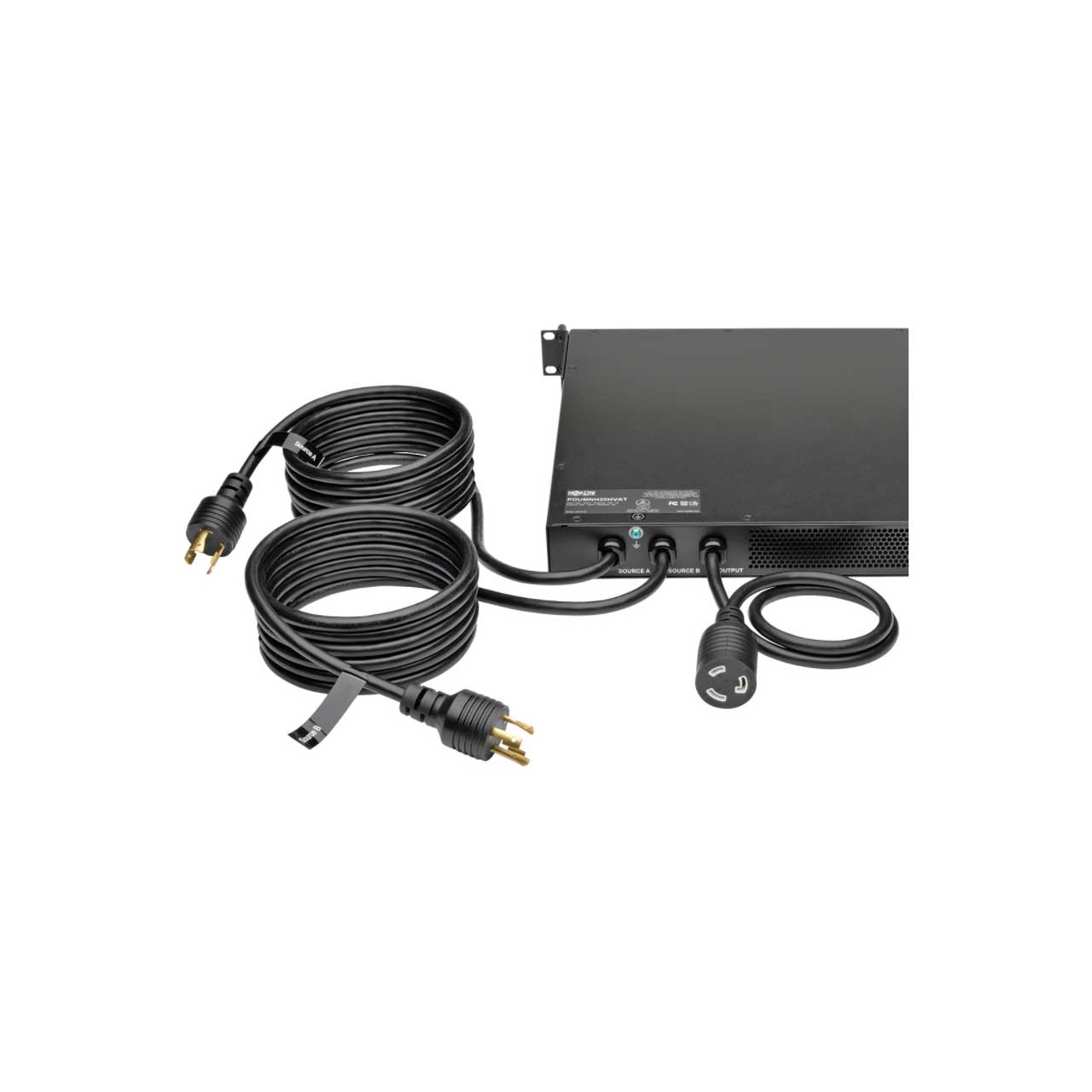

      • Dual 10 ft. input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources
      • Fault-tolerant, hot-swappable UPS protection when used with single UPS; fully redundant UPS protection when each cord is connected to separate UPS systems Built-In L6-20R Outlet
      • Connects a single device or indirectly powers equipment through a 0U 208/240V PDU with L6-20P input (sold separately) Automatic Transfer Switching (ATS)
      • Dynamic solid-state (TRIAC) automatic transfer switching
      • Switches to secondary power source if primary source fails or becomes unstable
      • 1–5 ms transfer time ensures uninterrupted operation of connected equipment
      • Built-in processor prevents switching if secondary source is unavailable or of lower quality than primary source Multifunction Digital Display
      • Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor Advanced Network Monitoring
      • Built-in Ethernet network interface allows full remote access for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP
      • Real-time load/current data with billing-grade accuracy (+/- 1 percent)
      • Automated alerts help prevent overloads, power loss and downtime
      • Optional ENVIROSENSE module (sold separately) monitors temperature and humidity Broad Communications Compatibility
      • Supports HTTP, HTTPS, PowerAlert, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP and NTP
      • 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks Mounts Horizontally in 1U of Rack Space
      • Compatible with EIA-standard 19 in. 4-post racks and rack enclosures
      • Optional PDU4PKIT rail kit (sold separately) adds rear mounting support

    • Specifications:

      • PDU Type: Monitored; Auto-Transfer Switch
      • Output Capacity Details: 3.8kW (240V), 3.7kW (230V), 3.5kW (220V), 3.3kW (208V), 3.2kW (200V); 20A maximum (agency de-rated to 16A continuous)
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (1) L6-20R
      • Output Nominal Voltage: 200; 208; 220; 230; 240
      • PDU Input Voltage: 200; 208; 220; 230; 240
      • Recommended Electrical Service: 20A 208/240V
      • Maximum Input Amps: 20
      • Maximum Input Amps Details: Agency de-rated to 16A continuous
      • Input Connection Type: Two 10ft / 3m NEMA L6-20P input power cables
      • PDU Plug Type: NEMA L6-20P
      • Input Cord Length (ft.): 10
      • Input Cord Length (m): 3
      • Input Phase: Single-Phase
      • Front Panel LCD Display: Digital display reports input current in amps (Source A, Source B), output kilowatts (total), input voltage (Source A, Source B), input frequency (Source A, Source B) and output power factor
      • Front Panel LEDs: Front panel LEDs confirm amp (A) / kilowatt (kW) / voltage (V) / frequency (Hz) and power factor (PF) reporting information; Additional set of LEDs indicate Source A and Source B inputs for preferred, available and in-use status
      • Switches: ENTER and MODE switches toggle the digital display to display all reported information
      • Minimum Required Rack Depth (inches): 17.5
      • Shipping Dimensions (hwd / in.): 7.48 x 21.65 x 20.67
      • Shipping Weight (lbs.): 16.68
      • Unit Dimensions (hwd / in.): 1.72 x 16.93 x 14
      • Unit Weight (lbs.): 15.37
      • Material of Construction: Metal
      • Form Factors Supported: 1U rackmount
      • PDU Form Factor: Horizontal (1U, 2U, etc)
      • Operating Temperature Range: 32 to 122°F
      • Storage Temperature Range: 5 to 140°F
      • Relative Humidity: 5 to 95% (non-condensing)
      • Operating Elevation (ft.): 0-10,000
      • Certifications: Tested to UL/CSA 60950-1 (USA, Canada), FCC Class A (Emissions), NOM (Mexico), RoHS Complaint
      • Product Warranty Period (Worldwide): 2-year limited warranty

    • Item Includes:

      • PDUMNH20HVAT 3.3/3.8kW Single-Phase 208/240V ATS/Monitored PDU
      • Mounting brackets
      • Owner’s manual

    • Warranty:

      • 2 Year

    • GTIN:

      0037332187932
