Tripp Lite PDUV20 PDU Basic 120V 20A 5-15/20R 14 Outlet L5-20P Vertical 0URM
  • Tripp Lite PDUV20 PDU Basic 120V 20A 5-15/20R 14 Outlet L5-20P Vertical 0URM
  • Tripp Lite PDUV20 PDU Basic 120V 20A 5-15/20R 14 Outlet L5-20P Vertical 0URM
  • Tripp Lite PDUV20 PDU Basic 120V 20A 5-15/20R 14 Outlet L5-20P Vertical 0URM
Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite PDUV20 PDU Basic 120V 20A 5-15/20R 14 Outlet L5-20P Vertical 0URM

Manufacturer: Tripp Lite

Item #: TRL-PDUV20   •   MFG #: PDUV20




Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

>Power distribution units, or PDUs, are essential devices for computers and networking equipment. Through these units, power supply is effectively shared among all pieces of computer equipment within the network, ensuring that the network is always up and running. PDUs are either floor-mounted or rack-based. Also called power strips, rack-based PDUs are more commonly used for office computer networks today. These devices are equipped with a range of functionalities; some PDUs are simply equipped with multiple outlets, while other units provide additional functionalities of switching and metering. Switched-and-metered PDUs have outlets that can be individually switched on and off as well as a display for current loads.

  • Features

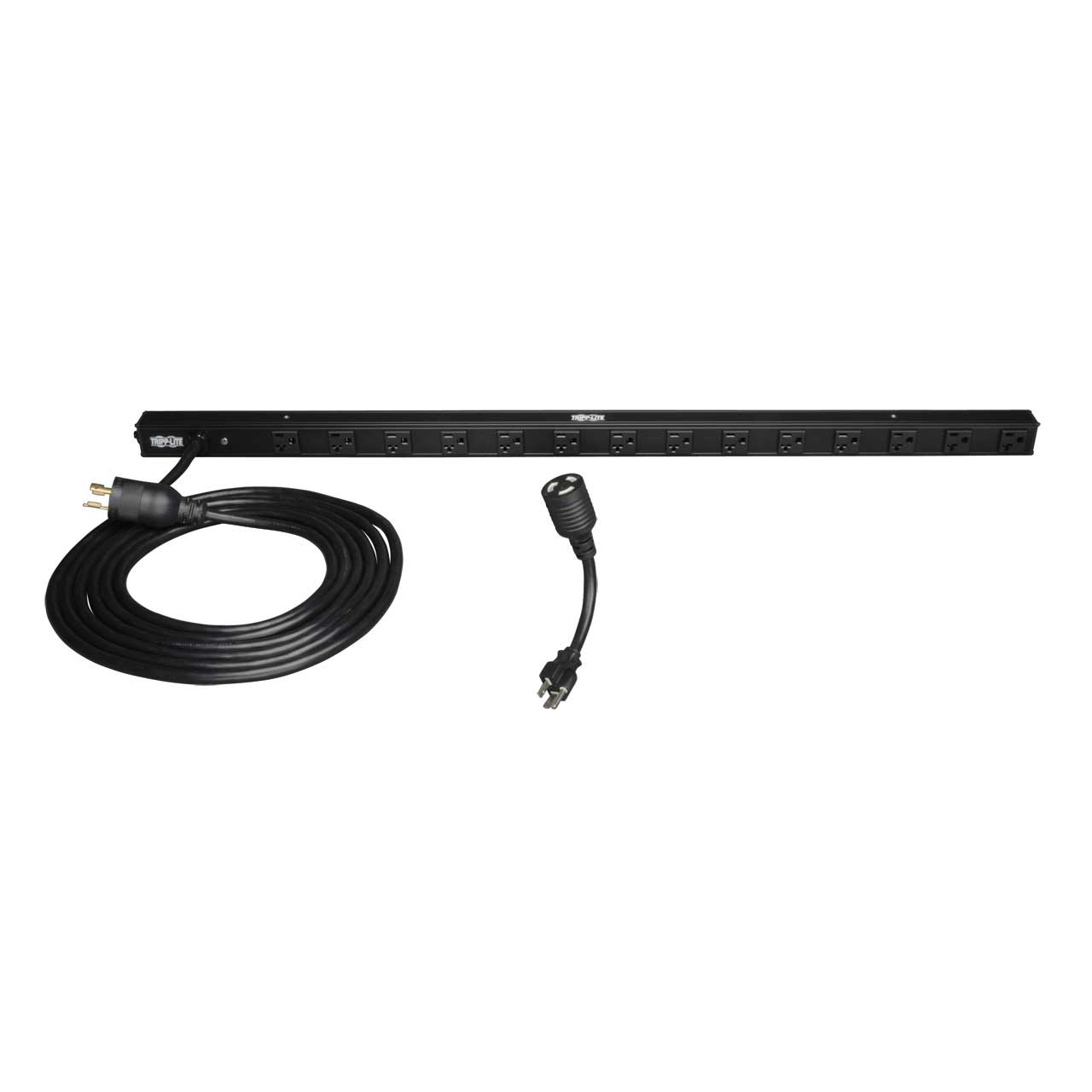

    • PDUV20 offers highly reliable 20A 120V power distribution in a 36 in. / .9m 0U vertical rackmount format
    • 14 NEMA 5-15/20R output receptacles
    • NEMA L5-20P input plug and 5-20P adapter
    • 15 ft. / 4.6m attached line cord

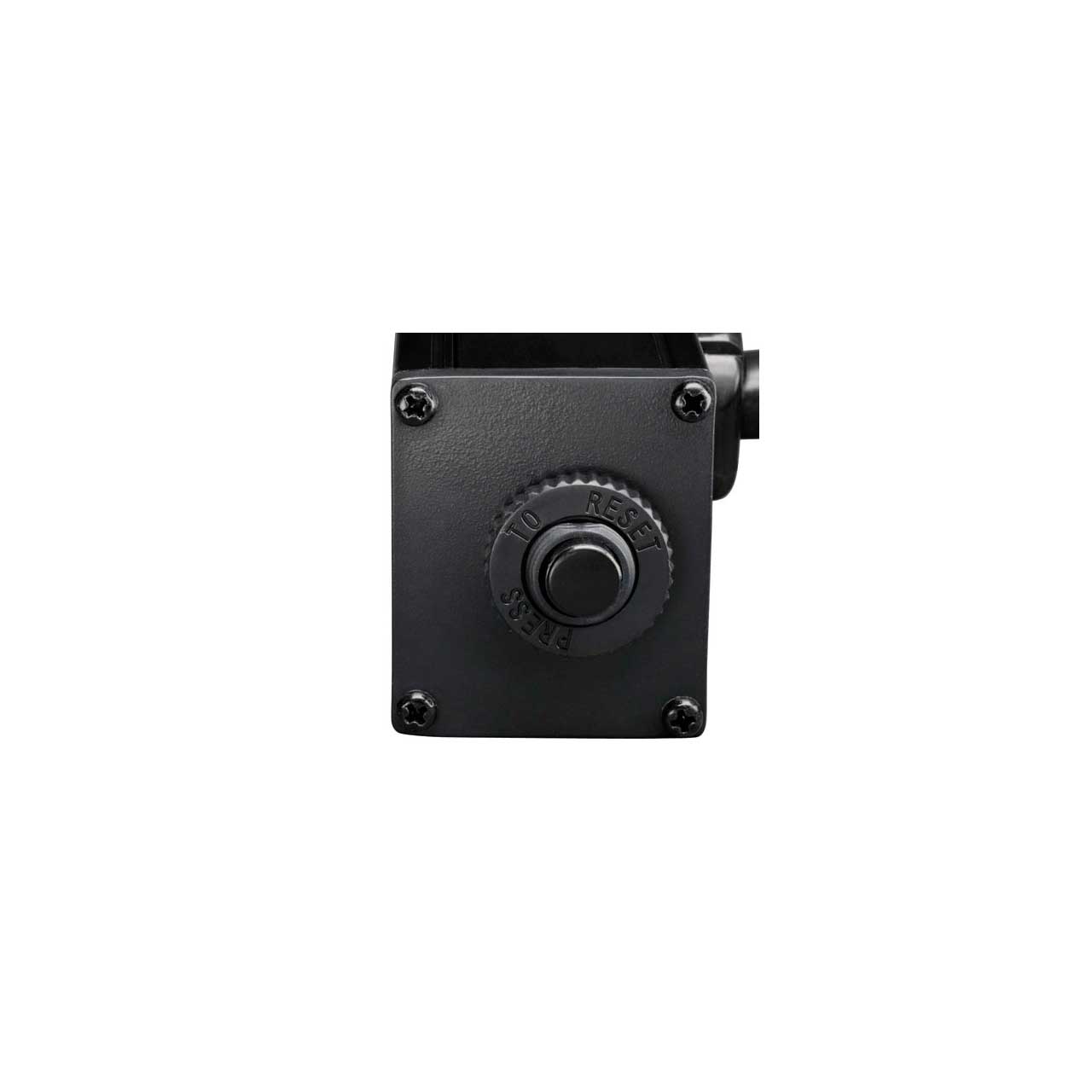

    • 20A resettable circuit breaker
    • Switch-free design prevents accidental shutoff
    • Toolless mounting buttons enable simple installation in Tripp Lite and other button-mount compatible equipment racks
    • Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks
    • Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications
  • Specifications

    • Product Group: PDUS
    • Digital Load Meter: No
    • Redundant Power Cords: No
    • SNMP Compatible: No
    • TAA Compliant: No
    • Style: Vertical Rackmount, Wallmount, Raceway, Workbench
    • PDU Type: Basic
    • Output Capacity Details: 2.4kW (120V input), 2.5kW (127V input), 2.0kW (100V input); 20A maximum
    • Frequency Compatibility: 50 / 60 Hz
    • Output (VA): 2400
    • Output Nominal Voltage: 100-127V nominal, single phase
    • Overload Protection: 20A
    • Outlet Quantity / Type: 14 NEMA 5-15/20R
    • Number of Outlets: 14
    • Outlet Type: NEMA 5-15R, NEMA 5-20R
    • PDU Input Voltage: 100; 120; 127
    • Maximum Input Amps: 20
    • PDU Plug Type: NEMA 5-20P; NEMA L5-20P
    • Input Cord Length (ft.): 15
    • Input Cord Length (m): 4.57
    • Input Phase: Single-Phase
    • Shipping Dimensions (hwd / in.): 40 x 3 x 2.75
    • Shipping Dimensions (hwd / cm): 101.6 x 7.62 x 6.99
    • Shipping Weight (lbs.): 5.3
    • Shipping Weight (kg): 2.4
    • Unit Dimensions (hwd / in.): 36 x 1.75 x 1.25
    • Unit Dimensions (hwd / cm): 91.44 x 4.45 x 3.18
    • Unit Weight (lbs.): 4
    • Unit Weight (kg): 1.81
    • Material of Construction: Aluminum
    • Form Factors Supported: Vertical (0U) mounting in rack enclosures, horizontal mount in raceways and a variety of other applications
    • PDU Form Factor: Vertical (0U)
    • Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant
    • Product Warranty Period (Worldwide): 5-year limited warranty

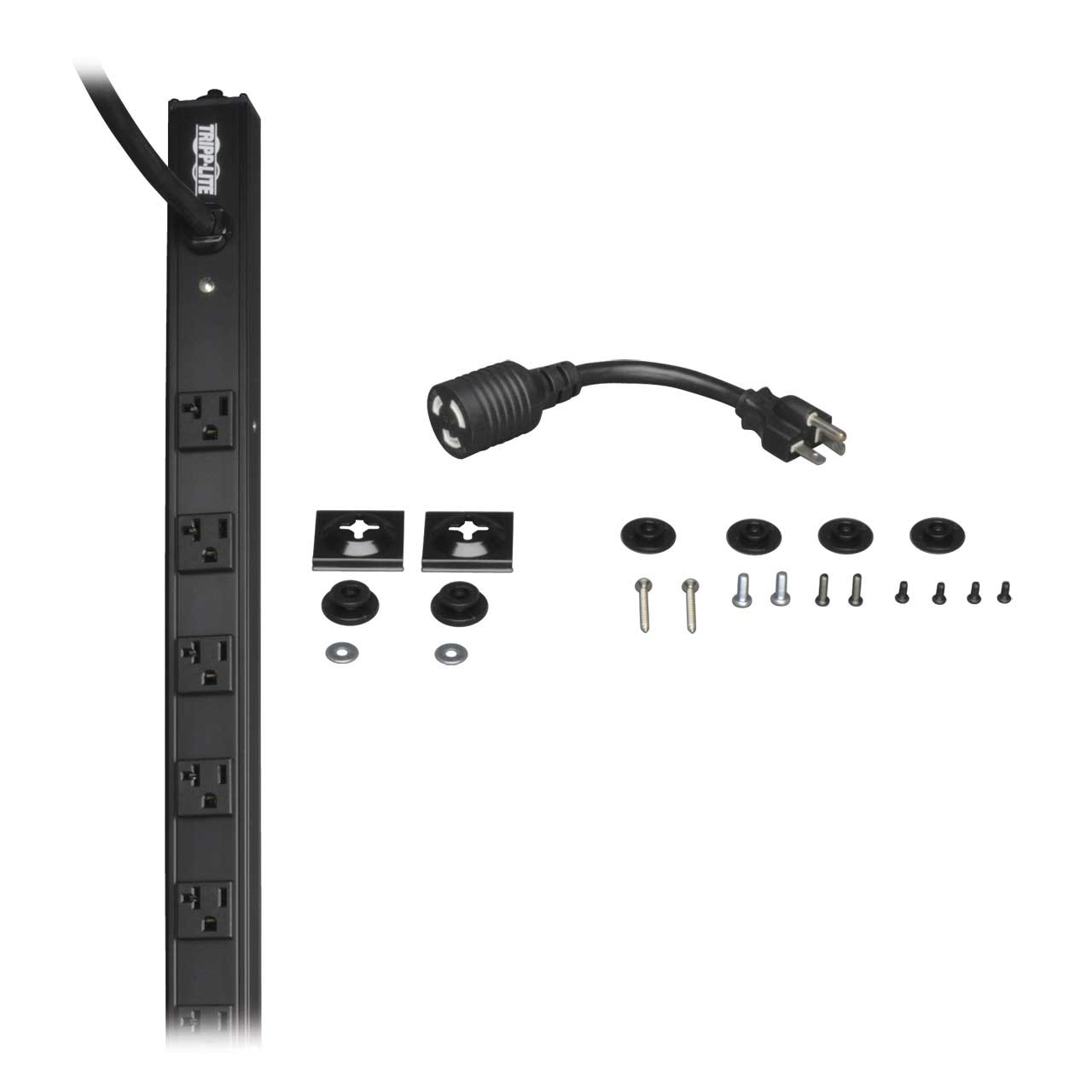

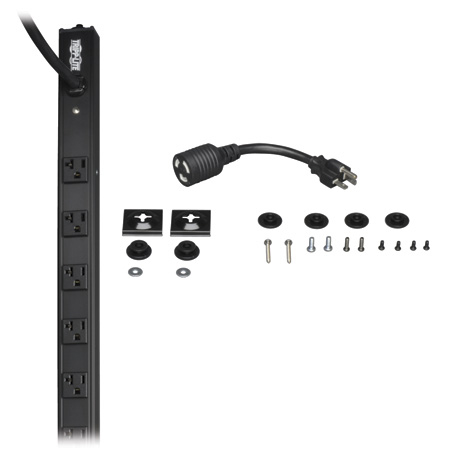

  • Item Includes

    • PDUV20 Basic Vertical PDU
    • Mounting hardware
    • Owner's manual with warranty information
