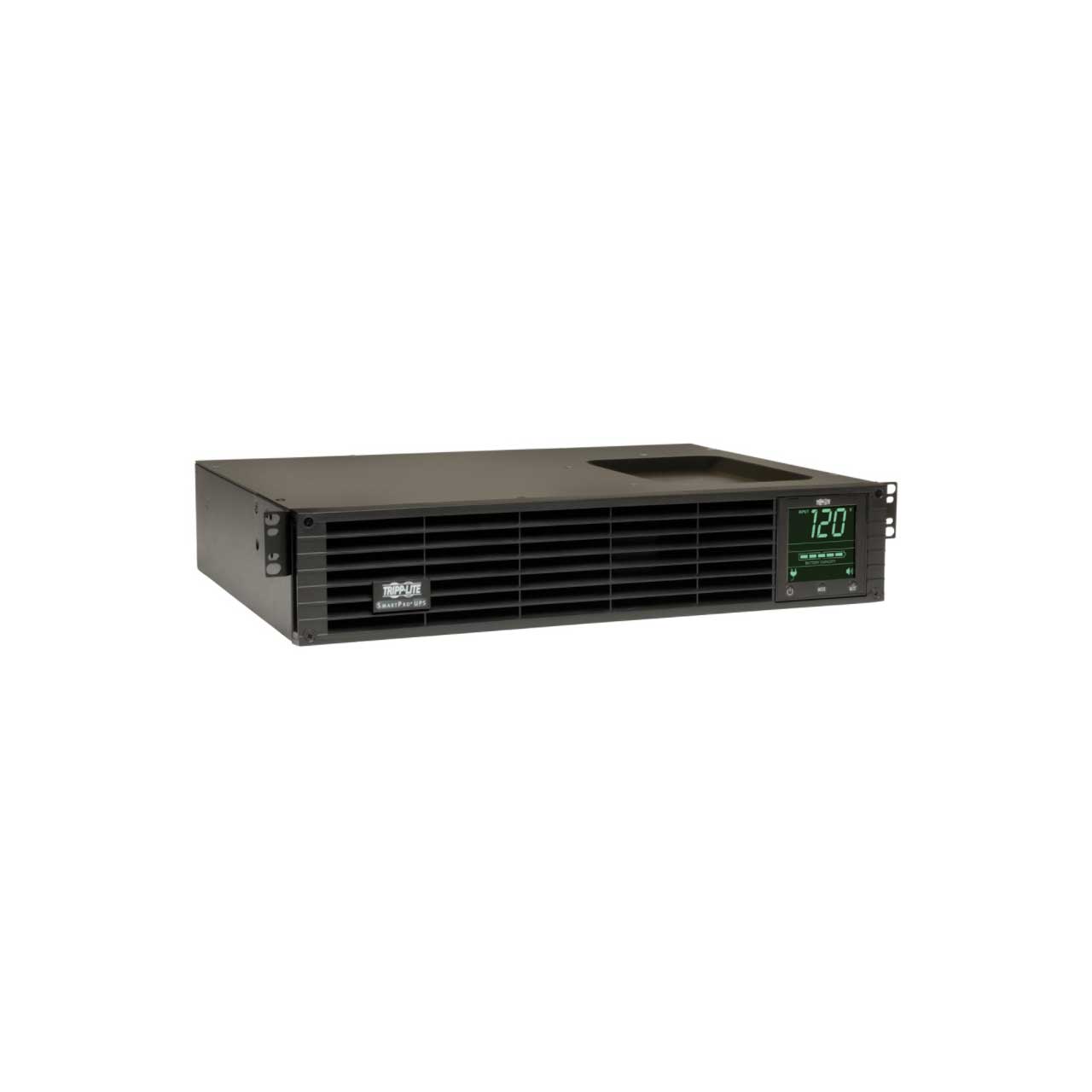

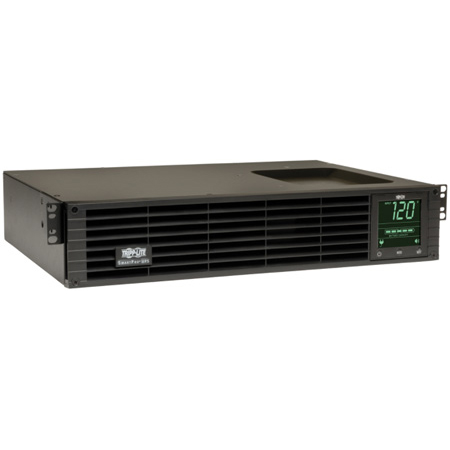

Tripp Lite SM1000RM2UTAA TAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS 2U Rack/Tower Network Card Options

SM1000RM2UTAA - Overview

• Features:

  • Protects Mission-Critical Rackmounted Equipment
  • Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
  • Audible alarm signals loss of utility power, overload, low battery and fault conditions
  • 6 NEMA 5-15R outlets
  • 10 ft. power cord with 120V NEMA 5-15P input
  • 570-joule surge suppression rating Reliable Battery Backup
  • Supports half load up to 15 min. and full load up to 5.3 min.
  • Internal batteries designed for hot-swap field replacement
  • 95% line-power efficiency rating saves money in energy costs Switchable Outlets
  • 2 load banks, each with 2 outlets controllable remotely to reboot equipment or shed nonessential loads Automatic Voltage Regulation (AVR)
  • Maintains 120V nominal output over input range of 83V–147V without using battery power EMI/RFI Line Noise Filtering
  • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance Interactive LCD Screen

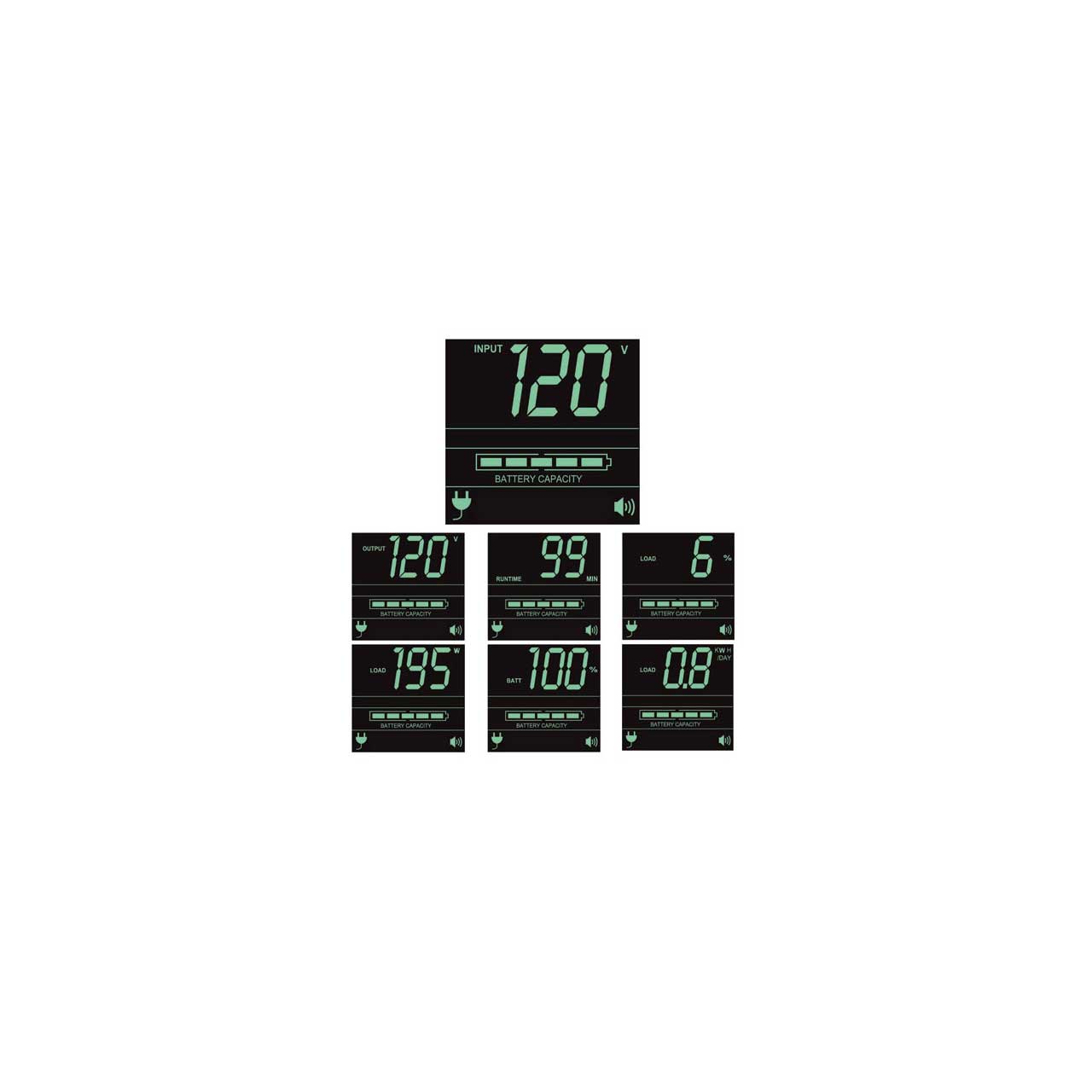

  • Front-panel LCD monitors operating mode, load level, power factor, voltage, battery charge and estimated runtimes
  • Rotates for easy viewing in rack-mount or tower configurations SNMP/Web Capability
  • Network management card options, such as Tripp Lite’s
  • SNMPWEBCARD, permit remote management and status alerts Communications Ports
  • USB and DB9 ports combine with included PowerAlert software to monitor operating conditions, monitor AC power, and enable safe unattended system shutdown and file saves in case of a prolonged power failure
  • EPO port supports emergency shutdown in large facilities Versatile Installation Options
  • Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
  • Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
  • Mounts in upright tower position with optional 2-9USTAND accessory TAA Compliant
  • Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases


• Specifications:

  • Output Volt Amp Capacity (VA): 1000
  • Output Watt Capacity (Watts): 800
  • Power Factor: 0.8
  • Nominal Voltage Details: 120v nominal output in battery mode
  • Frequency Compatibility: 60 Hz
  • Output Voltage Regulation (Line/Battery Mode): -21%, +8%; +/- 5%

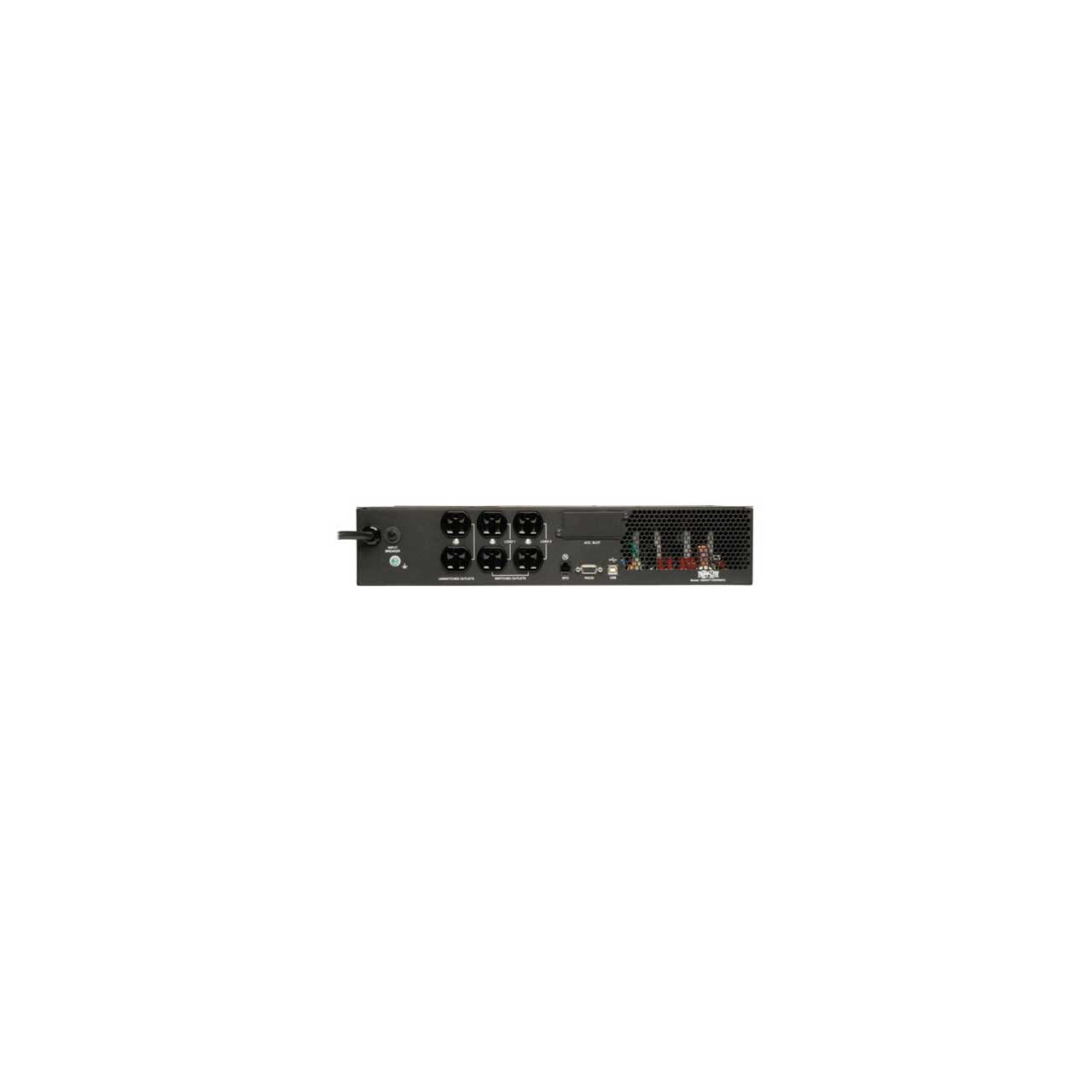

  • Output Receptacles: (6) 5-15R
  • Load Management Receptacles: Two switchable two-outlet 5-15R load banks
  • Output AC Waveform (AC/Battery Mode): Sine wave/Pure Sine wave
  • Rated input current (Maximum Load): 9.2A
  • Nominal Input Voltage(s) Supported: 120V AC
  • UPS Input Connection Type: 5-15P
  • Input Circuit Breakers: 10A
  • UPS Input Cord Length (ft.): 10
  • Recommended Electrical Service: 15A 120V
  • Input Phase: Single-Phase
  • Full/Half Load Runtime (min.): 5.3 min. (800w)/15 min. (400w)
  • DC System Voltage (VDC): 24
  • Battery Recharge Rate (Included Batteries): Less than 4 hours from 10% to 90%
  • Battery Replacement Description: Hot-swappable, user replaceable batteries
  • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
  • Overvoltage Correction: Input voltages between 128 and 147 are reduced by 12%
  • Undervoltage Correction: Input voltages between 83 and 107 are boosted by 14%
  • Switches: 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
  • Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
  • Audible Alarm: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
  • UPS AC Suppression Joule Rating: 570
  • UPS AC Suppression Response Time: Instantaneous
  • EMI / RFI AC Noise Suppression: Yes
  • Installation Form Factors Supported with Optional Accessories: 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
  • Primary Form Factor: Rackmount
  • UPS Power Module Dimensions (hwd, in.): 3.45 x 17.35 x 12.5
  • Minimum Required Rack Depth (inches): 15.5
  • UPS Power Module Weight (lbs.): 35.4
  • UPS Shipping Dimensions (hwd / in.): 7.9 x 22.9 x 19.3
  • Shipping Weight (lbs.): 46.4
  • Cooling Method: Fan
  • UPS Housing Material: Steel
  • Operating Temperature: +32 to +104°F
  • Storage Temperature: +5 to +122°F
  • Relative Humidity: 0 to 95%, non-condensing
  • AC Mode BTU / Hr. (Full Load): 134
  • Battery Mode BTU / Hr. (Full Load): 600
  • AC Mode Efficiency Rating (100% Load): 0.95
  • Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
  • Network Management Cards: SNMPWEBCARD; TLNETCARD; WEBCARDLX
  • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
  • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
  • Transfer Time: 2-4 milliseconds
  • Low/High Voltage Transfer to Battery Power (Setpoint): 83/147

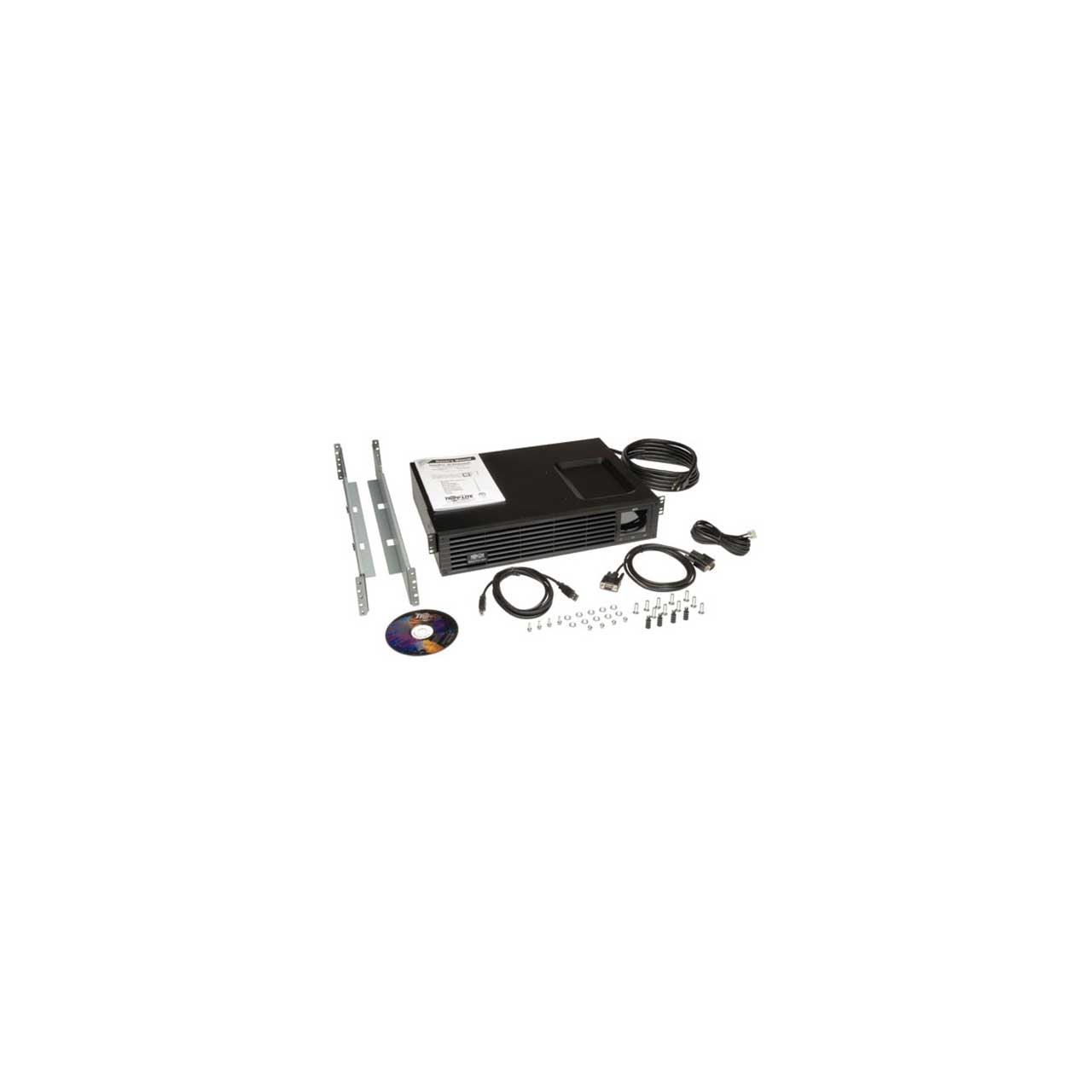

• Item Includes:

  • SM1000RM2UTAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS
  • USB cable
  • DB9 cable
  • EPO cable
  • PowerAlert software
  • Mounting hardware
  • Owner’s manual


• Warranty:

  • 2 Year


• GTIN:

  0037332152718
