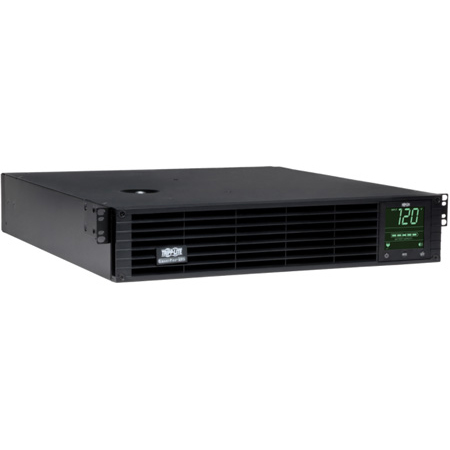

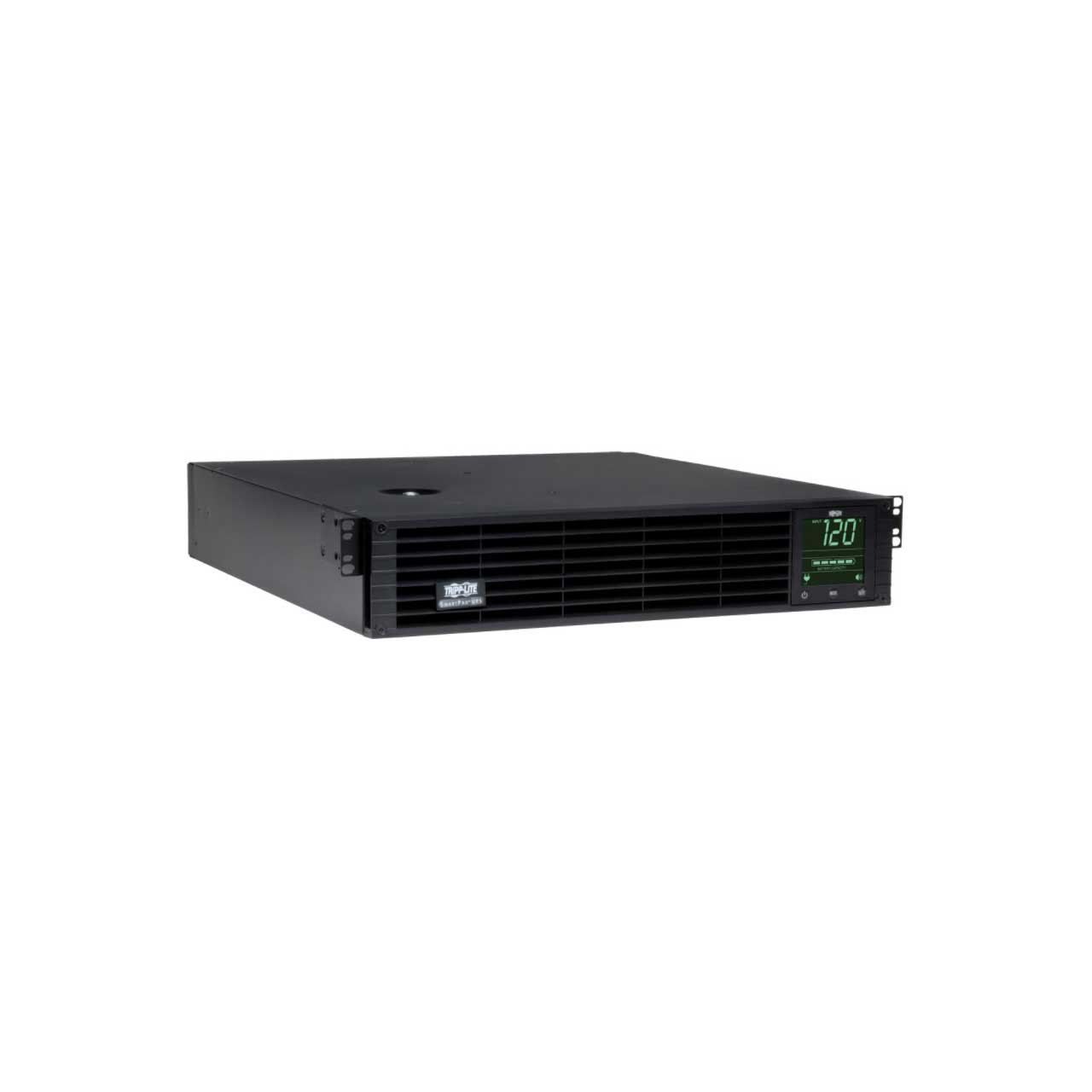

Tripp Lite SM3000RM2UTAA TAA SmartPro 120V 3kVA 2.25kW Line-Interactive Sine Wave UPS Extended Run Network Card Option

ITEM #: TRL-SM3000RM2UTA MFG #: SM3000RM2UTAA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,074.00

Our Price:

$1,273.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SM3000RM2UTAA - Overview

    Tripp Lite SM3000RM2UTAA SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and slot for network management card options. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring and auto shutdown software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

    • Features:

      • 3kVA / 3000VA / 2250W line interactive 2U rack/tower UPS, Sine Wave
      • Extended runtime options up to 1600W, Interactive LCD interface
      • USB, RS232, EPO and slot for network management card options
      • 120V NEMA L5-30P input, 8 NEMA 5-15/20R & 1 L5-30R outlets
      • TAA Compliant for GSA Schedule purchases
      • To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
      • 2-year limited warranty
      • $250,000 Ultimate Lifetime Insurance

    • Specifications:

      • Input
      • Rated input current (Maximum Load): 24A
      • Nominal Input Voltage(s) Supported: 120V AC
      • UPS Input Connection Type: L5-30P
      • UPS Input Cord Length (ft.): 10
      • Recommended Electrical Service: 30A 120V
      • Input Phase: Single-Phase

        Output
      • Output Volt Amp Capacity (VA): 3000
      • Output kVA Capacity (kVA): 3.00
      • Output Watt Capacity (Watts): 2250
      • Output kW Capacity (kW): 2.25
      • Output Capacity Details: Output is reduced to 1600 watts maximum when used with external battery packs
      • Power Factor: 0.75
      • Nominal Voltage Details: 120v nominal output in battery mode
      • Frequency Compatibility: 60 Hz
      • Output Voltage Regulation (Line Mode): -14%, +6%
      • Output Voltage Regulation (Battery Mode): +/- 5%
      • Load Management Receptacles: Two switchable single-outlet load banks
      • Output Circuit Breakers: Two 20A output breakers protect 4 5-15/20R outlets each
      • Output AC Waveform (AC Mode): Pure Sine wave
      • Output AC Waveform (Battery Mode): Pure Sine wave
      • Nominal Output Voltage(s) Supported: 110V; 115V; 120V
      • Output Receptacles: (8) 5-15/20R; (1) L5-30R
      • Individually Controllable Load Banks: Yes

        Battery
      • Full Load Runtime (min.): 3.5 min. (2250w)
      • Half Load Runtime (min.): 10 min. (1125w)
      • Expandable Battery Runtime: Extended runtime supported via optional external battery packs
      • DC System Voltage (VDC): 48
      • Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90%
      • Internal UPS Replacement Battery Cartridge: RBC94-2U
      • Battery Access: Front panel battery access door
      • Battery Replacement Description: Hot-swappable, user replaceable batteries
      • Expandable Runtime: Yes

        Voltage Regulation
      • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
      • Overvoltage Correction: Input voltages between 127 and 145 are reduced by 12%
      • Undervoltage Correction: Input voltages between 108 and 96 are boosted by 12%
      • Severe Undervoltage Correction: Input voltages between 83 and 95 are boosted by 24%

        User Interface, Alerts & Controls

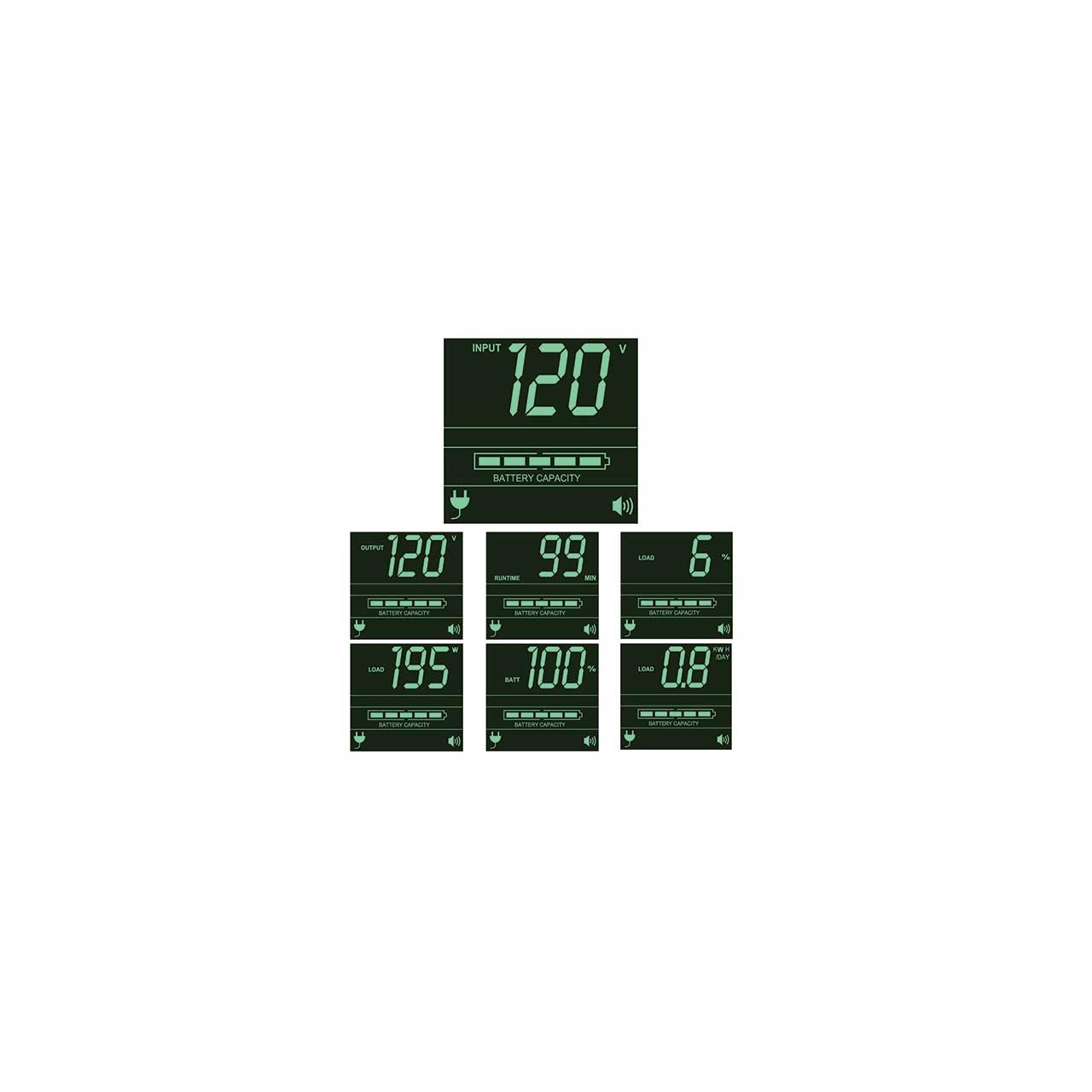

      • Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
      • Switches: 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
      • Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
      • Audible Alarm: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

        Surge / Noise Suppression
      • UPS AC Suppression Joule Rating: 570
      • UPS AC Suppression Response Time: Instantaneous
      • UPS Dataline Suppression: 1 line TEL/DSL or Ethernet
      • EMI / RFI AC Noise Suppression: Yes

        Physical
      • Cooling Method: Fan
      • Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
      • Minimum Required Rack Depth with External Battery Pack (cm): 67
      • Minimum Required Rack Depth with External Battery Pack (in.): 26.5
      • Minimum Required Rack Depth without External Battery Pack (cm): 64
      • Minimum Required Rack Depth without External Battery Pack (in.): 25
      • Primary Form Factor: Rackmount
      • Rack Height: 2U
      • Shipping Dimensions (hwd / in.): 8.50 x 24.50 x 21.80
      • Shipping Weight (lbs.): 81.00

        Environmental
      • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
      • Relative Humidity: 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load): 189
      • Battery Mode BTU / Hr. (Full Load): 1356
      • AC Mode Efficiency Rating (100% Load): 98%
      • Operating Elevation (ft.): 0-3000m / 0-10,000 ft.
      • Audible Noise: 45 dBA maximum, front side 1m
      • Operat

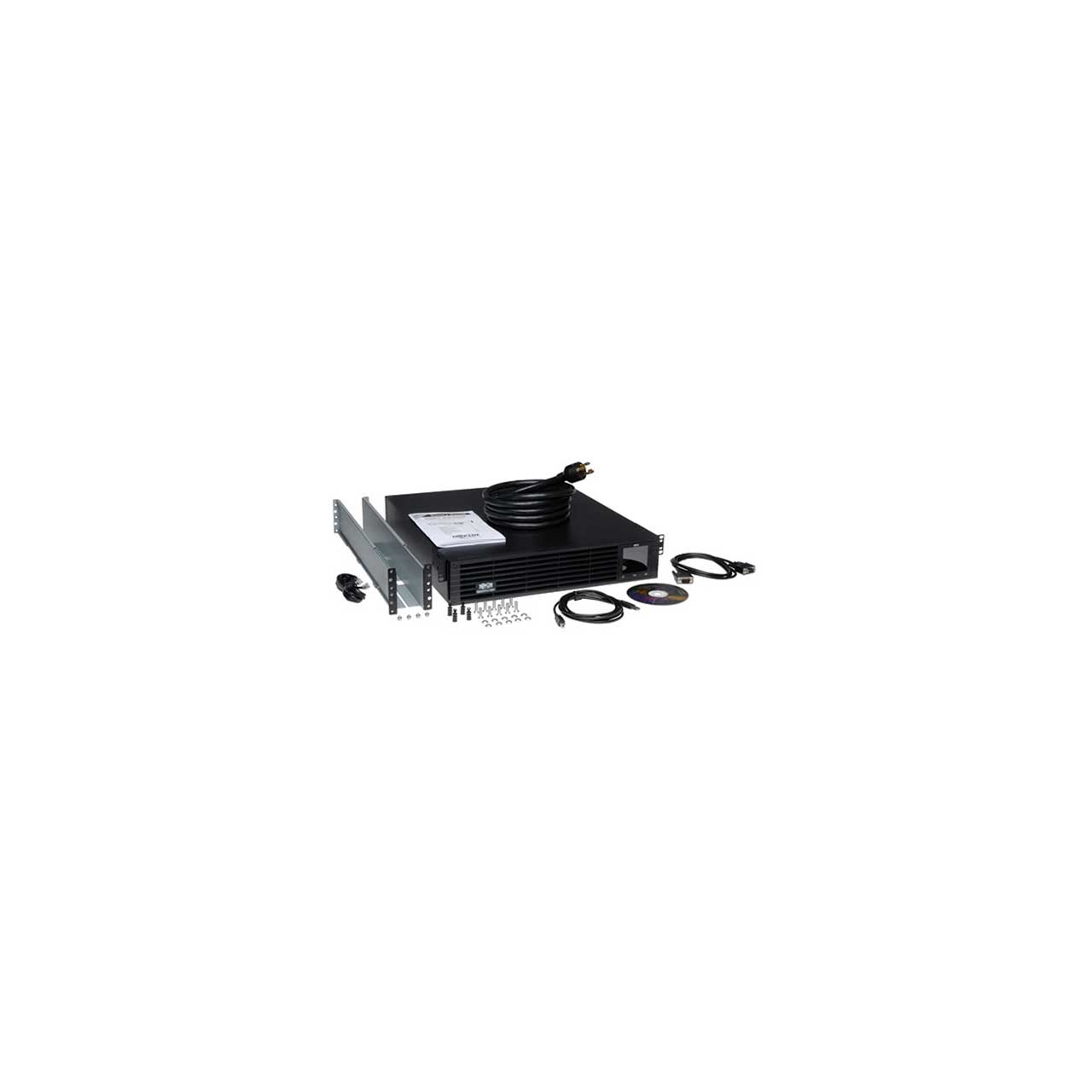

    • Item Includes:

      • 1x SM3000RM2UTAA UPS System
      • 1x USB, Serial & EPO cabling
      • 1x 4-post rackmount installation kit
      • 1x Owner's manual

    • Warranty:

      • 2 Year

    • GTIN:

      0037332184207
