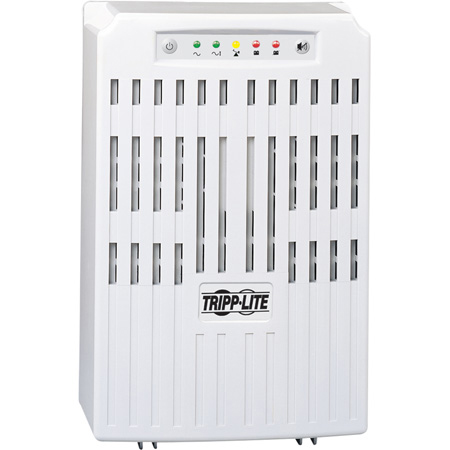

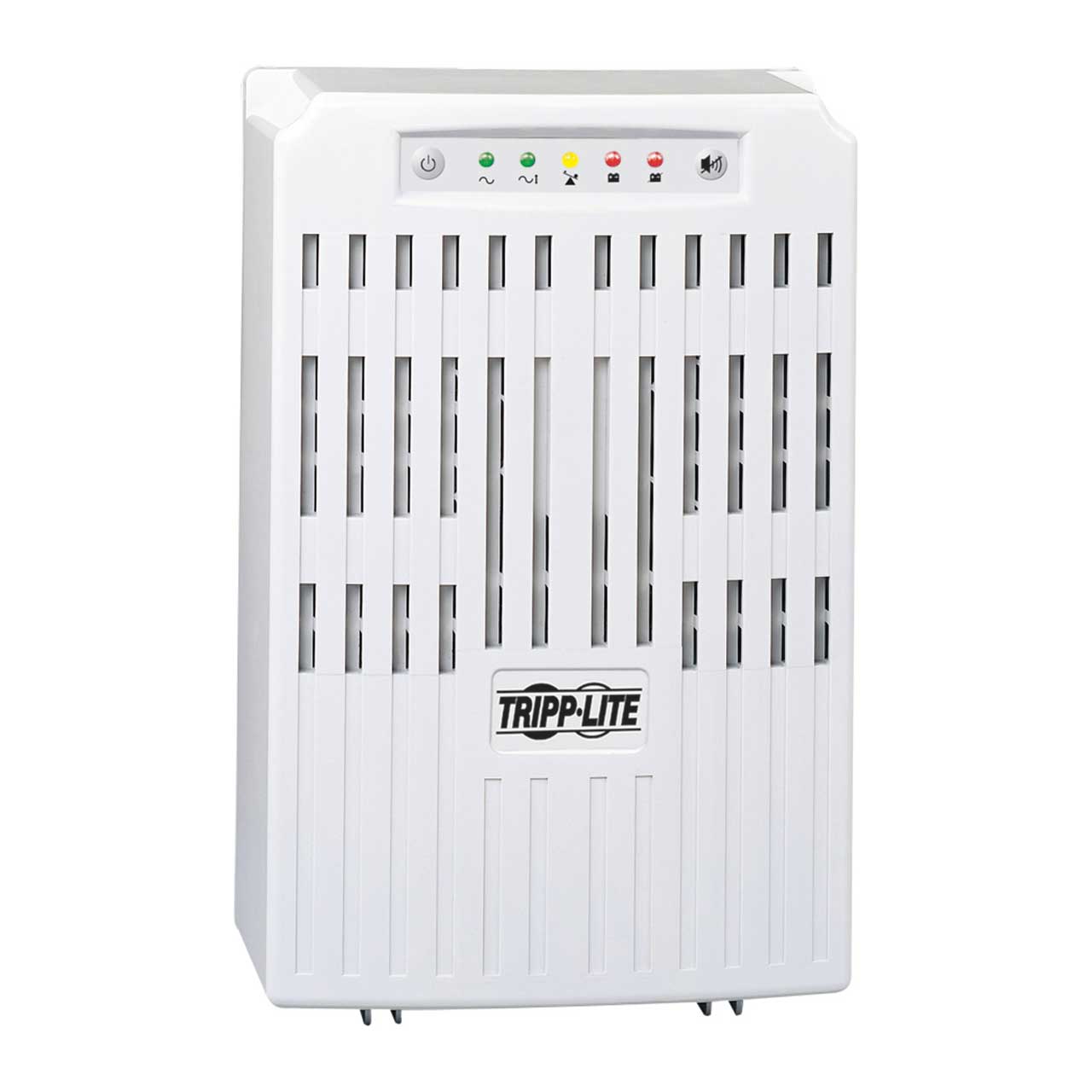

Tripp Lite SMARTINT3000VS 3000VA 2250W UPS International Smart Tower AVR 230V 3kVA C19 C13

SMTINT3000VS - Overview

• Features:

  • SMARTINT3000VS line-interactive UPS offers protection from blackouts, brownouts, overvoltages and surges
  • 3000VA / 2250 watt capacity
  • Internal batteries support a half load of 1500VA for 14 minutes and a full load of 3000VA for 4 minutes
  • Runtime is further expandable with the addition of BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
  • Maintains regulated 230V nominal output during brownouts and overvoltages from 151 to 282V
  • IEC320-C20 input connection accepts a variety of detachable cord sets to match country or site-specific wall receptacles
  • USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
  • Offers simultaneous monitoring by up to 4 directly-connected devices through included USB and DB9 interface ports
  • Emergency Power Off (EPO) interface with cable
  • Optional PDUBHV20 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
  • Supports Tripp Lite's WatchDog software application (requires optional WATCHDOGSW)
  • Slot for Network Management Card options; Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
  • Multi-function audible alarms and set of 5 front panel LEDs
  • Network-grade AC surge suppression


• Specifications:

  • Overview
  • UPC Code: 037332120311

    Output
  • Output Volt Amp Capacity (VA): 3000
  • Output kVA Capacity (kVA): 3
  • Output Watt Capacity (Watts): 2250
  • Output kW Capacity (kW): 2.25
  • Output Capacity Details: Output is reduced to 1500W maximum with 2 or more external battery packs
  • Power Factor: 0.75
  • Nominal Output Voltage(s) Supported: 220V; 230V; 240V
  • Nominal Voltage Details: 230v nominal inverter output voltage
  • Frequency Compatibility: 50 / 60 Hz
  • Frequency Compatibility Details: Automatic frequency selection
  • Output Voltage Regulation (Line Mode): -19% +8%
  • Output Voltage Regulation (Battery Mode): +/- 5%
  • Output Receptacles: (8) C13; (1) C19
  • Included Output Power Cables: Includes 3 C13 to C14 output power cables
  • Load Management Receptacles: Three switchable two-outlet C13 load banks
  • Output Circuit Breakers: 10A (x2) - each breaker protects 4 C13 outlets each, C19 is unbreakered
  • Output AC Waveform (AC Mode): Sine wave
  • Output AC Waveform (Battery Mode): PWM sine wave
  • Individually Controllable Load Banks: Yes

    Input
  • Rated input current (Maximum Load): 15.4A
  • Nominal Input Voltage(s) Supported: 230V AC
  • UPS Input Connection Type: C20 inlet
  • UPS Input Connection Description: User supplies input cabling with C19 output connection
  • Input Phase: Single-Phase

    Battery
  • Full Load Runtime (min.): 4 min. (2250w)
  • Half Load Runtime (min.): 14 min. (1125w)
  • Expandable Battery Runtime: Extended runtime supported via optional external battery packs
  • External Battery Pack Compatibility: BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
  • DC System Voltage (VDC): 48
  • Battery Recharge Rate (Included Batteries): Less than 4 hours from 10% to 90% (typical, full load discharge)
  • Internal UPS Replacement Battery Cartridge: RBC54
  • Battery Access: Battery access door
  • Battery Replacement Description: Hot-swappable, user replaceable batteries
  • Expandable Runtime: Yes

    Voltage Regulation
  • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151V to 282V
  • Overvoltage Correction: Input voltages between 245 and 282 are reduced by 12%
  • Undervoltage Correction: Input voltages between 177 and 199 are boosted by 14%
  • Severe Undervoltage Correction: Input voltages between 151 and 176 are boosted by 30%

    Surge / Noise Suppression
  • UPS AC Suppression Joule Rating: 480
  • UPS AC Suppression Response Time: Instantaneous
  • EMI / RFI AC Noise Suppression: Yes

    Physical
  • Primary Form Factor: Tower
  • UPS Power Module Dimensions (hwd, in.): 14.2 x 9.2 x 12
  • UPS Power Module Weight (lbs.): 61
  • UPS Power Module Weight (kg): 27.67
  • Shipping Dimensions (hwd / in.): 19.90 x 15.10 x 16.10
  • Shipping Weight (lbs.): 67.80
  • Cooling Method: Fan
  • UPS Housing Material: Polycarbonate
  • Primary UPS Height (mm): 361
  • Primary UPS Width (mm): 234
  • Primary UPS Depth (mm): 305

    Environmental
  • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
  • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
  • Relative Humidity: 0 to 95%, non-condensing
  • AC Mode Efficiency Rating (100% Load): 94%
  • Audible Noise: Audible Noise < 47dBA At Front Side 1 Meter

    Communications
  • Communications Interface: USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
  • Network Management Cards: SNMPWEBCARD; TLNETCARD; WEBCARDLX
  • Network Monitoring Port Description: Supports detailed monitoring of UPS


• Item Includes:

  • SMARTINT3000VS UPS System
  • USB and DB9 cables
  • Cable for Emergency Power Off interface
  • Instruction manual with warranty information
  • C13 to C14 power cables (3)


• Warranty:

  • 2-year limited warranty


• GTIN:

  0037332120311
