SR48UBEXPNDNR3 - Overview

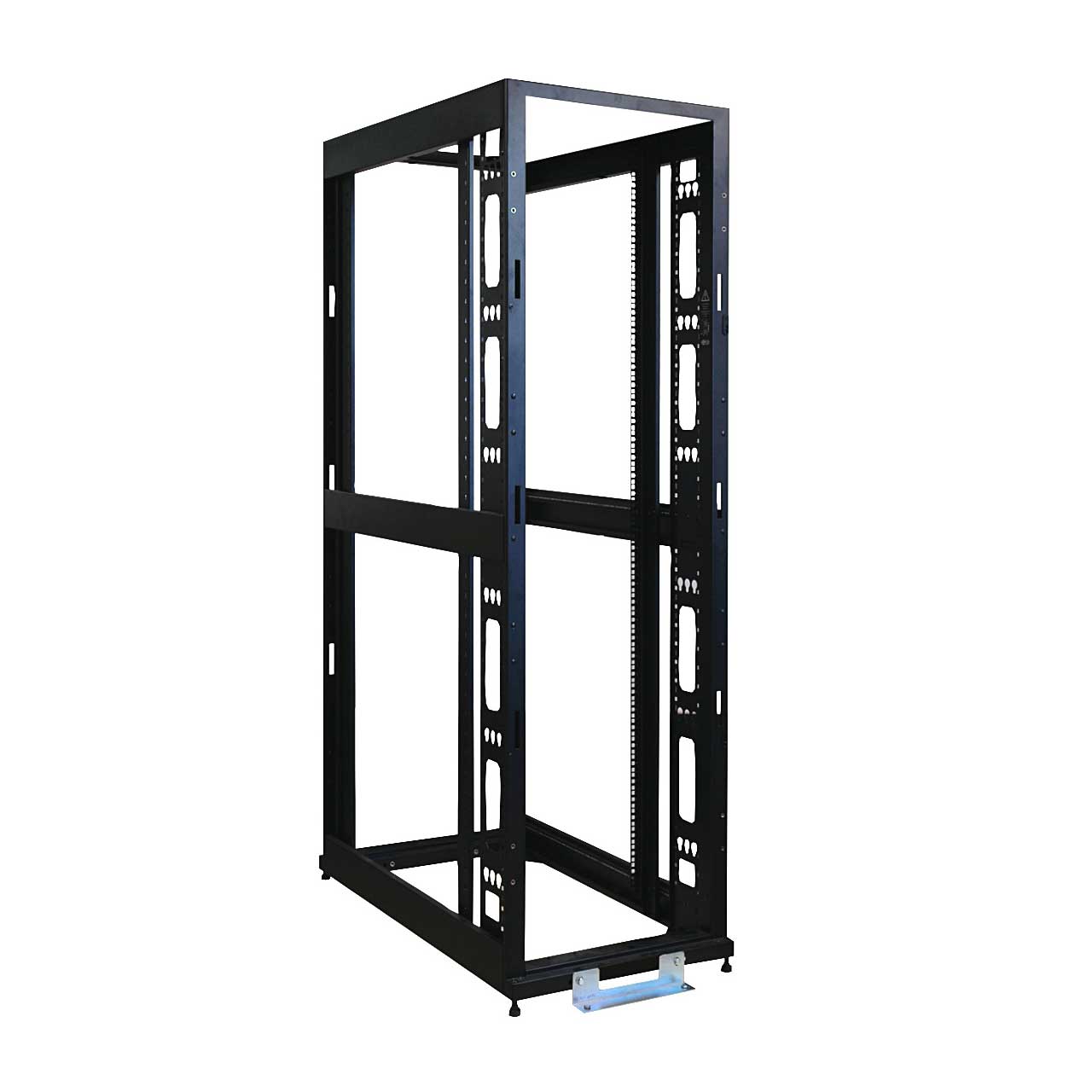

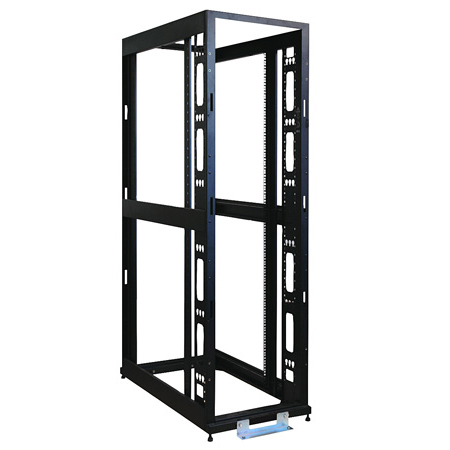

The SR48UBEXPNDNR3 is an expansion model with no sides, doors or roof. An expansion model is useful when baying together multiple enclosures. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications.The SR48UBEXPNDNR3 houses 3000 lb of standard 19-inch rack equipment in 48U. The front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference and supports tool-less button-mount 0U installation of up to four compatible PDUs and cable managers.All components of the SR48UBEXPNDNR3 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.To simplify deployment, the SR48UBEXPNDNR3 comes with heavy duty 3" preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.The SR48UBEXPNDNR3 comes with a 5-year product warranty. As part of the SmartRack family, the SR48UBEXPNDNR3 is compatible with Tripp Lite’s extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

  • Features:

    • Open frame rack with no sides, doors or roof
    • Ships fully assembled for rapid deployment and roll into place on 3" pre-installed casters (casters are removable)
    • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
    • Tool-less accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
  • Specifications:

    • Style Floor Standing
    • Installed Whole System Maximum Rack Depth (in.) 37
    • Installed Whole System Maximum Rack Depth (cm) 94
    • Installed Whole System Minimum Rack Depth (in.) 4
    • Installed Whole System Minimum Rack Depth (cm) 10.16
    • Rack Height (U Spaces) 48
    • Shipping Dimensions (hwd / in.) 95 x 32 x 45
    • Shipping Dimensions (hwd / cm) 241.3 x 81.28 x 114.3
    • Shipping Weight (lbs.) 395
    • Shipping Weight (kg) 179
    • Unit Dimensions (hwd / in.) 89 x 29.53 x 43
    • Unit Weight (lbs.) 343
    • Unit Weight (kg) 156
    • Unit Dimensions (cm) 226.06 x 75.1 x 109.22
    • Color Black
    • Weight Capacity - Stationary (lbs.) 3000
    • Weight Capacity - Rolling (lbs.) 2250
    • Weight Capacity - Stationary (kg) 1360.8
    • Weight Capacity - Rolling (kg) 1020.6
    • Factory Preset Rack Depth (in.) 27.75
    • Factory Preset Rack Depth (cm) 70.49
    • Hinged (Swings Away from Wall Bracket) No
    • Grounding Lug Front and Back door frames
    • Certifications EIA-310-E
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals UL60950; RoHS
    • Product Warranty Period (Worldwide) 5-year limited warranty
  • GTIN:


SR48UBEXPNDNR3 - Required Accessories
