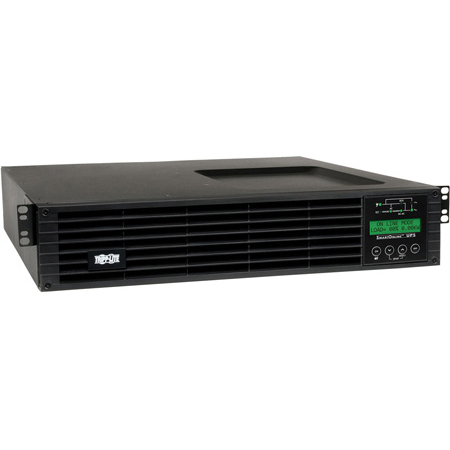

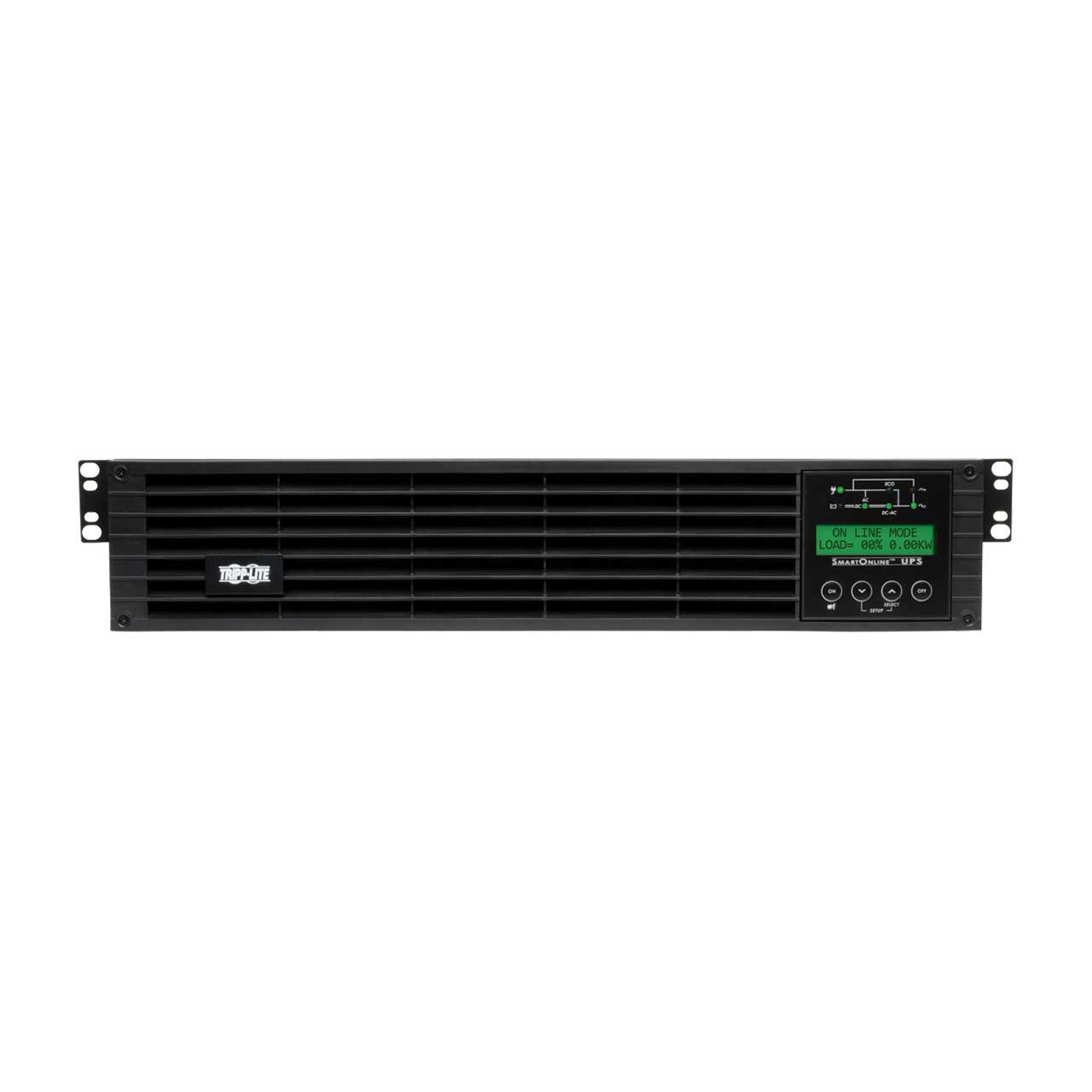

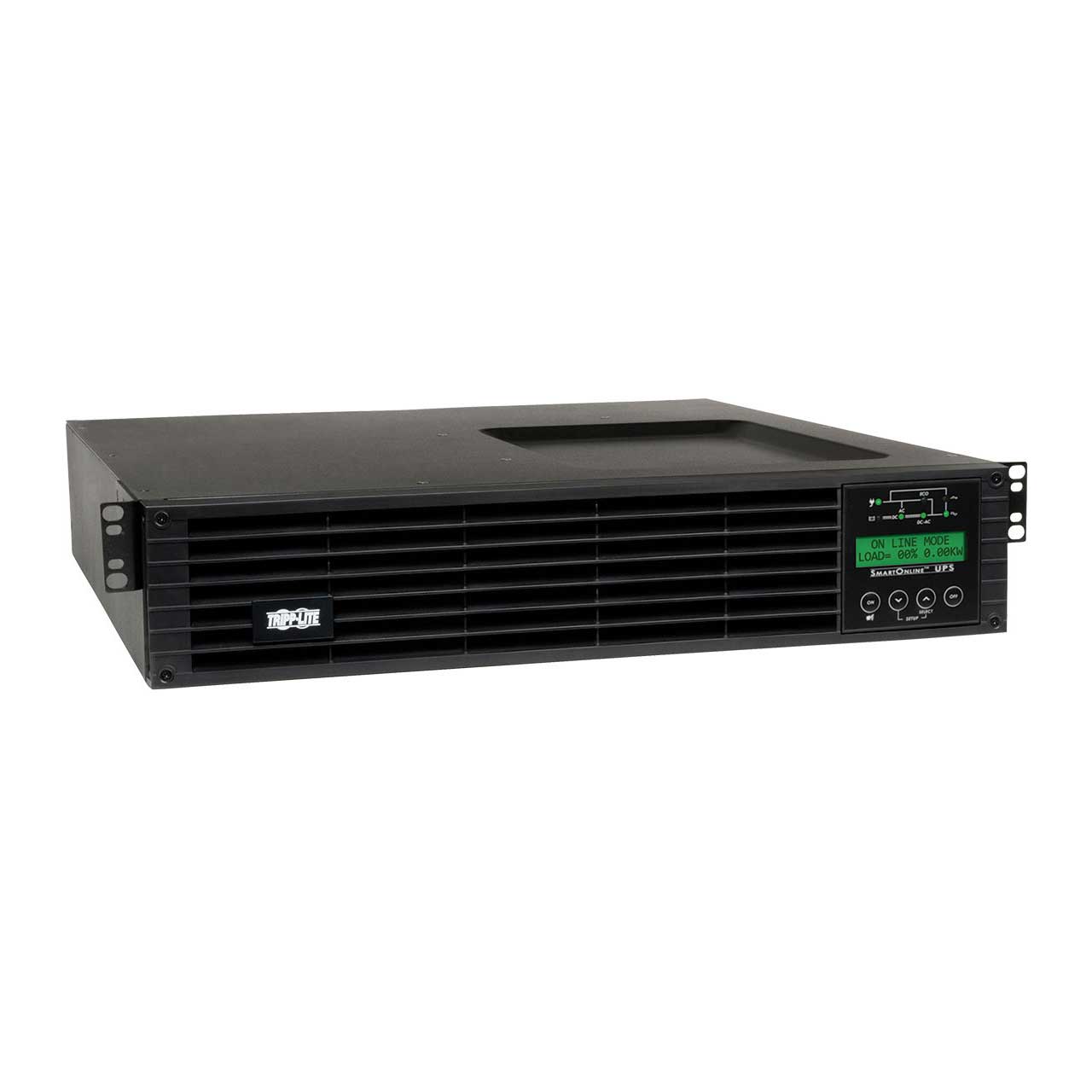

Tripp Lite SU1500RTXLCDN SmartOnline 120V 1.5kVA 1.35kW Double-Conversion UPS 2U Rack/Tower Extended Run

ITEM #: TRL-SU1500RTXLCD MFG #: SU1500RTXLCDN

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,404.00

Our Price:

$1,655.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SU1500RTXLCDN - Overview

    The SU1500RTXLCDN SmartOnline 120V 1.5kVA 1.35kW On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes.Featuring six NEMA 5-15R outlets in two switchable numbered load banks, as well as a NEMA 5-15P input, the SU1500RTXLCDN has an internal battery that provides 14 minutes of support at half load and 4.2 minutes at full load. Adding external battery packs, such as BP48V24-2U (sold separately), provides extended runtime.The pre-installed SNMPWEBCARD accessory card permits remote management, including reboots, configuration, updates and activity logs. An interactive front-panel LCD interface displays operating conditions and diagnostic data, such as load, voltage and battery levels. You can set operating modes to reflect your protection priorities, including an optional economy mode that saves heat output and energy costs.EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 570-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's included POWERALERT12 software, the SU1500RTXLCDN enables safe unattended system shutdown and file saves in case of a prolonged power failure. An audible alarm indicates startup/shutdown, power failure, low battery, overload and fault conditions.

    • Features:

      • Protects Mission-Critical Rackmounted Equipment
      • Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
      • +/-2% voltage regulation in online and battery modes
      • Selectable 100/110/120/127V output voltage
      • 6 NEMA 5-15R outlets
      • 10 ft. power cord with NEMA 5-15P input
      • 570-joule surge suppression rating Reliable Battery Backup with Expandable Runtime
      • Supports half load for 14 min. and full load for 4.2 min.
      • Zero transfer time suitable for advanced network applications
      • Expandable runtime with optional external battery packs, such as Tripp Lite's BP48V24-2U
      • Restarts automatically after lengthy power outages Included SNMP/Web Capability
      • Pre-installed SNMPWEBCARD permits remote management of UPS, including reboots, configuration, updates and activity logs Switchable Numbered Load Banks
      • Outlets are divided into 2 numbered load banks, each of which may be individually powered on and off remotely to reset or reboot connected equipment Interactive LCD Screen
      • Reports detailed status information, including load, voltage and battery levels
      • Offers advanced configuration and setup options, including output voltage and operating mode EMI/RFI Line Noise Filtering
      • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance Audible Alarm
      • Indicates startup/shutdown, power failure, low battery, overload and fault conditions Communications Ports
      • USB and DB9 ports combine with included POWERALERT12 software to monitor operating conditions, monitor AC power, and enable safe unattended system shutdown and file saves in case of a prolonged power failure
      • EPO port supports emergency shutdown in large facilities Versatile Installation Options
      • Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
      • Mounts on wall or 2-post rack with optional 2POSTRMKITWM
      • Mounts in upright tower position with optional 2-9USTAND

    • Specifications:

      • Output Volt Amp Capacity (VA): 1500
      • Output kVA Capacity (kVA): 1.5
      • Output Watt Capacity (Watts): 1350
      • Output kW Capacity (kW): 1.35
      • Output Capacity Details: ON LINE MODE: Maximum output capacity ratings is reduced to 1215 watts at 115V nominal and 1080 watts at 100V nominal; FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120V 945 watts / 115V 850 watts / 110V 804 watts / 100V 756 watts)

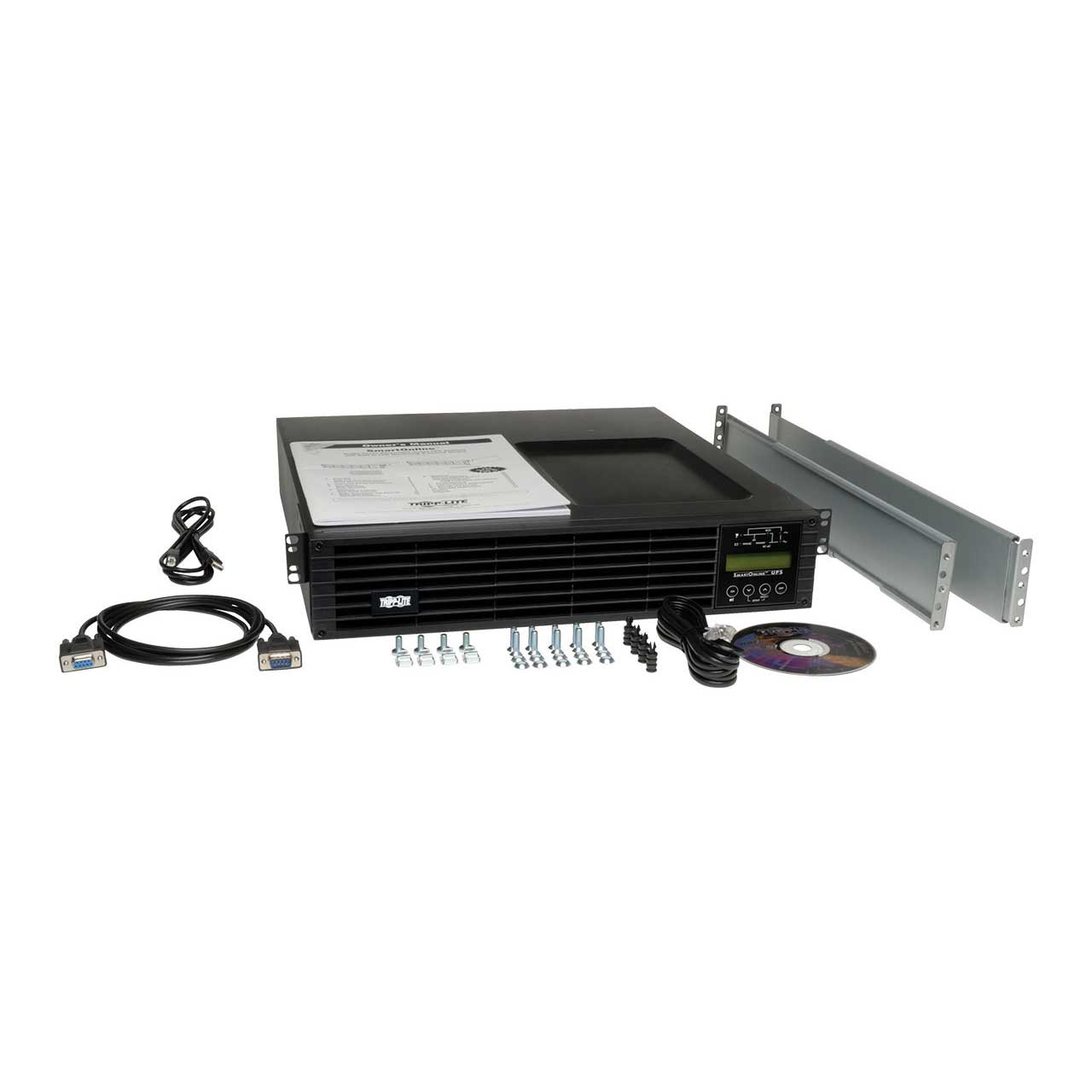

    • Item Includes:

      • SU1500RTXLCDN SmartOnline 120V 1.5kVA 1.35kW On-Line Double-Conversion UPS
      • SNMPWEBCARD web management card
      • USB cable
      • DB9 cable
      • EPO cable
      • PowerAlert software
      • Mounting hardware
      • Owner's manual

    • GTIN:

      0037332192813
