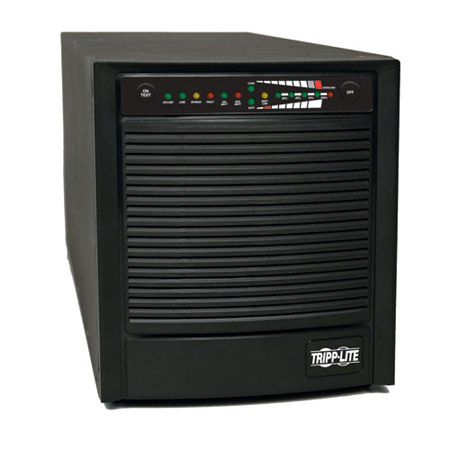

Tripp Lite SU1500XL 1500VA 1200W UPS Smart Online Tower 100V-120V USB DB9 SNMP RT
  • Tripp Lite SU1500XL 1500VA 1200W UPS Smart Online Tower 100V-120V USB DB9 SNMP RT
  • Tripp Lite SU1500XL 1500VA 1200W UPS Smart Online Tower 100V-120V USB DB9 SNMP RT

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite SU1500XL 1500VA 1200W UPS Smart Online Tower 100V-120V USB DB9 SNMP RT

Manufacturer: Tripp Lite

Item #: TRL-SU1500XL   •   MFG #: SU1500XL



List Price:$1,130.40
Our Price:$722.20

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

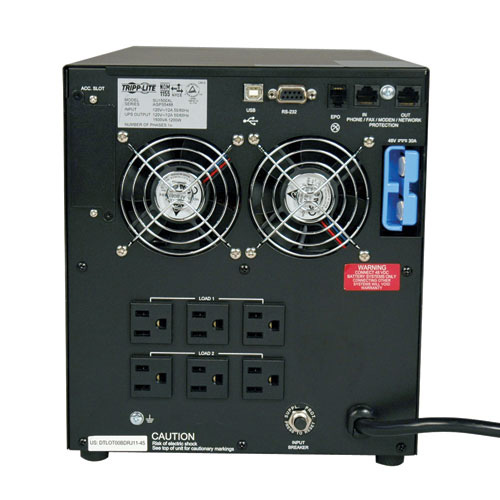

    Tripp Lite's SmartOnline SU1500XL on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges. Large-capacity 1.5kVA/1200W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time provides guaranteed compatibility with all equipment types. Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs. Includes 6 UPS-supported outlets. 2 load banks, each with 3 outlets, can be independently controlled via a software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Battery backup time can be extended with the addition of multiple external battery packs. Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS Power Management Software. Compatible with Tripp Lite's Watchdog Service Monitoring/Rebooting Software. Attractive all-black upright tower format. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).

    What does Uninterruptible Power Supply (UPS) mean?
    An uninterruptible power supply (UPS) provides nearly instantaneous power when the main utility power source fails, allowing either time for power to return or for the user to shut down the system or equipment normally by closing running computer system applications and using the operating system to shut down the system. The user has between five and 15 minutes to shut down a system normally or bring an auxiliary power source online to restore the power supply. In addition, most UPS systems also work to address power source electrical surges, sag voltage, voltage spikes, frequency instability, noise interference or harmonic distortion from the ideal sinusoidal wave form. If you're concerned about power failures, especially if you've lost work on your computer due to power outages in the past, you should buy a UPS. A UPS combines a surge suppressor with a big battery, and has special circuitry that detects a power failure and quickly switches over to run your equipment on its battery. The sole purpose of a UPS is to give you a few minutes at the start of a power failure to do two things:
    -Save your work, and
    -Shut down your computer.
    Please Note: A UPS is not designed to let you continue to use your computer for hours and hours until the power comes back on. If properly chosen, a UPS will give you 5 to 10 minutes (possibly more) to Save and do an orderly Shutdown


    • Specifications

      • Output Volt Amp Capacity (VA) 1500
      • Output kVA Capacity (kVA) 1.5
      • Output Watt Capacity (Watts) 1200
      • Output kW Capacity (kW) 1.2
      • Power Factor 0.8
      • Crest Factor 0.125694444444444
      • Nominal Output Voltage(s) Supported 100V; 110V; 120V
      • Nominal Voltage Details 120V default
      • Load Management Receptacles Two switchable three-outlet 5-15R load banks
      • Output AC Waveform (AC Mode) Sine wave
      • Output AC Waveform (Battery Mode) Pure Sine wave
      • Rated input current (Maximum Load) 12A (120V), 14A (110V), 15.4A (100V)
      • Nominal Input Voltage(s) Supported 100V AC; 110V AC; 120V AC
      • UPS Input Connection Type 5-15P
      • Input Circuit Breakers 20A
      • UPS Input Cord Length (ft.) 10
      • UPS Input Cord Length (m) 3
      • Recommended Electrical Service 15A 120V
      • Input Phase Single-Phase
      • Full Load Runtime (min.) 4.5 min. (1200w)
      • Half Load Runtime (min.) 14 min. (600w)
      • Expandable Battery Runtime Extended runtime supported via optional external battery packs
      • External Battery Pack Compatibility BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
      • DC System Voltage (VDC) 48
      • Battery Recharge Rate (Included Batteries) Less than 6 hours from 10% to 90% (typical, full load discharge)
      • Internal UPS Replacement Battery Cartridge RBC48-SUTWR
      • Battery Access Battery access door
      • Battery Replacement Description Hot-swappable, user replaceable batteries
      • Voltage Regulation Description Online, double-conversion power conditioning
      • Overvoltage Correction 2% output voltage regulation during overvoltages to 150
      • Undervoltage Correction 2% output voltage regulation during undervoltages to 80
      • Severe Undervoltage Correction 2% output voltage regulation during undervoltages to 65 (under 70% load only)
      • Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
      • Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch
      • EMI / RFI AC Noise Suppression Yes
      • Primary Form Factor Tower
      • UPS Power Module Dimensions (hwd, in.) 10.2 x 9 x 19.5
      • UPS Power Module Dimensions (hwd, cm) 26 x 22.9 x 49.5
      • UPS Power Module Weight (lbs.) 49.3
      • UPS Power Module Weight (kg) 22.4
      • UPS Shipping Dimensions (hwd / in.) 15.2 x 13 x 24
      • UPS Shipping Dimensions (hwd / cm) 38.7 x 33 x 61
      • Shipping Weight (lbs.) 56
      • Shipping Weight (kg) 25.4
      • Cooling Method Fans
      • UPS Housing Material Steel
      • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
      • Relative Humidity 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load) 609.7
      • AC Economy Mode BTU / Hr. (Full Load) 260.4
      • Battery Mode BTU / Hr. (Full Load) 609.7
      • AC Mode Efficiency Rating (100% Load) 0.87
      • AC Economy Mode Efficiency Rating (100% Load) 0.94
      • Audible Noise < 45 dB at front side 1m
      • Low Voltage Transfer to Battery Power (Setpoint) 80V (100% load), 65V ( <70% load)
      • High Voltage Transfer to Battery Power (Setpoint) 150
      • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
      • High Availability UPS Features Automatic inverter bypass; Hot swappable batteries
      • Green Energy-Saving Features High efficiency economy mode operation; Individually controllable load banks; Schedulable daily hours of economy mode operation
      • UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
      • Product Warranty Period (Worldwide) 2-year limited warranty
      • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance
