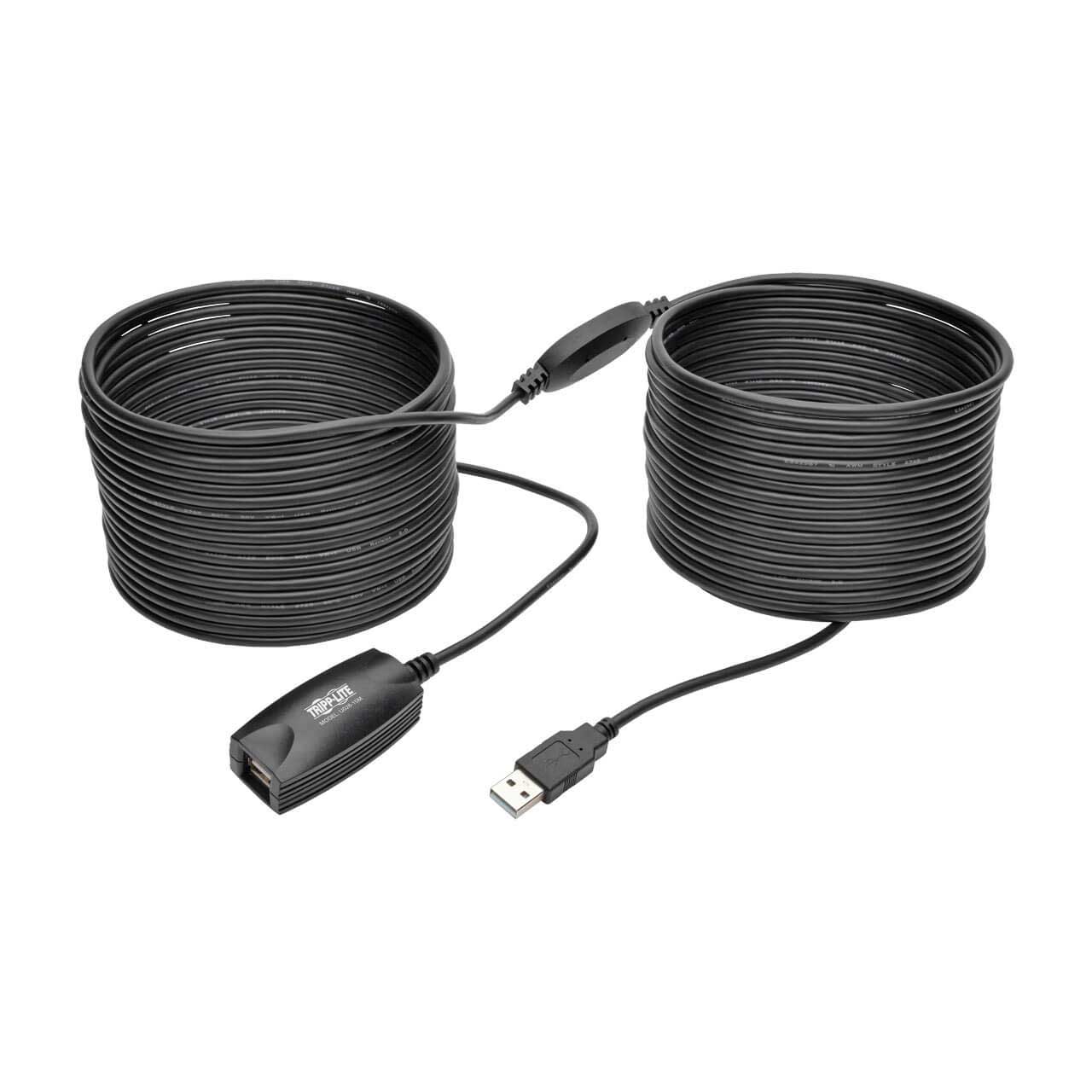

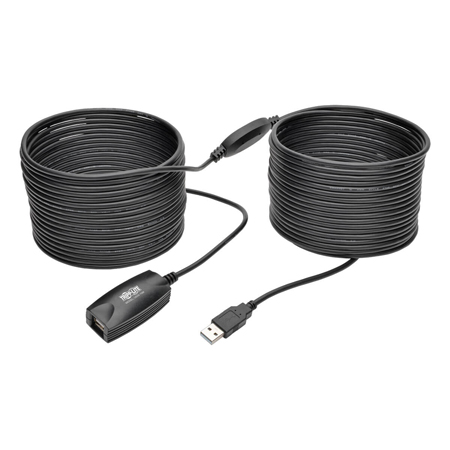

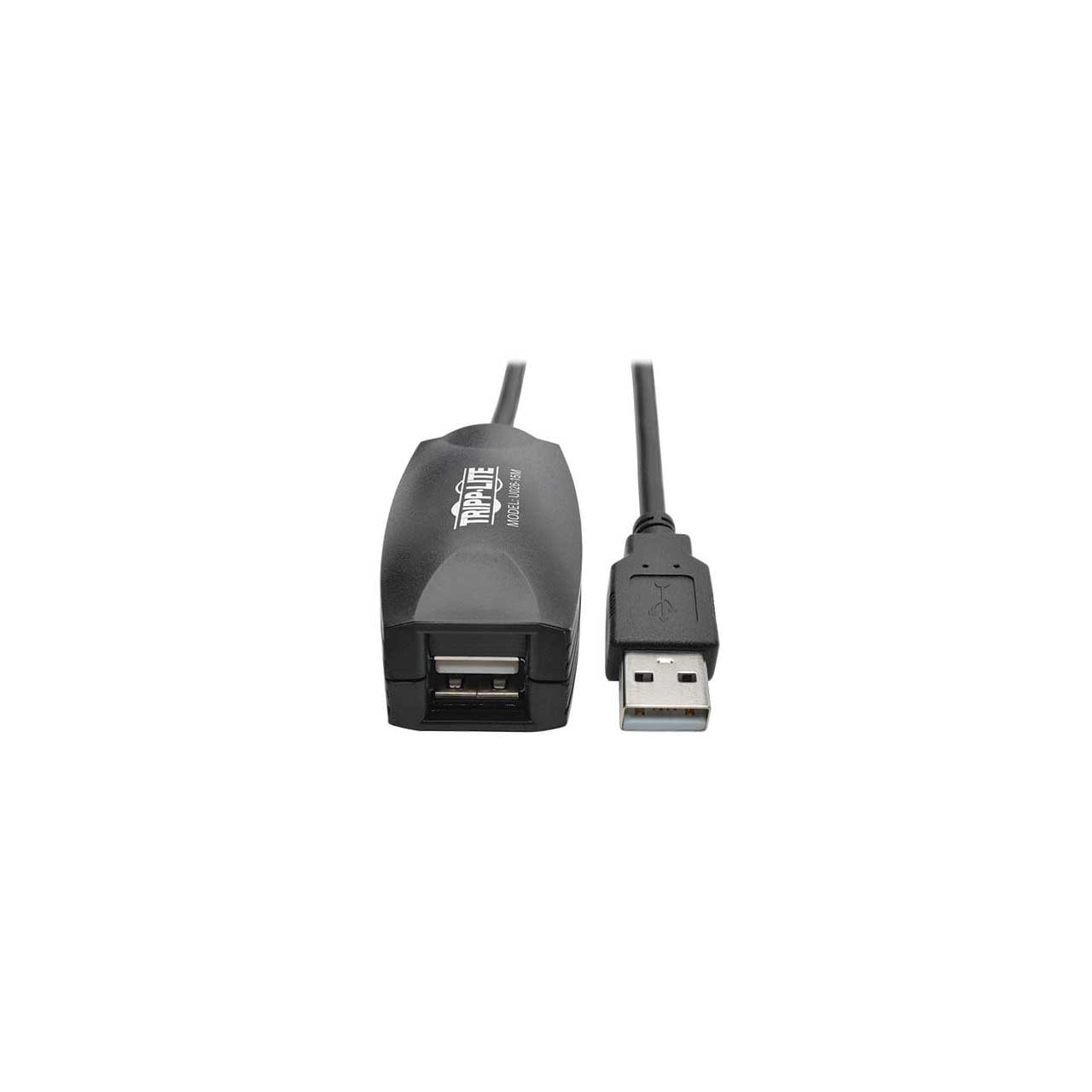

Tripp Lite U026-15M USB 2.0 Active Extension Repeater Cable - 15m/49.21 Feet

ITEM #: TRL-U026-15M MFG #: U026-15M

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$102.35

Our Price:

$45.81

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


U026-15M - Overview

Tripp-Lite U026-15M is a 49.21 foot USB 2.0 active extension repeater cable. This cable connects to any computer, device and/or cable with USB-A connectors to increase the length of a device cable with no decrease in signal or performance. Extends beyond the 16 ft. limit of conventional USB 2.0 cables.

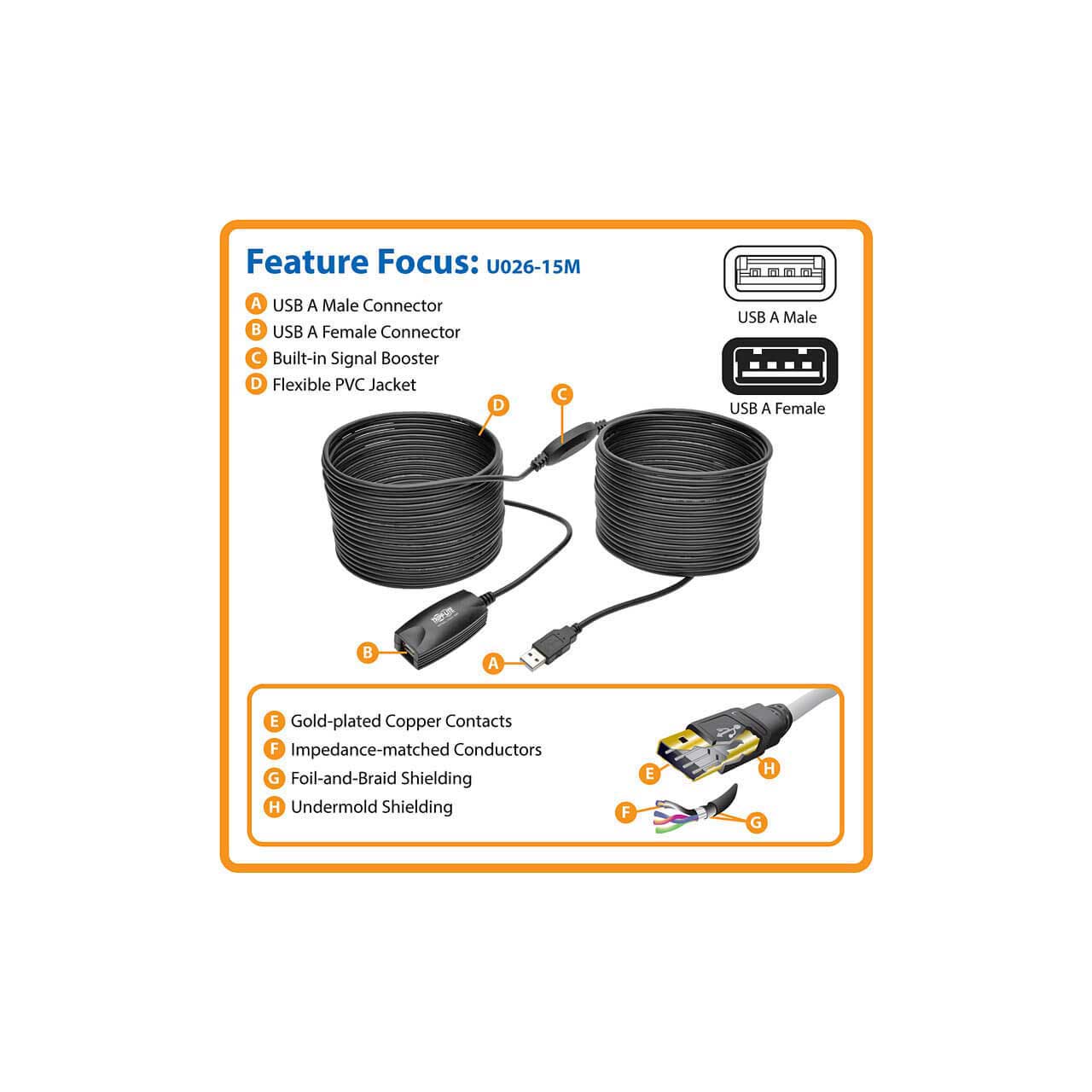

Tripp Lite's U026-15M USB 2.0 Hi-Speed Active Extension Repeater Cable (M/F) increases the length of a device cable up to 15M (49.21-ft.) with no danger of signal loss or performance decrease. Connect the male plug to a USB port on your computer or hub and the female end to a USB device cable. A built-in bus-powered signal booster ensures peak USB 2.0 signal quality. Backward compatible with previous USB generations, this cable supports data transfer rates up to 480 Mbps. The U026-15M works with all computers, devices and cables with USB-A connectors, and provides up to 250mA of power to a connected device (an external power supply or powered USB 2.0 hub is required for power applications stronger than 250mA). Premium foil and braid shielding delivers top-of-the-line signal quality and protection from EMI/RFI interference. Nickel-plated USB connectors with gold-plated copper contacts ensure excellent conductivity. Integral strain relief ensures the cable and connectors last a long time.

System Requirements:
USB 2.0 computer port and USB 2.0 device required to meet USB 2.0 speeds.
External power supply or powered USB hub (such as U222-004-R) required for power applications above 250mA.

  • Features:

    • 33ft (10m) USB 2.0 Active Extension Cable, USB-A Male to USB-A Female
    • Full 480Mbps Transfer rate, as well as backward compatible to USB 1.1 ( 12Mbps )
    • Daisy Chain four cables for a total of 131-ft. (39.92 m)
    • Bus Powered - no external power required
    • Compatible with all major operating systems
    • Plug-and-Play; no software to load

  • Specifications:

    • Technology: USB 2.0 (High Speed)
    • USB Cable Type: Active
    • Bus Powered: Yes
    • Power Consumption (Watts): 0.20
    • Material of Construction: ABS, PVC
    • Cable Jacket Color: Black
    • Cable Jacket Rating: VW-1
    • Cable Length: 49.2 ft (15m)
    • Shipping Dimensions: 0.50 x 9.40 x 11.80in
    • Shipping Weight: 1.20 lbs
    • Unit Packaging Type: Polybag
    • Unit Weight: 1.1 lbs (0.50 kg)
    • Operating Teperature Range: 32° to 113°F (0° to 45°C)
    • Storage Temperature Range: 14 to 167 F (-10 to 75 C)
    • BTUs: 0.68 BTU/Hr
    • Operating Humidity Range: 10 to 85% RH, Non-Condensing
    • Storage Humidity Range: 10 to 85% RH, Non-Condensing
    • Power Provided to Connected Device(s): 0.25A Output per USB port
    • Side A - Connector 1: USB A (Male)
    • Side B - Connector 1: USB A (Female)
    • Connector Plating: Nickel-plated
    • USB Specification: USB 2.0 (up to 480 Mbps)
    • Driver Required: No
    • Product Compliance: RoHS; CE (Europe); REACH; FCC (USA)
    • Product Warranty Period (Worldwide): 3-year Limited Warranty

  • Item Includes:

    • 1x U026-15M USB 2.0 Hi-Speed Active Extension Repeater Cable (M/F), 49.21ft (15m)

  • Warranty:

    • 3-year limited warranty

  • GTIN:

    0037332199768
