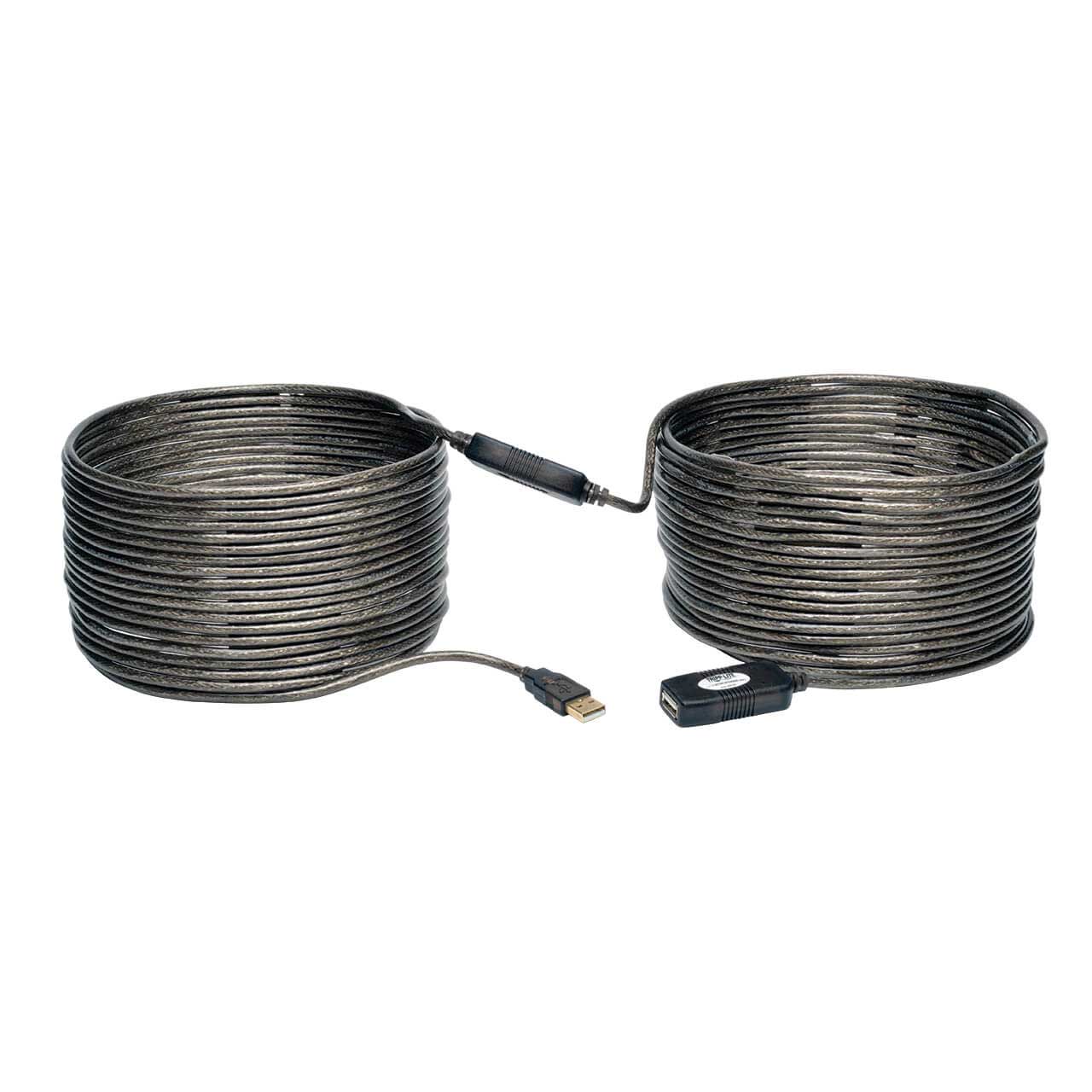

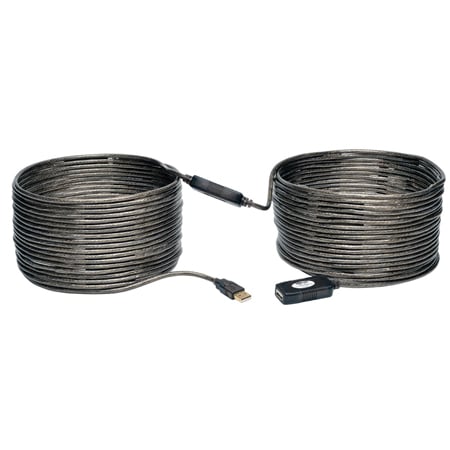

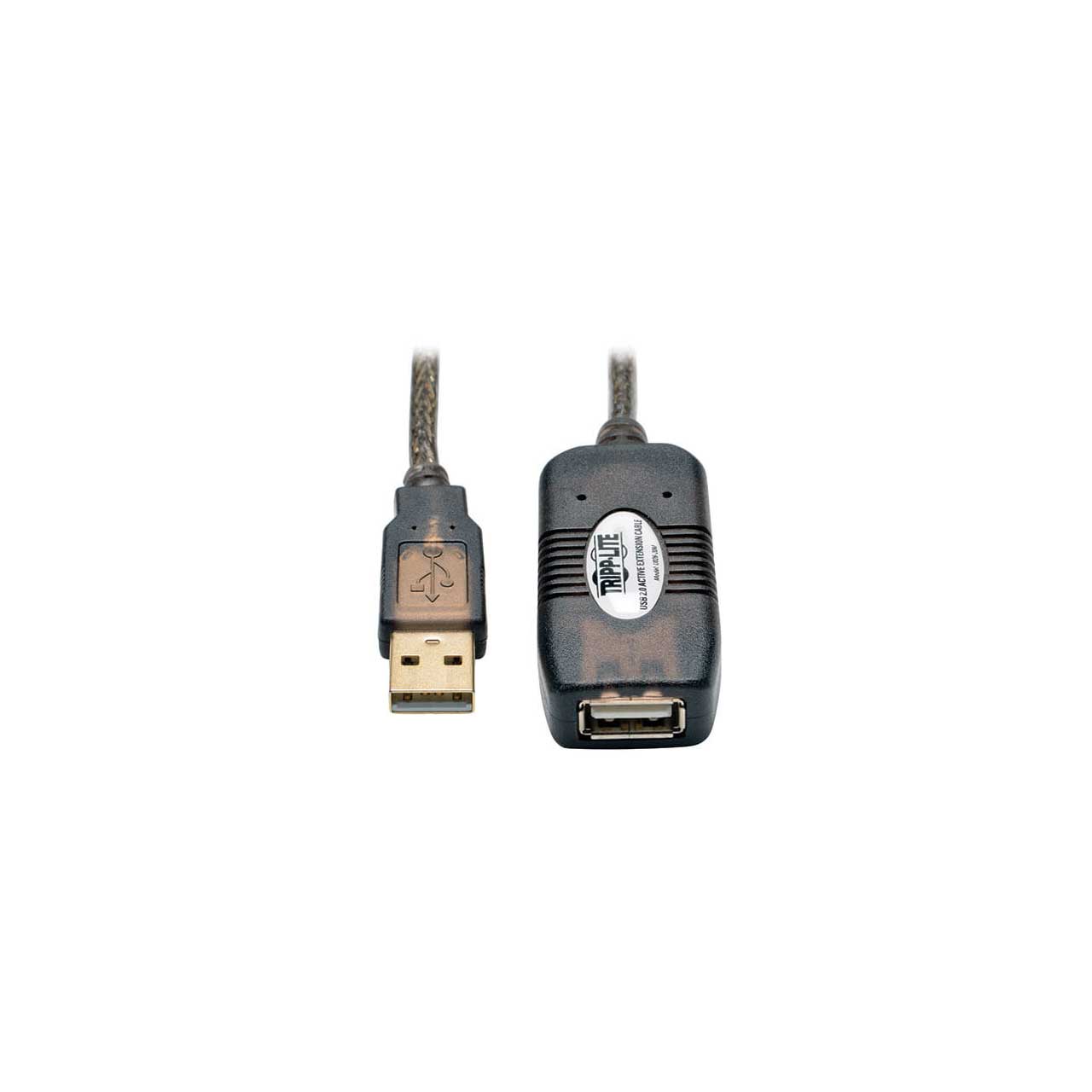

Tripp Lite U026-20M is a 65.61 ft, 20M USB 2.0 Active Extension Repeater Cable. This cable is used to increase the length of a USB device cable beyond the 16.ft cable limitation without signal loss and potential performance problems. The U026-20M is a bus-powered extension cable with a built-in signal booster for regenerating the signal to achieve superior signal quality and data transmission. The overall cable length can be extended up to 131-ft. (39.92 m) by daisy chaining up to 2 of active cables. Standard 6-ft. (1.83 m), 10-ft. (3.05 m), or 15-ft. (4.57 m) USB A-B cable to reach the desired distance. Meets or exceeds all USB 2.0 specifications and also supports faster data transfer for legacy USB 1.1 devices. Power capacity is up to 90mA of power to the connected device. (If more than 90mA is required, it will either (i) need to have its own power supply, or (ii) be plugged into a powered USB 2.0 hub (Tripp Lite U222-004-R).
System Requirements:
A USB 2.0 port and USB 2.0 device are required to achieve USB 2.0 speeds. A USB 1.1 port and/or device can be used, but you will not be able to achieve USB 2.0 speeds. The U026-20M provides up to 90mA of power to the connected device. If more than 90mA is required, it will either need to have its own power supply, or be plugged into a powered USB 2.0 hub (Tripp Lite U222004-R).
