Tripp Lite U330-20M USB 3.0 Active Superspeed Extension Repeater Cable USB-A M/F - 66 Feet 20M

ITEM #: TRL-U330-20M MFG #: U330-20M

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$270.34

Our Price:

$110.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    U330-20M - Overview

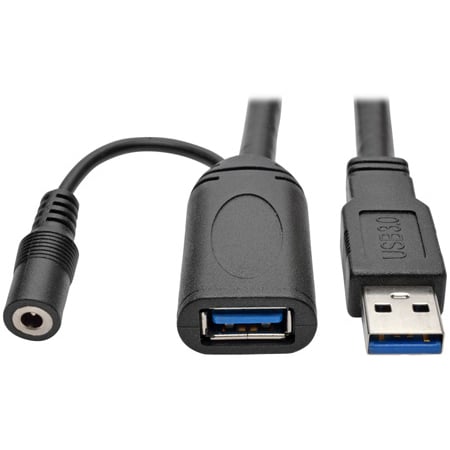

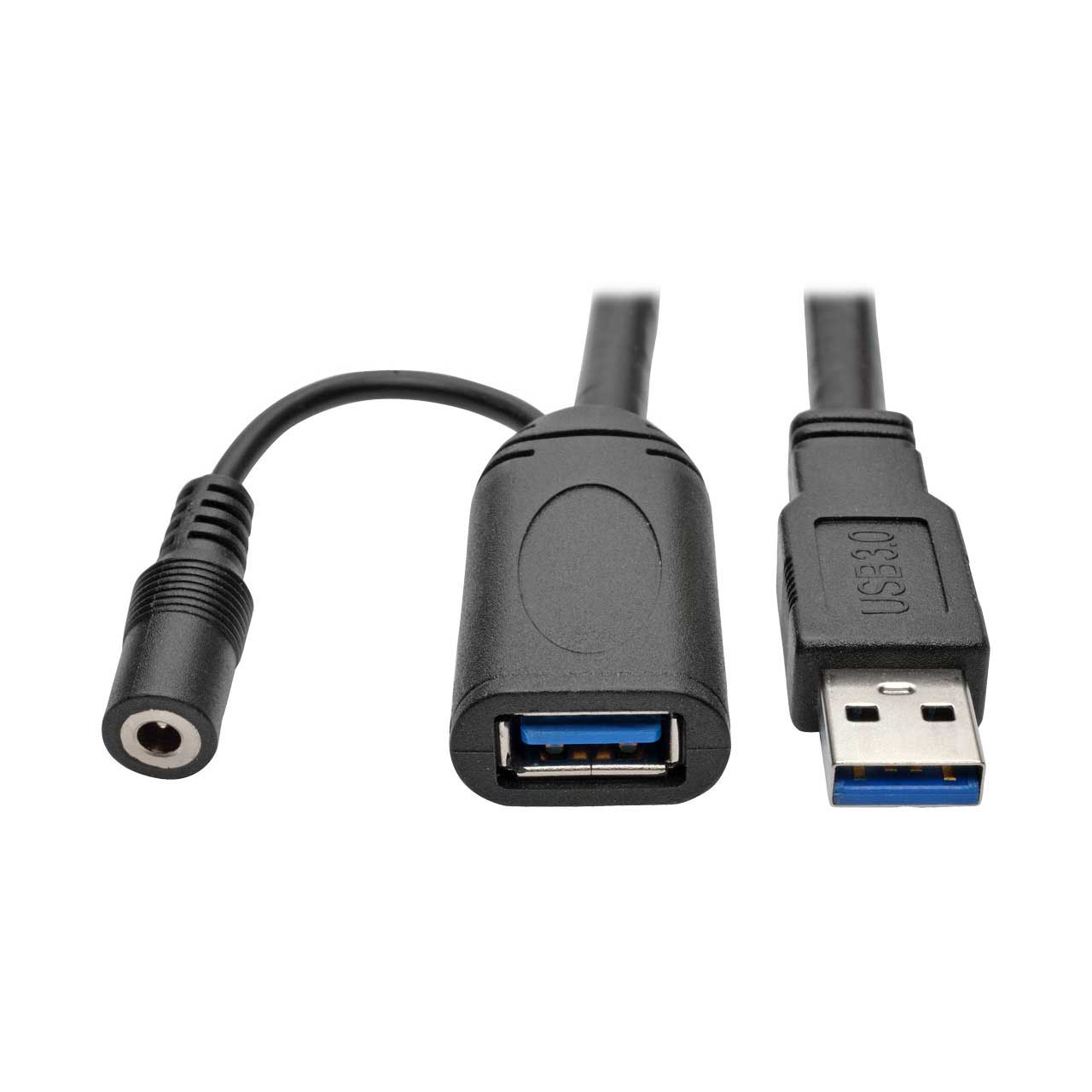

    Tripp Lite's U330-20M USB 3.0 SuperSpeed Active Extension Repeater Cable (M/F) increases the length of a device cable up to 65 feet with no worry of signal loss. By daisy-chaining two cables while using external power, you can extend the length between USB devices up to 130 feet.

    Connect the male plug to a USB port on your computer or hub and the female end to a USB device cable. A built-in bus-powered signal booster ensures peak performance. Backward compatible with previous USB generations, this cable supports data transfer rates up to 5 Gbps.

    The U330-20M works with all computers, devices and cables with USB-A connectors. It provides up to 360mA of power to a connected device (a 5V, 2A external power supply is required for power applications stronger than 360mA).

    Premium foil and braid shielding delivers top-of-the-line signal quality and protection from EMI/RFI interference. Nickel-plated USB connectors with gold-plated copper contacts ensure excellent conductivity. Integral strain relief ensures the cable and connectors last a long time.

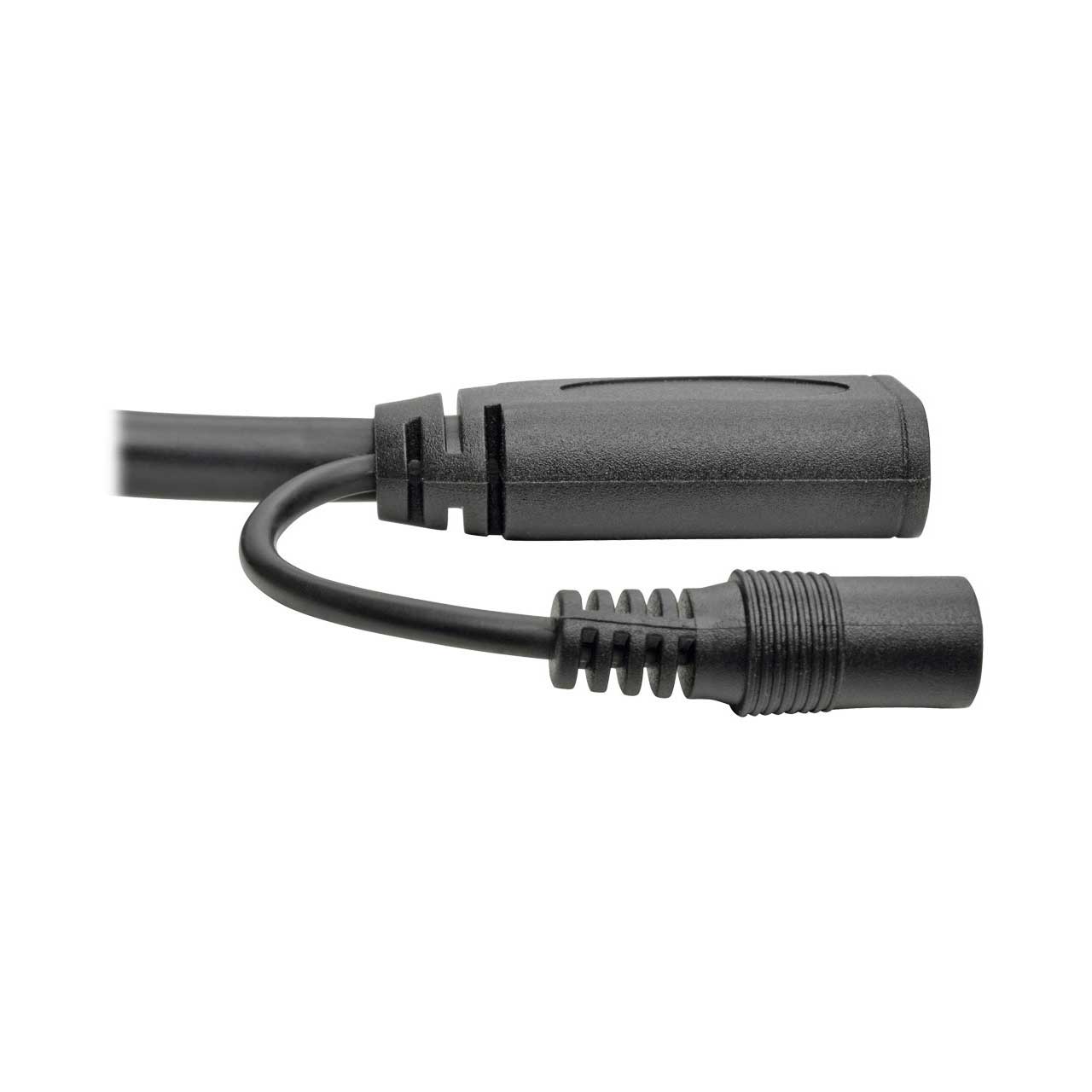

    Note: USB 3.0 computer port and USB 3.0 device required to meet USB 3.0 speeds. 5V, 2A power supply with 3.5 x 1.35 mm DC jack required for power applications above 360mA. Output plug requires positive tip and negative sleeve.

    • Features:

      • Increases length of device cable up to 65 ft.
      • Daisy-chain 2 cables for maximum distance up to 130 ft. (while using an external 5V, 2A power supply)
      • Supports data transfer rates up to 5 Gbps
      • Built-in bus-powered signal booster for peak performance
      • Provides up to 360mA of power to connected device
      • Backward compatible with previous USB generations
      • Premium foil and braid shielding protects against EMI/RFI
      • Nickel-plated connectors with gold-plated copper contacts ensure excellent conductivity
      • Works with all computers, devices and cables with USB-A connectors
      • 5V, 2A external power supply required for power applications stronger than 360mA

    • Specifications:

      • Physical Characteristics
      • Shipping Dimensions (H x W x D): 0.500 in x 14.000 in x 17.000 in
      • Shipping Weight (lbs.): 3.0000
      • Color: Black

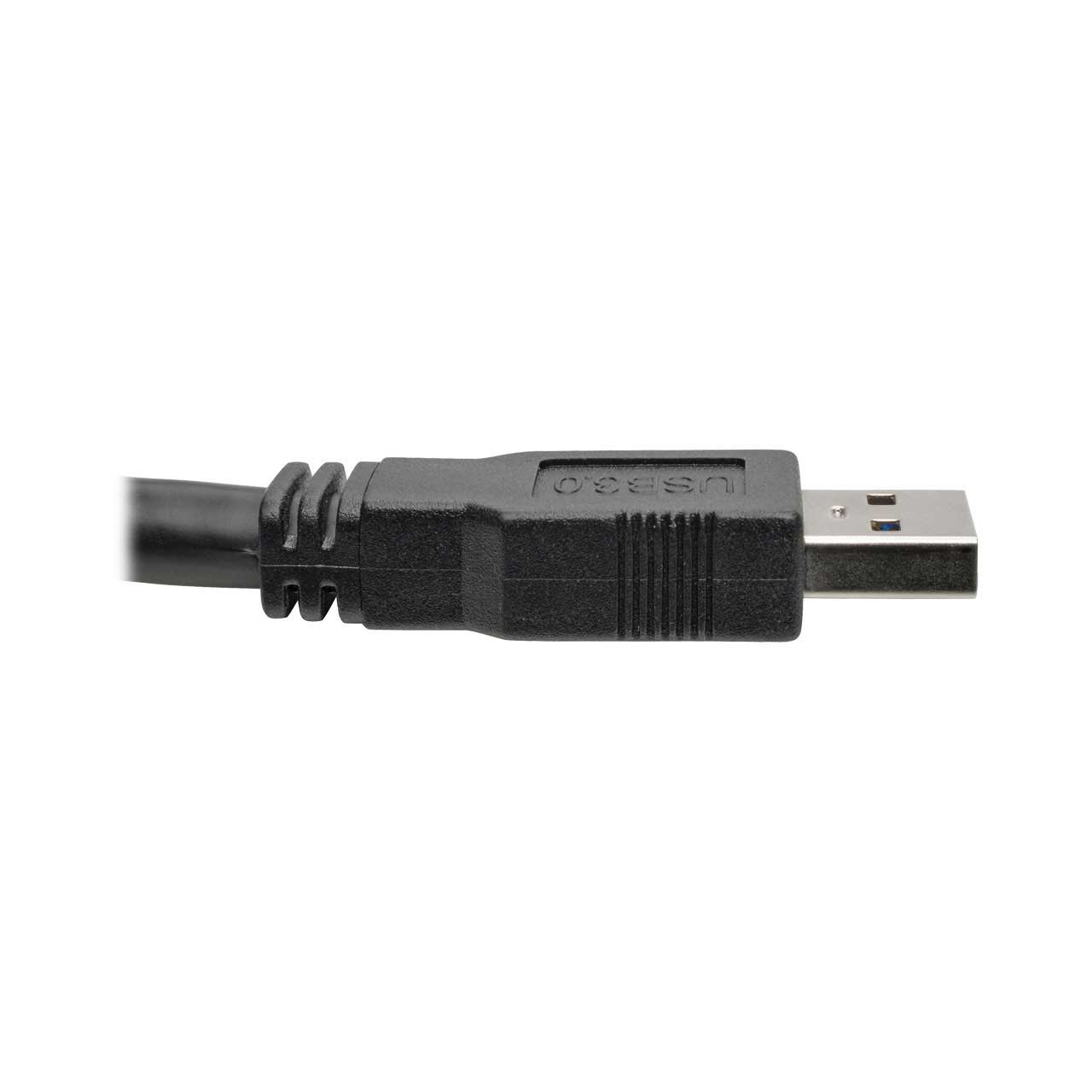

      • Side A - Connector 1: USB 3.0 A (MALE)
      • Side B - Connector 1: USB 3.0 A (FEMALE)

    • Item Includes:

      • U330-20M USB 3.0 SuperSpeed Active
      • Extension Repeater Cable (M/F), 20 m

    • Warranty:

      • 3-year limited warranty

    • GTIN:

      0037332199713
