Theatrixx XVVRM-OPTO5 Reversible Module - DMX Splitter/Isolator 1:3 + Thru - RDM - XLR5

ITEM #: TTX-XVVRM-OPTO5 MFG #: XVVRM-OPTO5

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$516.00

Our Price:

$403.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    XVVRM-OPTO5 - Overview

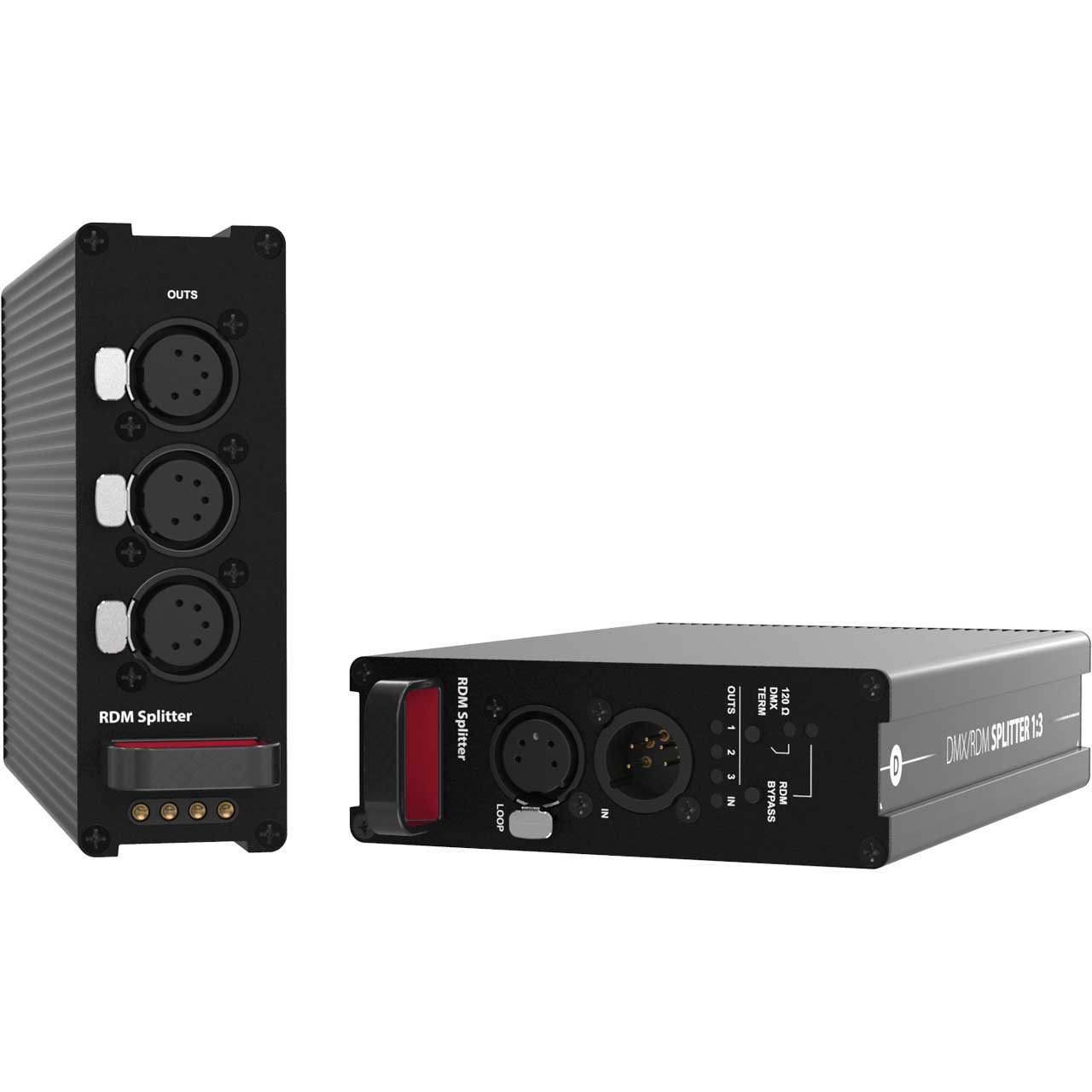

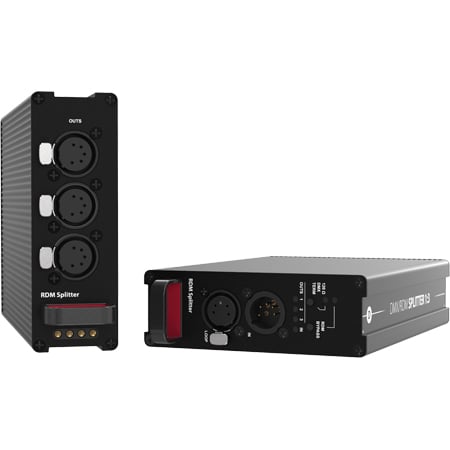

    The Theatrixx XVVRM-OPTO5 is a DMX/RDM Splitter XLR5 Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

    The DMX/RDM Splitter is a high quality, rugged distribution device for your DMX-512 and RDM signals. The input and each output are optically isolated up to 1000 volts, ensuring line failures are contained and do not take down the whole network. RDM data is forwarded to each port, and a special Timing Safe Mode bypasses RDM transmitting and boosts the DMX signal quality to ensure compatibility with older- generation fixtures.

    It is also a handy troubleshooting feature that can be easily switched on or off at the push of a button. Available as a modular, 3 channel unit compatible with Theatrixx's Award-Winning 8-Bay Reversible Converter System, the product opens up interesting possibilities for high-universe count, high density configurations. For maximal compatibility, the device is offered with a 5-pin XLR connectors.

    • Specifications:

      • Connections

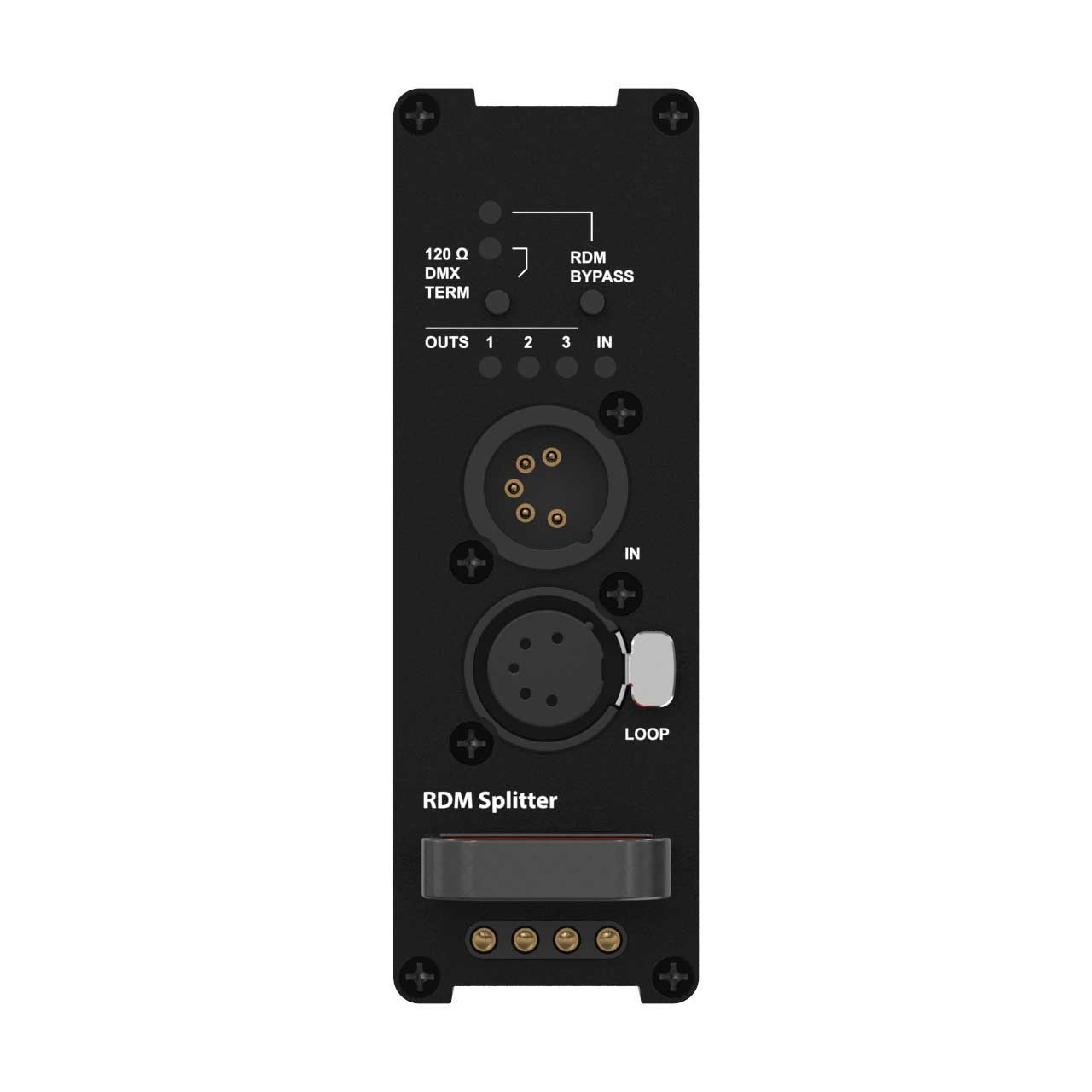

      • Input: 1x 5-pin XLR male
      • Loop-thru: 1x 5-pin XLR female

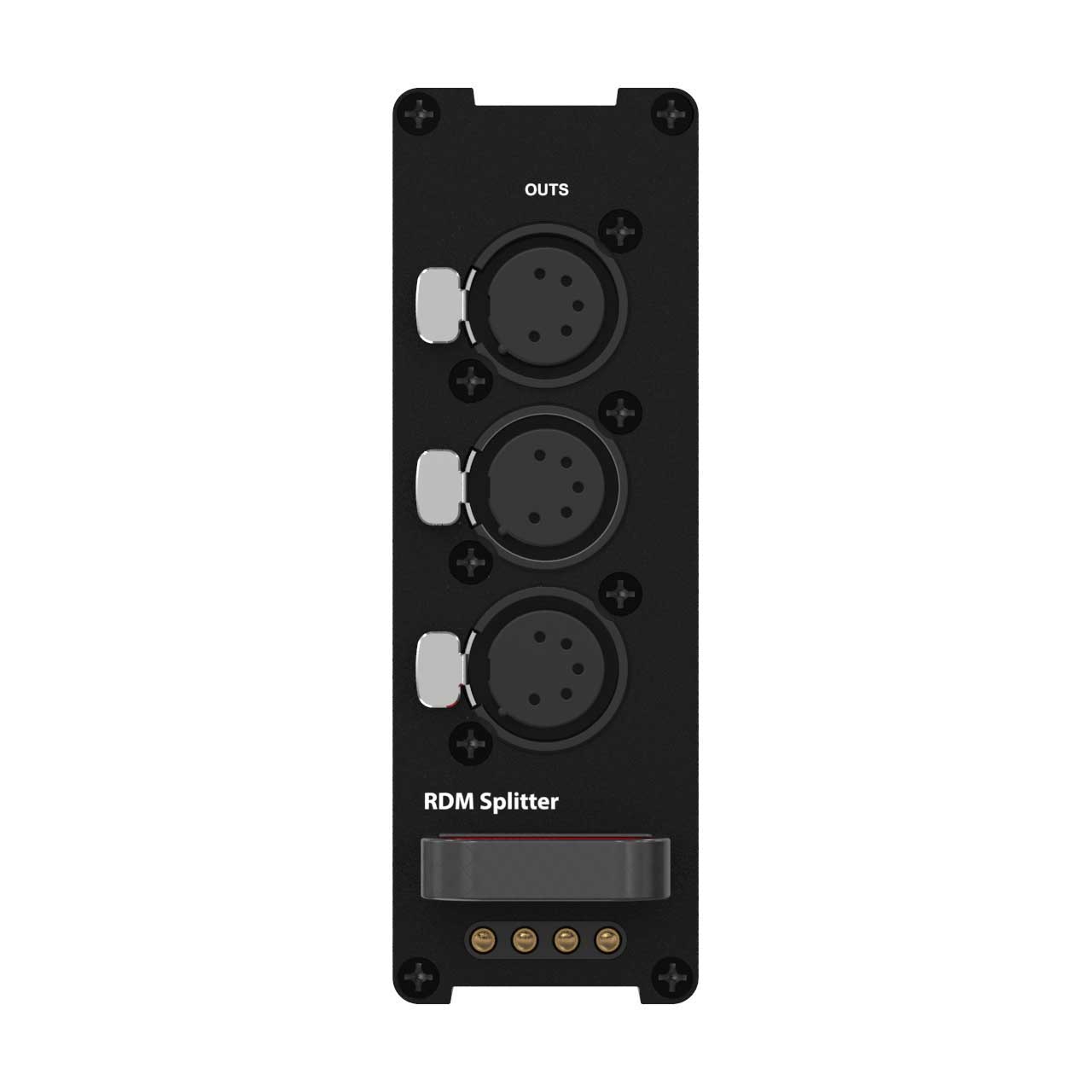

      • Isolated Output: 3x 5-pin XLR female

        Supported Signals
      • DMX Termination: Switchable on/off
      • RDM Support: Yes
      • RDM Bypass: Switchable on/off
      • Port Isolation Voltage: Up to 1kV
      • Timing Safe Mode: 33 FPS, 512 Slots, 88uS Break, 44 us MAB

        Physical
      • Dimensions (HxDxW): 4.78 x 8.85 x 1.61" (121.5 x 225 x 41mm)
      • Weight: 1.56Lbs (710g)
      • Alternate Form Factor: Also available as a standalone converter

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 32° to 104°F (0° to 40°C)

        Power Requirements
      • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20W
      • Voltage Range: 12VDC

    • Item Includes:

      • 1x Theatrixx Reversible Module DMX/RDM Splitter with 5-Pin XLR connector
