tvONE 1RK-CBL-MGMT ONErack Cable Management System for Managing Signal Cables in ONErack Modules

ITEM #: TV1-1RK-CBL-MGMT MFG #: 1RK-CBL-MGMT

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$60.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    1RK-CBL-MGMT - Overview

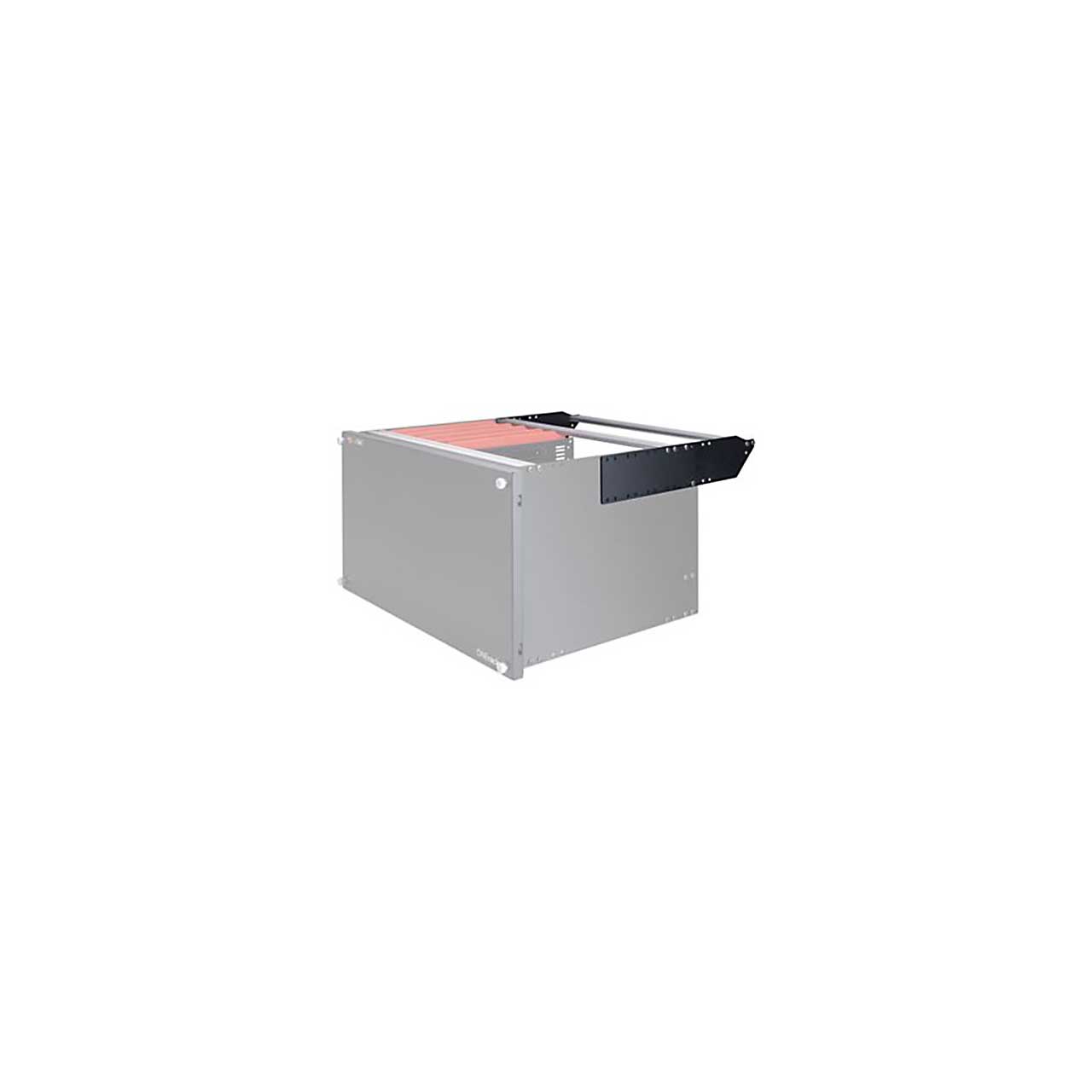

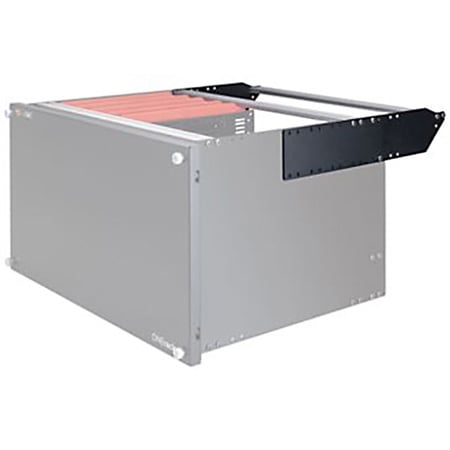

    The 1RK-CBL-MGMT ONErack cable management system provides a versatile platform for managing signal cables routed to and from ONErack modules.

    ONErack is a universal, powered mounting system that vastly improves rack installation of small devices. tvONE's patent pending design converts randomly sized, externally powered devices from any manufacturer into slide-in modules that can be installed quickly and cleanly and serviced easily. Chassis are available in 4RU, 5RU and 6RU and can hold up to 16 modules with up to 2 voltage selectors each. When using the ONErack Power Supply, each voltage selector, can provide power @ 5v, 7.5v, 9v, 12v, 13.5v, 18v, & 24v up to 35 watts. A pass thru is also available for custom power sources. Each ONErack Chassis can include 1 or more Power Supplies for added power which can also feed additional chassis, providing a clean power solution for all mounted devices. For service, just slide out a failed device, no cable ties, no guessing. Close the front of your ONErack with a Fan cover and keep it all cool. Up to 32 devices in just 4RU, powered and cooled!

    • Features:

      • Universal mounting for any brand
      • Variable DC voltages from single power supply
      • Active fan cooling system for high density applications
      • Available in 3 sizes; 4RU, 5RU, 6RU
      • Power up to 32 devices in 4RU, 64 devices in 5 or 6RU1
      • Each slot can provide 2 different voltages at the same time
      • Each slot has 7 different voltage settings
      • Pass thru allows for custom powering options
      • Fast easy installation of small devices
      • Simple, time saving serviceability

    • Specifications:

      • Chassis
      • Size (DxHxW): 4RU; 14" x 7" x 19", 5RU; 14" x 8.7" x 19", 6RU; 14" x 10.43" x 19"
      • Weight (empty): 4RU; 6.34lbs, 5RU; 7.45lbs, 6RU; 8.55lbs
      • Module kit weight: 4RU; 0.97lbs, 5RU; 1.15lbs, 6RU; 1.32lbs
      • Area per slot**: 4RU; 60.1in2, 5RU; 80.9in2, 6RU; 101.6in2 (** Additional Voltage Selector requires 4.8in2)
      • Power per dock: max 35w
      • Power per slot: two voltage selectors @ 35w each (2nd Voltage Selector is optional)
      • DC Voltages per slot: 5v@7A, [email protected], [email protected], [email protected], [email protected], [email protected], [email protected] & Pass Thru
      • Pass Thru max: 35 watts DC
      • Certifications: RoHS, CE, UL, FCC Class A
      • Max modules: 16 (with internal PSU; 14)

        PSU
      • Size (DxHxW): 4RU; 12.52" x 5.67" x 1.73", 5RU; 12.52" x 7.40" x 1.73", 6RU; 12.52" x 9.13" x 1.73"
      • Weight: 4RU; 3.26lbs, 5RU; 3.88lbs, 6RU; 4.5lbs
      • Main Output voltage: 28v DC
      • Main output power: 250w
      • Fan output voltage: 12v DC
      • Fan output power: 6w
      • BTU: 1195 BTU
      • Certifications: RoHS, CE, UL, FCC Class A
      • AC input Voltage: 90-264v AC
      • Thermal: 32°F - 104°F
      • Outlets Available: 2x 28v DC daisy chainable (rear), 2x fan 12v DC (1x front, 1x rear), 1x 28v DC service output (front)

        Fan Cover, reversible
      • Airflow: 225 CFM max
      • Consumption: 6w max
      • Speed Adjustment: 100% down to 50%
      • Power: 12v DC
      • Certifications: RoHS, CE, UL, FCC Class A

    • Warranty:

      • 1 Year Warranty
