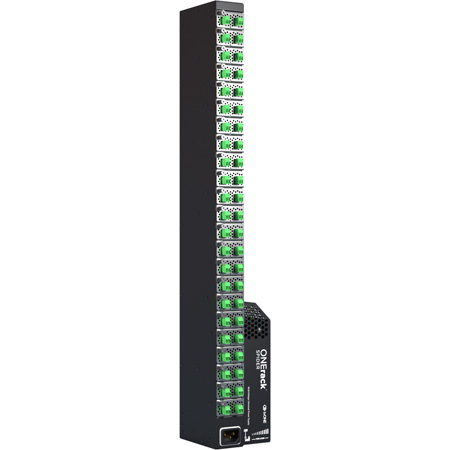

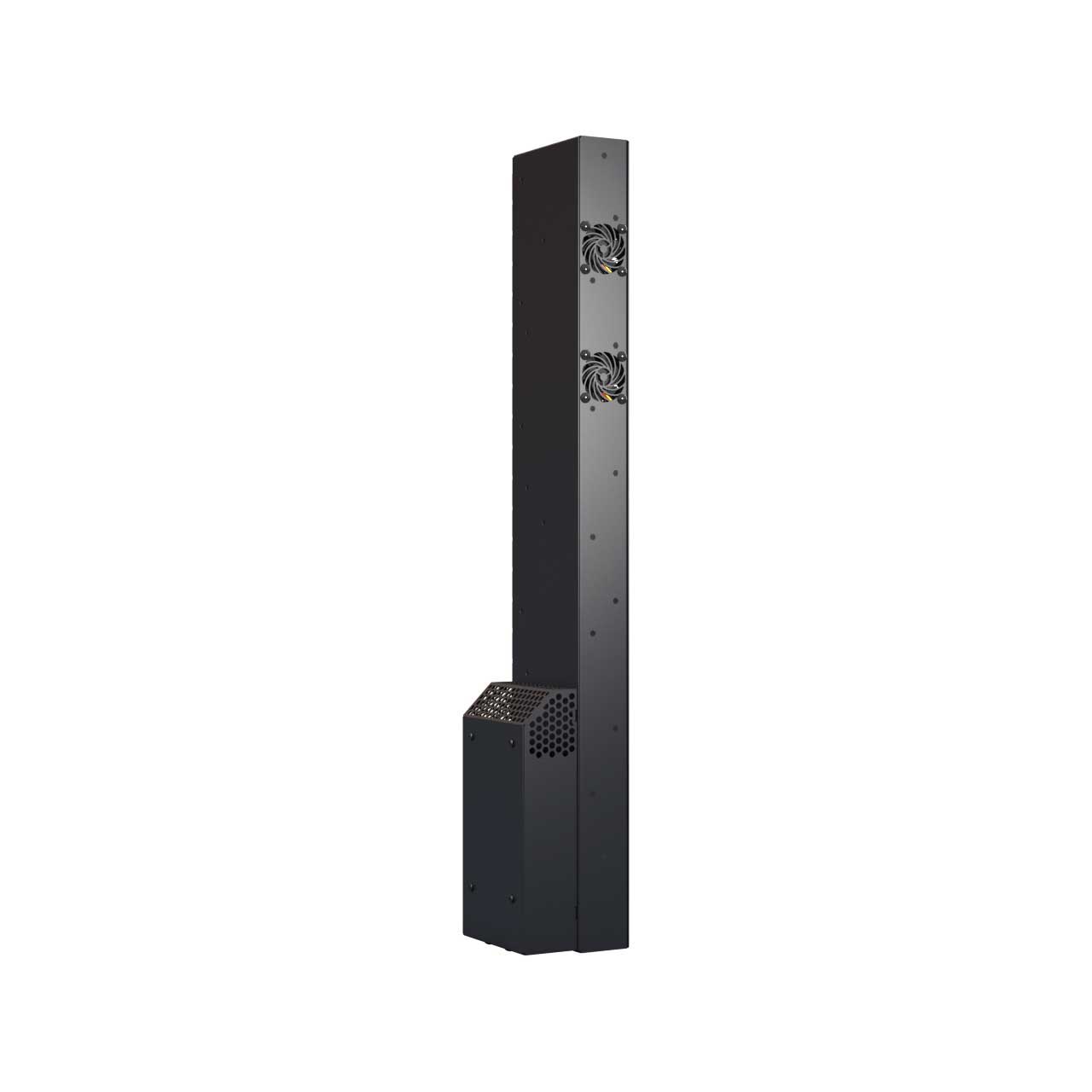

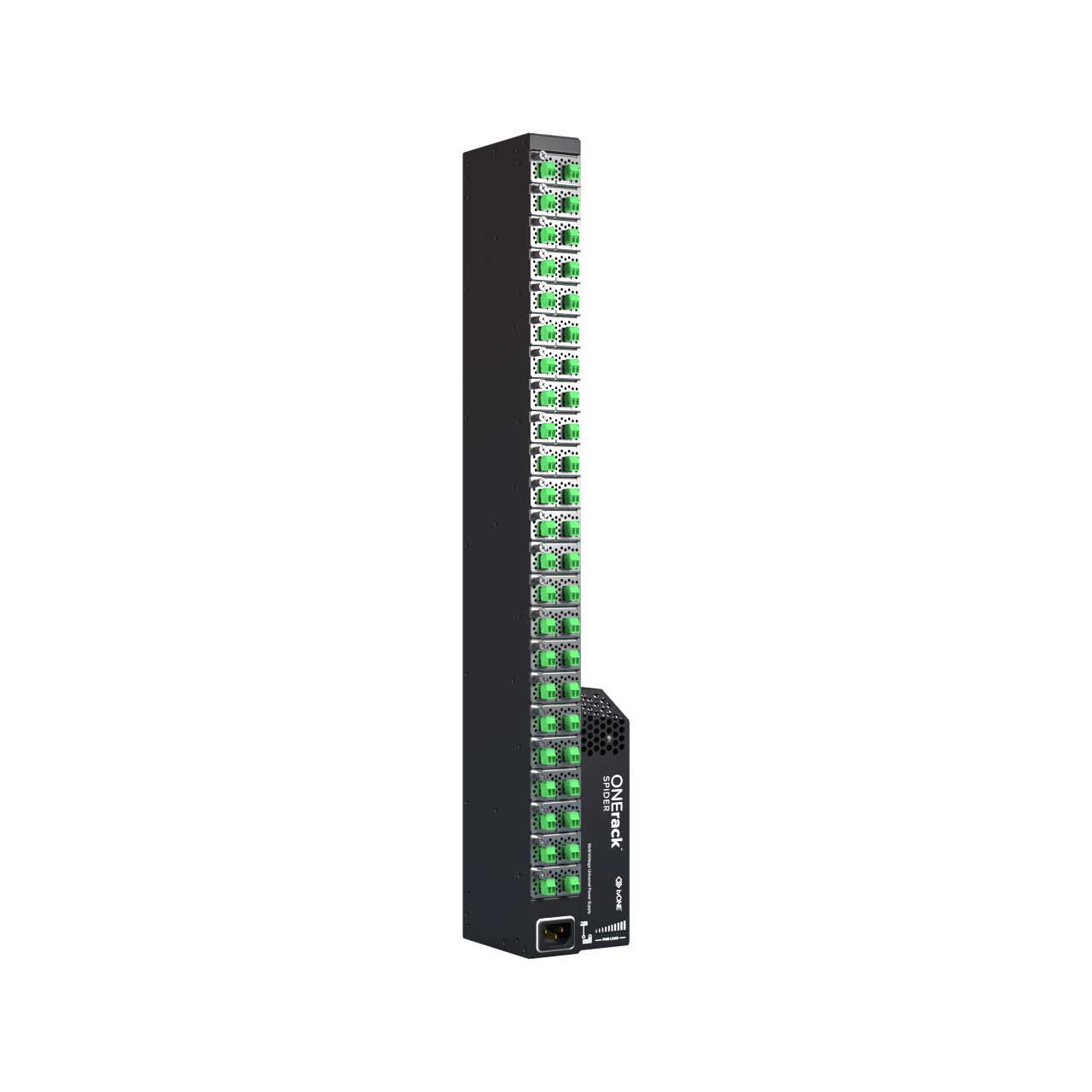

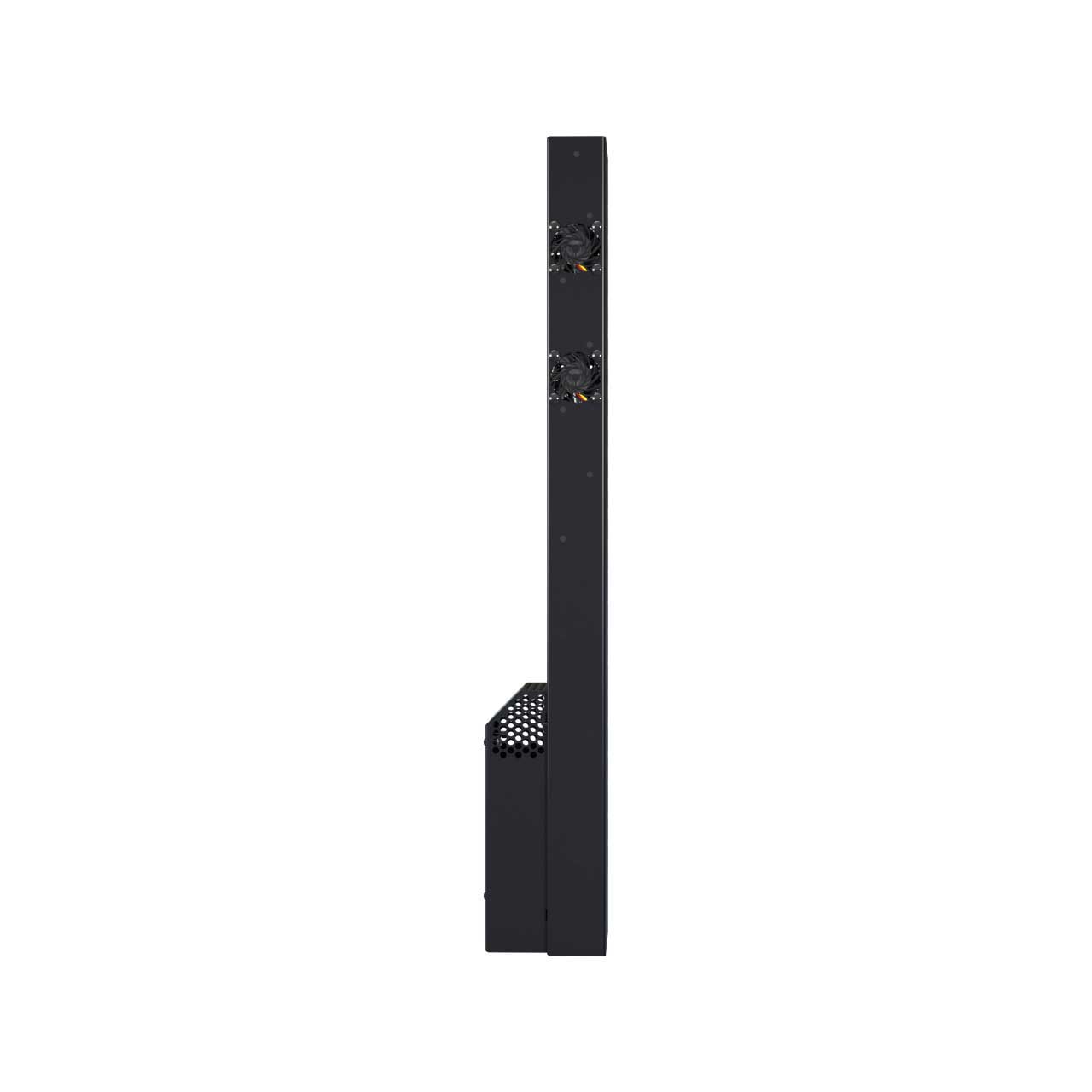

tvONE 1RK-SPDR-STRIP-23 ONErack Spider Multi Voltage Vertical PSU Strip - 23 Module Slots & 10 Voltage Modules Included

ITEM #: TV1-1RKSPDRSTR23 MFG #: 1RK-SPDR-STRIP-23

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
tvONE
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,600.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    1RK-SPDR-STRIP-23 - Overview

    tvONE 1RK-SPDR-STRIP-23 ONErack Spider optimizes any installation by eliminating unreliable DC wall warts and other power clutter from the rack design, while also providing reliable power to support a mix of 7 different voltage options; 5v, 7.5v, 9v, 12v, 13.5v, 18v, and 24v. This innovative, multi-voltage design takes the award-winning power capabilities from the ONErack system to a smaller more flexible level!

    The ONErack spider is available in a 1RU half rack version (7 modules capacity) or rear vertial strip version (23 module capacity) and can be installed at the back or side of the rack to provide the ultimate installation flexibility.

    Choose, ONErack Spider for your mission-critical installations in healthcare, higher-education, broadcast and control rooms.

    • Features:

      • Up to 7 simultaneous DC voltages
      • UL compliant
      • 'Zero space' rear mounting options
      • Surge suppression
      • Overload protection
      • Universal DC power for any brand


    • Specifications:

      • Size D+H+W: 609.6mm x 103.4mm x 89.75 (24 x 4 x 3.5 inches)
      • Weight (empty): 4kg
      • Max Voltage Modules: 14 (expandable to 23)
      • Power Per Module: max 35w
      • Connectors: 2-pin 3.5 mm detachable terminal block, (2 per module)
      • DC Output Ports: 46 max (2 per module)

        DC Voltages Per Slot
      • 5v@7A, [email protected], [email protected],
      • [email protected], [email protected], [email protected],
      • [email protected]

      • Main Output Power: 400w
      • Active Cooling: yes
      • Fan Noise: 24dB(A)
      • BTU: 1706 BTU
      • AC Input Voltage: 90-264v AC @ 5.5A max
      • Thermal: 0° - 40° C
      • Humidity: 10% to 85%, Non-condensing
      • Altitude: < 2000m
      • Surge Suppression: MOV
      • Overload Protection: Auto-resetting PTC on each DC output


    • Item Includes:

      • 1x tvONE 1RK-SPDR-STRIP-23 Multi Voltage PSU Strip with 23 Voltage Module Slots & 10 Voltage Modules Included


    • Warranty:

      • 5 Year Warranty
