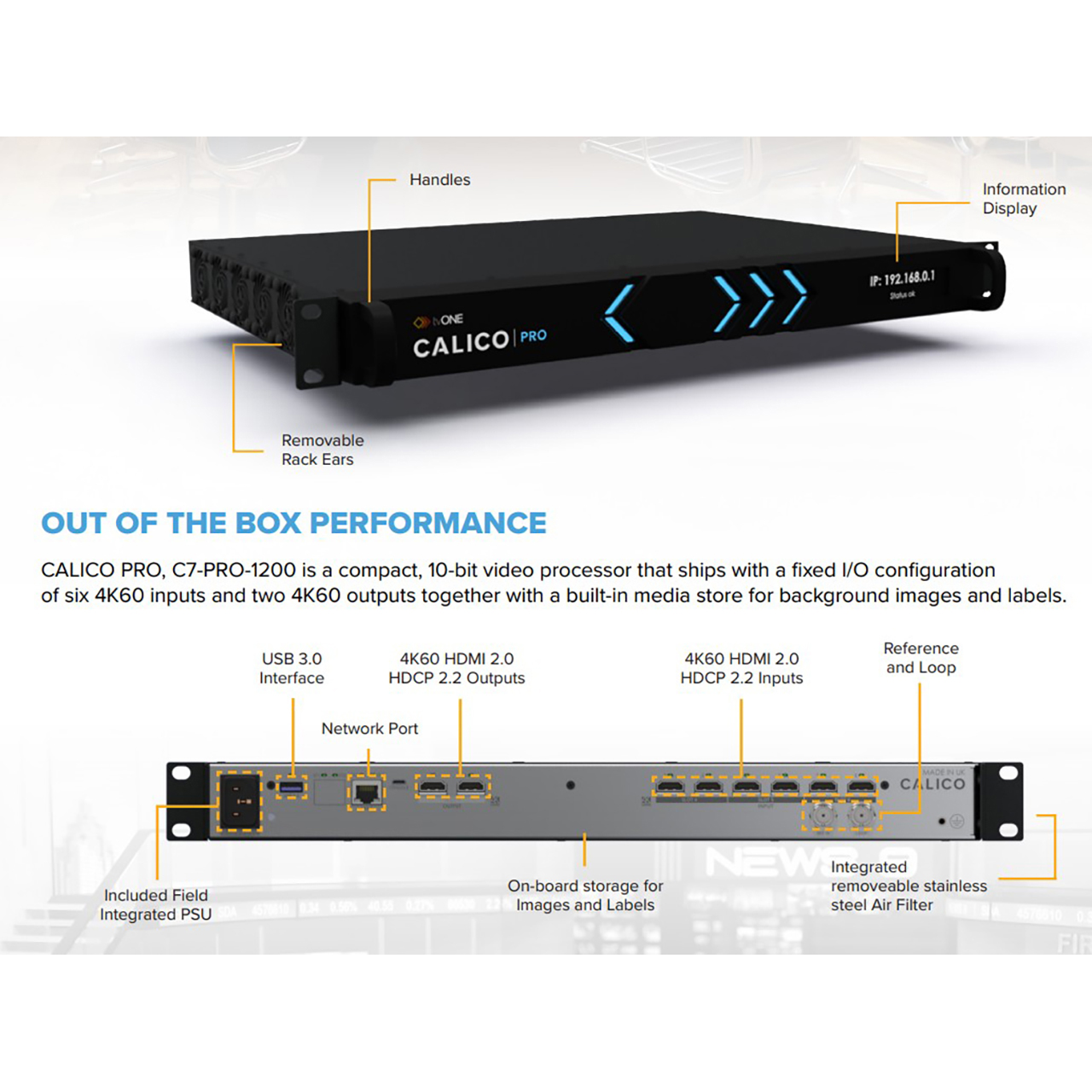

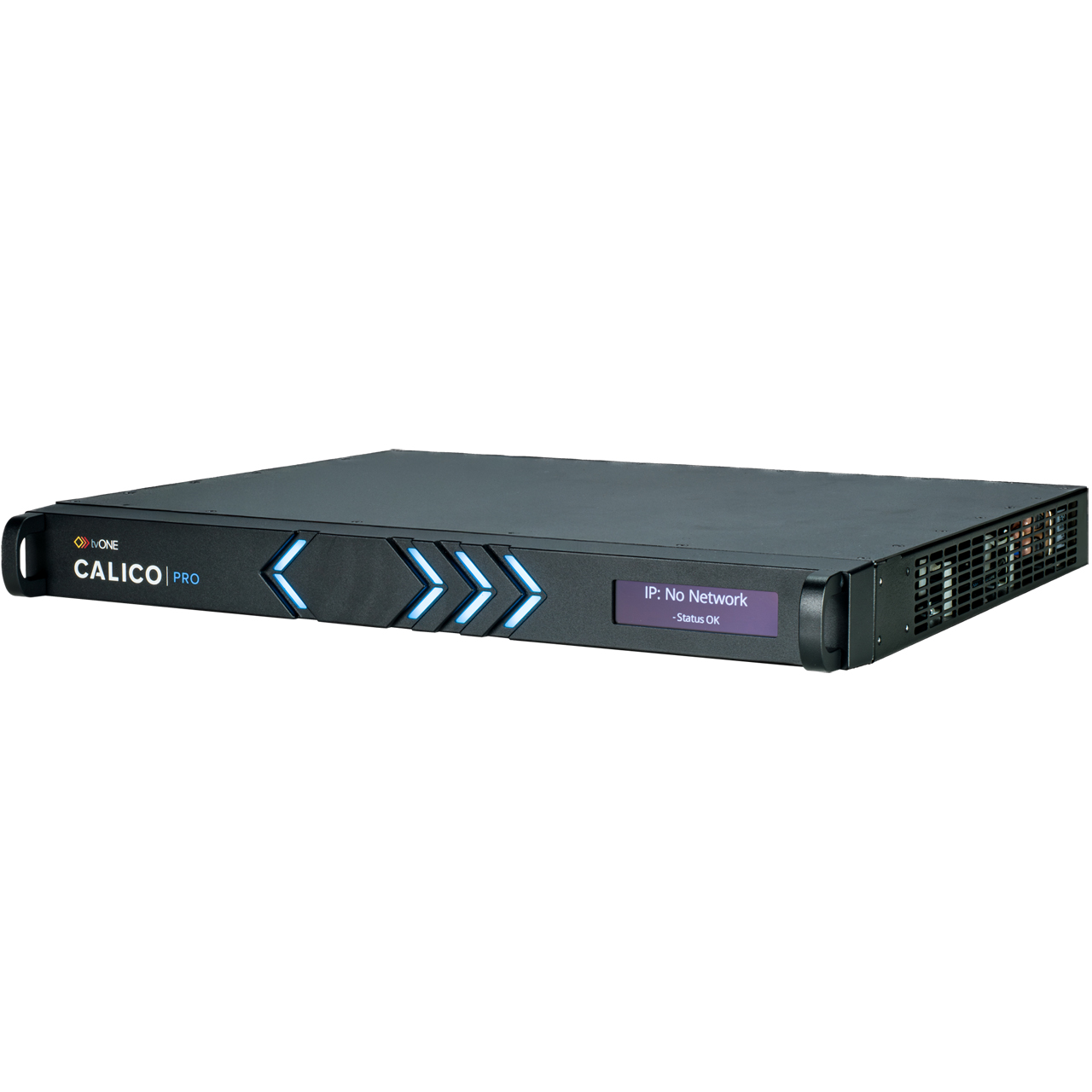

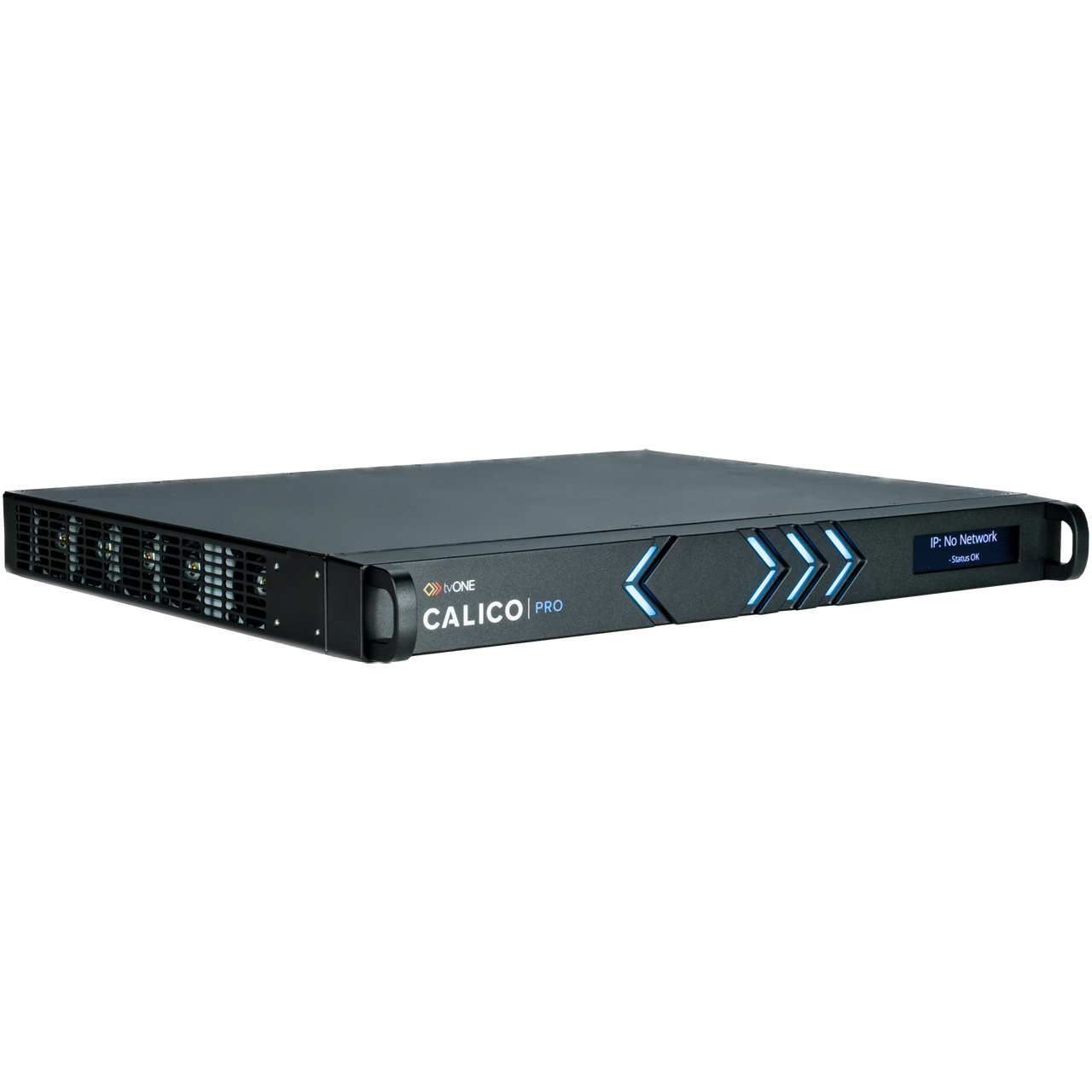

tvONE C7-PRO-1200 Calico Pro 1RU 10-Bit 4K60 Video Processor w/ Built-in Media Store - 6x 4K60 Inputs / 2x 4K60 Outputs

C7-PRO-1200 - Overview

Command it all with Calico Studio's sleek interface, mobile apps, and real-time API integrations.

• Features:

  • High-Performance Video: Drive massive, creative canvasses with hundreds of layers in ultra-high resolution and the highest quality
  • Flexible Content Control: Input mapping, still image store, keying, and onboard audio streamline setups and maximize efficiency
  • Dynamic Labelling Engine: Easily create and apply text, image, or live source labels
  • Advanced LED & Rotation Tools: Simplify Direct View LED setups and freely rotate sources/outputs 0° - 360° for creative freedom
  • Canvas Watch: Monitor your expansive LED, edge-blended projection, or display set ups with ease, for complete peace of mind
  • Best-In-Class Processing: Enjoy 10-bit precision, imperceptible latency, and seamless HDR/SDR conversion across multiple standards.


• Specifications:

  Video Processing
  • Calico Video Processing: Calico FPGA core (10-bit)
  • Parallel Processing Architecture: Yes
  • Video/Graphics Layers: 256 (max including video windows, keys, graphics, labels, background images)
  • Video Latency (Input to Output): Min 1 frame, max 2 frames regardless of I/O
  • Up/Down/Cross Conversion: Yes (all inputs and outputs)
  • Number of Canvasses: 4
  • Canvas Size: (64,000 x 64,000) pixels per canvas
  • Keying: Luminance Keying (any layer to layer below / keys cannot be overlapped). Adjustable key range and focus adjustment
  • Fading: Fade to Black/Fade to Transparent
  • Display Size Compensation: Yes, different physical sizes in video walls (Physical Mode)
  • Output Rotation: Yes for any outputs, windows and labels (360° rotation in 1° increments)
  • Output Mapper: Yes (all outputs)
  • Projector Edge Blending: Yes (all outputs)
  • HDCP Key Handling: Yes, HDCP 2.2

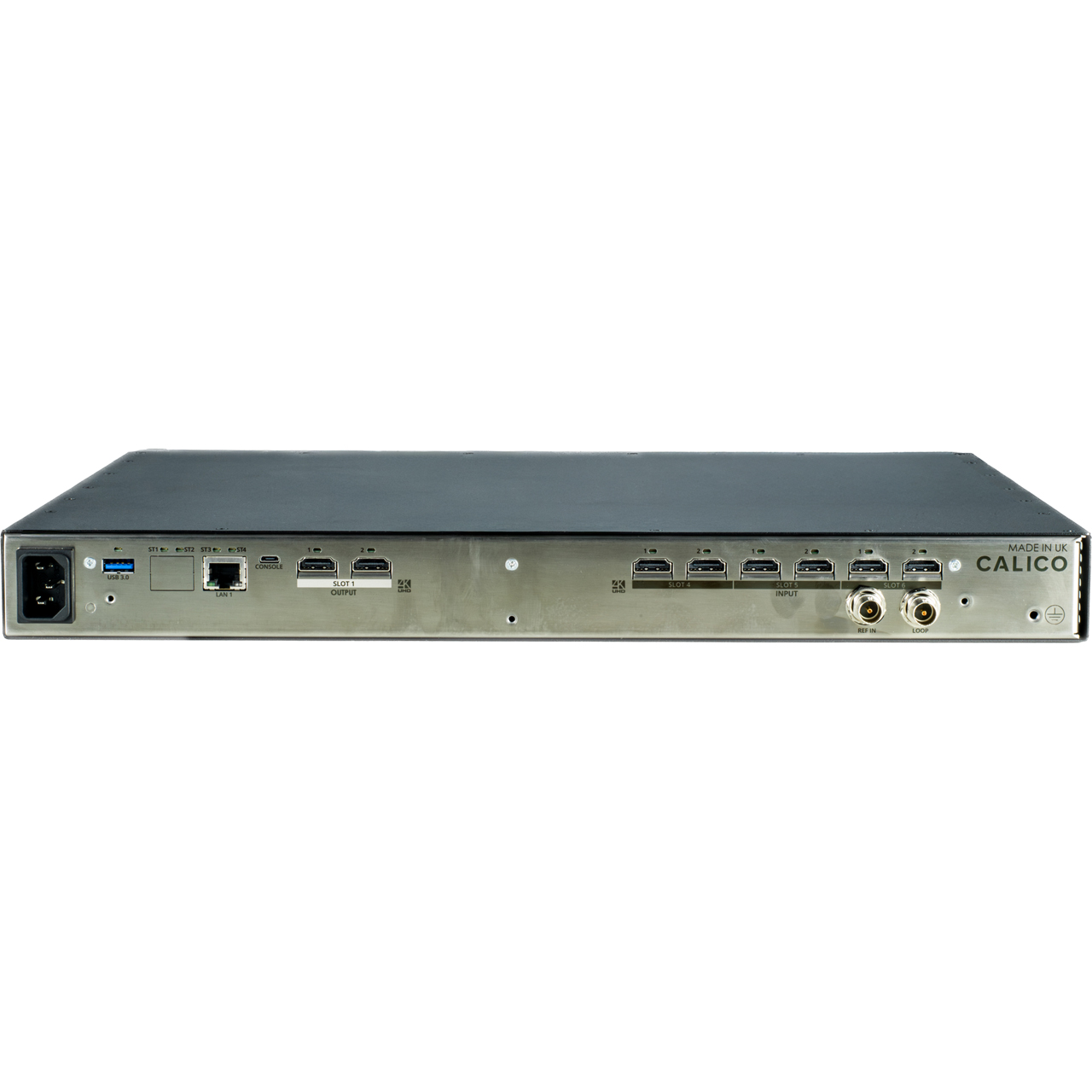

  • Video Inputs
  • HDMI 2.0: 6x 2160p (4096x2160) 60Hz
  • HDCP: 2.2/1.4
  • Chroma Sub-sampling: 4:2:2 (10-bit) 4:4:4 (8-bit)


  • Video Outputs
  • HDMI 2.0: 2x 2160p (3840x2160) 60Hz
  • HDCP: 2.2/1.4
  • Chroma Sub-Sampling: 4:2:2 (10-bit) 4:4:4 (8-bit)
  • Supported Input Resolutions (For Standard Unit 6x HDMI 2.0 IN):
    - 720p (1280x720) and 1080i (1920x1080) : 50, 59.94, 60Hz
    - 1080p (1920x1080)1080p (1920x1080): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 100, 119.88, 120Hz
    - 2160p (3840x2160): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
    - 2160p (4096x2160): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
  • Supported Output Resolutions:
    - 720p (1280x720) and 1080i (1920x1080): 50, 59.94, 60Hz
    - 1080p (1920x1080): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 100, 119.88, 120Hz
    - 2160p (3840x2160): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz


  • Control Methods
  • Network Interface: RJ45 - Gigabit Ethernet
  • Network Standard: IPv4
  • API Protocols: REST using HTTP or HTTPS, CLI using TCP/IP
  • Control Software: Calico Studio
  • Contol App: Calico Studio Mobile (Android/IOS)
  • Plug-ins: Q-SYS, Crestron


  • Mechanical
  • Dimensions (L x W x H):
    - Without Feet and Rack Ears: 15.39" x 17" x 1.73" (391mm x 435mm x 44mm)
    - With Feet and Rack Ears: 15.39" x 19" x 2.16" (391mm x 482mm x 55mm)
  • Weight: 9.7lbs (4.4kg)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Operating Humidity: 10% - 85%, Non-condensing
  • Fan Noise: Nominal 39.5dBA - max 63dBA (@0.5m)


  • Power
  • Internal PSU: 160W
  • Power Consumption: 120W nominal
  • Input Voltage: 100V - 240V (±10%) AC auto detecting 50/60Hz 1.5A - 0.75A


• Item Includes:

  • 1x C7-PRO-1200 Calico Pro 1RU 10-Bit 4K60 Video Processor
  • 1x Power Cable
  • 2x Rack Ears
  • 1x Cable Mount Bracket
  • 1x Stainless Steel Air Filter
  • 1x Safety Documentation
