Apantac MI-16 16x1 Multiviewer - 16 SD/HD-SDI/3G Video Inputs with Passive Loop-Outs

ITEM #: APA-MI-16 MFG #: MI-16

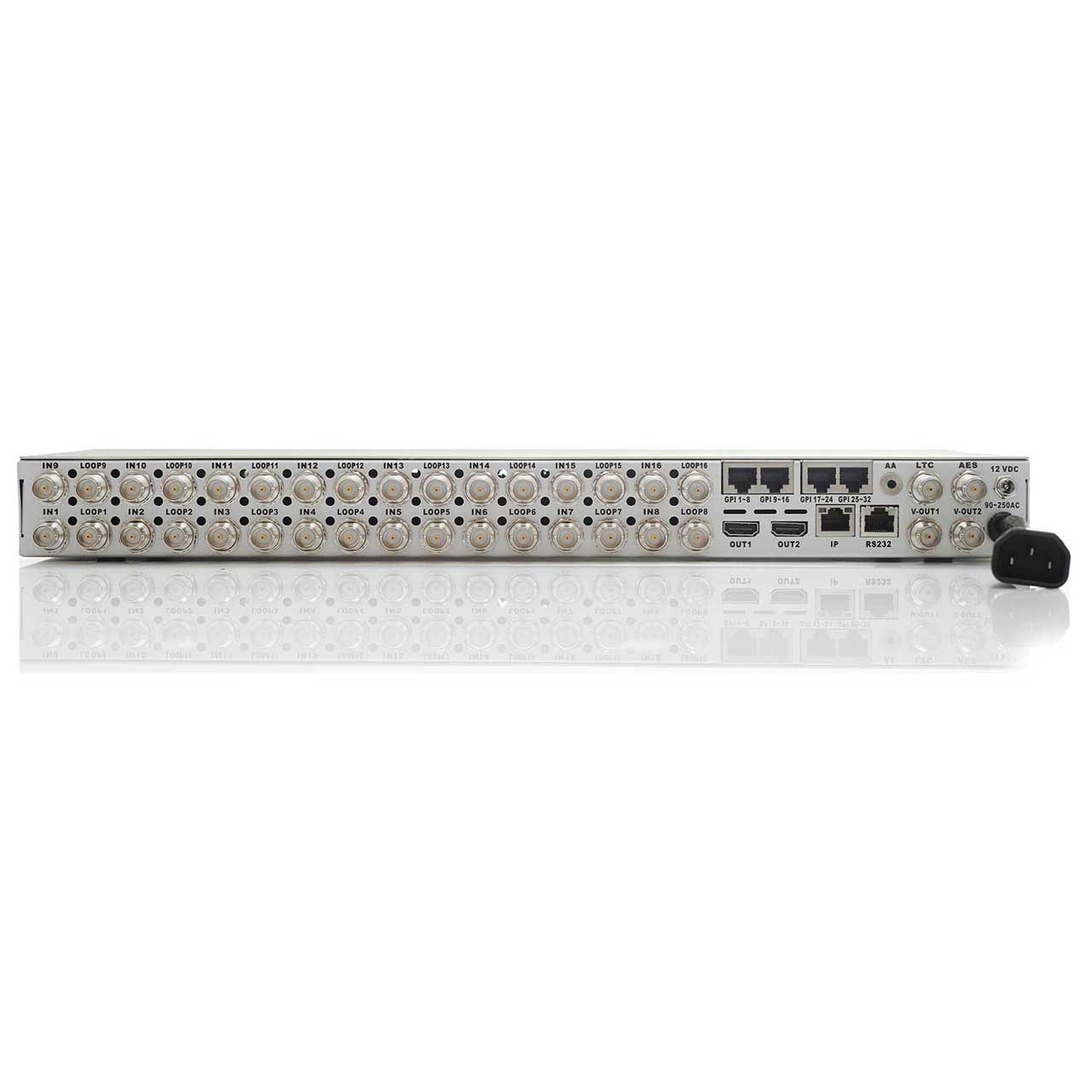

  • Product Image Thumbnail 1 of 2

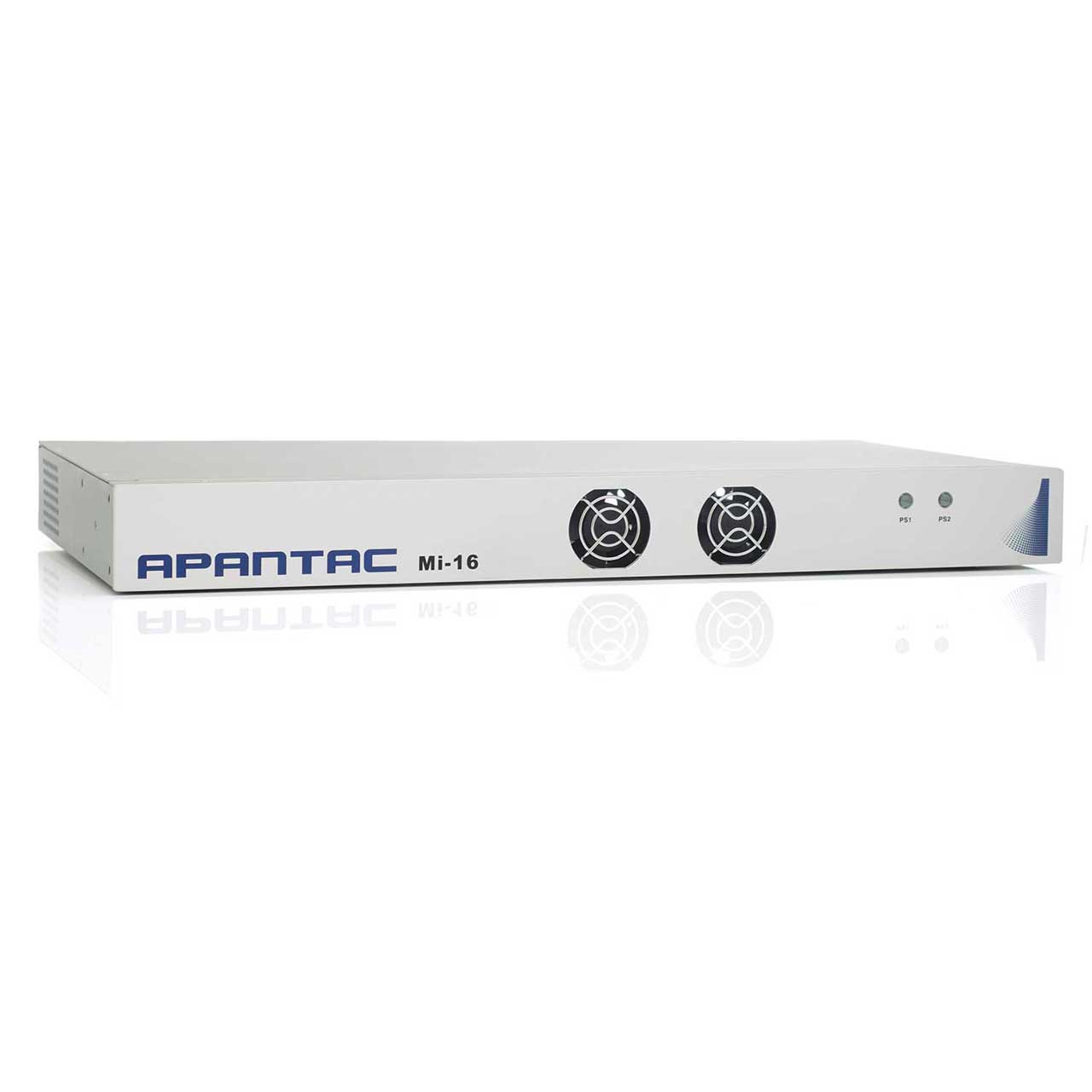

  • Product Image Thumbnail 2 of 2
free ship

List Price:

$2,575.00

Our Price:

$2,319.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    MI-16 - Overview

    The Apantac MI-16 is a multiviewer with 16 3G/HD/SD-SDI inputs with passive loop-outs and HDMI and SDI output.

    The MI-16 family of cost-effective Multiviewers offers a large set of features in a small footprint (1 RU wide and 10" long) and uses very low power (15W). They are ideal for fly pack, mobile production studios, as well as government and house of worship applications

    • Features:

      • Low latency - single frame processing delay
      • Accepts 16 auto-detect 3G/HD/SD-SDI inputs
      • 16 Passive input loop through
      • Windows can be sized and moved freely
      • Decode up to 16 embedded audio per SDI input
      • 2 simultaneous and identical HDMI and SDI outputs
      • Ethernet for configuration and external control
      • Dynamic UMD/labels & Tallies (TSL)
      • Stand alone labels, customizable logos
      • 32 GPIs for tallies, count up/down triggers or alarms
      • 2 digital and 2 analog clocks can be sync'd with LTC or NTP
      • Borders can be turned on or off
      • Safe area markers
      • Visual Alarm tags for video/audio alarm detection
      • Audio monitoring output - Stereo, AES, Embedded SDI and HDMI
      • Optional redundant power supply
      • 3 year limited warranty

    • Specifications:

      • Video Inputs: 16 3G/HD/SD-SDI
      • Video Outputs: 2 identical DVI/HDMI, SDI
      • Loop outs: 16 passive loop outs
      • Audio Outputs: AES and Analog audio monitor outputs
      • Connectors: BNC IEC 61169-8 Annex A
      • Output Resolution: 1920 x 1080p 50/60Hz
      • Total Windows: 16
      • On-Screen Display: Borders, labels, tally UMD, OMD, IMD, dynamic UMD
      • Serial Digital: SMPTE 424M, 292M, 259M
      • General Purpose IO: Up to 32 inputs with RJ50 - DB9 connectors
      • Equalization: 120m at 2.97 Gbps, 140m at 1.48 Gbps, 400m at 270 Mbps with Belden 1694A
      • Serial Port: Connector: RJ45, Baud Rate up to 115200 Format, TSL, TSI, AXP
      • Return Loss: > 15db up to 1.485 Gbps, > 10db up to 3G
      • IP: 100 Base-Tx, TSL, AXP, Connector: RJ45
      • Embedded Audio: SMPTE-272M-A
      • Electrical: 50W, 90-250V 50/60 Hz
      • Alarms: No audio, audio high/low, no video, video black, video frozen, WSS, AFD
      • EMI/RFI: Complies with FCC Part 15 Class A, CE, EU EMC, C-tick
      • Power: 90-250 AC / 12 DC
      • Size: 1 RU, 25 cm (10")

    • Item Includes:

      • MI-16 Multiviewer
      • Rack mount
      • 4 x RJ50 to DB9 for GPI
      • 4 x breakout terminal blocks
      • RJ45 to DB9 for serial
      • Analog audio breakout cable
      • CD (software, manual)

    • Warranty:

      • 3 Years
