tvONE C7-PRO-2200 CALICO PRO 2RU 8x4 HDMI 2.0 4K60 10-bit Ultra-Low Latency Video Processor with HDR / SDR Support & PSU

ITEM #: TV1-C7-PRO-2200 MFG #: C7-PRO-2200

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
tvONE
Free Shipping with $49 Minimum Order

Our Price:

$45,994.25

Add to Wish ListLeasing Options
Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

C7-PRO-2200 - Overview

The ultimate solution for LED applications of all sizes - It delivers hundreds of low-latency 4K video windows with seamless performance and 24/7 reliability!

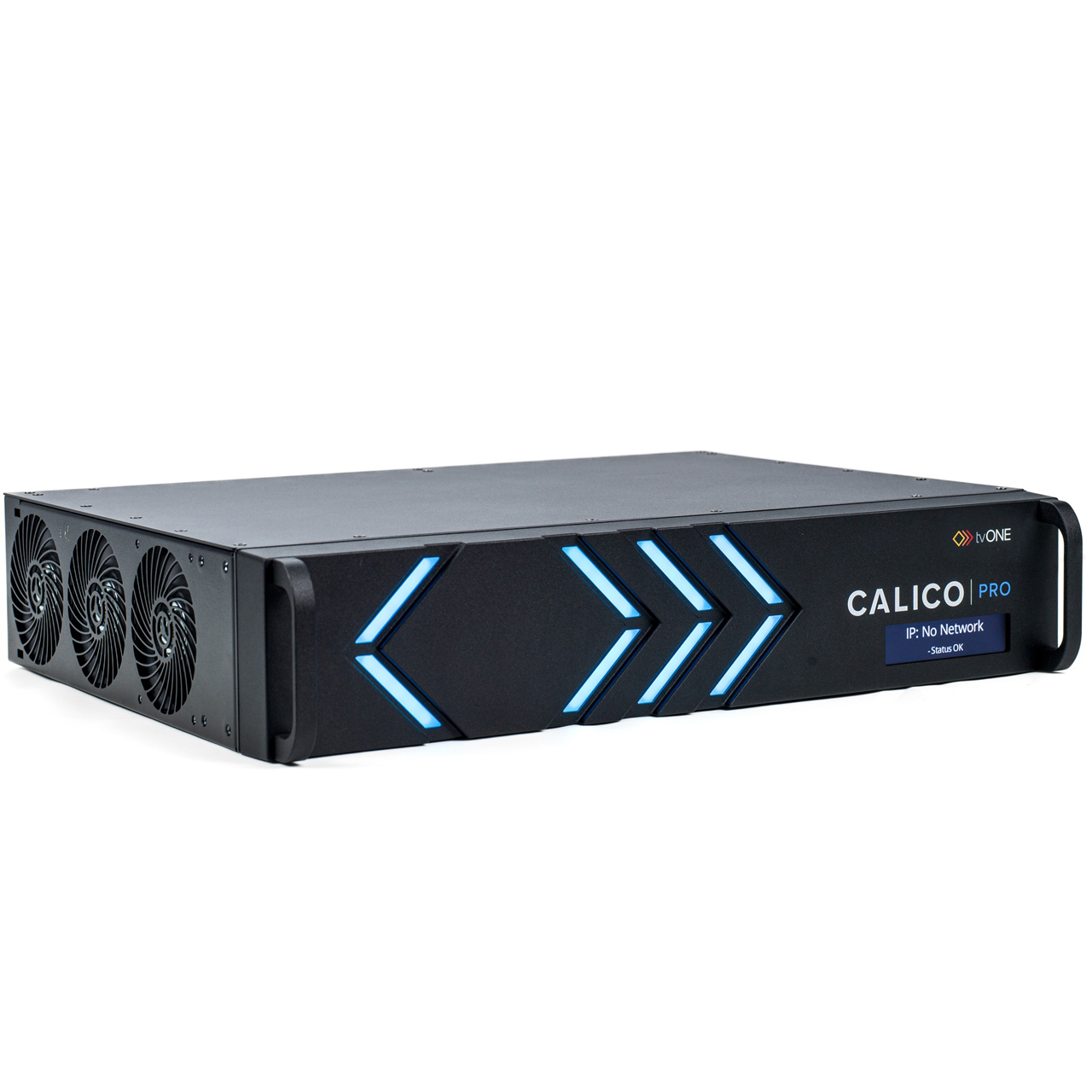

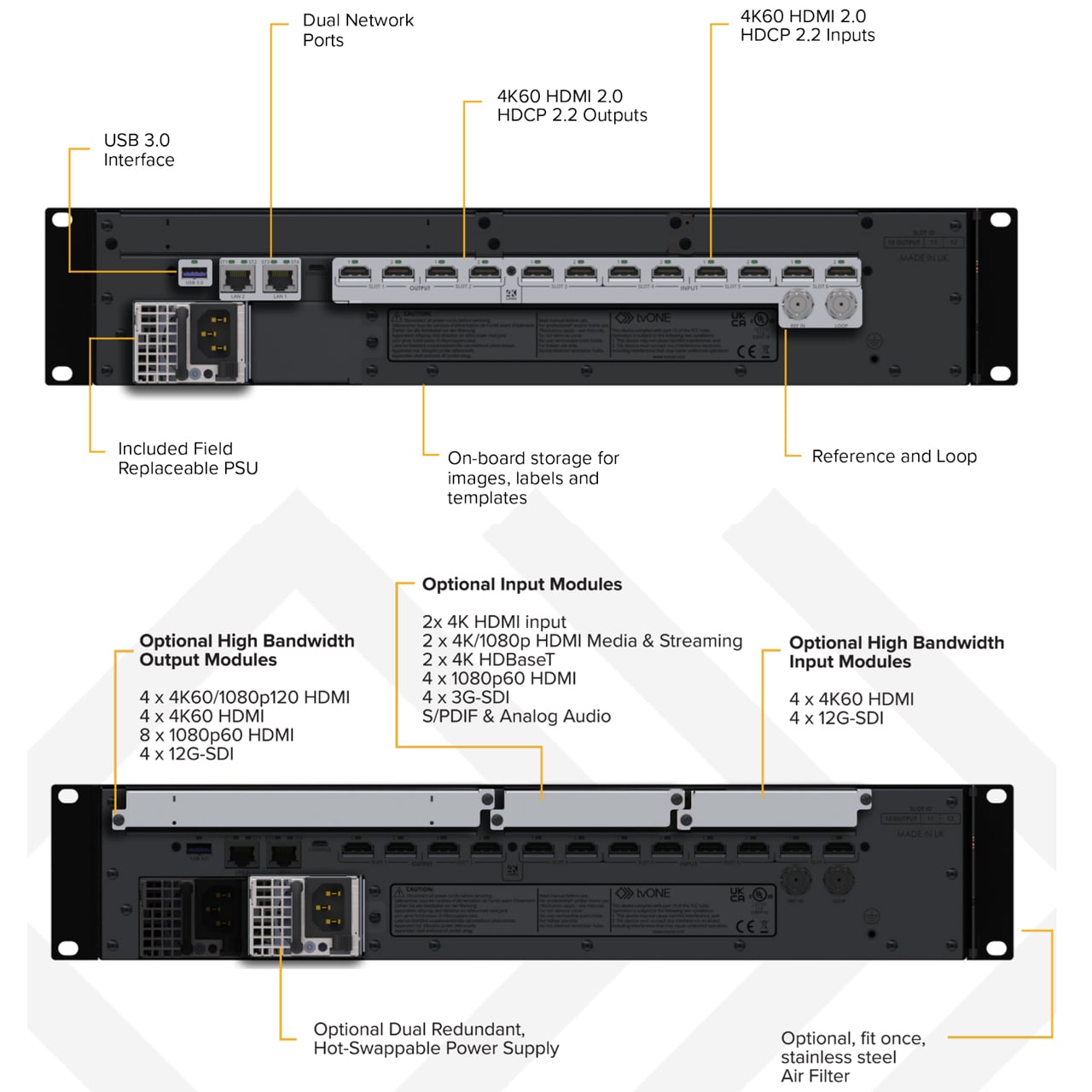

The tvONE CALICO PRO (C7-PRO-2200) is a 2RU 10-bit video processor that ships with a fixed I/O configuration of eight 4K60 inputs and four 4K60 outputs together with a built-in media store for background images and labels. Additional input and output modules can be added for larger applications.

CALICO PRO is optimized for unrestricted, uncompressed, end-to-end performance even when working with 4K60 video. Using patented tvONE technology, CALICO delivers high data rate video processing levels combined with both physical and IP friendly workflows.

The 2RU CALICO PRO is the ultimate solution for LED applications of all sizes, capable of powering up to 33 million pixels across just four outputs. It delivers hundreds of low latency 4K video windows with seamless performance and 24/7 reliability.

Creativity Without Limitations
Building upon their strong heritage of delivering the highest image fidelity, tvONE has taken this philosophy a step further with exquisite up/down/cross conversion and video standards conversion for the ultimate management of various resolution sources and displays.

Capable of end-to-end 4:4:4 processing, combined with the highest quality conversions between 4:2:0, 4:2:2 and 4:4:4 color spaces, makes CALICO PRO the most innovative and flexible technology on the market.

The first product family using this award-winning processing engine is CALICO PRO which can support up to 66 million pixels with innovative Output Mapping to implement LED with total precision including 30bit True Color.

The CALICO PRO Video Processors have been designed from the ground up to achieve superior results for computer graphics, broadcast sources, IP Streams, still images and multimedia clips at their native resolution, supporting up to 4K now and 8K in the future.

tvONE's mission is to deliver the highest quality, accurate and visually realistic processing of any video irrespective of aspect ratio or resolution, utilizing our propriety 10-bit video processing.

tvONE products are trusted TAA-compliant video processors, signal management and racking and power solutions.

  • Features:

    • Scalable I/O: Start with 8 inputs and 4 outputs as standard, then expand effortlessly with modules for AV, IP, and broadcast-ready workflows.
    • High-Performance Video: Drive massive, creative canvasses with hundreds of layers in ultra-high resolution and the highest quality.
    • Flexible Content Control: Input mapping, still image store, keying, and onboard audio streamline setups and maximize efficiency.
    • Dynamic Labelling Engine: Easily create and apply text, image, or live source labels.
    • Advanced LED & Rotation Tools: Simplify Direct View LED setups and freely rotate sources/outputs 0° to 360° for creative freedom.
    • Canvas Watch: Monitor your expansive LED, edge-blended projection, or display set ups with ease, for complete peace of mind.
    • Best-in-Class Processing: Enjoy 10-bit precision, imperceptible latency, and seamless HDR/SDR conversion across multiple standards.
    • Smart, Intuitive Control: Command it all with CALICO Studio's sleek interface, mobile apps, and real-time API integrations.
    • Rock-Solid Reliability: HTTPS-secured control, 5-year warranty, and optional dual PSUs


  • Specifications:

      Video Processing
    • CALICO Video Processing: CALICO FPGA core (10-bit 4:4:4)
    • Parallel Processing Architecture: Yes
    • Video/Graphics: layers 256 (max including video windows, keys, graphics, labels, background images)
    • Video Latency (input to output): Min 1 frame, max 2 frames regardless of I/O
    • Up/Down/Cross Conversion: All inputs and outputs
    • Number of Canvasses: 4
    • Canvas Size: (64,000 x 64,000) pixels per canvas
    • Keying: Luminance Keying (any layer to layer below/keys cannot be overlapped). Adjustable keyrange and focus adjustment.
    • Fading: Fade to black/fade to transparent/crossfade
    • Display Size Compensation: Yes, different physical sizes in video walls (Physical Mode)
    • Output Rotation: Yes for any outputs, windows and labels (360° rotation 1° increments)
    • Output Mapper: All outputs
    • Projector Edge Blending: Alll outputs
    • HDCP Key Handling: HDCP 2.2 (Expansion modules may have different specifications depending on connectivity)

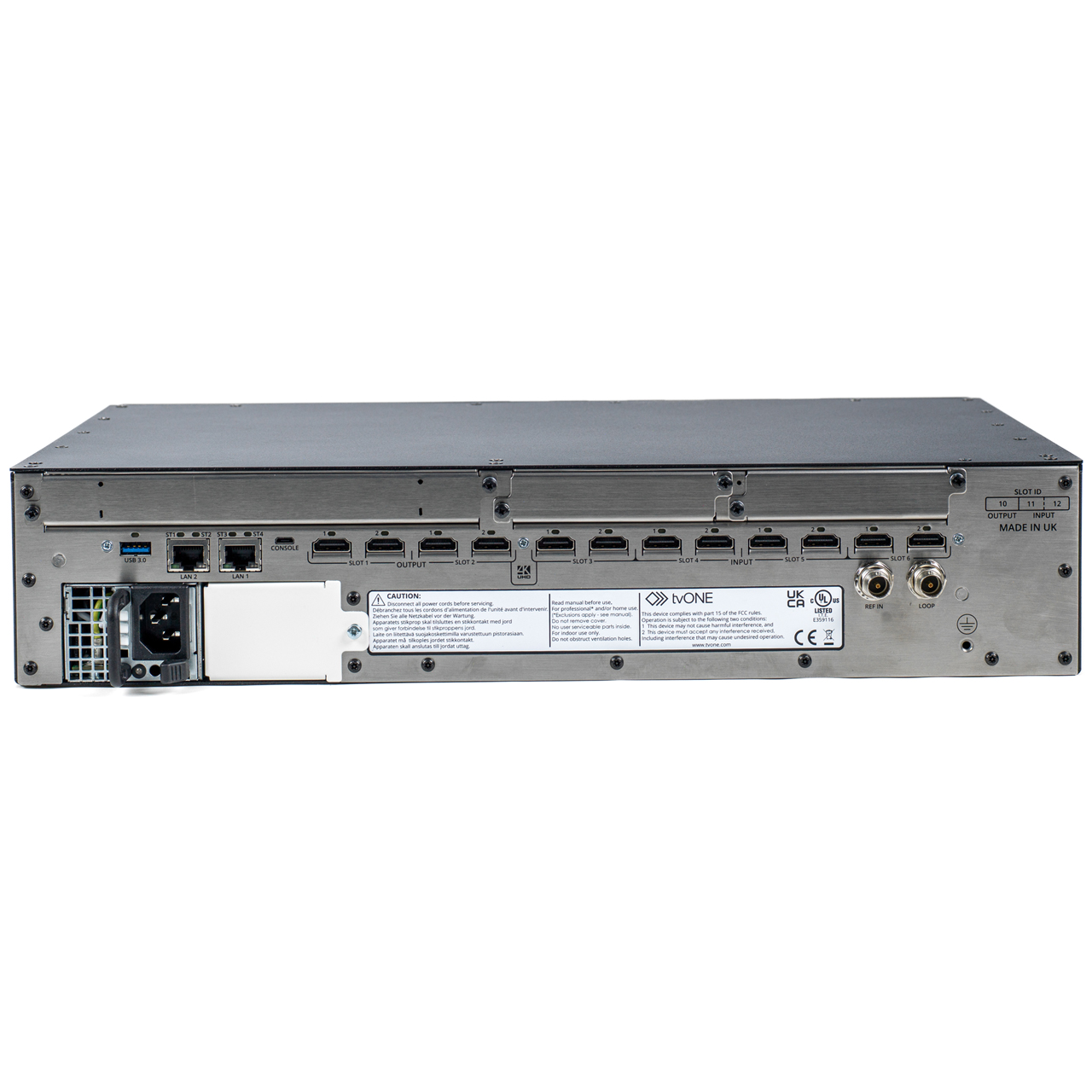

      Video Inputs (for standard unit 8x HDMI 2.0 IN)
    • HDMI: 2.0 8x 2160p (4096x2160) 60Hz
    • HDCP: 2.2/1.4
    • Chroma Sub-Sampling (10-bit): 4:2:2
    • Chroma Sub-Sampling (8-bit): 4:4:4
    • Color Space: YCbCr BT.601, YCbCr BT.709, RGB, RGB limited range and auto detect

      Supported Input Resolutions (for standard unit 8x HDMI 2.0 IN)
    • 720p (1280x720) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
    • 1080i (1920x1080) 50, 59.94, 60Hz
    • 1080p (1920x1080) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 100, 119.88, 120Hz
    • 2160p (3840x2160) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
    • 2160p (4096x2160) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz

      Video Outputs (for standard unit 4x HDMI 2.0 out)
    • HDMI: 2.0 4x 2160p (3840x2160) 60Hz
    • HDCP: 2.2/1.4
    • Chroma Sub-Sampling (10-bit): 4:2:2
    • Chroma Sub-Sampling (8-bit): 4:4:4
    • Color Space: YCbCr BT.601, YCbCr BT.709, RGB, RGB limited range and auto detect

      Supported Output Resolutions (for standard unit 4x HDMI 2.0 out)
    • 720p (1280x720) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
    • 1080i (1920x1080) 50, 59.94, 60Hz
    • 1080p (1920x1080) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60, 100, 119.88, 120Hz
    • 2160p (3840x2160) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz

      Images (Backgrounds/Labels)
    • Still Image Formats Supported (internal image store): BMP, PNG,JPG,JPEG, TIF, TIFF, PPM, PGM, PBM, HDR
    • Interfaces: CALICO Studio, File transfer supported (FTP). USB-3.0 on rear of unit

      Control Methods
    • Network Interface: RJ45 - Gigabit Ethernet
    • Network Standard: IPv4
    • API Protocols: REST using HTTP or HTTPS, CLI using TCP/IP

      Power
    • Dual-Redundant Hot-Swappable PSU: 400W load balancing (One supplied - additional PSU optional)
    • Power Consumption: 250W
    • Input Voltage: 100V - 240V (±10%) AC (50/60Hz), 6-3A auto switching
    • Output Voltage: 12V DC

      General
    • Dimensions: 3.46" x 17.13" x 13.43"
    • Weight: 22lbs
    • Operating Temperature: 32°F - 104°F
    • Operating Humidity: 10% - 85%, Non-condensing
    • Storage Temperature: 14°F - 158°F
    • Storage Humidity: 10% - 85%, Non-condensing BTU 1365 BTU (400W)
    • Fan Noise: Nominal 45dB(A) - max 57dB(A) (@1m)
    • Regulatory Compliance: FCC, CE, RoHS, UL, UKCA


  • Item Includes:

    • 1x Removable rack ears and feet


  • Warranty:

    • 5 Year Warranty
