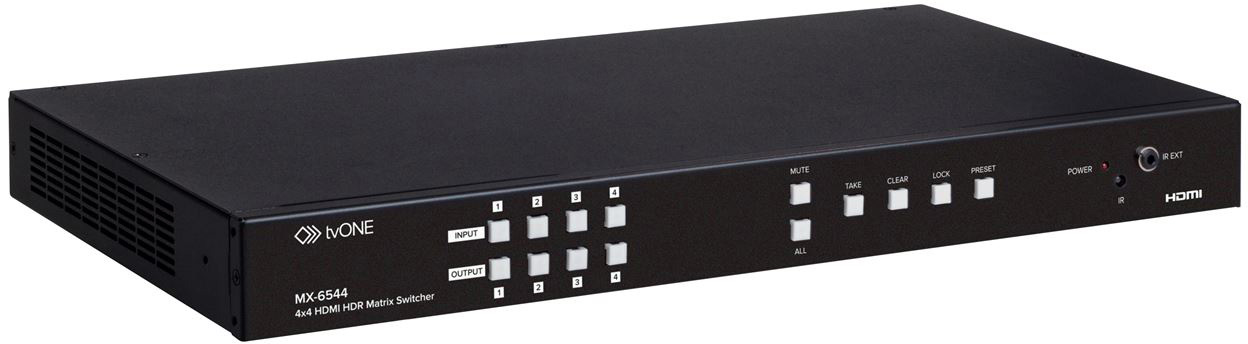

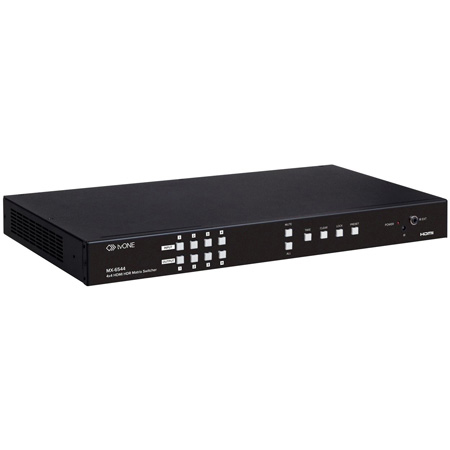

tvONE MX-6544 4K HDR - HDMI 2.0 Matrix 4x4 Switcher
  • tvONE MX-6544 4K HDR - HDMI 2.0 Matrix 4x4 Switcher
  • tvONE MX-6544 4K HDR - HDMI 2.0 Matrix 4x4 Switcher
  • tvONE MX-6544 4K HDR - HDMI 2.0 Matrix 4x4 Switcher

Questions? Ask a Markertek Expert:
800-522-2025 Email

tvONE MX-6544 4K HDR - HDMI 2.0 Matrix 4x4 Switcher

Manufacturer: tvONE

Item #: TV1-MX-6544   •   MFG #: MX-6544




Our Price:$1,700.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The MX-6544 Matrix Switcher Series is designed to allow the distribution of HDMI 2.0a (with HDCP) sources to multiple display devices independently or all at the same time using an intuitive front panel, infrared remote control or tvONE's control software, MX-tools.

    The MX-6544 series is the perfect solution for all your installations including home theaters, classrooms or conference rooms that demand high levels of performance and superior 4:4:4 4K/60 image fidelity.

    The MX-6544 is HDMI 2.0a compliant with full support for [email protected] 4:4:4 8bit and 10bit processing for superior deep color rendition. 3D signals are also supported. Audio includes 7.1 audio capability including DTS-HD and Dolby TrueHD.


    • Features

      • HDMI 2.0a compliant
      • [email protected] 4:4:4 processing with 8bit and 10bit color depth
      • HDR for deep color resolution
      • HDCP 2.2 compliant
      • Save up to 16 Presets

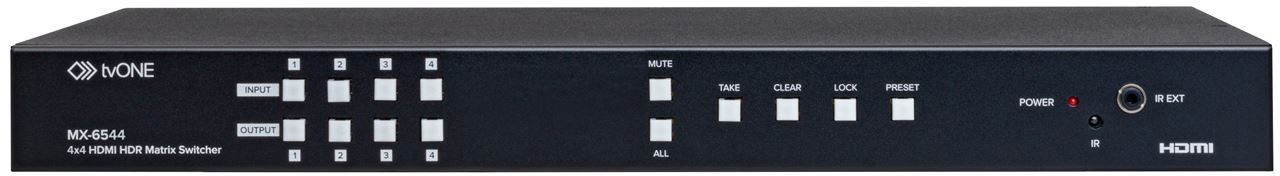

      • Control via Front panel buttons, RS-232, TCP/IP, InfraRed and MX-tools
      • Supports 7.1 channel digital audio, DTS, Master and Dolby TrueHD
      • Auto detect EDID learning and management
      • Robust 1RU rack-mountable metal case

    • Specifications

      • HDMI compliance: HDMI 2.0a
      • HDCP compliance: HDCP 1.4/HDCP 2.2
      • Video bandwidth: Single-link 594MHz [18Gbps]
      • Video support: HDR [email protected] (4:2:0 10bits); [email protected] (4:4:4 8bits)
      • Audio support: Surround sound (up to 7.1 channels) or stereo digital audio

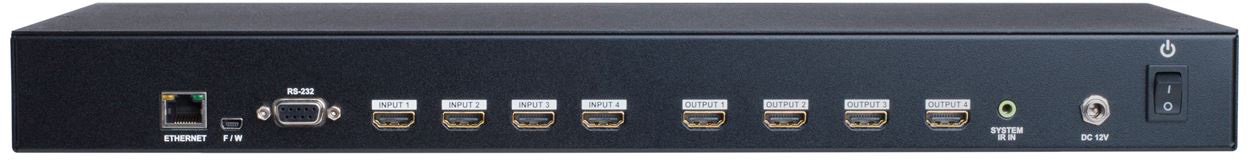

      • Input: 4 x HDMI, 1 x 9-pin D-sub Female (RS-232), 1 x Ethernet, 1 x 3.5mm IR receiver, 1 x USB Type A (Firmware only)
      • Output: 4 x HDMI
      • Control: Via Front panel button, IR remote control, RS-232 control, TCP/IP and MX-tools
      • Warranty: 2 Years
      • MTBF (hrs): 103,000
      • Enclosure: Metal case
      • Dimensions (H x W x D): 1.6" x 17.3" x 6.9" (42 x 440 x 177mm)
      • Weight (Net): 5.2 lbs (2.4kg)
      • Power supply: 12V 2A DC
      • Power consumption: 25 Watts (max)
      • Operating Temperature: 0° to 40°C (32° to 104°F)
      • Relative Humidity: 20% to 90% Non-condensing
      • Storage Temperature: -20° to 60°C (-4° to 140°F)
      • Regulatory compliance: FCC, CE, RoHS, UL

    • Warranty

      • 2 Year
