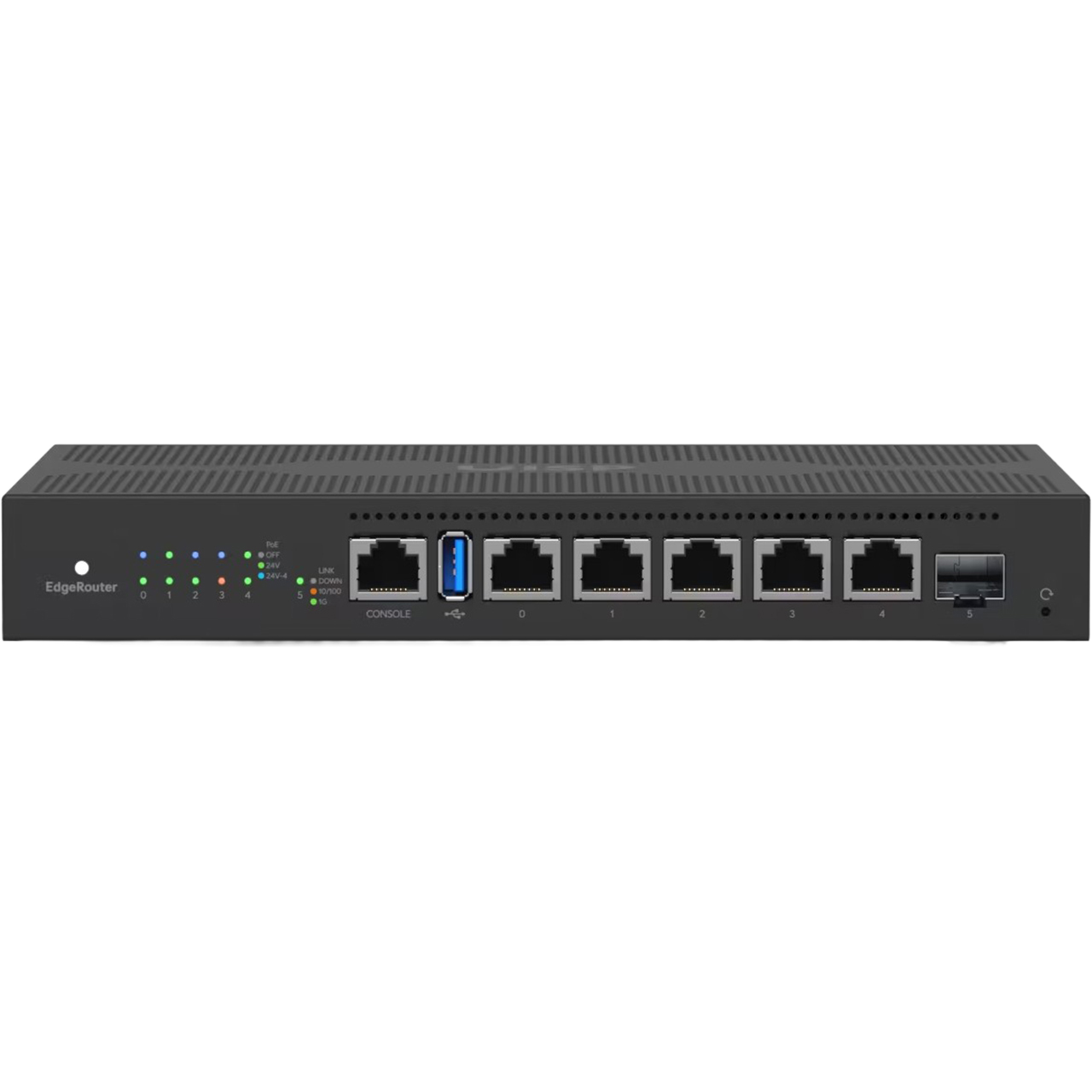

Ubiquiti EdgeRouter 6 PoE Fanless Router with 4 Core 1GHz MIPS64 Processor / 5x Gigabit RJ45 Ports / 1x SFP Port

ER-6P - Overview

• Specifications:

  • System Memory: 1GB DDR3 RAM
  • On-Board Flash Storage:
    - 4GB eMMC
    - 8MB SPI NOR
  • Management Interface: 1x RJ45 serial port
  • Networking Interface:
    - 5x GbE RJ45 ports
    - 1x 1G SFP port
  • PoE Interface: 5x 24V Passive PoE ports (2-pair and 4-pair)
  • Power Method: AC/DC power adapter, 24V, 2.5A (Included)
  • Power Supply: AC/DC adapter, external, 60W
  • Supported Voltage Range: 16V - 30V DC
  • Max. Power Consumption: 16W (Excluding PoE output)
  • Max. PoE Wattage per Port:
    - 24W (24V, 1A, 4-pair)
    - 12W (24V, 0.5A, 2-pair)
  • LEDs - Ethernet Ports: PoE, Link/Speed/Activity
  • SFP Port: Link/Activity
  • Button: Factory reset
  • Mounting: Wall, rack*
  • *With optional Rack Mount Kit, model ER-RMKIT.
  • Ambient Operating Temperature: 14°F - 122°F (-10°C - 50°C)
  • Ambient Operating Humidity: 10% - 90% noncondensing
  • Certifications: CE, FCC, IC
  • NDAA Compliant: Yes
  • Enclosure Material: Metal
  • Dimensions: 9" x 5.4" x 1.2" (229mm x 136.5mm x 31.1mm)
  • Weight: 1.6lbs (730g)
