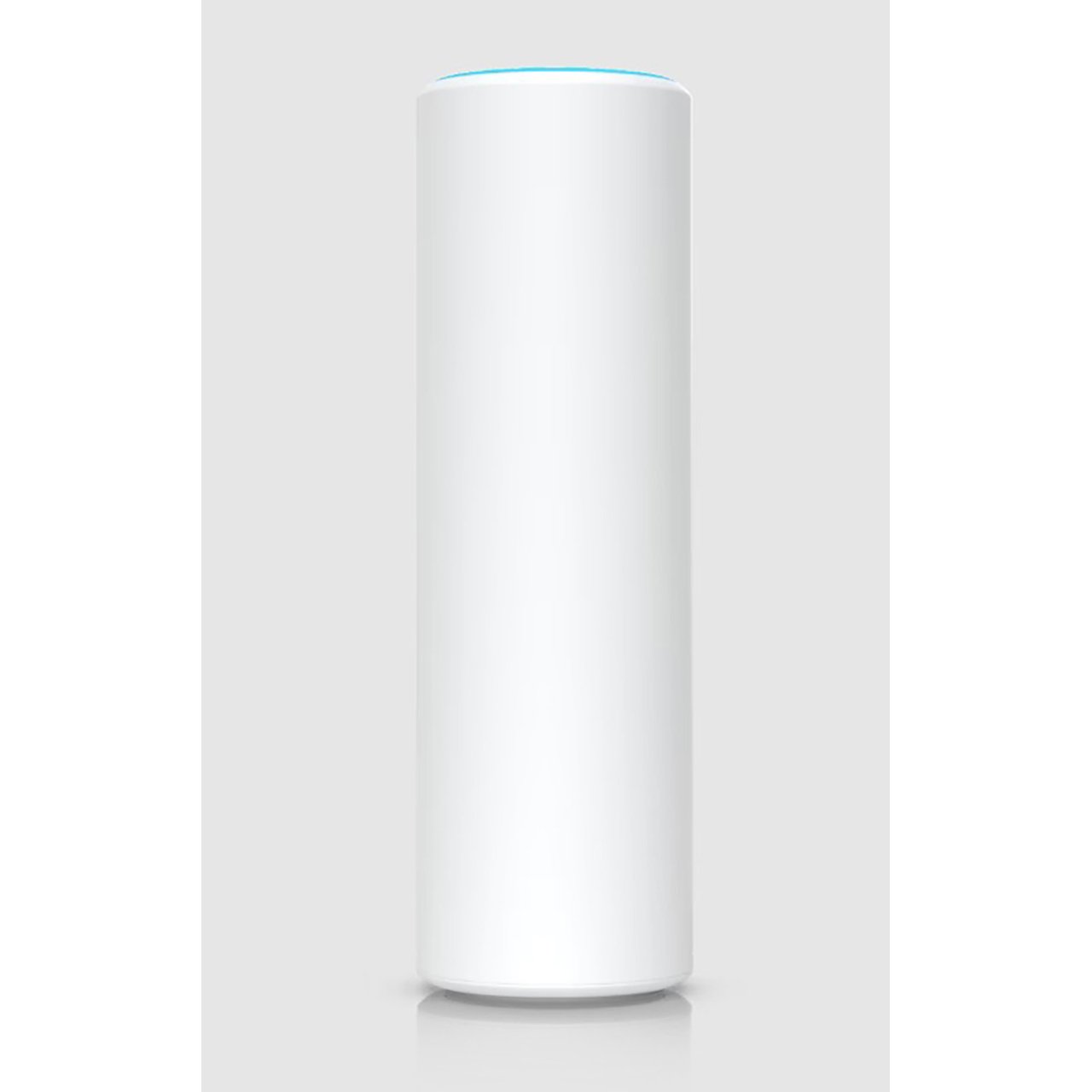

Ubiquiti U6-MESH Wireless Four-Stream Wi-Fi 6 Dual-Band Mesh Indoor and Outdoor Access Point with PoE & Wireless Meshing

ITEM #: UBI-U6-MESH MFG #: 09VL93

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$209.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


09VL93 - Overview

The Ubiquiti U6-MESH Access Point WiFi 6 Mesh is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

  • Features:

    • Wireless Meshing
    • Band Steering
    • 802.11v BSS Transition Management
    • 802.11r Fast Roaming
    • 802.11k Radio Resource Management (RRM)
    • Zero-Wait DFS
    • Advanced Radio Management
    • Passpoint (Hotspot 2.0)
    • Captive Hotspot Portal
    • Custom Branding Landing Page
    • Voucher Authentication
    • Payment-Based Authentication
    • External Portal Server Support
    • Password Authentication
    • Guest Network Isolation
    • Private Pre-Shared Key (PPSK)
    • WiFi Speed Limiting
    • Client Device Isolation
    • WiFi Schedules
    • RADIUS over TLS (RadSec)
    • Dynamic RADIUS-assigned VLAN

  • Specifications:

      General
    • Dimensions (DxH): 1.9" x 6.3" (48.5mm x 159.5mm)
    • Weight: 0.9lbs (400g)
    • WiFi Standard: WiFi 6
    • Spatial Streams: 6
    • Coverage Area: 1,500 ft² (140 m²)
    • Max. Client Count: 300+
    • Uplink: GbE

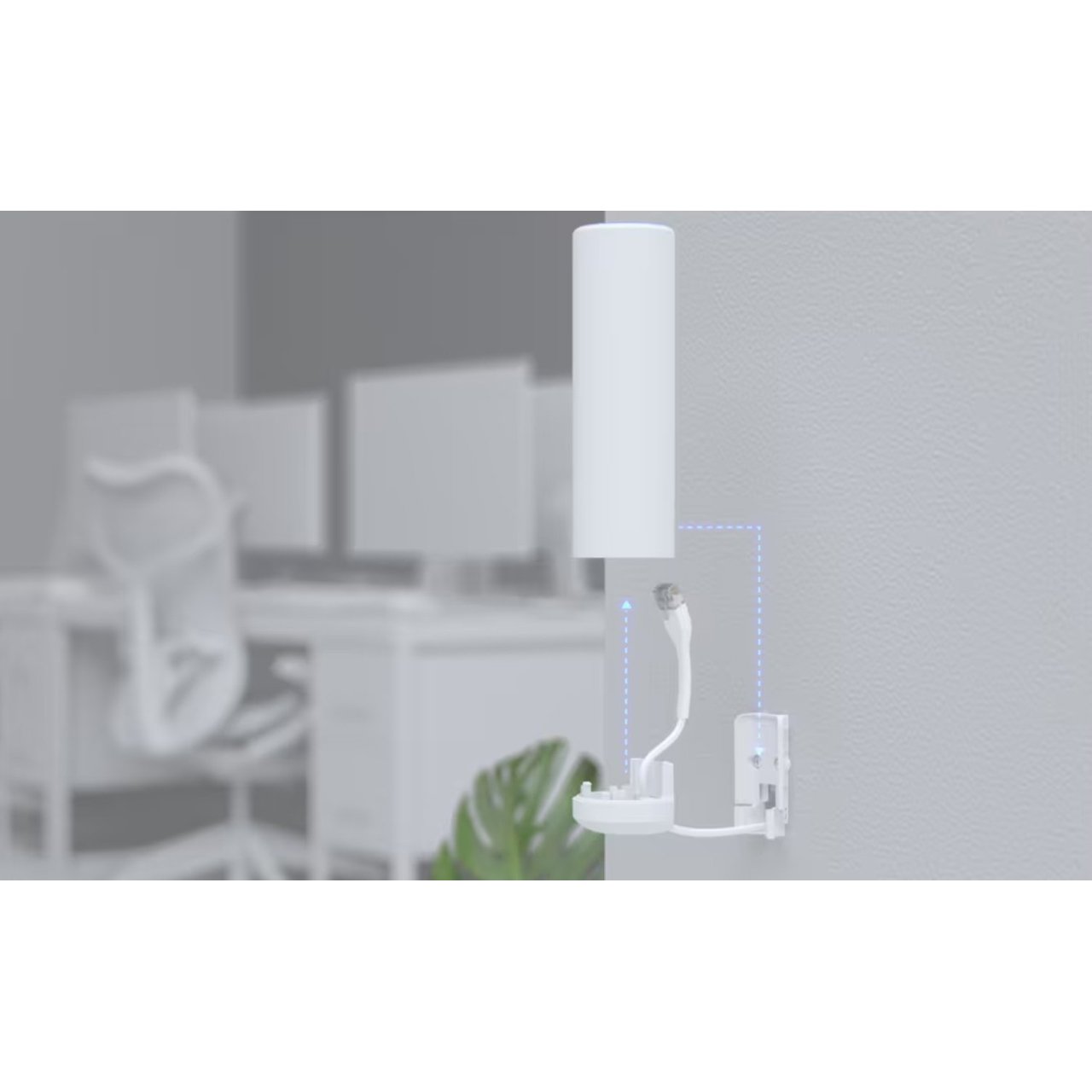

    • Mounting: Wall, Pole (Mounts Included)
    • Weatherproofing: IPX5
    • Power Method: PoE

      Hardware

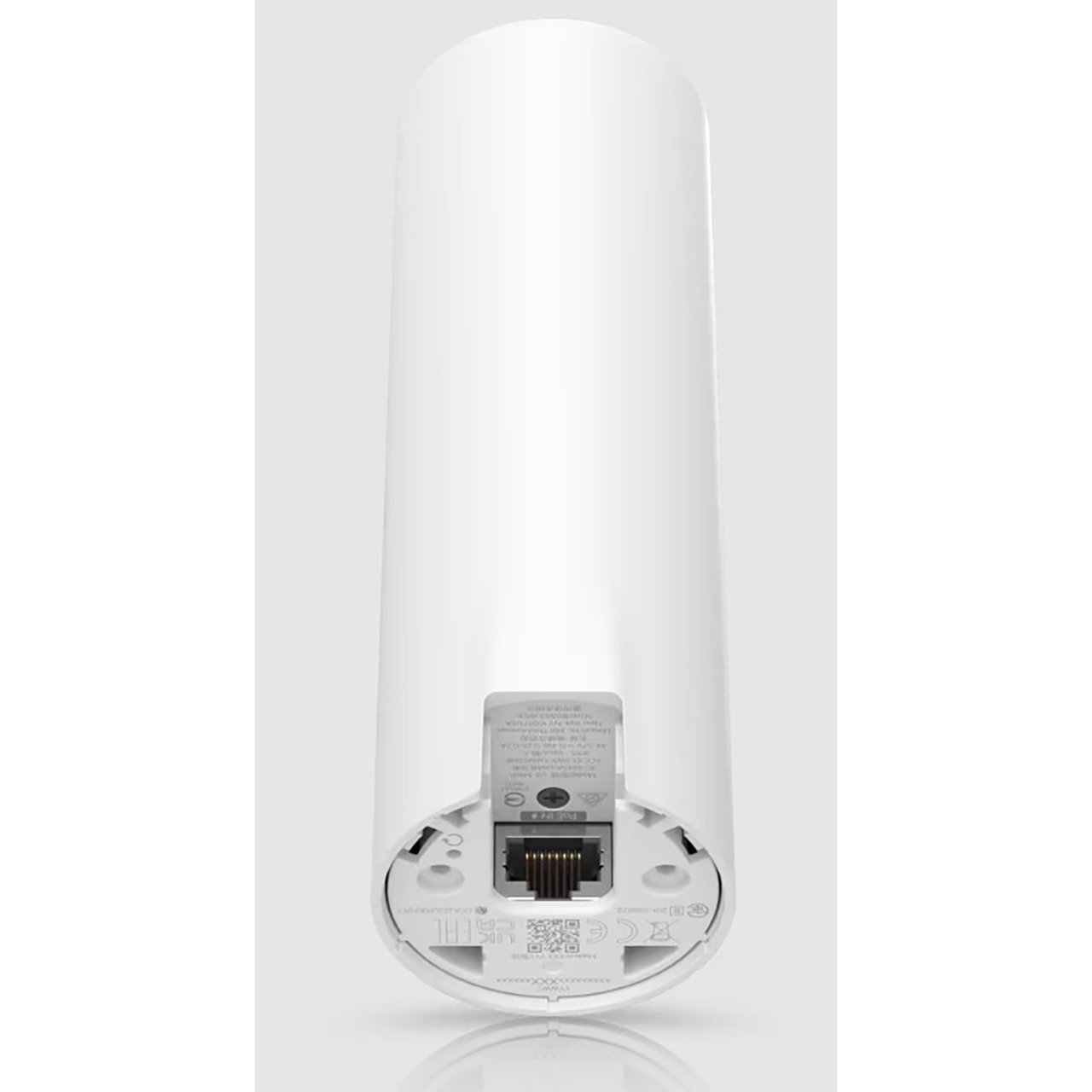

    • Networking Interface: 1x GbE RJ45 port
    • Management Interface:
      - Ethernet
      - Bluetooth
    • Power Method: PoE
    • Power Supply:
      - UniFi PoE Switch
      - 48V, 0.32A PoE Adapter (Included)
    • Supported Voltage Range: 44V - 57V DC
    • Max. Power Consumption: 11.4W
    • Max. TX power:
      - 2.4GHz - 22dBm
      - 5GHz - 26dBm
    • MIMO:
      - 2.4GHz - 2x2 (UL MU-MIMO)
      - 5 GHz - 4x4 (DL/UL MU-MIMO)
    • Throughput Rate:
      - 2.4GHz - 573.5Mbps
      - 5GHz - 4.8Gbps
    • Antenna Gain:
      - 2.4GHz - 3dBi
      - 5GHz - 5dBi
    • LEDs: White/blue
    • Button: Factory reset
    • Mounting:
      - Wall, desktop, pole mount(included)
      - Ceiling mount(optional)
    • Operating Temperature: -22°F - 140°F (-30°C - 60°C)
    • Operating Humidity: 5% - 95% noncondensing
    • Certications: CE, FCC, IC

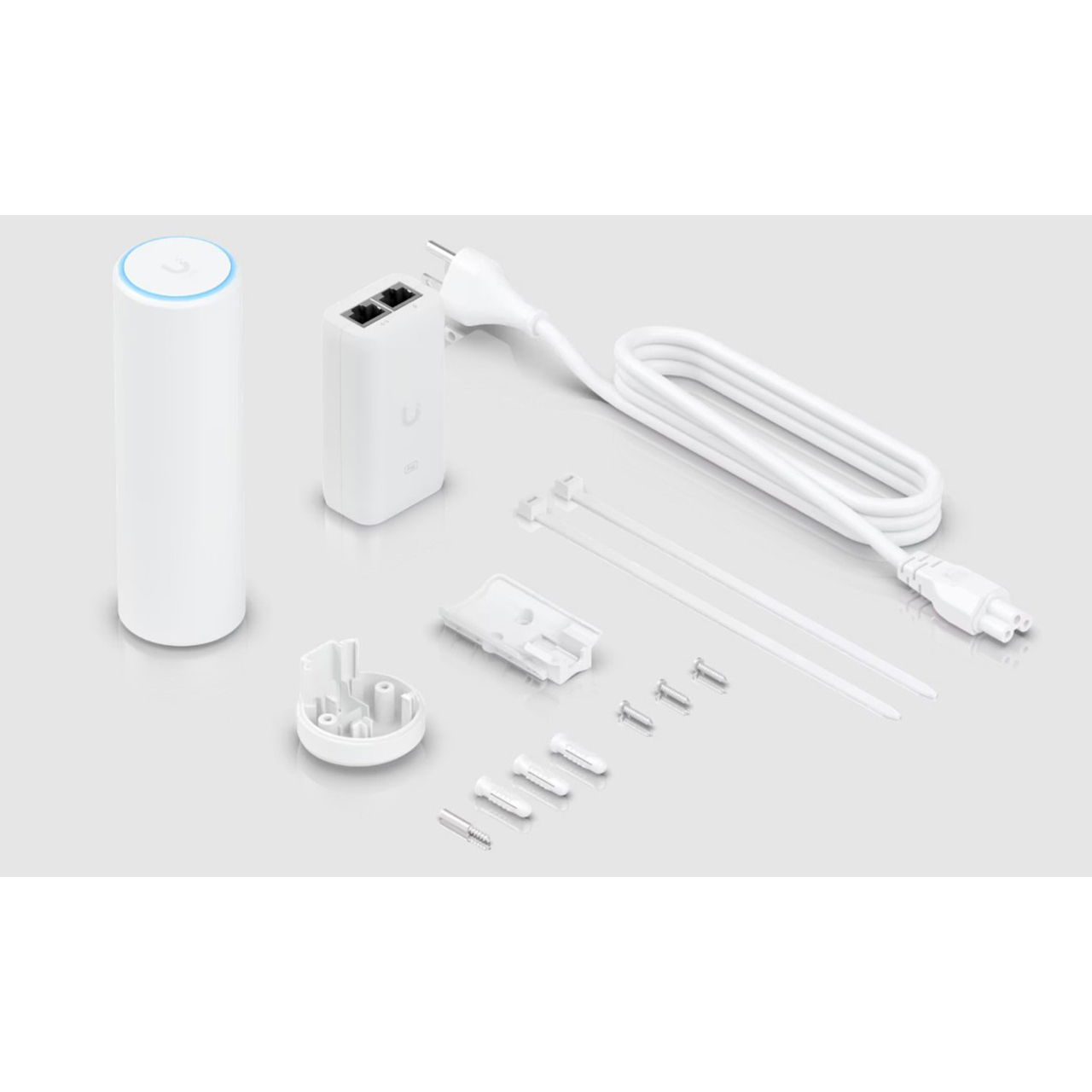

  • Item Includes:

    • 1x U6-MESH Wireless Four-Stream Wi-Fi 6 Dual-Band Mesh Indoor and Outdoor Access Point
    • 1x Power Cable
    • 1x PoE Adapter
    • 1x Wall Mount Kit
    • 1x Pole Mount Kit

  • Warranty:

    • 1 Year Limited Warranty
