Ubiquiti UCG-FIBER Desktop 10G Cloud Gateway Fiber w/ Integrated 4-Port 2.5 GbE Switch - No Storage

Name: Ubiquiti UCG-FIBER Desktop 10G Cloud Gateway Fiber w/ Integrated 4-Port 2.5 GbE Switch - No Storage
Brand: Ubiquiti
SKU: UBI-UCG-FIBER
Price: 289.00 USD
Availability: Backorder

ITEM #: UBI-UCG-FIBER MFG #: SL3264

Ubiquiti

Our Price:

$289.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SL3264 - Overview

The Ubiquiti UCG-FIBER is a desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage (not included) , and full UniFi application support.

Specifications:
- UniFi Application Suite: Network, Protect, Access, Talk, Connect.
- Managed UniFi Devices: 50+.
- Managed Cameras: (15) HD, (8) 2K, (5) 4K.
- Managed Access Hubs: 50.
- Simultaneous Users Connected: 500+.
- Max. WAN Port Count: 6
- Default WAN Ports: (1) 10G SFP+ , (1) 10 GbE RJ45.

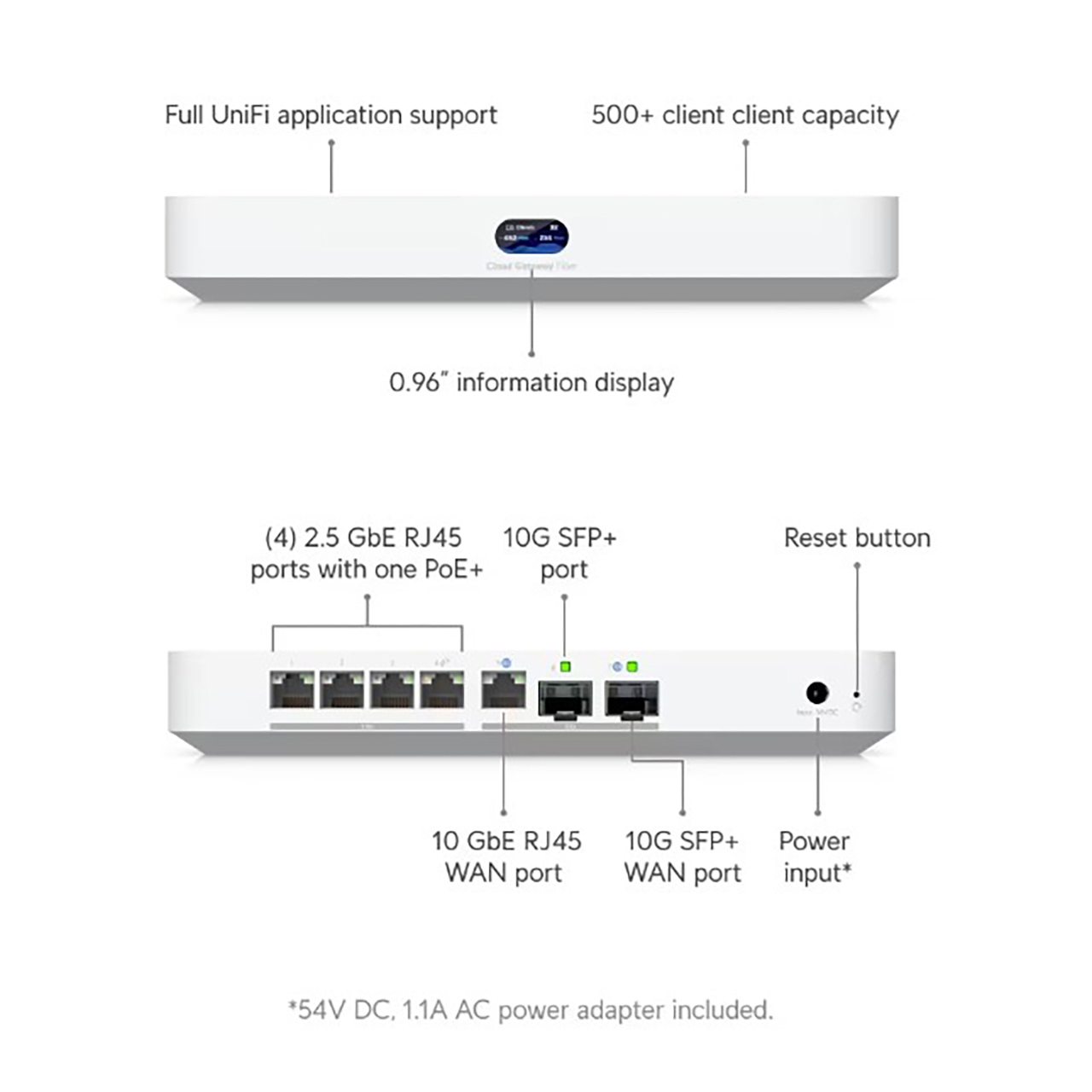

- Port Layout: 2.5 GbE RJ45 - 4 (2.5G/1G/100M/10M). 10 GbE RJ45, 1 (10G/2.5G/1G), 10G SFP+ 2 (10G/1G).
- IDS/IPS Throughput: 5 Gbps.
- Form Factor: Compact desktop.
- Security Features: Stateful Firewall, Application-Aware Layer 7 Firewall, DPI & Traffic Identification, Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps), Content Filtering, Intrusion Prevention (IPS/IDS), Ad Blocking, IDS/IPS Signatures -
- 55,000+ with CyberSecure, VLAN/Subnet-based Traffic Segmentation.
- VPN & SD-WAN Features: License-Free SD-WAN, Site Magic, IPsec, OpenVPN.
- VPN Server: Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP.
- VPN Client: OpenVPN, WireGuard.
- Networking Features: Multi-WAN Load Balancing, Dynamic Routing - OSPF, Advanced QoS, Multicast DNS (mDNS), Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT, Integrated RADIUS Server, RADIUS over TLS (RadSec), Additional Internet Failover with UniFi LTE Backup, Internet Quality and Outage Reporting, MAC Address Table Size - 4,000, Virtual Network Override,All Traffic Flows.
- NVR Storage: Selectable NVMe SSD up to 2 TB.
- PoE Budget: 30W.
- Voltage Range PoE Mode: 50-57V.
- Max. Power Consumption: 29.4W (Excluding PoE output).
- Power Method: DC jack (54V DC/1.1A).
- Power Supply: 54V DC/1.1A (Adapter included).
- Supported Voltage Range: 100-240V AC.
- Heat Dissipation: 100 BTU/hr (Excluding PoE Output).
- Processor: Quad-core ARM Cortex-A73 at 2.2 GHz.
- System Memory: 3 GB
- Management: Ethernet, Bluetooth.
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F).
- Ambient Operating Humidity: 5 to 95% noncondensing.
- Dimensions: (8.4 x 5 x 1.2").
