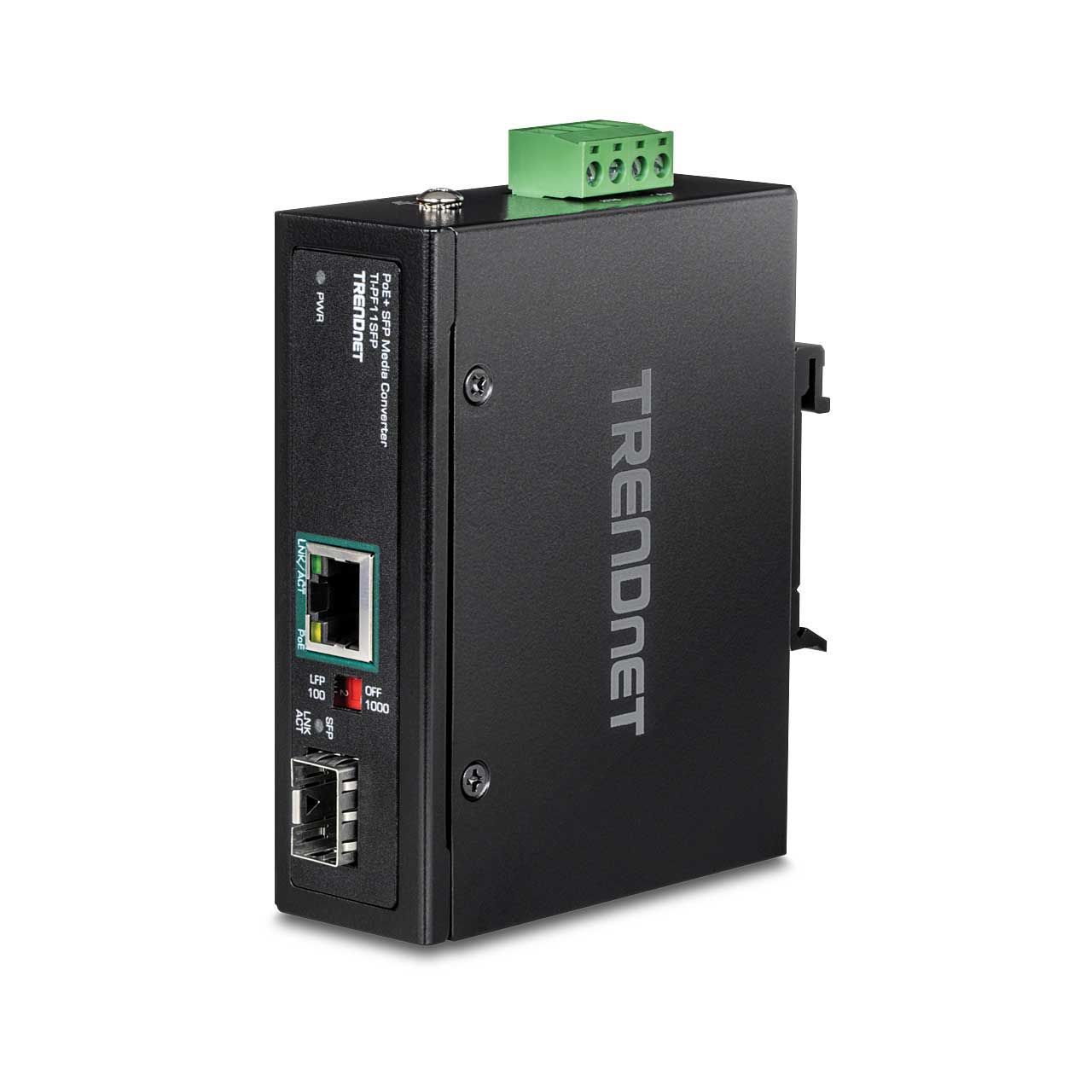

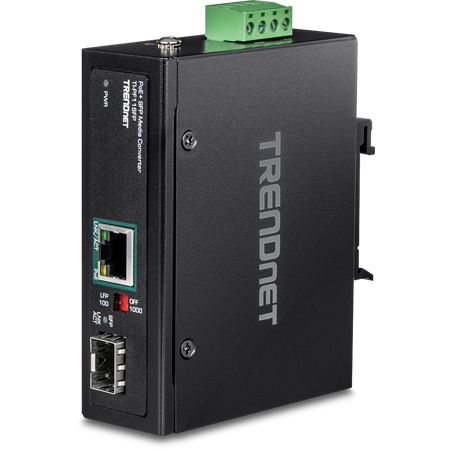

TRENDnet TI-PF11SFP Industrial SFP to Gigabit PoE+ Media Converter with IP30 Rated Housing v2.0R

ITEM #: TNET-TI-PF11SFP MFG #: TI-PF11SFP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$169.99

Our Price:

$164.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TI-PF11SFP - Overview

TRENDnet's TI-PF11SFP (Version v2.0R) is an Industrial SFP to Gigabit PoE+ Media Converter. It converts fiber to copper while providing power to PoE and PoE+ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40° - 167 °F (-40°- 75 °C), the hardened IP30 rated housing is suitable for extreme industrial environments. Dual power inputs (power supply sold separately) with overload current protection minimizes downtime.

  • Features:

    • Hardened IP30 rated SFP to Gigabit PoE+ converter
    • SFP port accommodates Multi or Single Mode fiber
    • Up to 40 km fiber networking distances with the TI-MGBS40 SFP module
    • Provides up to 30W for PoE and PoE+ compliant devices

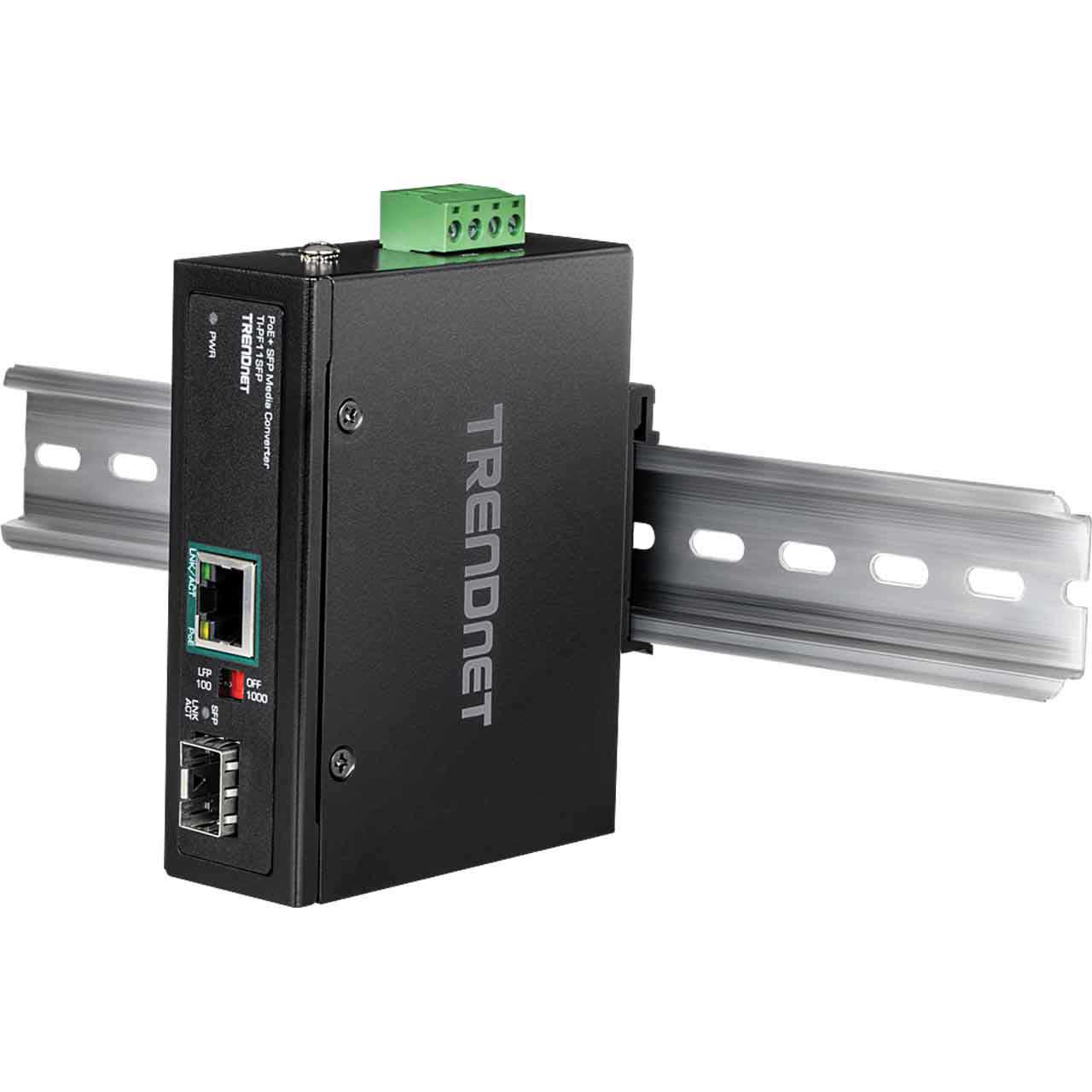

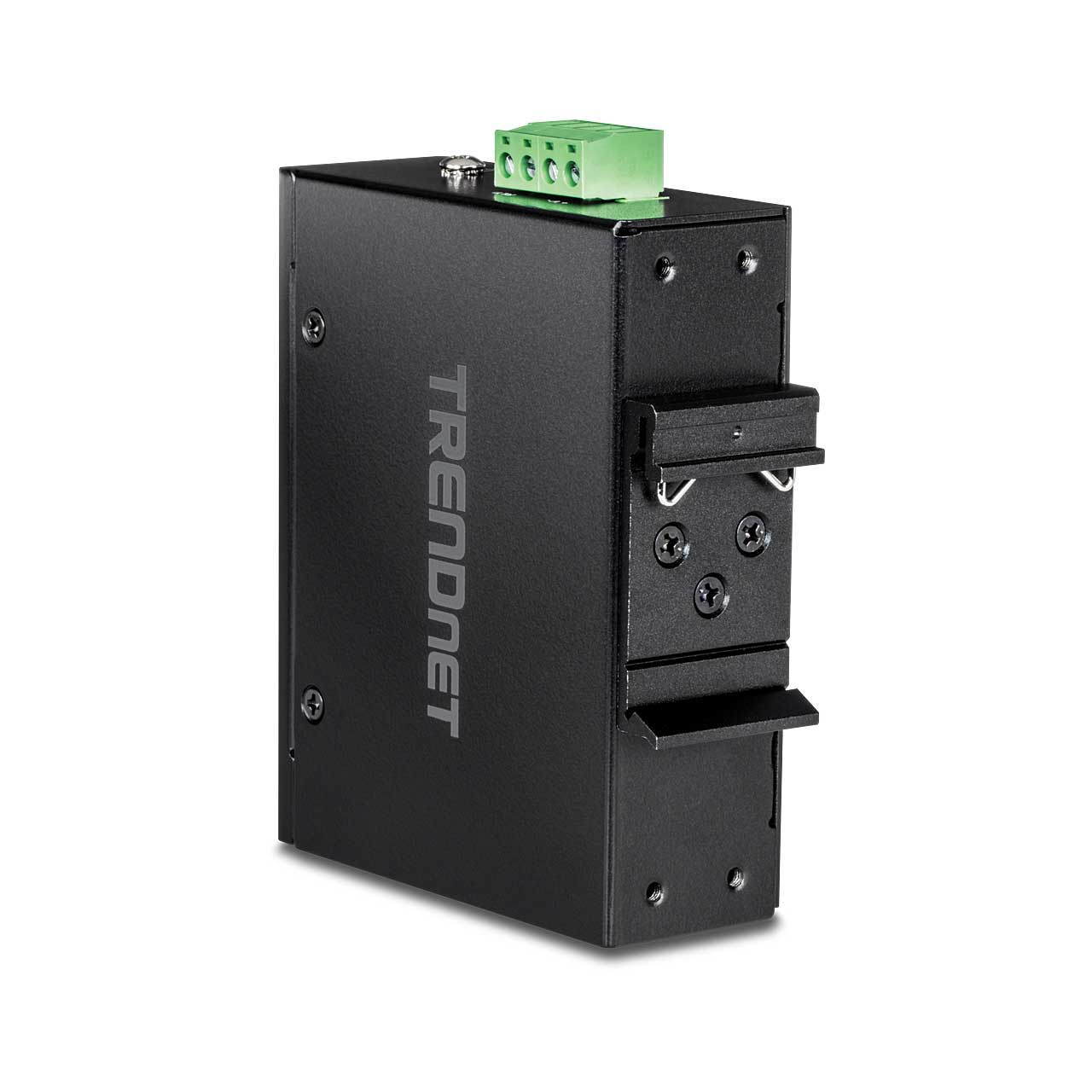

    • Includes DIN-rail and wall mounts
    • Wide operating temperature range -40 to 75 °C (-40 to 167 °F)
    • Dual power inputs with overload current protection
    • Powers supply sold separately (model TI-S12048)
    • NDAA / TAA compliant (U.S. and Canada only)

  • Specifications:

    • Standards: IEEE 802.3 / IEEE 802.3u / IEEE 802.3ab / IEEE 802.3z / IEEE 802.3x / IEEE 802.3af / IEEE 802.3at

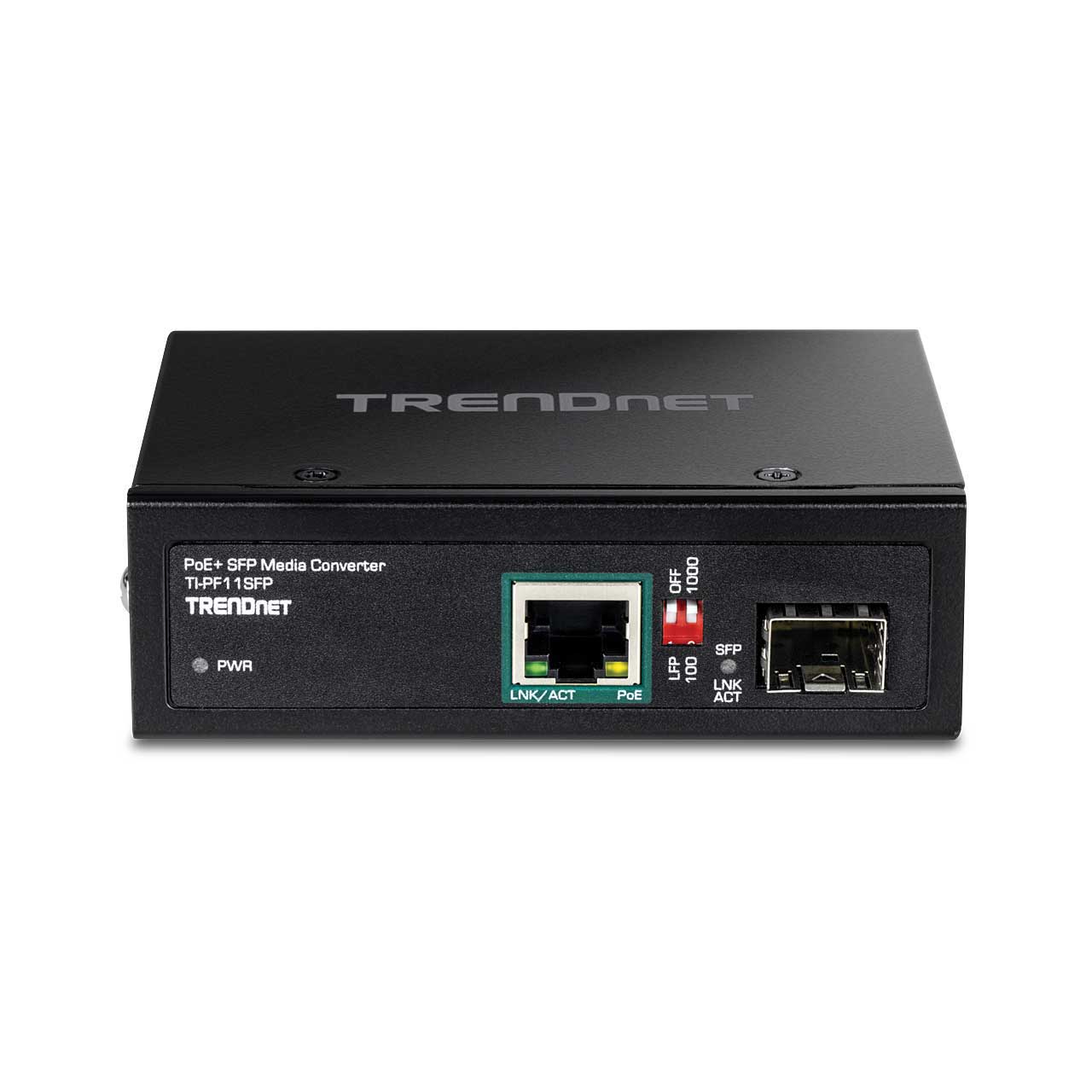

      Device Interface:
    • 1 x Gigabit PoE+ port
    • 1 x 100/1000Mbps SFP slot
    • 4-pin removable terminal block
    • LED indicators
    • DIP Switch
    • DIN-Rail mount
    • Wall mount
    • Grounding point

      Data Transfer Rate:
    • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
    • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
    • Gigabit: 2000Mbps (full duplex)
    • SFP: 200Mbps (full duplex), 2000Mbps (full duplex)

      Performance
    • Data RAM Buffer: 1MB
    • MAC address table: 1K
    • Jumbo Frame: 16KB
    • Switching fabric: 4Gbp

      Power:
    • Input: 48 - 56 V DC
    • Compatible power supply: TI-S12048 (sold separately)
    • Consumption: 2 watts (without PoE) @ 48V D

      PoE:
    • Pin 3, 6, 4, 5 for power (+) and pin 1, 2, 7, 8 for power (-)
    • Budget budget: 30 watts
    • Max. consumption: 36W @ 56V DC

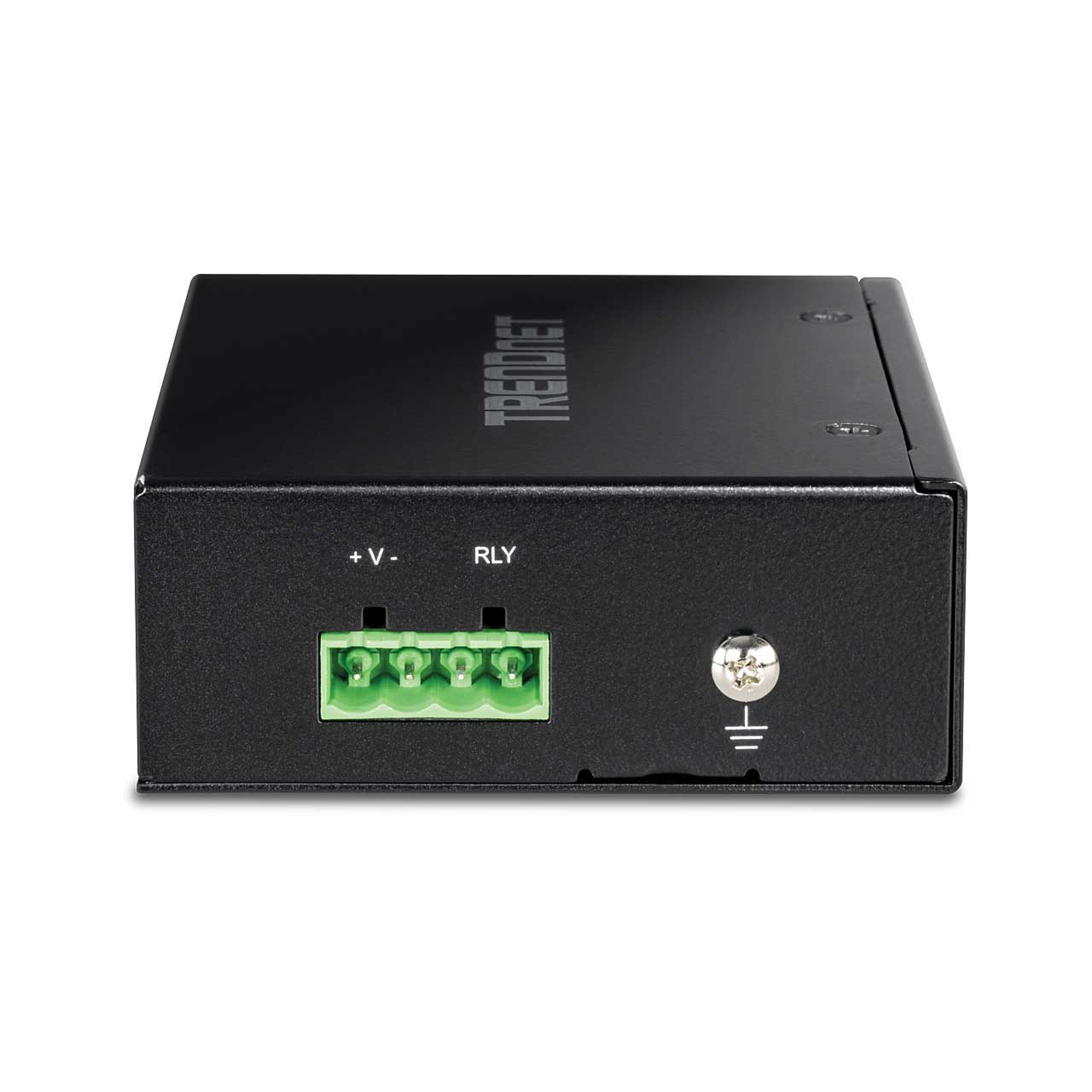

      Terminal Block
    • Power and relay inputs, 4 pin
    • Wire range: 0.34mm^2 to 2.5mm^2
    • Solid wire (AWG): 12-24/14-22
    • Stranded wire (AWG): 12-24/14-22
    • Torque: 5 lb. - In / 0.5Nm / 0.56 Nm
    • Wire strip length: 7-8m

      DIP Switch:
    • 1: OFF: LFP disabled (default), ON: LFP enabled
    • 2: OFF: SFP at 1000Mbps (default), ON: SFP at 100Mbps

      MTBF: 557,082 hours

      Housing:
    • IP30 aluminum case
    • DIN-rail mount
    • Wall mount
    • Grounding point

      Physical
    • Operating Temperature: -40 to 167 °F (- 40 to 75 °C)
    • Operating Humidity: Max. 95 % non-condensing
    • Dimensions: 4 x 3.2 x 1.2 in (104 x 81 x 32 mm)
    • Weight: 154 g (5.4 oz.)

      Certifications: CE / FCC / Shock (IEC 60068-2-27) / Freefall (IEC 60068-2-32) / Vibration (IEC 60068-2-6) / EN60950-1 (LVD)

  • Item Includes:

    • 1x TI-PF11SFP (Version v2.0R) industrial SFP to Gigabit PoE+ media converter
    • 1x Quick Installation Guide
    • 1x Removable terminal block
    • 1x DIN-rail and wall mount kit

  • Warranty:

    • 2-Year
