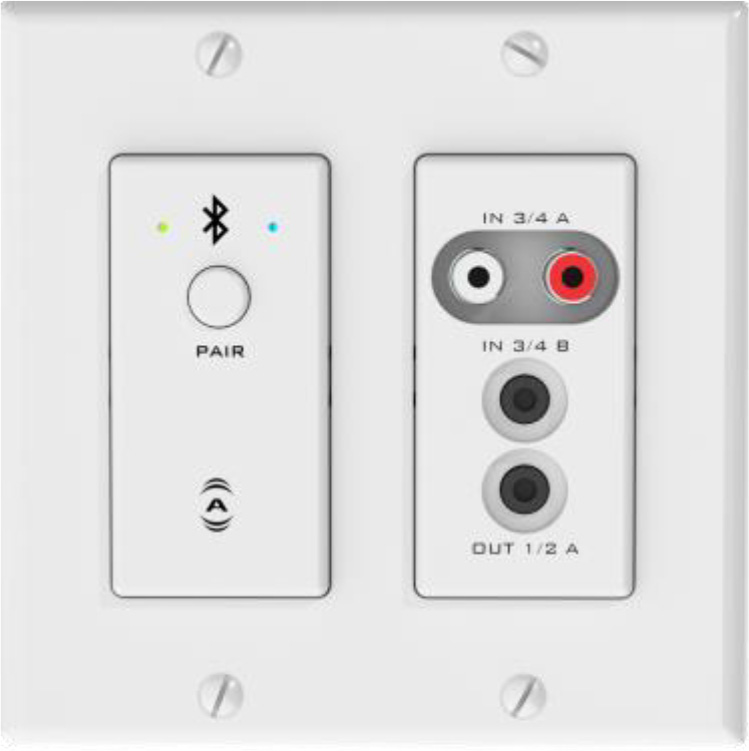

Attero Tech UNA6IO-BT 4x2 CH 2-Gang US Wall Plate w/ Bluetooth RCA in 3.5mm I/O PoE AES67 White & Black Inserts/Decora

UNA6IO-BT - Overview

• Features:

  • Stereo Bluetooth audio streaming from a BT device onto an AES67 network
  • Simple device pairing
  • 2 line level balanced analog output
  • 2 RCA and 1 stereo 3.5mm inputs
  • 1 3.5mm stereo output
  • Output gain controllable via software over the network
  • Powered by IEEE 802.3af PoE

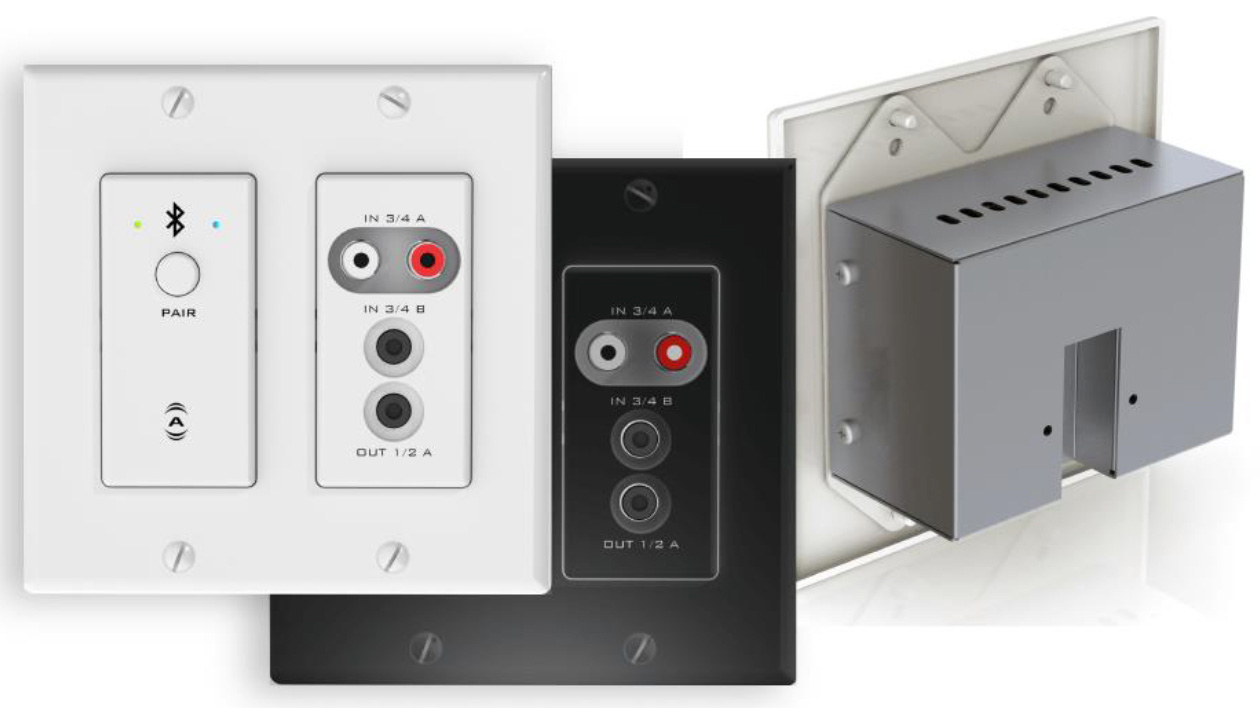

  • Black and white inserts and Decora plates included


• Specifications:

  • Analog Audio Inputs
  • Input Type Stereo Bluetooth® v3.0 audio receiver (A2DP Profile only)
  • Stereo Unbalanced Inputs on RCA (Inputs ¾A)
  • Stereo Unbalanced Inputs on 3.5mm TRS (Inputs ¾B)
  • Bluetooth Range 10m (30ft) minimum

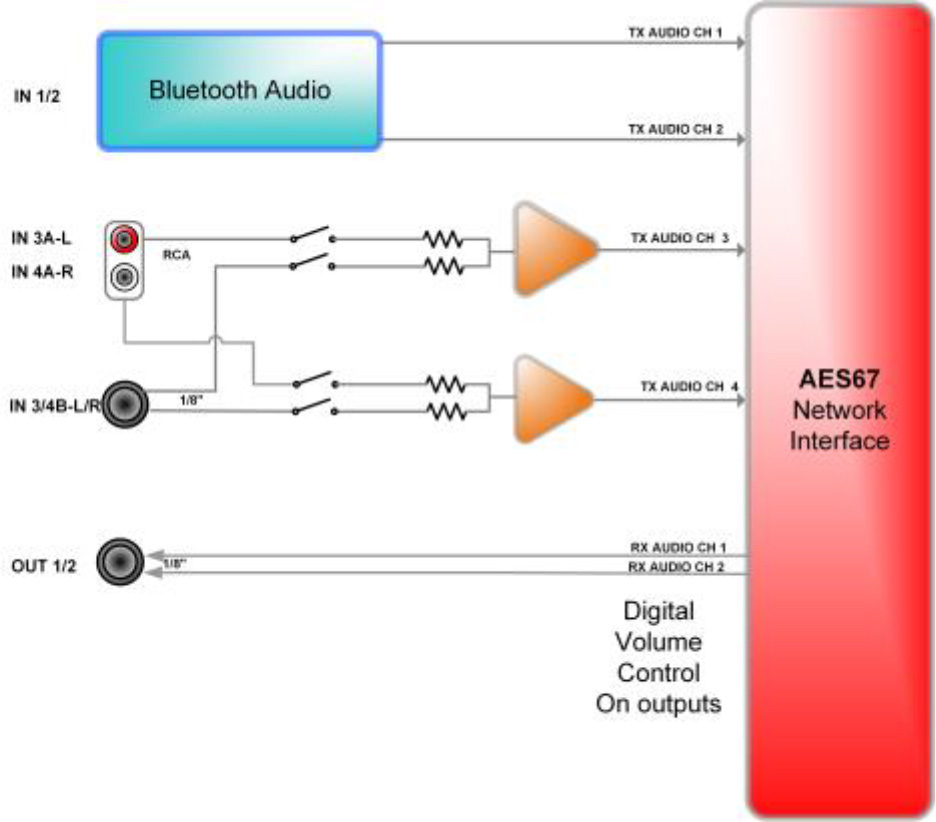

  • Input Switching Software:
  • Selectable line level input source on In 3 and In 4
    RCA L/R
    3.5mm L/R
    RCA + 3.5mm L (3)
    RCA + 3.5mm R (4)
  • Input Impedance: >10k Ohms (Inputs ¾A & B)
  • Maximum Input Levels: +12 dBu ( Inputs ¾A & B)
  • THD+N:
    <0.1% Bluetooth® Input @ -3dBFS
    <0.01% Line Inputs ¾ @ -3dBFS
  • Dynamic Range: >95 dB (Inputs ¾A & B)
  • Frequency Response:
    20Hz - 20kHz, &plusmmn;3dB (Bluetooth® Input)
    20Hz - 20kHz, &plusmmn;1dB (Inputs ¾A & B)

    AES67 Network
  • Physical Layer Ethernet
  • Connector (s) RJ-45
  • Cable Quality CAT-5e or better, UTP
  • Transmission Speed 100 Mbps
  • Supported Sample Rates 48kHz
  • Minimum Audio Latency 1ms
  • AES67 Support AES67, SAP based stream discovery

    Power Specifications
  • PoE Power: 802.3af Class 0
  • Power Consumption: < 6W Max

    Regulatory Compliance
  • Certifications: FCC CFR 47 Parts 15B Class A, EN55011, ICES-003 CE (EN55022 / EN55024), RoHS, REACH

    General
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Dimensions (WxHxD): 3.54 x 4.2 x 2"
  • Weight: 0.6 lbs


• Item Includes:

  • 1x unA6IO-BT
  • 1x Black & White Inserts
  • 1x Black & White Decora Plates


• Warranty:

  • 5 Year
