Attero Tech unDX2IOplus-U 4x2 Ch 2 Gang US Wall Plate 2 Mic/Line In x 2 Out (XLR) - Phoenix I/O/PoE
  • Attero Tech unDX2IOplus-U 4x2 Ch 2 Gang US Wall Plate 2 Mic/Line In x 2 Out (XLR) - Phoenix I/O/PoE
  • Attero Tech unDX2IOplus-U 4x2 Ch 2 Gang US Wall Plate 2 Mic/Line In x 2 Out (XLR) - Phoenix I/O/PoE

Questions? Ask a Markertek Expert:
800-522-2025 Email

Attero Tech unDX2IOplus-U 4x2 Ch 2 Gang US Wall Plate 2 Mic/Line In x 2 Out (XLR) - Phoenix I/O/PoE

Manufacturer: Attero Tech, LLC

Item #: UNDX2IOPLUS-U   •   MFG #: UNDX2IO+-U



List Price:$739.00
Our Price:$591.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

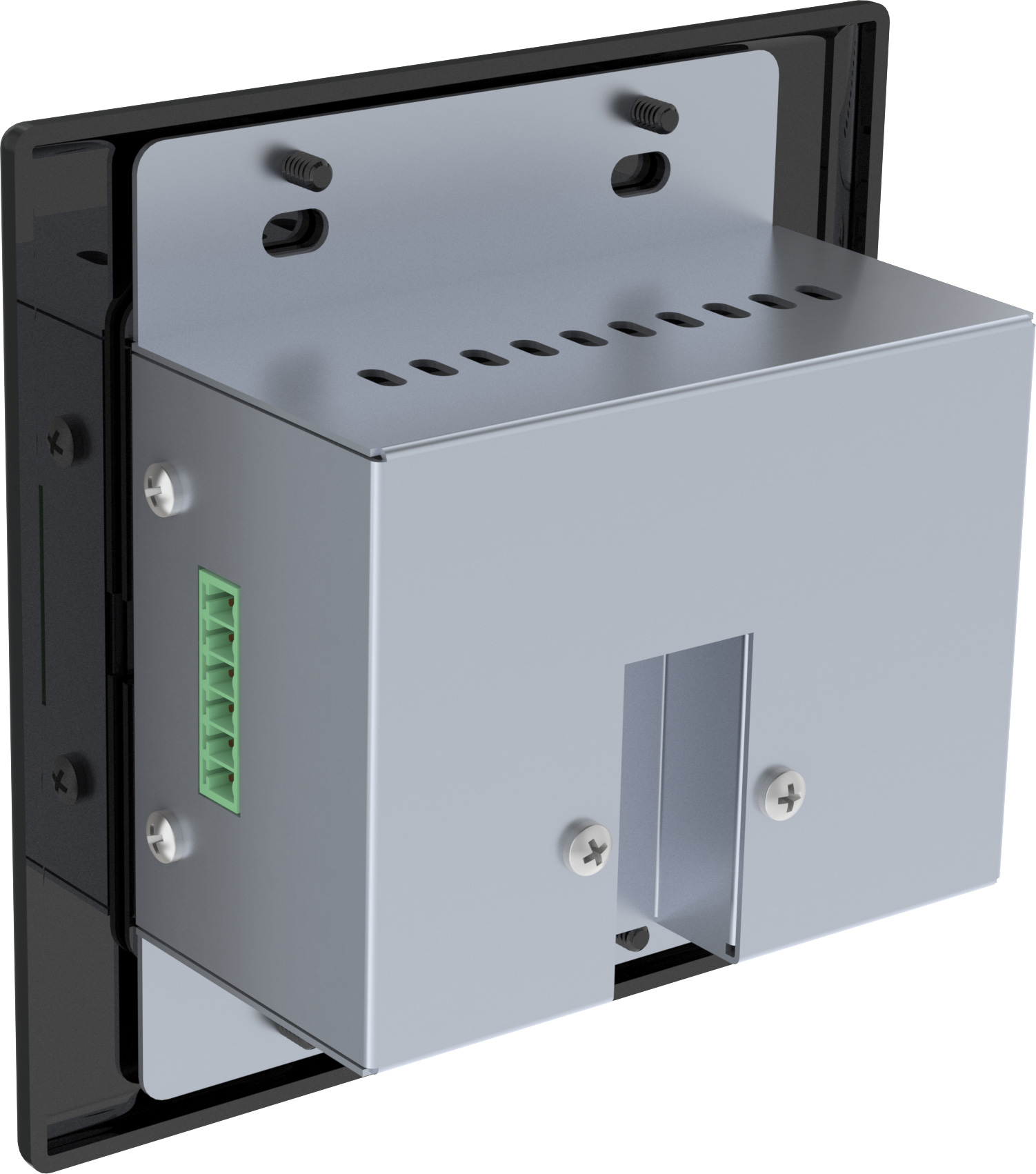

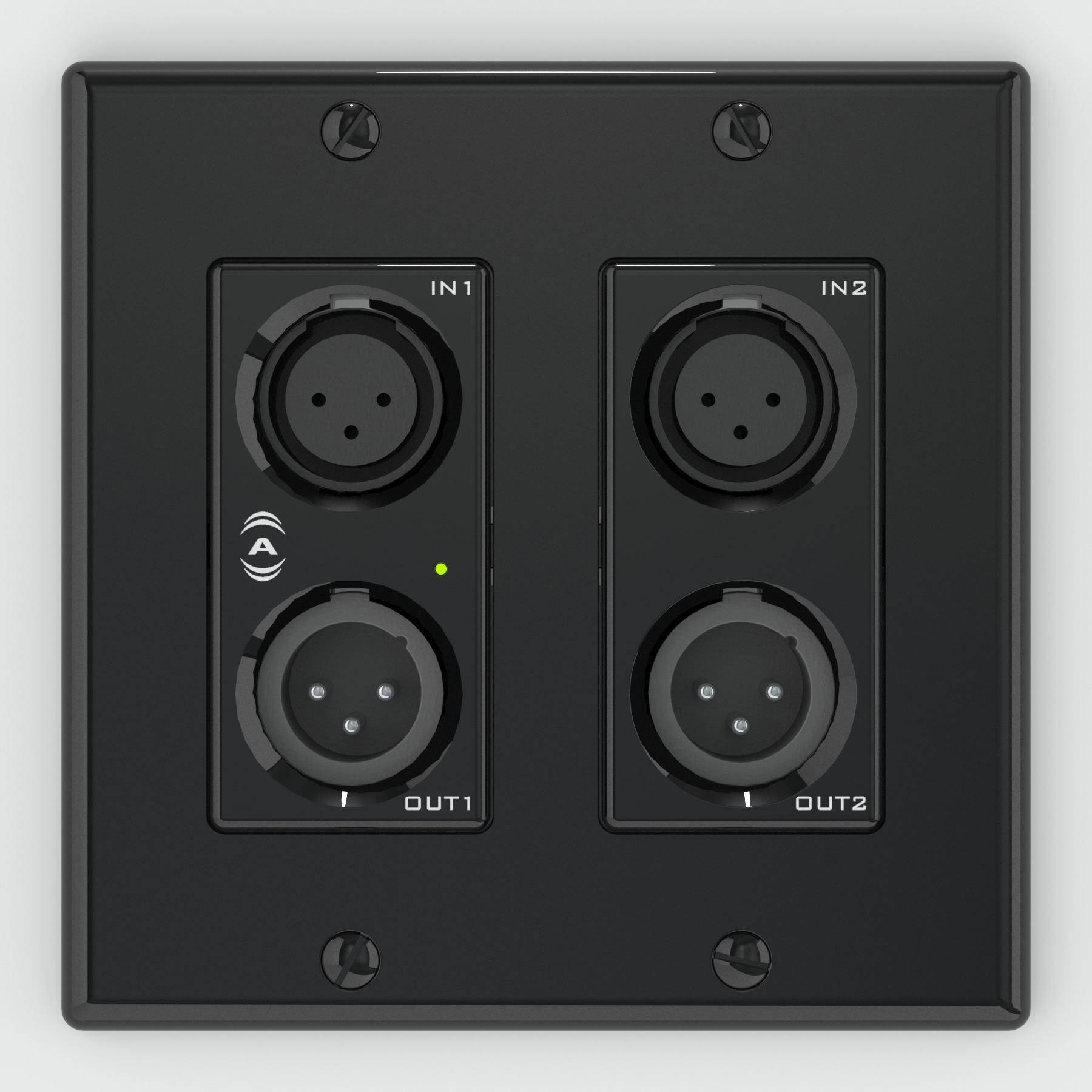

    The Attero Tech unDX2IO+ Dante™ Audio Interface is a cost effective multi-IO wall box. The unDX2IO+ features two balanced mic/line XLR inputs, two balanced XLR line outputs, and a further two balanced line inputs on de-pluggable connectors on the side of the unit. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO+ is designed to fit into all dual gang US junction boxes, mud rings, and old work brackets. The unDX2IO+ is PoE enabled, so all connectivity (power, control, and data) is provided by a single CAT-5/6 cable. The unDX2IO+’s size and I/O density make it easy to put Dante™ connectivity wherever it’s needed.


    • Features

      • 2 Mic/Line balanced analog inputs supporting 0dB, +15dB, +25dB and +40dB gain
      • 2 separate line level balanced inputs on the side of the unit
      • 2 line level balanced analog outputs
      • Input gain and +48V phantom power controllable via software over the network
      • Powered by IEEE 802.3af PoE
      • Black and white inserts and Decora plates included

    • Specifications

        Audio Inputs
      • Input Type: Balanced and RF filtered 3-pin depluggable
      • Gain: -18dB, -3dB, +25dB, +40dB, software selectable
      • Input Impedance: >1.8K ohms at any gain setting
      • Maximum Input Levels
      • 1 & 2 +20dBu @ 0dB with -15dB Pad
        +5dBu @ 0dB gain,
        [email protected] +25dB gain,
        -38dBu @ +40dB gain
      • Maximum Input Levels: 3 & 4 +4dBu Mode - +20dBu, -10dBV Mode - +12dBu
      • Phantom Power: +48V, software selectable

        Audio Outputs
      • Output Type: Balanced line level with automatic muting on loss of Dante signal
      • Output Gain 0dB
      • Maximum output level: +20dBu

        Audio Performance
      • EIN -115bBu (+40dB gain)
      • Output Noise: <-85dBu @ 0dB gain
      • System THD: <0.05% at any gain, input signal 3dB below maximum

        Dante Network
      • Physical Level: Standard Ethernet
      • Connector: Single RJ-45
      • Cable Quality: CAT-5e or better
      • Transmission Speed: 100 Mbps
      • Supported Sample Rates: 44.1kHz, 48kHz
      • Minimum Dante Network Latency: 1ms

        Power Requirements
      • PoE 802.3af PoE PD compliant
      • Power Consumption: < 5W Max
      • Cable Quality: CAT-5e or better

        Physical Dimensions
      • Width: 3.54"
      • Height: 4.2"
      • Depth: 2"
      • Weight: 0.6 lbs.

        Product Compliance
      • FCC CFR 47 Parts 15B Class A, EN55011, ICES-003, CE (EN55022 / EN55024), RoHS, REACH

    • Warranty

      • 5 Year
