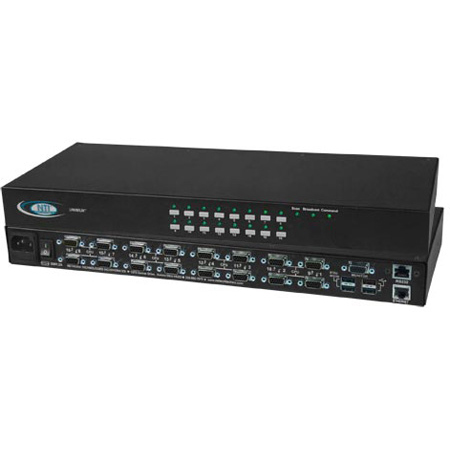

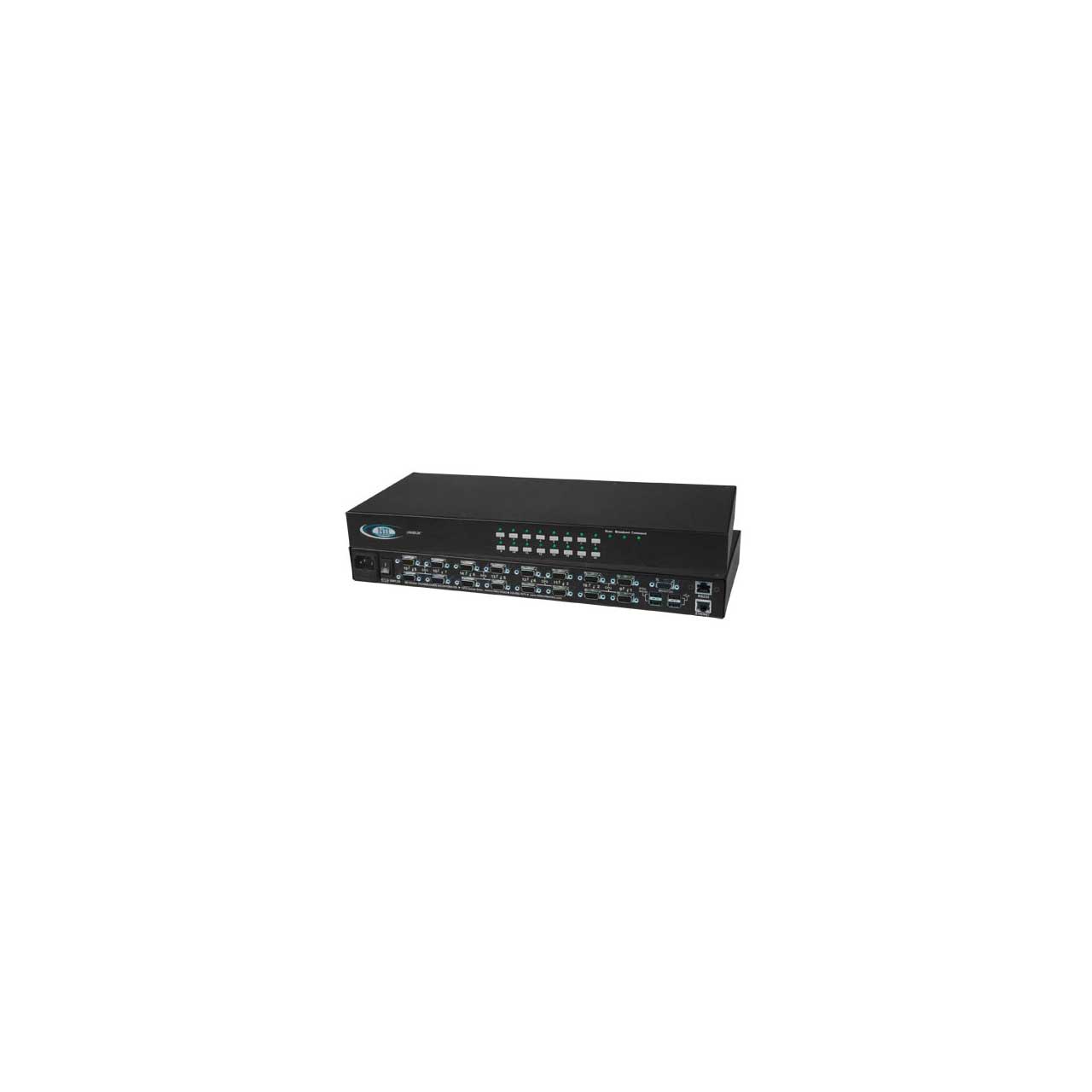

NTI UNIMUX-USBV-16HDUT 16-Port VGA High Density USB KVM Switch

UNIMUX-USBV-16HDUT - Overview

• Features:

  • The High Density Switch saves rack space, 4-, 8- and 16-port switches are 1RU in height. 32-port switch is 2RU in height. Rackmount kit included.
  • Features NTI's patented true autoboot USB switching – all attached computers can be booted simultaneously.
  • Compatible with USB computers (PC, SUN and MAC).
  • Crisp and clear 1920x1200 (WUXGA) video resolution.
  • Equipped with OSD, RS232, and Ethernet.
  • High quality steel construction.
  • Flash upgradeable.
  • Cabling runs are simplified with NTI's high density KVM switch cables.
  • Available options: Two transparent USB ports, Supports any two USB 1.1 (low/full speed) devices, in addition to keyboard and mouse, such as a touch screen monitor, interactive white board, or CAC card reader.
  • USB only switches – no VGA video.


• Specifications:

  • Hosts
  • Female 15-pin HD connectors.
  • Supports USB computers with VGA video.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R.

    Monitor
  • Crisp and clear 1920x1200 resolution.
  • One female 15-pin HD connector.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.

    Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Available power cord lengths: 1/1.5/3/6 feet

    Dimensions
  • 4-, 8- and 16-port switches WxDxH (in): 16.66x7.58x1.75 (without supplied rackmount kit), 19x7.58x1.75 (with supplied rackmount kit)
  • 32-port switches WxDxH: 19x10.17x3.5 in (483x258x89 mm)

    Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -20 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

    Devices
  • Two female USB Type A connectors for keyboard and mouse.
  • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse, Logitech Cordless Elite Duo keyboard/mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and IKEY combo keyboard/touchpad.
  • Keyboard and mouse are hot-pluggable.
  • UNIMUX-USBV-xHDUT: two additional transparent female USB Type A connectors for USB 1.1 (low/full speed) devices - USB touch screen monitor, CAC card reader, interactive whiteboard, barcode scanner, etc.
  • Connect any type of USB device - fully transparent USB connectors.
  • Switch USB 1.1 devices between connected computers.
  • Regulatory Approvals: CE, RoHS, TAA compliant

    Ethernet Control
  • Female RJ45 connector.
  • 10/100 BaseT Ethernet interface.
  • Supported protocol: Telnet.
  • Control can be done over Telnet.
  • RS232 Control: Female RJ45 connector. Baud rate 1200 to 115200


• Warranty:

  • 2 Years
