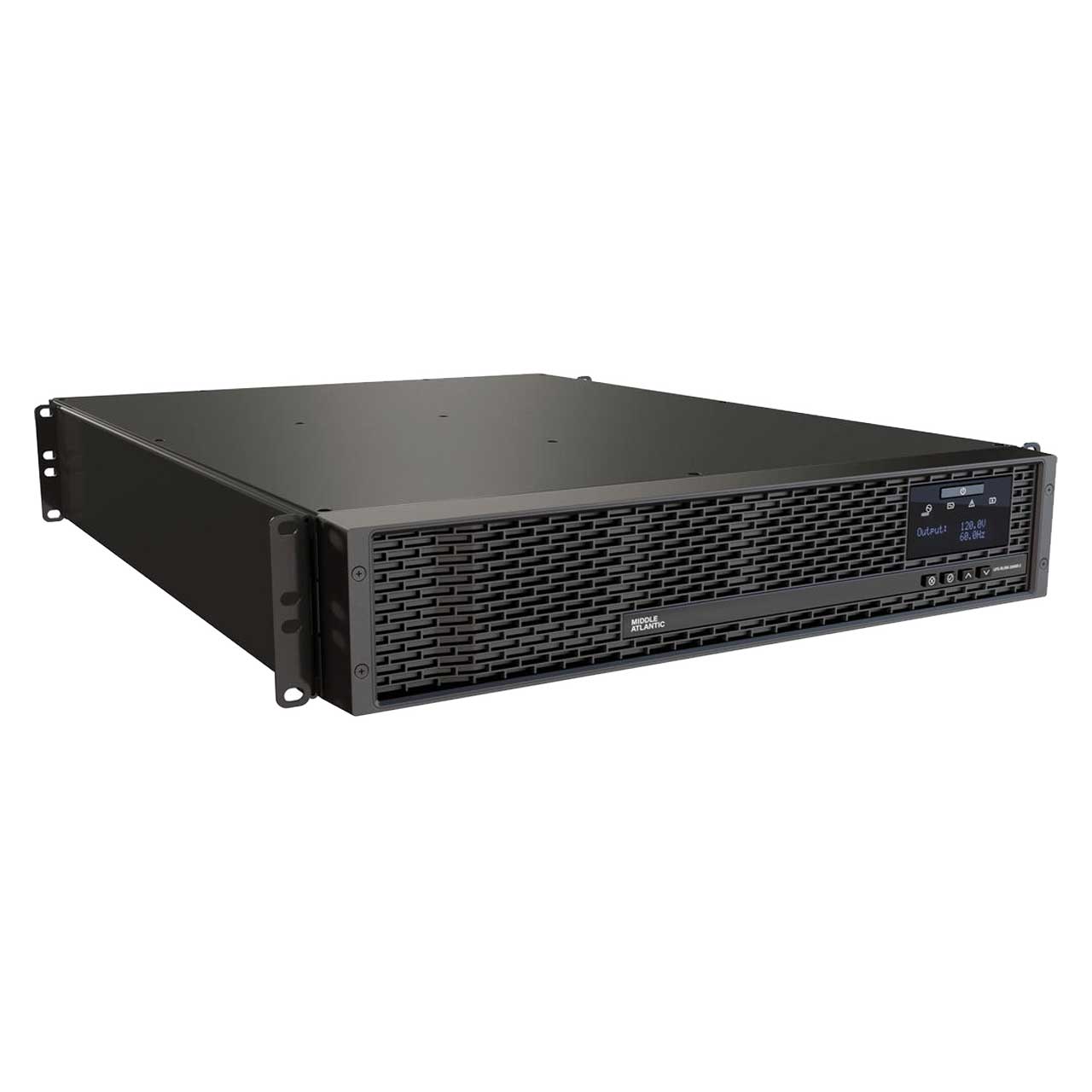

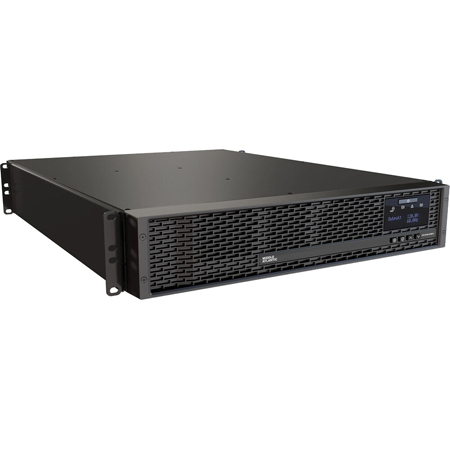

Middle Atlantic NEXSYS Series UPS Backup Power System with RackLink - 2000VA - 20 Amps - 8 Outlets

UPX-RLNK-2000R-2 - Overview

• Features:

  • 2000VA
  • 20 Amp

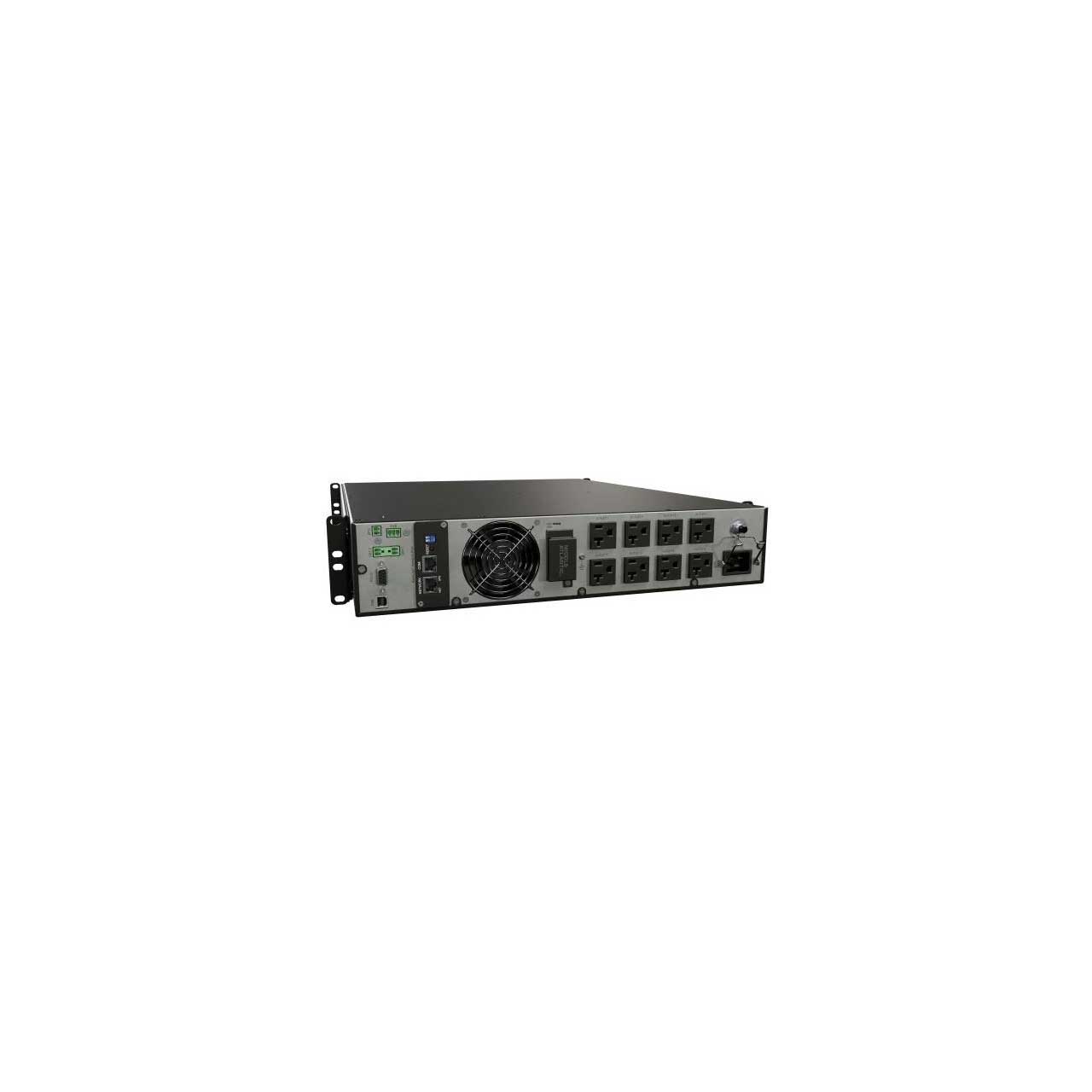

  • 8 Outlets with Bank Control, (2) outlet banks with 4 outlets each
  • An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations. Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
  • The battery is already connected so just plug it in
  • Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
  • "NEXSYS, alert me when.". Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
  • The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6' (1.8m) IEC power cord.

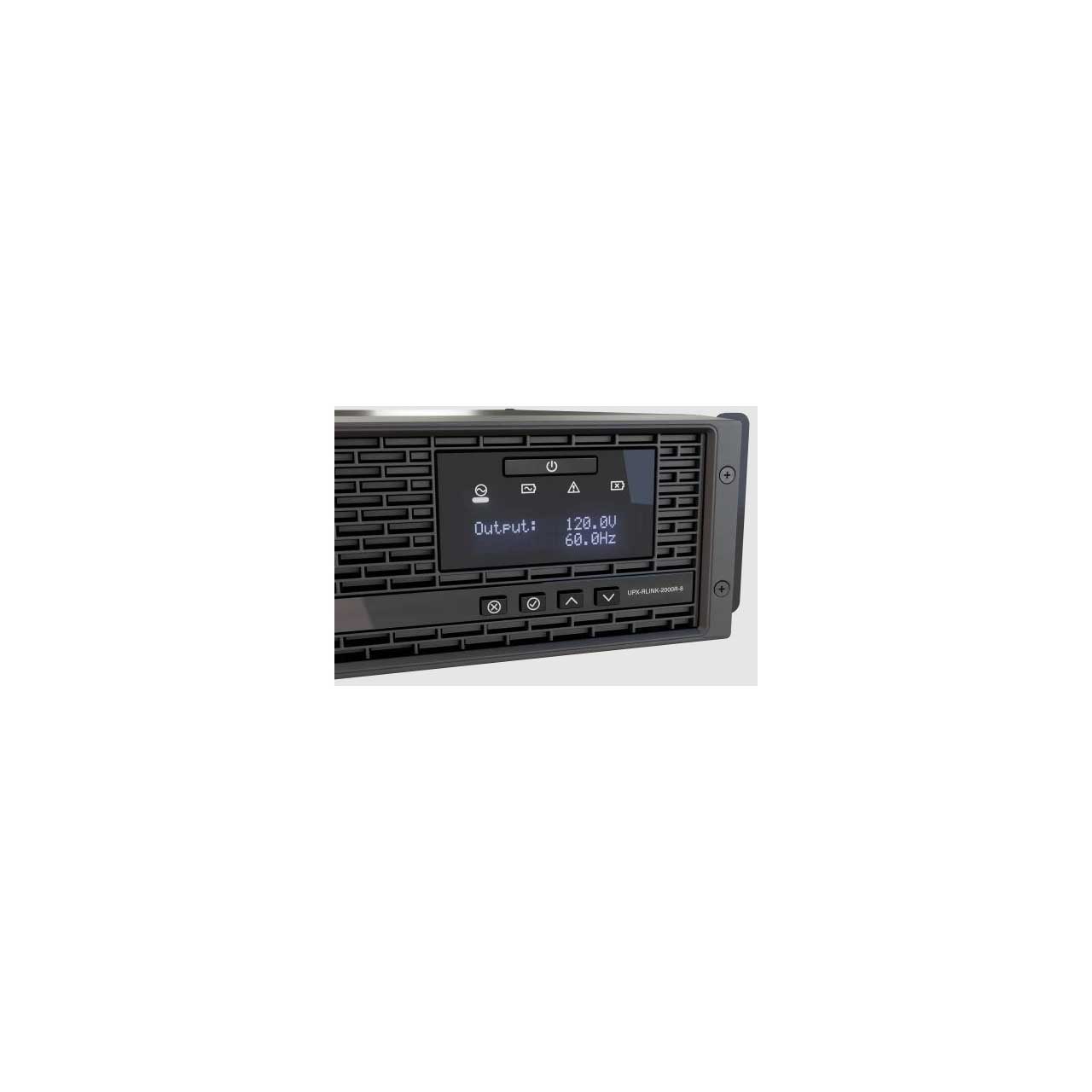

  • Name, address, and date of birth, please? Easily locate the IP, MAC address and device name via the front LCD screen. You can even see the battery installation date.
  • Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
  • Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards
  • Swap it like it's hot. Hot swappable battery from the front access panel for easy service without disrupting the system
  • RackLinkT Remote Management Built-In. The NEXSYS UPS is RackLink enabled out of the box and discoverable on the RackLink Discovery Tool on PC, Apple or Android devices.

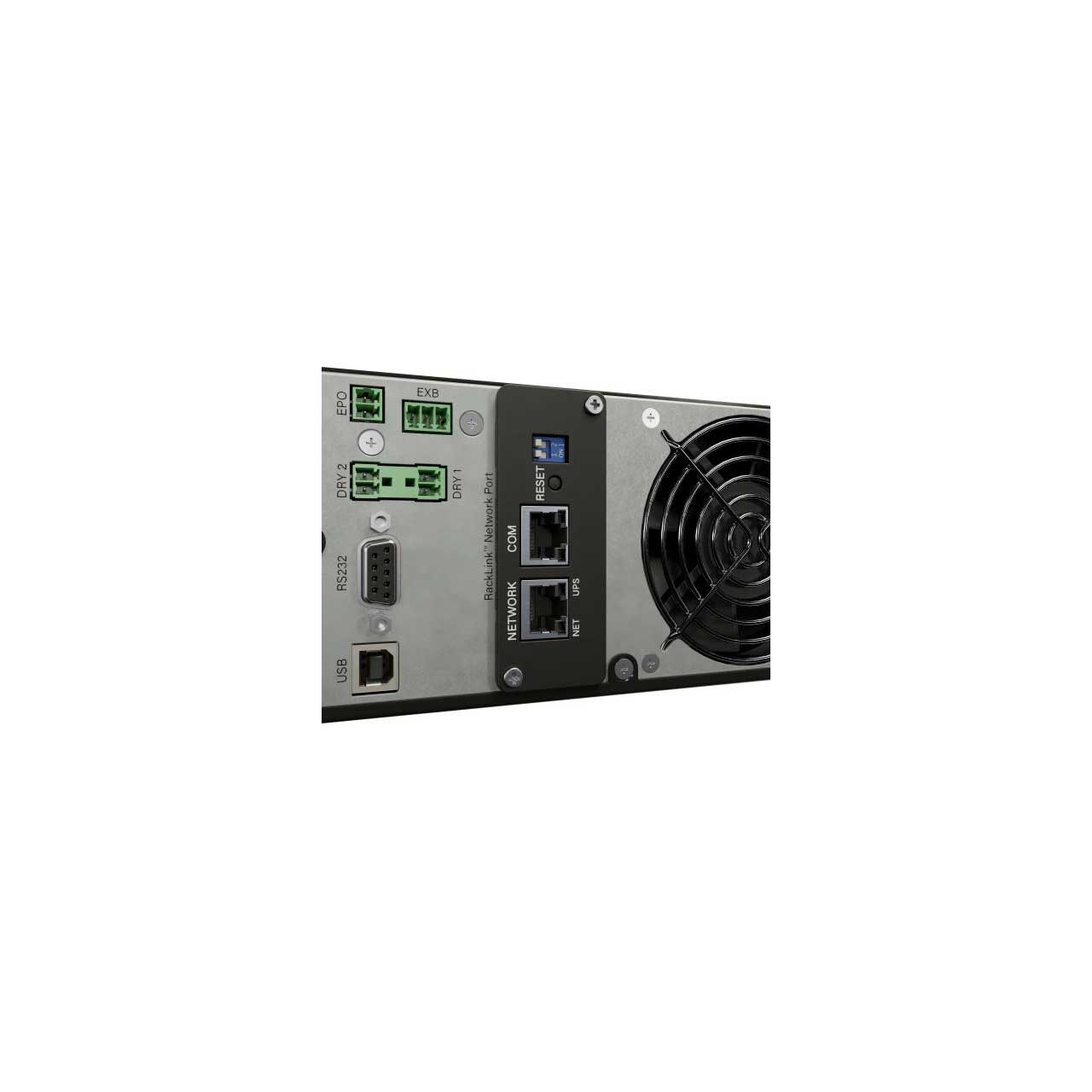

  • Included RS232 port for control
  • (2) dry contact ports for alerts - 1 contact is defined to alert users of a battery switch over when the UPS loses utility power or hits a set threshold, 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds
  • Energy Star Certified


• Specifications:

  • Color: Black
  • Control Type: RackLink
  • Federal Ops Country of Origin: China
  • Isolated Ground: No
  • Mounting Points: 4
  • Network Card Included: Yes
  • Network Enabled: Yes
  • Outlet Control Type: Individual
  • Outlet Count: 8
  • Plug Type: NEMA 5-20P
  • Receptacle Type: NEMA 5-20R
  • Special Features: NEXSYS UPS
  • Surge Protection Type: MOV
  • Topology: Line Interactive
  • AC Voltage Input: 120 VAC
  • AC Voltage Output: 110, 120V, 127
  • Amps: 20 Amp
  • Cord Length: 6 ft (1.8 m)
  • Depth: 22 in (55.9 cm)
  • Height: 3.5 in (8.8 cm)
  • Mounting Depth Max: 36 in
  • Mounting Depth Min: 28 in
  • Operating Temperature: 32°F - 104°F
  • Primary Package Weight: 71 lbs
  • Product Weight: 63 lbs
  • Rack Units: 2 RU
  • VA: 2,000 VA
  • Volts AC: 120 VAC
  • Volts DC: 48 VDC
  • Watts: 1,800 W
  • Width: 19 in (48.3 cm)


• Item Includes:

  • 1x 6' (1.8m) IEC power cord


• Warranty:

  • 2 Years Battery, 3 years UPS


• GTIN:

  0656747395628
