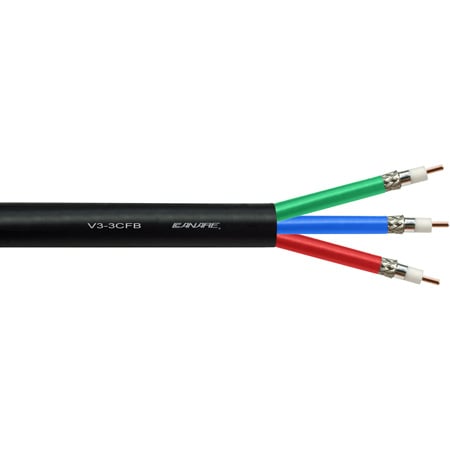

Canare V3-3CFB Hi-Res 3 Channel 75 Ohm Digital Video Mini Coax Cable by the Foot

ITEM #: V3-3CFB MFG #: V3-3CFB

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.98

Our Price:

$1.89

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    V3-3CFB - Overview

    Canare V3-3CFB series serial digital mini coax type, 22AWG designed for digital and HDTV facilities.
    Bundled thinner jacket type of Canare L-xCFB: solid conductor and foamed PE insulation wrapped with aluminum foil. Excellent low attenuation performance in fixed installations. Distinguishable RGB color-coded channels for fast identification. Each coaxial channel includes a Foam Core PE dielectric, Solid Bare Copper Center Conductor and double Foil/Braid Shield. <2.2 nano second channel-to-channel differential delay time, reduces phase errors in component video setup alignments. Bundled cable helps keep work site neat and clean. Can be used with confidence for Super Hi-Res CG workstation interconnects and Digital Video installations.

    • Features:

      • Solid Copper Center Conductor
      • Foam PE Dielectric
      • Tinned Copper Braid + 100 percent Foil Shield
      • Dielectric strips away clean from Conductor
      • Precision Coax 100 percent Sweep Tested
      • Serial Digital Video (SDI)
      • HDTV Upgrades
      • Video Walls
      • Hi-Res Video projection
      • CG/CAD Workstations

    • Specifications:

      • Weight Std lbs.(kgs): 93 (42)
      • No. of Channels: 3
      • Colors: RED, GRN, BLU
      • Nominal O.D. in. (mm): .453 (11.5)
      • PVC Jacket Thickness in. (mm): .035 (0.90)
