Vaddio DocCAM 20 HDBT OneLINK HDMI HDbaseT Streaming Document Camera System 3G-SDI

ITEM #: VAD-999-9968-300 MFG #: 999-9968-300

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$7,533.00

Our Price:

$6,779.70

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    999-9968-300 - Overview

    Don't disrupt the moment - enhance it with the ceiling mounted, HD quality document camera. Experience seamless video, remote management, and flexible installation with the Vaddio DocCAM 20 HDBT.

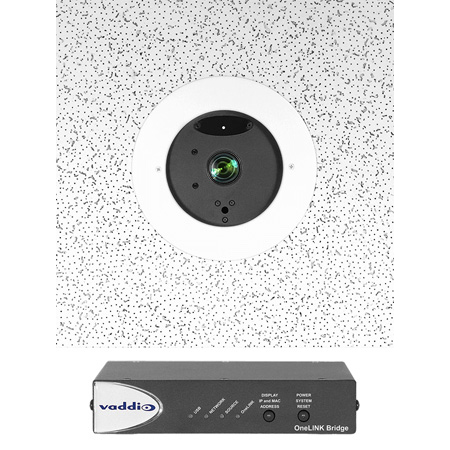

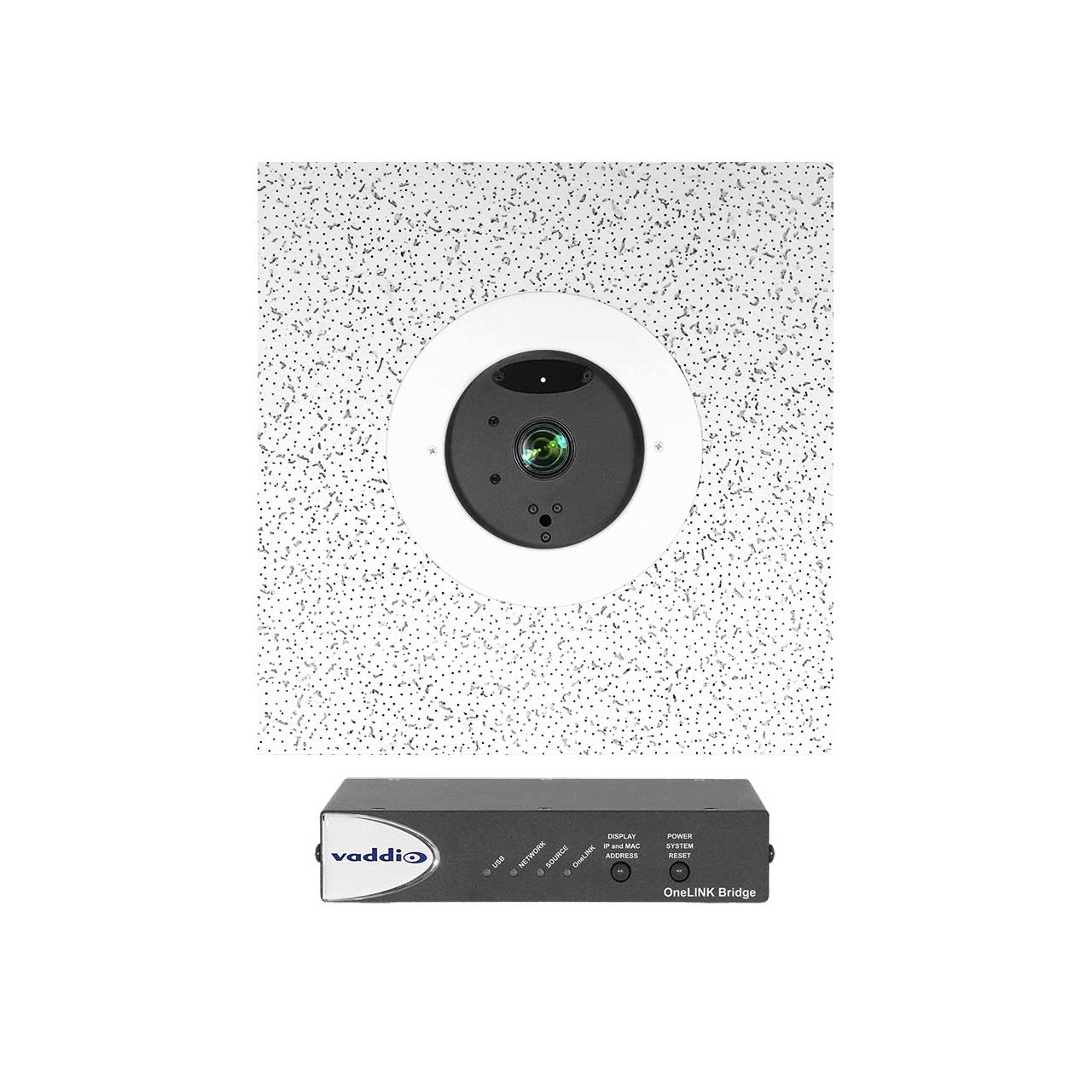

    The DocCAM 20 HDBT is a high definition, recessed in-ceiling document camera.

    Engage the audience like never before with 20x optical zoom and high-definition 1080p/60fps resolution. Capture more of the table with nearly 60° horizontal field of view.

    The DocCAM 20 HDBT has an in-ceiling, recessed design allowing it to blend into nearly any environment. Equipped with our popular OneLINK HDBaseT port, the DocCAM 20 HDBT easily connects to the Vaddio OneLINK Bridge AV Interface extension system to reduce cabling and extend video, power, and control up to an installation distance of 328 ft (100M). The OneLINK Bridge AV Interface combines camera extension and bridge functionality into a single device - so you can turn any pro AV source into a USB 3.0 media stream - and easily use with cloud conferencing applications.

    Remote network management of the DocCAM 20 HDBT allows the presenter to transmit a live image and control all the functions remotely making it an effective and efficient distance learning tool.

    Common design applications include:

    Higher education classrooms
    Medical schools and operating theaters
    Technical training sessions
    Video conference rooms
    City council chambers
    Courtrooms and evidence viewing
    Art schools - Illustrative demonstrations
    Culinary schools - cooking demos
    Construction and architectural firms - reviewing plans

    • Features:

      • MADE IN THE USA!
      • 20x optical zoom - capture the fi nest detail; well-suited for 20 ft (6 m) ceilings
      • 1080p/60fps resolution for razor sharp image clarity you expect from Vaddio
      • 59.5° horizontal FOV to capture more of the table
      • HDBaseT technology - simplify installation and integration
      • USB 3.0 output - send uncompressed, high resolution video over USB by pairing with the OneLINK Bridge AV Interface.
      • Capable of 1080p/60fps for the smoothest video available. Also supports USB 2.0
      • Remote management - intuitive browser-based user interface for remote configuration, management, and control
      • Laser alignment - frame the subject quickly and easily
      • Color adjustment - automatically or manually adjust image color, shading, backlight, and wide dynamic range to optimize color for different settings

    • Item Includes:

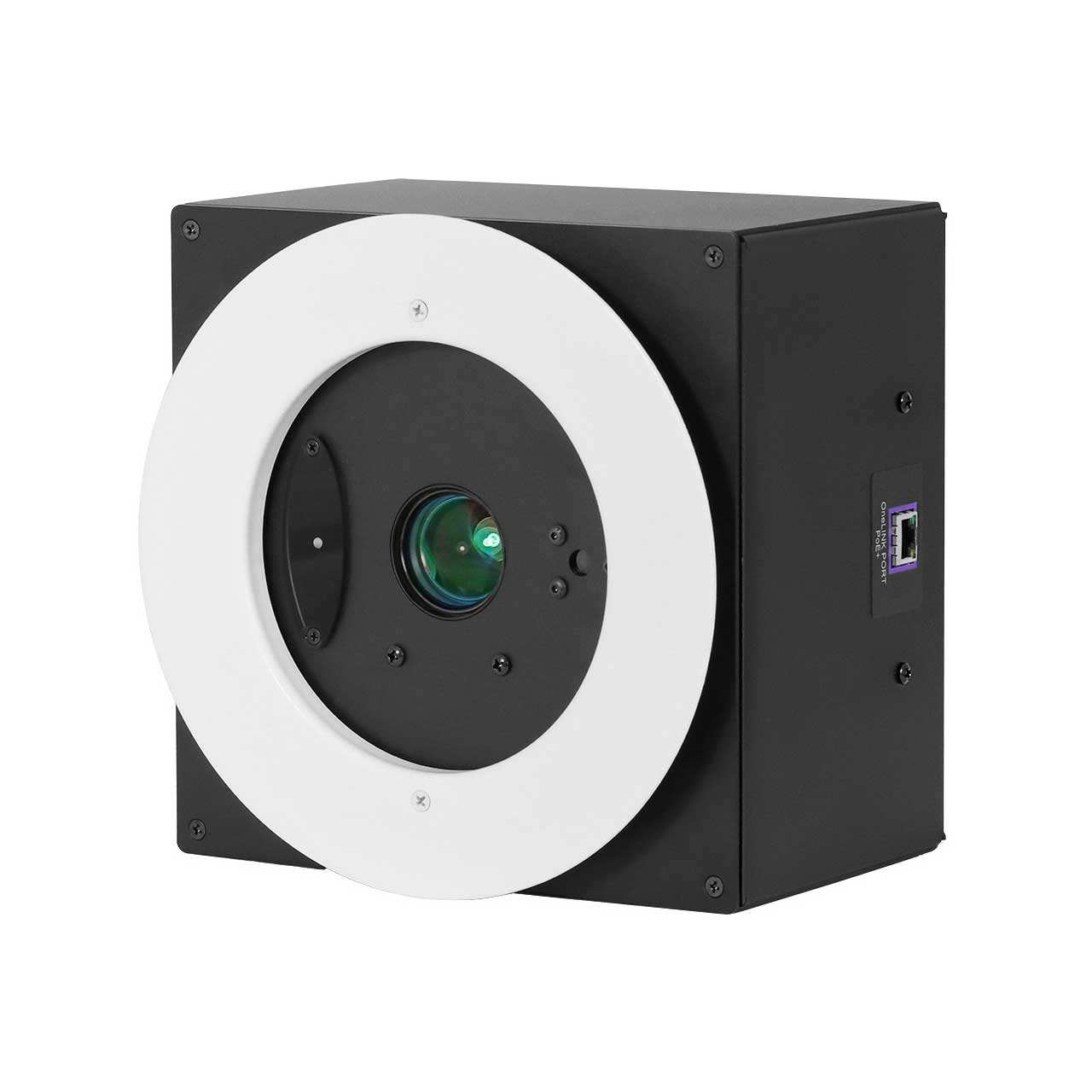

      • DocCAM 20 HDBT camera
      • White trim ring with 2 qty mounting screws
      • Tile Support Brace
      • Vaddio IR remote commander for DocCAM 20 HDBT

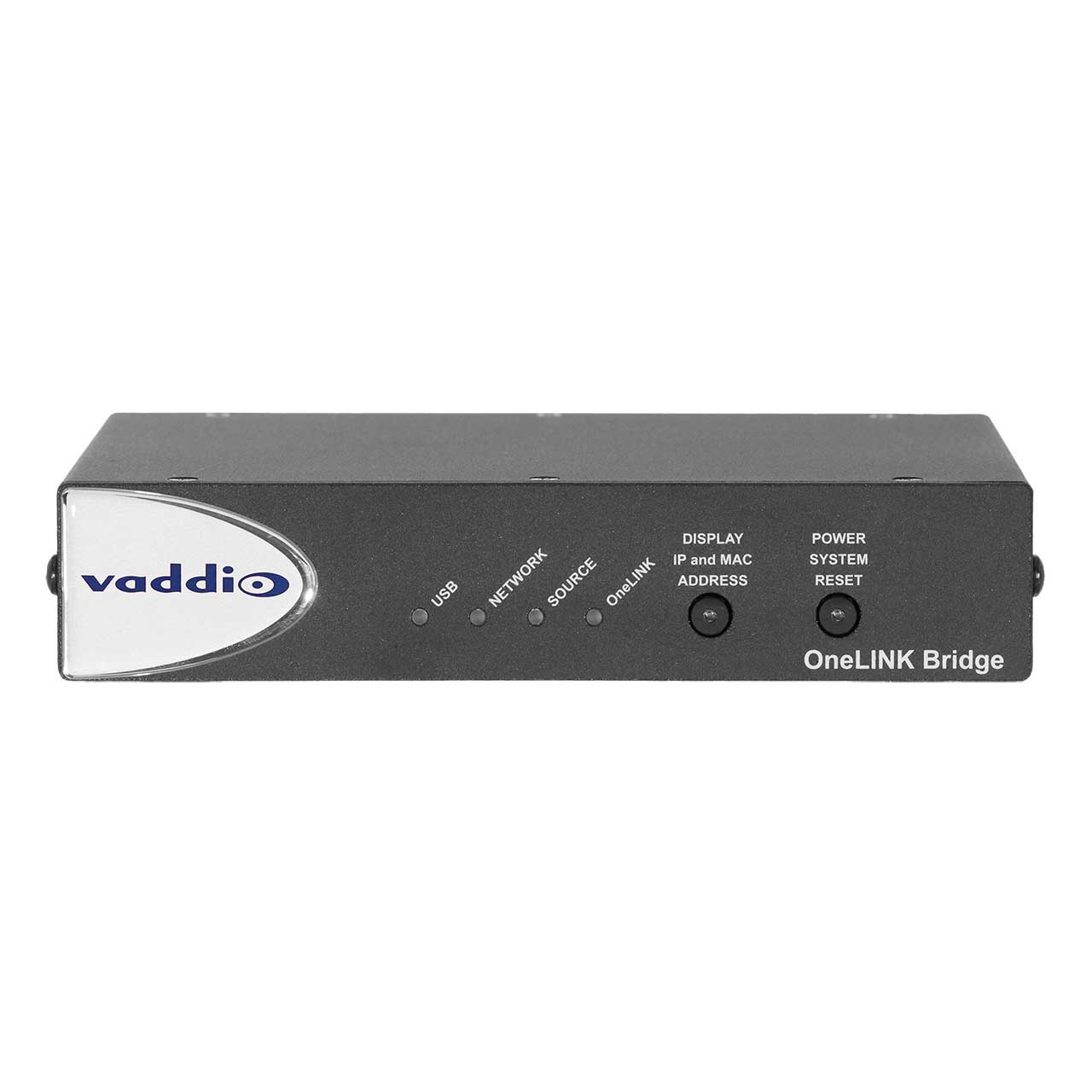

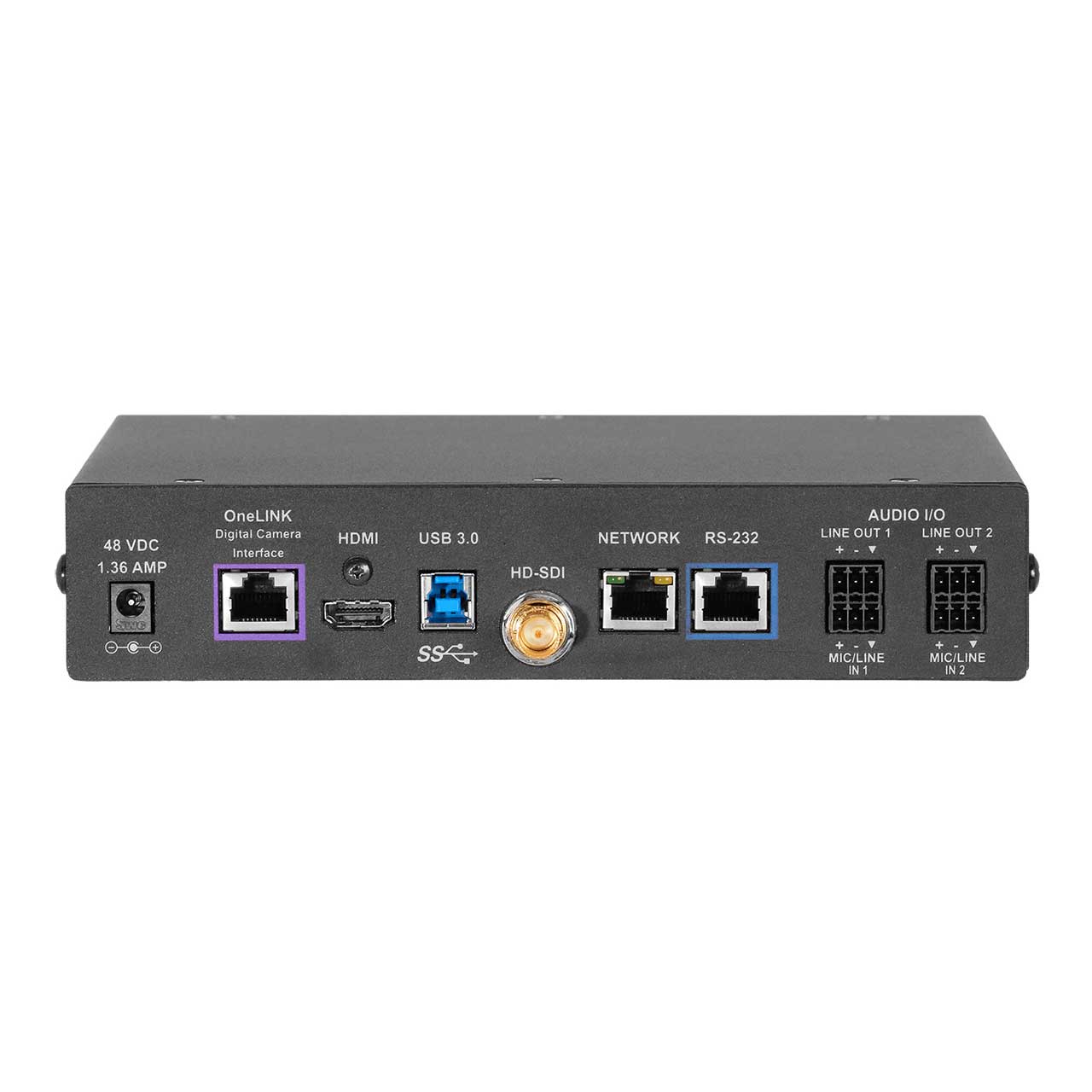

      • OneLINK Bridge Interface
      • 48V power supply with AC cord set(s)
      • Installation Guide
      • 4 qty 3-position phoenix-style connectors
      • 6' (1.8m) USB 3.0 cable, type A to B

    • GTIN:

      0840077504779
