M812 - Overview

Unlock the full potential of your visuals with the VigilLink M812, the ultimate solution for edge blending and projection mapping. Designed for seamless integration and exceptional performance, the M812 offers everything you need to transform your projection experiences.

Connectivity
- 4 Input Ports: 2x HDMI, 1x DP, 1x VGA
- 1 HDMI Output

Resolution Support
- Up to 7680x2160 @30Hz, 7680x1200 @60Hz, or 4096x2160 @60Hz with 4:4:4 full-color sampling
- Output: Up to WUXGA/2048x1080 @60Hz

High-End Performance
- Powered by a 10-bit processor
- Supports non-VESA standard input timings for superior results

Geometry Alignment & Edge Blending
- Perform edge blending and intricate geometry alignment with up to 120x68 control points
- Adjust visuals via IR controller, USB, WebPage, or Ethernet

Color & Light Control
- Separate R, G, B gamma correction for edge blending fine-tuning
- Individual color correction for each output
- 9 regions for black level uplift to compensate for light leakage

Real-Time Adjustments
- Instantly optimize geometry and color for flawless results

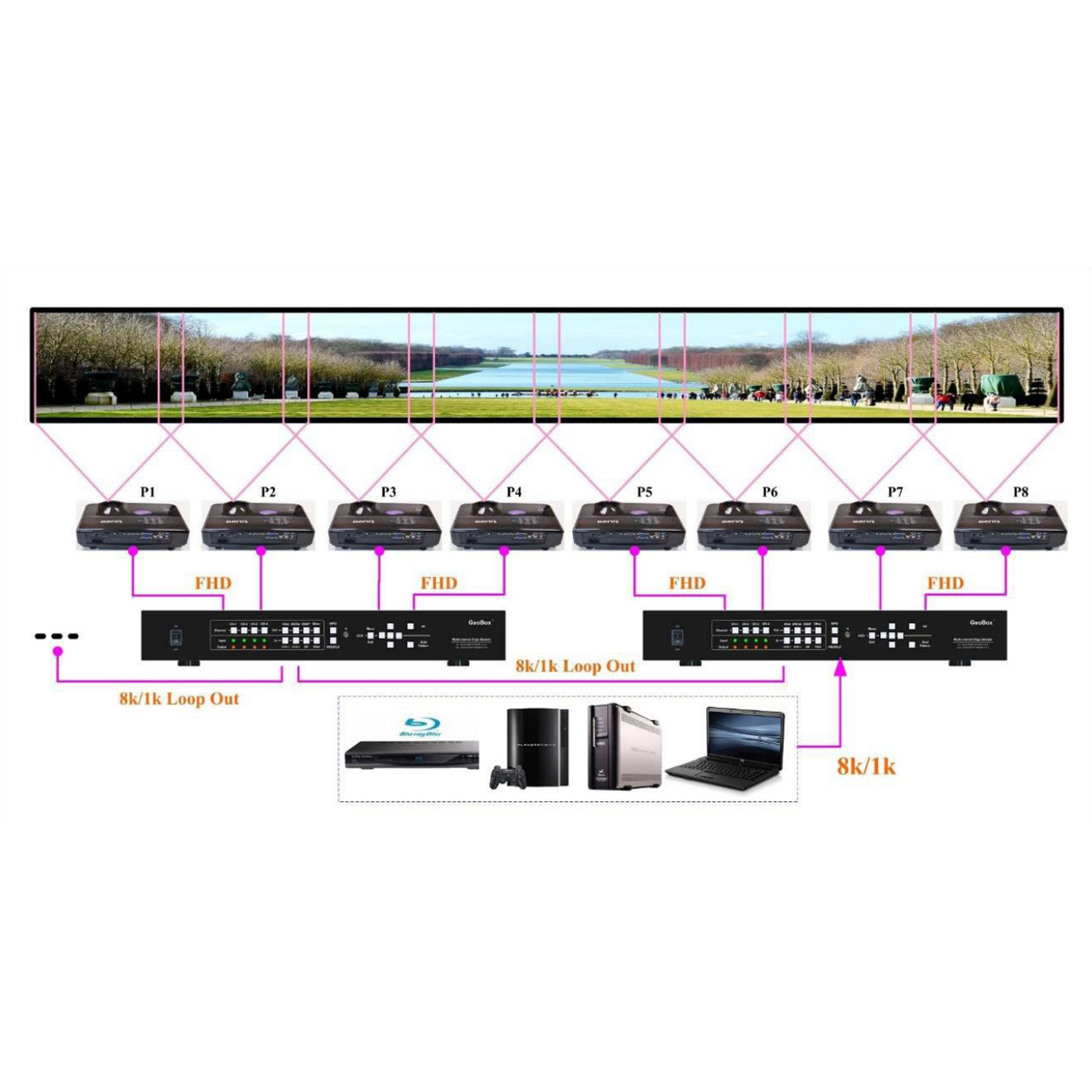

HDMI Loop-Out
- Daisy-chain up to 8K/2K @ 30Hz or 8K/1K @ 60Hz
- No need for additional HDMI splitters

Video Wall Function
- Crop and allocate the source image for each projector
- Set overlap pixels for smooth, seamless edge blending

24/7 Operation
Designed to run non-stop, providing reliability and consistent performance

Curved Edge Blending
Achieve complete curved edge blending with just remote controller and Ethernet

  • Features:

    • Dual Channel Version
    • Modulerized design of edge blending processor
    • Up to 120x68 warp control point
    • Embedded video wall function, no image splitter is required
    • 4K loop out port for daisy chain connection in cascade application
    • Easy configuration via IR remote, PC tool, or WebGUI
    • Linear Grid Line Adjustment for precise line movement
    • "W" Shape Corner Wall Adjustment for 90-degree corner alignment
    • 3D motion adaptive de-interlace
    • Frame lock function to get perfect synchronized outputs in all channels
    • Free-run mode provides a continuous signal to the output. No source searching is required in the projector when the input source change
    • Support xvYCC & 8/10/12-bit deep color processing
    • Support High Dynamic Range (HDR) input signal and convert it to SDR in the output
    • Individual color and white balance adjustment in each processing channel
    • Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment in each channel up to 4k/60 input
    • Selectable and programmable EDID in the range: H=1024-3840, V=720-2400
    • User can save up to 5 settings and can be recalled by remote controller, RS


  • Specifications:

    • Channels: 2
    • Processor: Dual Module Processor
    • Processing Module:

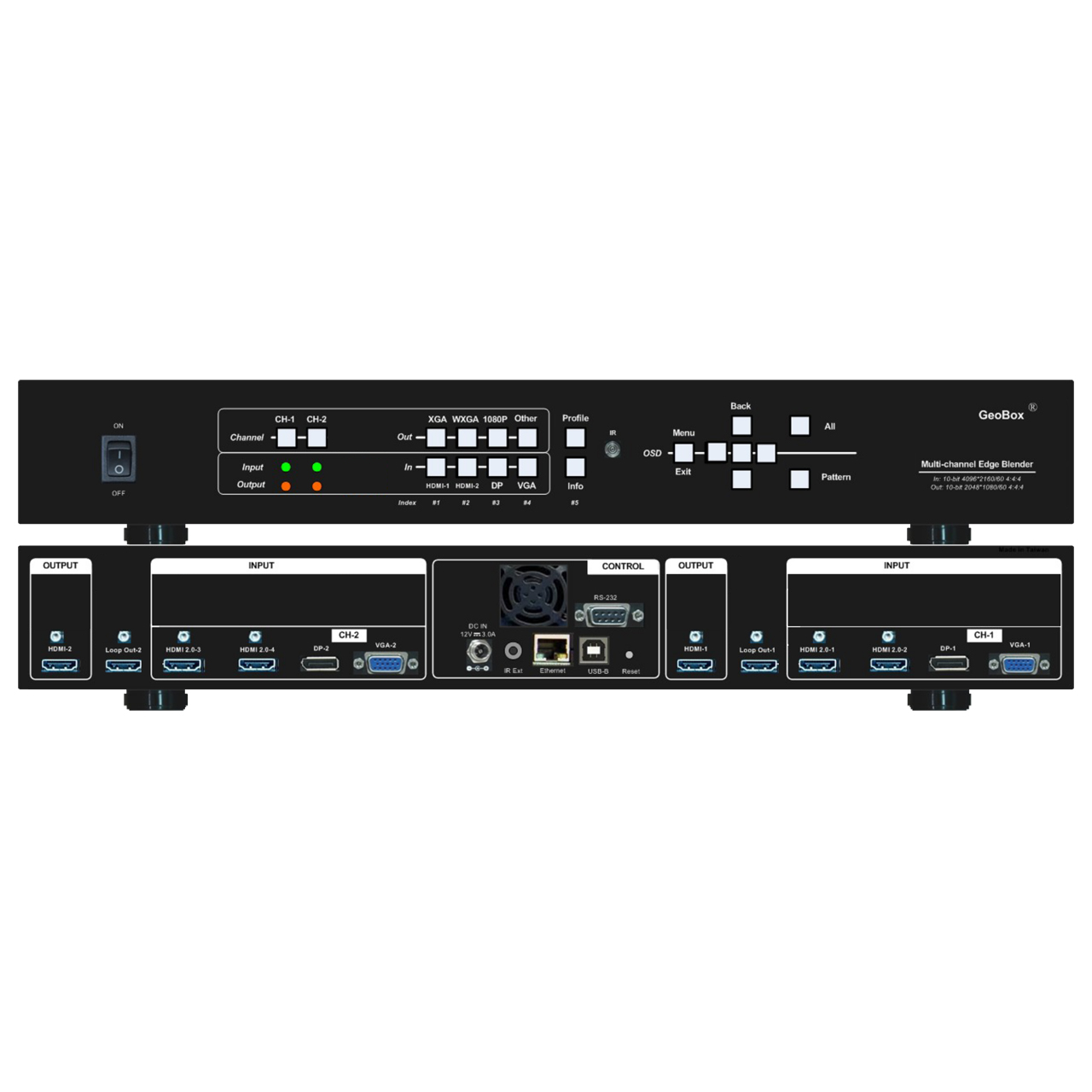

      - Input: 2x HDMI2.0b, 1x DP1.2a and 1x VGA
      - Output: 1x HDMI1.4
      - Loop output: 1x HDMI2.0b for daisy chain connection
    • HDCP Compliance:
      - Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3
      - Output: HDCP V1.4
    • Input Resolution:
      - 76802160 30Hz, 76801200 @60Hz, 4096*2160 60Hz
      - Supports progressive and interlaced RGB/YUV signal
      - 4:4:4 Chroma sampling
      - Up to 30 Color bits
      - Support non-VESA standard input timings
    • Outputs:
      - 15 selectable Outputs: HDMI1.4 up to WUXGA, 2048*1080/60, progressive 4:4:4 RGB
      - 2 frames system latency: 33ms (@V=60Hz)
    • ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)
    • Working Environment: 113°F (45°C), 10% - 90% RH.
    • Control:
      - Keypads, IR, RS232, USB, Ethernet
      - Save up to 5 system settings. System settings can be stored and backed up on a PC
    • Power Supply: DC 12V 3.3A
    • Power Consumption: 49 BTU/h (14.4W)
    • Dimensions (Body Only):
      - Without Protruding Parts: 17.3" x 7.5" x 2.3" (439.42mm x 190.5mm x 58.42mm)
      - With Protruding Parts: 17.3" x 7.9" x 2.7" (439.42mm x 200.66mm x 68.58mm)
    • Weight (Body only): 5.5lbs


  • Item Includes:

    • 1x VigilLink M812 2 Channel 4k in/2k Out Modular HDMI Edge Blending Processor with PIP/POP
    • 1x Power Cord
    • 1x Remote Control


  • Warranty:

    • 6 Year Limited Warranty
