UD102 - Overview

The VigilLink UD102 is a powerful video processor designed for advanced projection applications, offering seamless edge blending, geometry alignment, and multi-view display.

Inputs
4 ports, including HDMI 2.0 and DisplayPort

Resolution Support
- Up to 7680x2160 @30Hz and 7680x1200 @60Hz with 4:4:4 color sampling
- DisplayPort input supports 7680x4320 @30Hz

Advanced Processing
- 10-bit high-end processor for superior video clarity
- Motion-adaptive de-interlacing, low-angle smooth algorithm, and 3:2/2:2 pull-down
- Programmable EDID to optimize input timing

Geometry Alignment
Up to 17x9 control points via multiple control methods (front panel, IR remote, USB, WebGUI, Ethernet)

Precision Color Control
- RGB gamma correction for fine-tuned edge blending
- Independent color correction for each output
- 9-region black level uplift for projector light leakage compensation
- Real-Time Adjustments for instant optimization

HDMI Loop-Out
Daisy-chain multiple units for large-scale displays

Video Wall Function
- Crop and allocate source images for each projector
- Set overlap pixels for edge blending

Multi-Window Display
- PIP (Picture-in-Picture), POP (Side-by-Side), and 3/4 Split View Multiviewer
- PIP size adjustable from 320x180 to 1920x1200
- Display up to 16 input sources from a single UD104

Ideal for Projection & Simulation Applications
The UD100 is perfect for:
- Simulation & Training Systems
- Multi-Projector Edge Blending
- Large-Scale Display Walls
- Flexible Projection with Portrait Mode Support
- Laser Projector Integration Without Installation Angle Limitations

  • Features:

    • Dual Channel Version

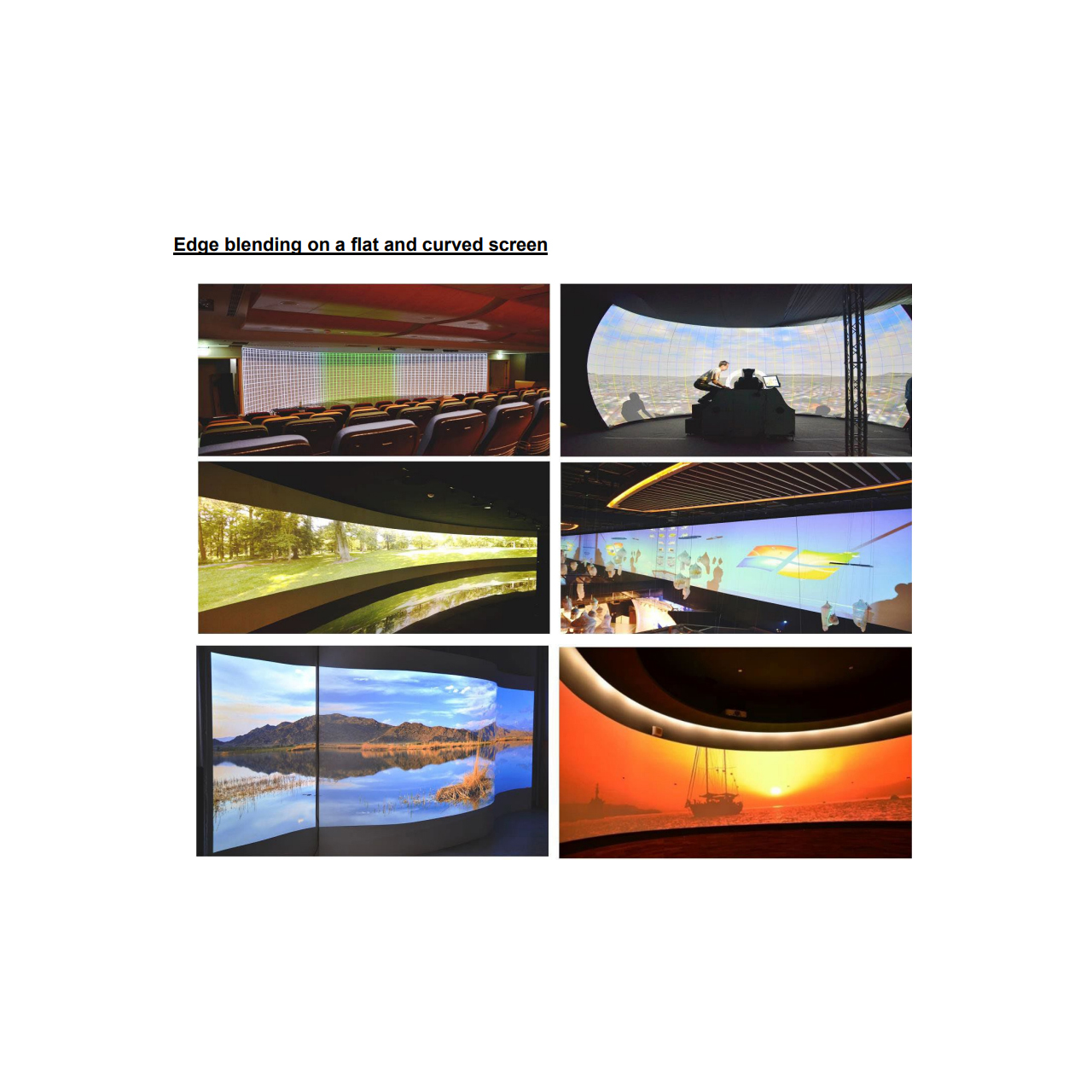

    • Control 4k UHD projector edge blending on flat, curved and 360 degree screen
    • Support max input of 4096x2160@60hz or 7680x2160@30hz and true 4K output
    • Modularized design to control from one to four projectors in one box
    • Support multiple unit cascade through HDMI loop through for controlling more than four projectors
    • Supports progressive and interlaced RGB/YUV signal, 4:4:4 chroma sampling, up to 30 color bits
    • Supports non-VESA standard input timings for easy connection with various signal
    • 16 selectable outputs: HDMI 2.0 up to 4096 x 2160 @60Hz, progressive 4:4:4 RGB
    • Embedded video wall function for image split, cropping, edge blending overlap pixel setting, and aspect ratio adjustment
    • Selectable geometry alignment grid size from 8-120 pixels in the H&V direction. The default is 32 x 32 pixels
    • Selectable grid pattern color with optional transparency to allow the user to apply an external test pattern
    • 90/180/270 rotation, flip, cropping, scaling & color adjustment up to 4k/2k 60Hz input signal


  • Specifications:

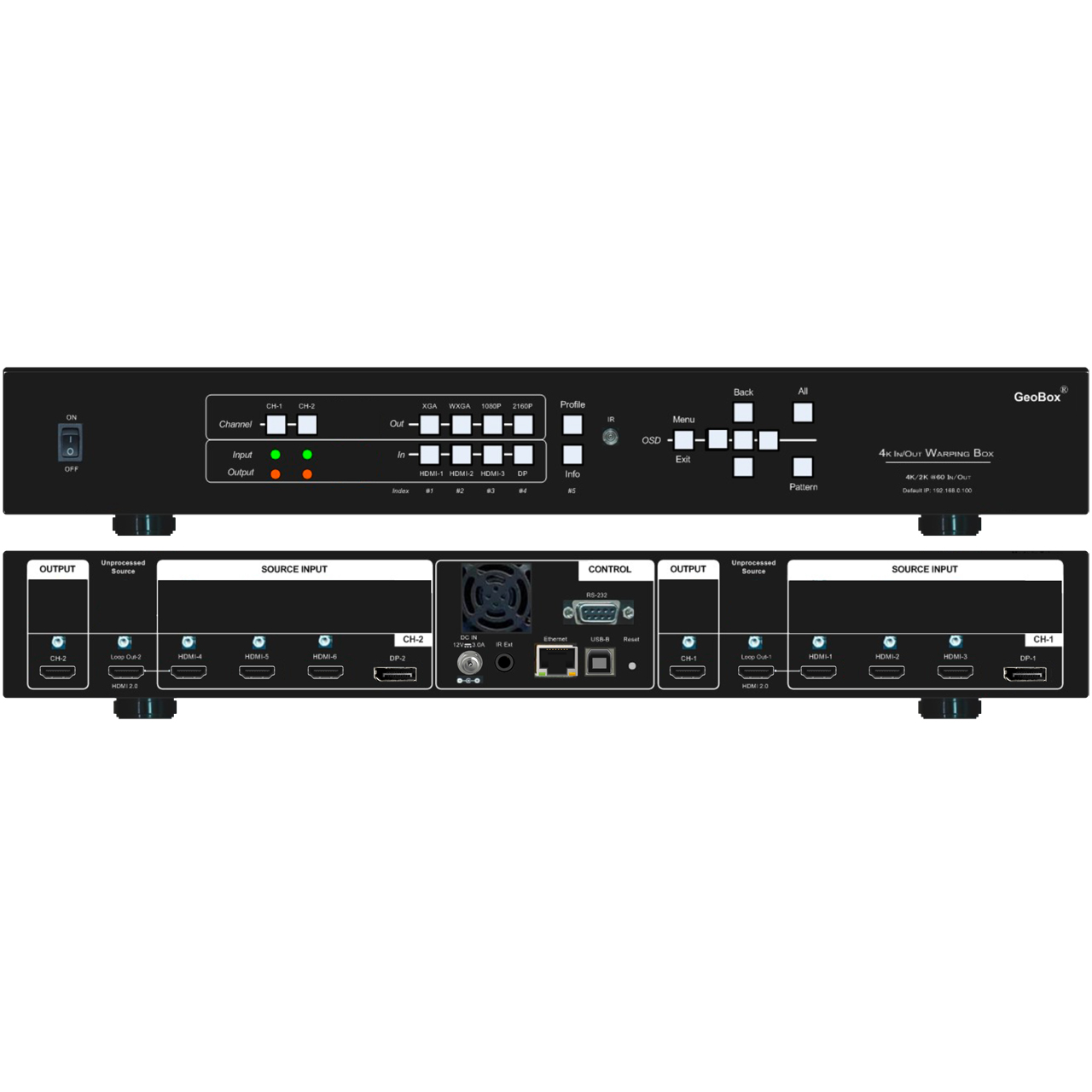

      Input
    • 3x HDMI 2.0b, 1x DP1.4
    • Input Resolution:
      - DisplayPort: 7680 x 4320 @30Hz
      - HDMI: 7680 x 2160 @30Hz, 7680 x 1200 @60Hz, 4096 x 2400 @50Hz, 4096 x 2160 @60Hz
    • HDCP Compliance:
      - Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3
      - Output: HDCP V2.0/V1.4

      Output
    • 1x HDMI 2.0
    • Loop Output: 1x HDMI 2.0b for audio, monitoring, and daisy chain connection
    • 16 Selectable Outputs: HDMI 2.0 up to 4096 x 2160 @ 60Hz, progressive 4:4:4 RGB
    • 2 Frames System Latency: 33ms (@V=60Hz)

      Physical
    • Working Environment: 104°F, 10% - 90% RH
    • Control: Keypads, IR, RS232, USB, Ethernet
    • System settings can be stored and backup in the PC
    • Power Supply: DC 12V 2A - 5A
    • Power Consumption: DC 12V/1.1A, 13.2W
    • Dimensions: 17.3" x 7.5" x 2.3" (439.42mm x 190.5mm x 58.42mm)
    • Weight: 5.5lbs (2.49kg)


  • Item Includes:

    • 1x VigilLink UD102 2 Channel 4K60/8K30 HDMI Edge Blending with Multiviewer with PIP/POP and Multiview
    • 1x Power Cord
    • 1x Remote Control


  • Warranty:

    • 6 Year Limited Warranty
