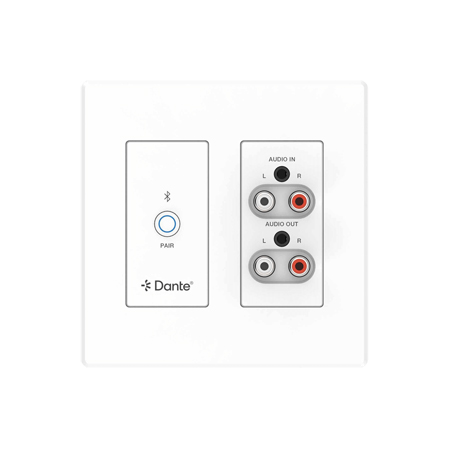

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$772.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLDT-WP22B2AUS - Overview

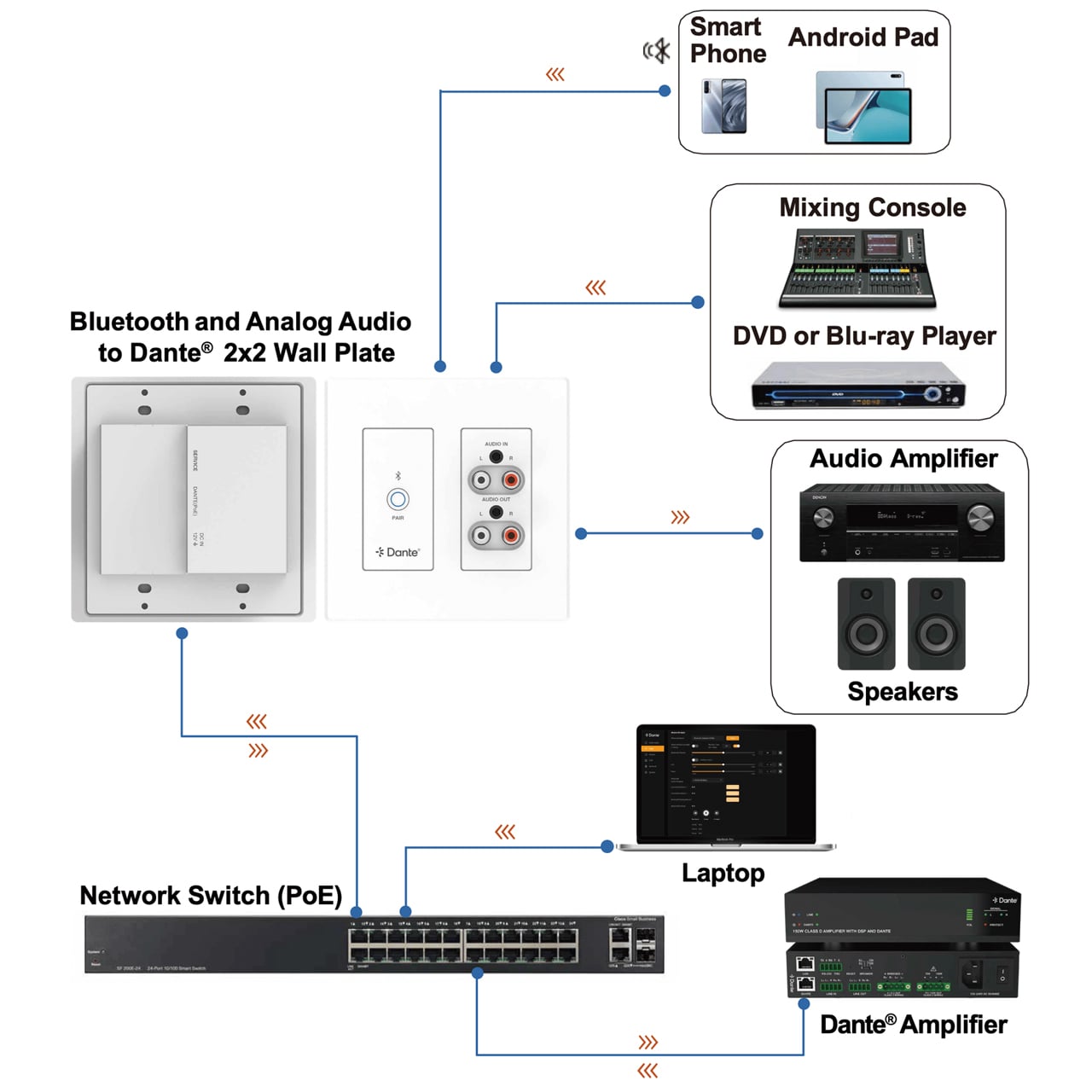

The VigilLink VLDT-WP22B2AUS is a professional multi-input Dante wall plate that bridges Bluetooth 5.1 wireless audio, RCA analog audio, and 3.5mm analog audio into a Dante IP network - while simultaneously converting Dante audio back to analog RCA and 3.5mm outputs for local monitoring or zone distribution. Designed as a standard US 2-Gang wall plate, this unit installs directly into any standard 2-gang electrical box, providing a complete bidirectional audio interface for conference rooms, classrooms, hospitality venues, and collaborative spaces that require both wireless BYOD connectivity and permanent wired analog source integration. The VLDT-WP22B2AUS supports Bluetooth 5.1 with multi-codec compatibility including SBC, AAC, aptX, aptX-LL, and aptX-HD, connects up to two Bluetooth devices simultaneously, and offers software-selectable input sensitivity and output gain for precise signal level management across all sources.

The wall plate features an integrated web server and GUI for Bluetooth pairing configuration, input source selection (Bluetooth, RCA, or 3.5mm), and gain control - accessible from any browser on the network. Input source switching is handled via front-panel button, web GUI, or TCP/IP API, and the Bluetooth device name is fully configurable for multi-room deployments where multiple units need to be individually identifiable. Analog input sensitivity is adjustable across six levels (+18dBu, +4dBu, 0dBu, 0dBV, -10dBV, -18dBV) and analog output gain across five levels (+20dBu, +4dBu, 0dBu, 0dBV, -10dBV) via control software - enabling the VLDT-WP22B2AUS to interface correctly with consumer, prosumer, and professional-level source equipment. A USB-C service port enables Bluetooth firmware upgrades without removing the unit from the wall.

A single RJ45 connection running standard IEEE 802.3af PoE (Class 0) powers the device and carries the Dante audio network simultaneously - a single Cat6 cable delivers power, audio input, and audio output in both directions. The VLDT-WP22B2AUS supports Dante audio at 44.1kHz, 48kHz, 88.2kHz, and 96kHz sampling rates at 16, 24, or 32-bit depth, with configurable Dante device latency from 2ms to 10ms via Dante Controller.

  • Features:

    • Bridges Bluetooth 5.1, RCA analog, and 3.5mm analog sources into Dante IP audio - all three input types selectable from a single 2-Gang wall plate
    • Bidirectional Dante operation: 2 channels in from Bluetooth or analog, 2 channels out to RCA and 3.5mm analog simultaneously for local monitoring
    • Bluetooth 5.1 with aptX-HD codec support - wireless audio up to 192kHz/24-bit from any compatible device
    • Multi-codec Bluetooth support: SBC, AAC, aptX, aptX-LL (low latency), and aptX-HD
    • Supports simultaneous connection of up to 2 Bluetooth devices - dual presenter connectivity with instant switching
    • Selectable analog input sensitivity: +18dBu/+4dBu/0dBu/0dBV/-10dBV/-18dBV via control software
    • Selectable analog output gain: +20dBu/+4dBu/0dBu/0dBV/-10dBV via control software
    • RCA output and 3.5mm output operate simultaneously for flexible local monitoring
    • Bluetooth volume control (0-100), previous/next track, and pause/play functions
    • Bluetooth album information display support
    • Configurable Bluetooth device name for simplified discovery in multi-room deployments
    • Integrated web server/GUI for browser-based Bluetooth configuration and input/output control
    • Front-panel PAIR button with blue LED indicator for Bluetooth pairing
    • TCP/IP API control for integration with third-party control systems
    • USB-C service port for Bluetooth firmware upgrades without device removal
    • IEEE 802.3af PoE (Class 0) powered - single Cat6 cable for power and bidirectional network audio
    • 12V DC local power input for non-PoE installations

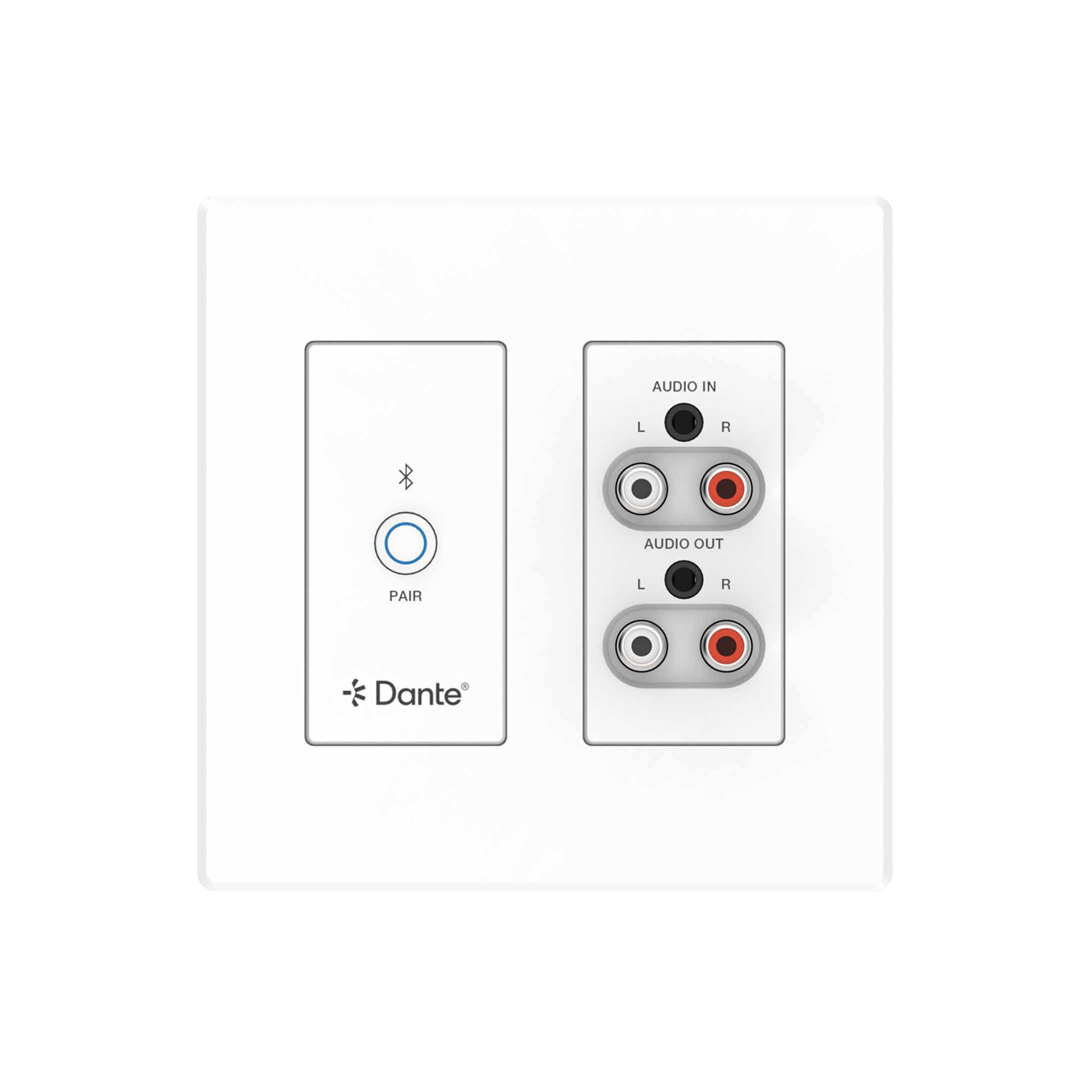

    • Standard US 2-Gang wall plate form factor - installs in any 2-gang electrical box
    • White panel with silver chassis - compatible with standard North


  • Specifications:

      Technical
    • Input: Unbalanced analog (RCA or 3.5mm audio jack)/Bluetooth audio/Dante digital audio
    • Output: Unbalanced analog (RCA and 3.5mm audio jack simultaneously)/Dante digital audio
    • Network Bandwidth: 100Mbps/328ft (100m)
    • Control Method: Dante Controller/Web GUI/TCP/IP API/Front Panel
    • Audio Latency: Configurable Dante device latency: 2, 3, 4, 5, or 10ms (via Dante Controller)
    • Audio Format (Bluetooth IN):
      - Digital audio
      - Bluetooth V5.1
      - SBC/AAC/APTX/APTX-LL/APTX-HD
      - 2CH
      - 44.1kHz - 48kHz
      - 16/24-bit
    • Audio Format (Line IN):
      - Unbalanced analog
      - 2CH
      - Max input level 18dBu
    • Audio Format (Dante IN/OUT):
      - Digital audio
      - 4CH
      - 44.1kHz - 96kHz
      - 16/24-bit
    • Audio Format (Line OUT):
      - Unbalanced analog
      - 2CH
      - Max output level 20dBu
    • Analog Input Sensitivity: Selectable: +18dBu/+4dBu/0dBu/0dBV/-10dBV/-18dBV (via control software)
    • Analog Output Gain: Selectable: +20dBu/+4dBu/0dBu/0dBV/-10dBV (via control software)
    • Frequency Response: 20Hz - 20kHz
    • Audio S/N Ratio: ≥100dB
    • Audio THD+N: ≤0.1%
    • AES67: AES67 RTP audio transport supported
    • Transmission Distance: 328ft (100m) - CAT6/6A/7
    • ESD Protection:
      - IEC 61000-4-2: ±8kV (Air-gap)
      - ±4kV (Contact)

      Connections
    • Bluetooth Input: 1x Bluetooth (Internal antenna, V5.1, SBC/AAC/APTX/APTX-LL/APTX-HD, 44.1K-48kHz, 16/24-bit)
    • Analog Input (3.5mm): 1x 3.5mm audio jack (LINE, Unbalanced 2CH, Max input 18dBu)
    • Analog Input (RCA): 1x RCA port (LINE, Unbalanced 2CH, Max input 18dBu)
    • Dante Network: 1x RJ45 (PoE IEEE 802.3af, Digital audio in/out, 4CH, 44.1K-96kHz, 16/24-bit)
    • Analog Output (3.5mm): 1x 3.5mm audio jack (LINE, Unbalanced 2CH, Max output 20dBu)
    • Analog Output (RCA): 1x RCA port (LINE, Unbalanced 2CH, Max output 20dBu)

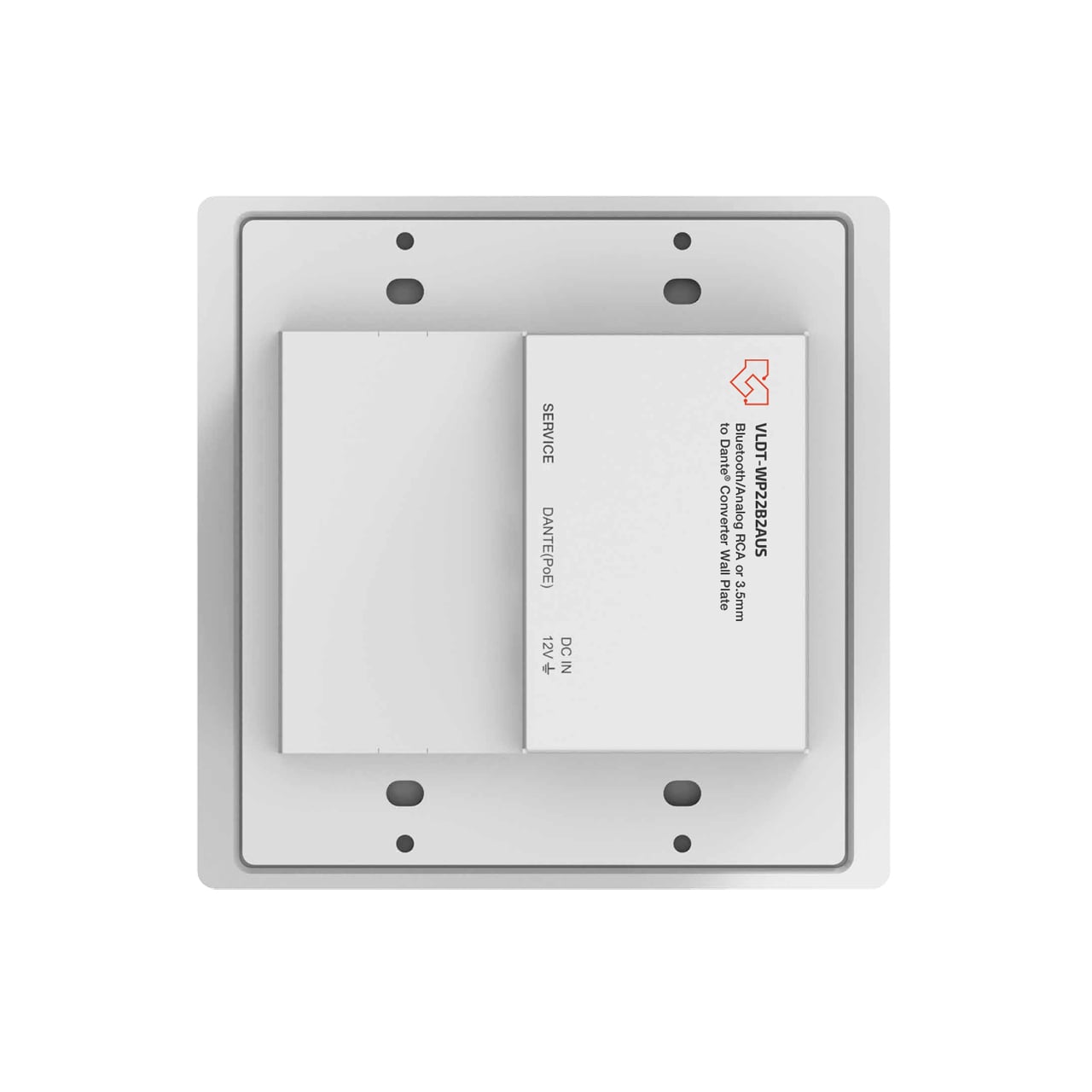

    • Service Port: 1x USB-C (12-pin female) - Bluetooth firmware upgrade
    • Control Button: 1x PAIR button with blue LED
    • DC Power Input: 1x DC 12V (2-pin 3.5mm Phoenix connector)

      Mechanical and Power
    • Housing: Plastic panel + Iron chassis
    • Color: White panel + Silver chassis
    • Dimensions (LxWxH): 1.8" x 3.9" x 4.2" (45mm x 100mm x 107mm)
    • Weight: 0.8lbs (366g)
    • Power Supply: PoE IEEE 802.3af Class 0 ú DC 12V/1A (2-pin 3.5mm Phoenix)
    • Power Consumption: 3W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Operating Humidity: 20% - 80% (non-condensing)
    • Storage Humidity: 10% - 90% (non-condensing)


  • Item Includes:

    • 1x VLDT-WP22B2AUS Bluetooth & Analog to Dante Wall Plate
    • 1x 2-pin 3.5mm Phoenix Connector (male)
    • 1x Decorative Panel
    • 4x American Standard Slotted Semi-countersunk Head Screws (6#-32)
    • 4x Self-tapping Screws (#4 x 12)
    • 4x Rubber Gaskets
    • 1x User Manual


  • Warranty:

    • 6 Year Limited Warranty
