VigilLink VLHA-DWM HDMI 2.0 18Gbps 4K2K 50/60Hz Audio Downmixer - HDMI 2.0b / HDCP 2.2 and DVI Compliant

Name: VigilLink VLHA-DWM HDMI 2.0 18Gbps 4K2K 50/60Hz Audio Downmixer - HDMI 2.0b / HDCP 2.2 and DVI Compliant
Brand: VigilLink
SKU: VGL-VLHA-DWM
Price: 196.00 USD
Availability: InStock

ITEM #: VGL-VLHA-DWM MFG #: VLHA-DWM

VigilLink

Our Price:

$196.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLHA-DWM - Overview

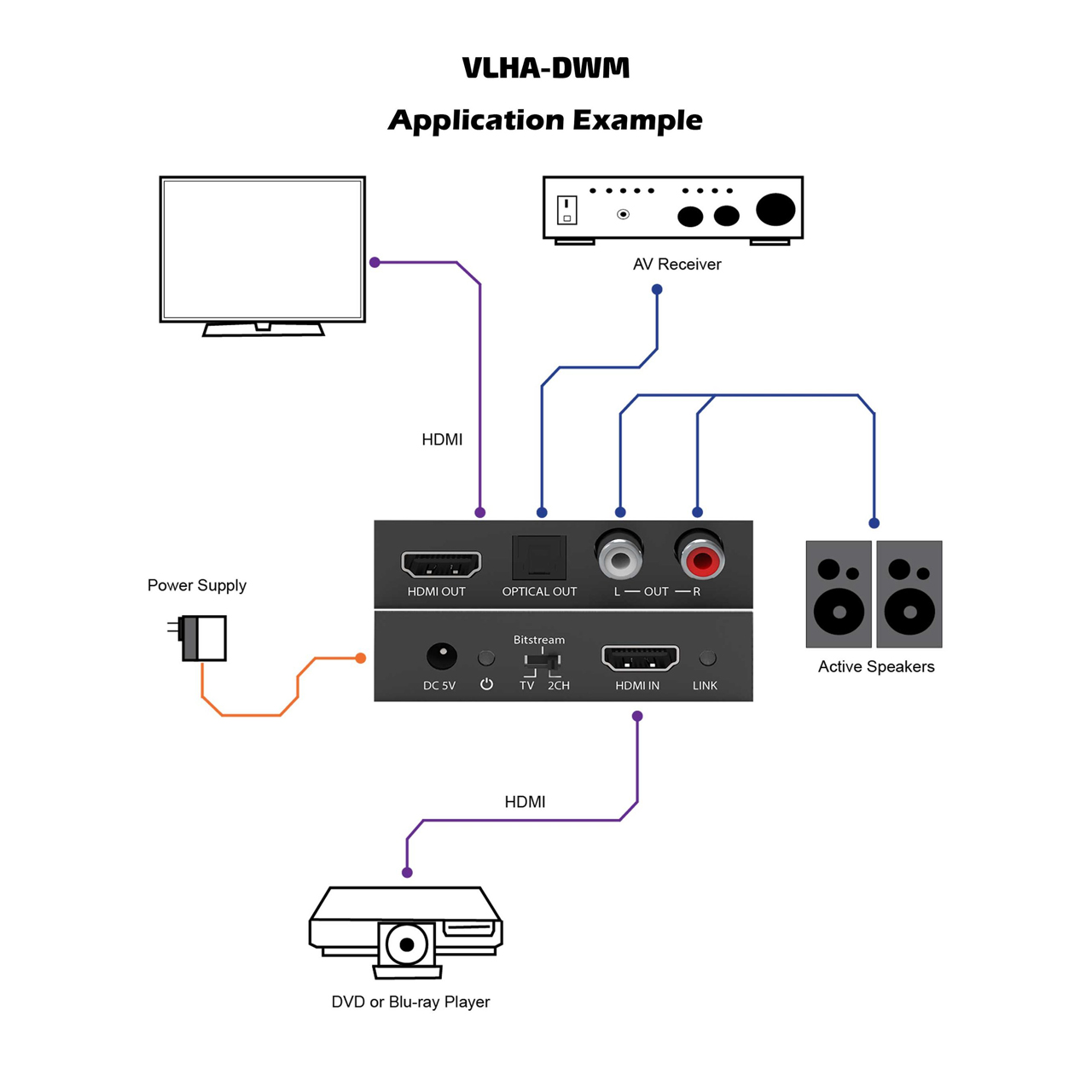

The VigilLink VLHA-DWM HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI-compliant source to digital optical or analog stereo L/R audio outputs. For maximum flexibility, this audio extractor also supports bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio pass-through. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass-through and HDMI high-resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio, with audio sampling rates up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

Features:
- HDMI 2.0b (18Gbps), HDCP 2.2, and DVI compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- Extract HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- HDMI Pass-through audio input to HDMI and optical audio output
- Supports bitstream audio down-mix to L/R analog output
- Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
- Supports HDMI High Bit Rate (HBR) audio pass-through
- Audio sample rates up to 96kHz
- 10bits HDR (High Dynamic Range) pass-through
- Supports CEC pass-through
Specifications:
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2 and HDCP 1.4
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
- Color Depth: 10-bit, 12-bit
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Optical Audio Formats: LPCM 2CH, Dolby Digital 2/5.1 CH, DTS 2/5.1CH
- L/R Audio Formats: Analog Stereo 2CH
- ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

  Connection

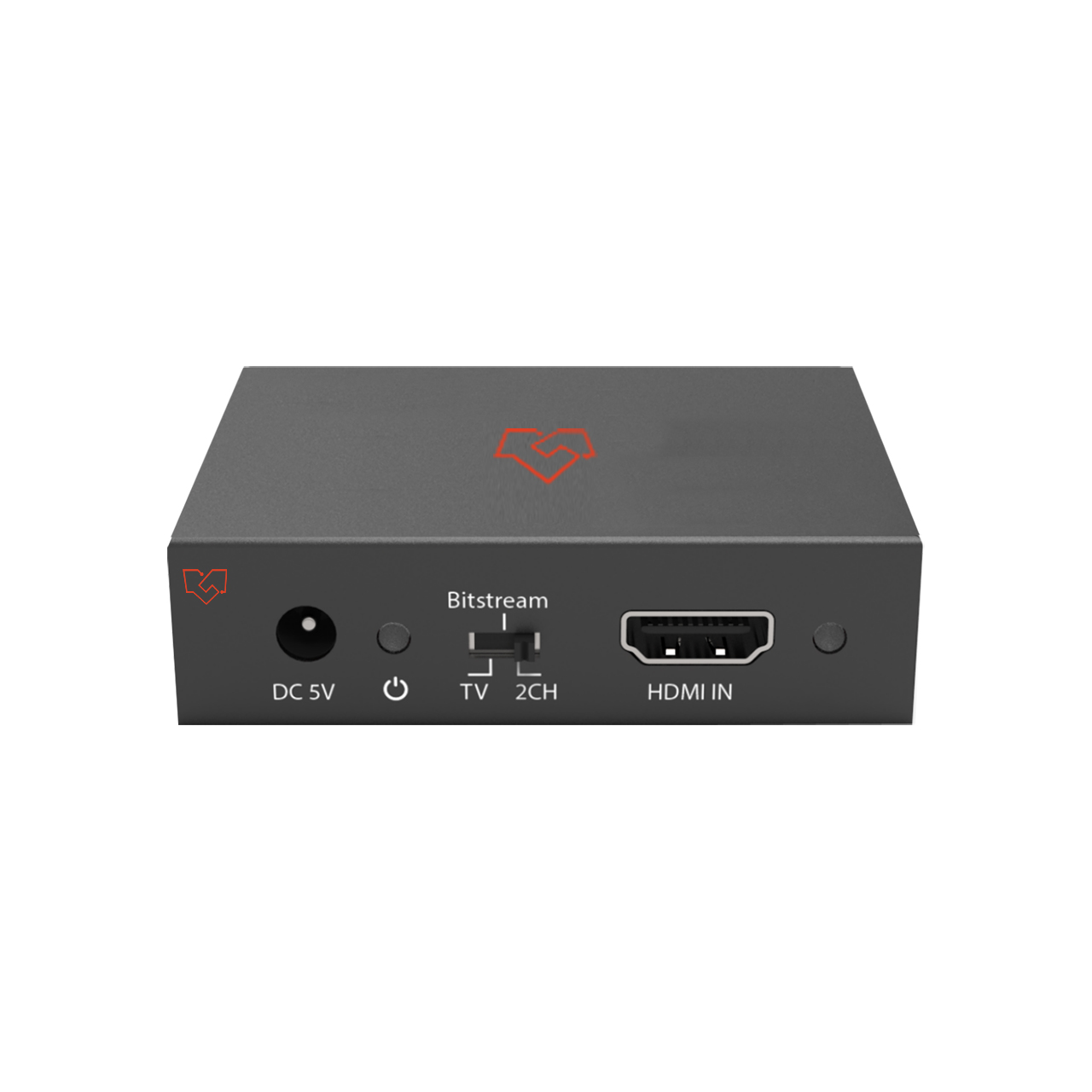

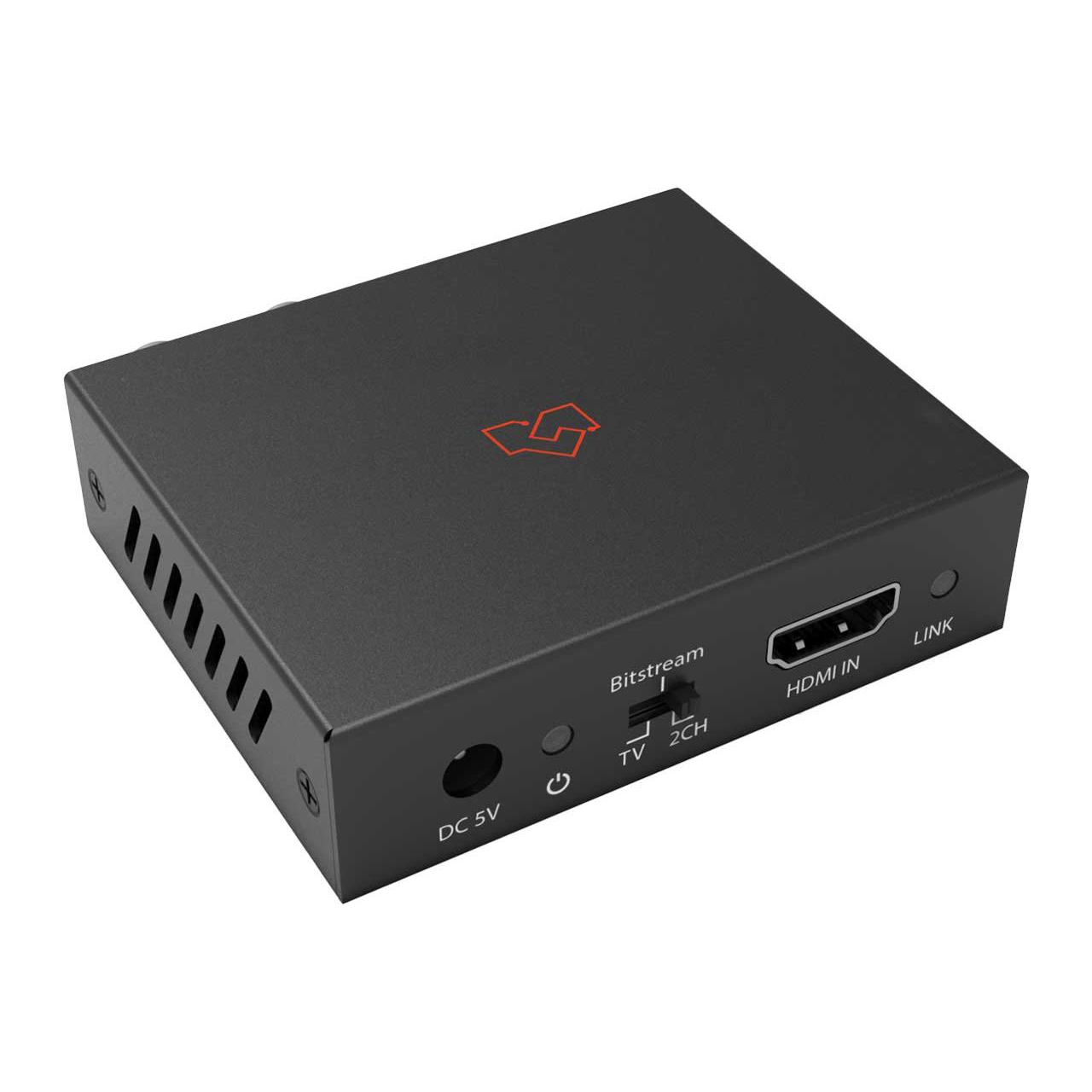

- Inputs: 1x HDMI Type A [19-pin female]

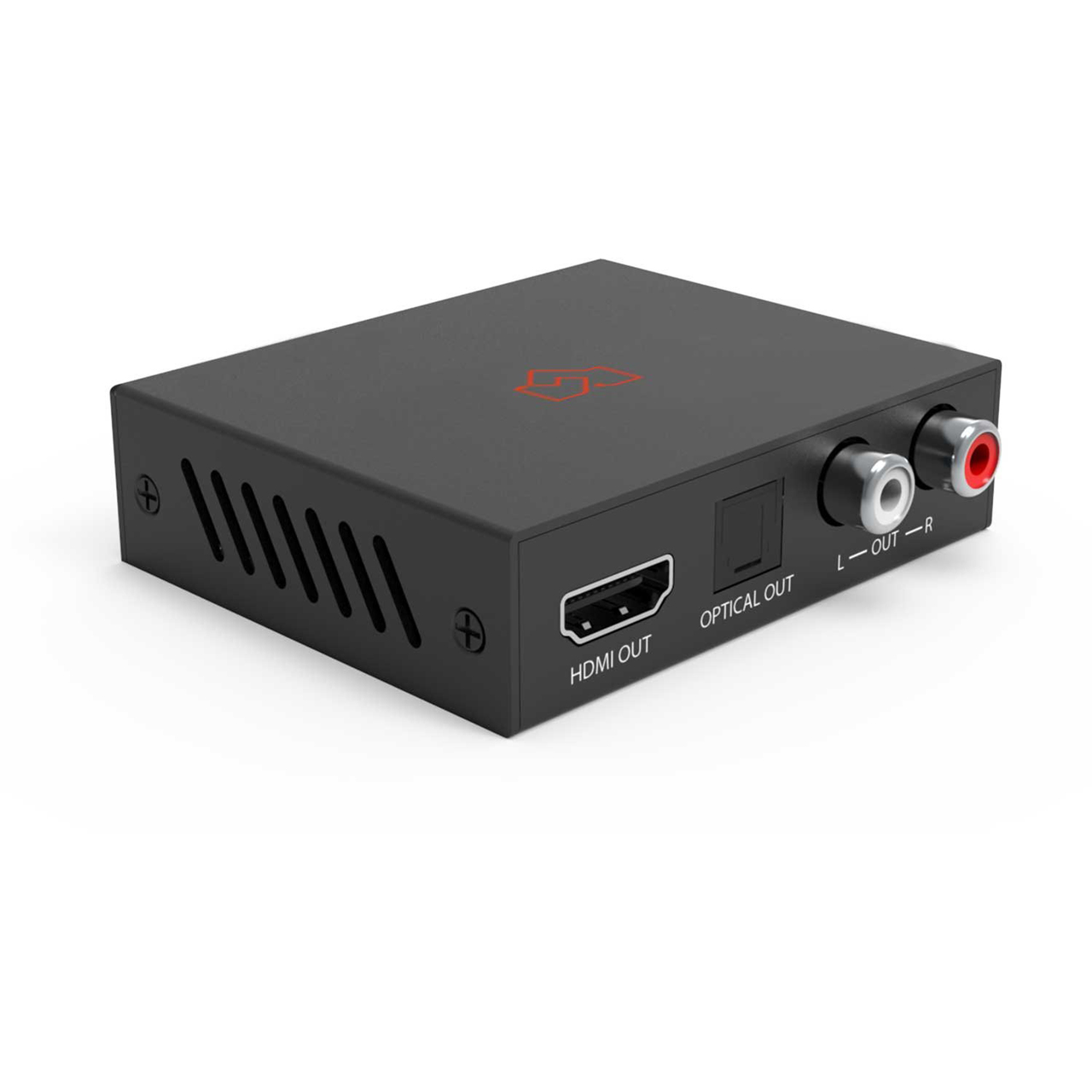

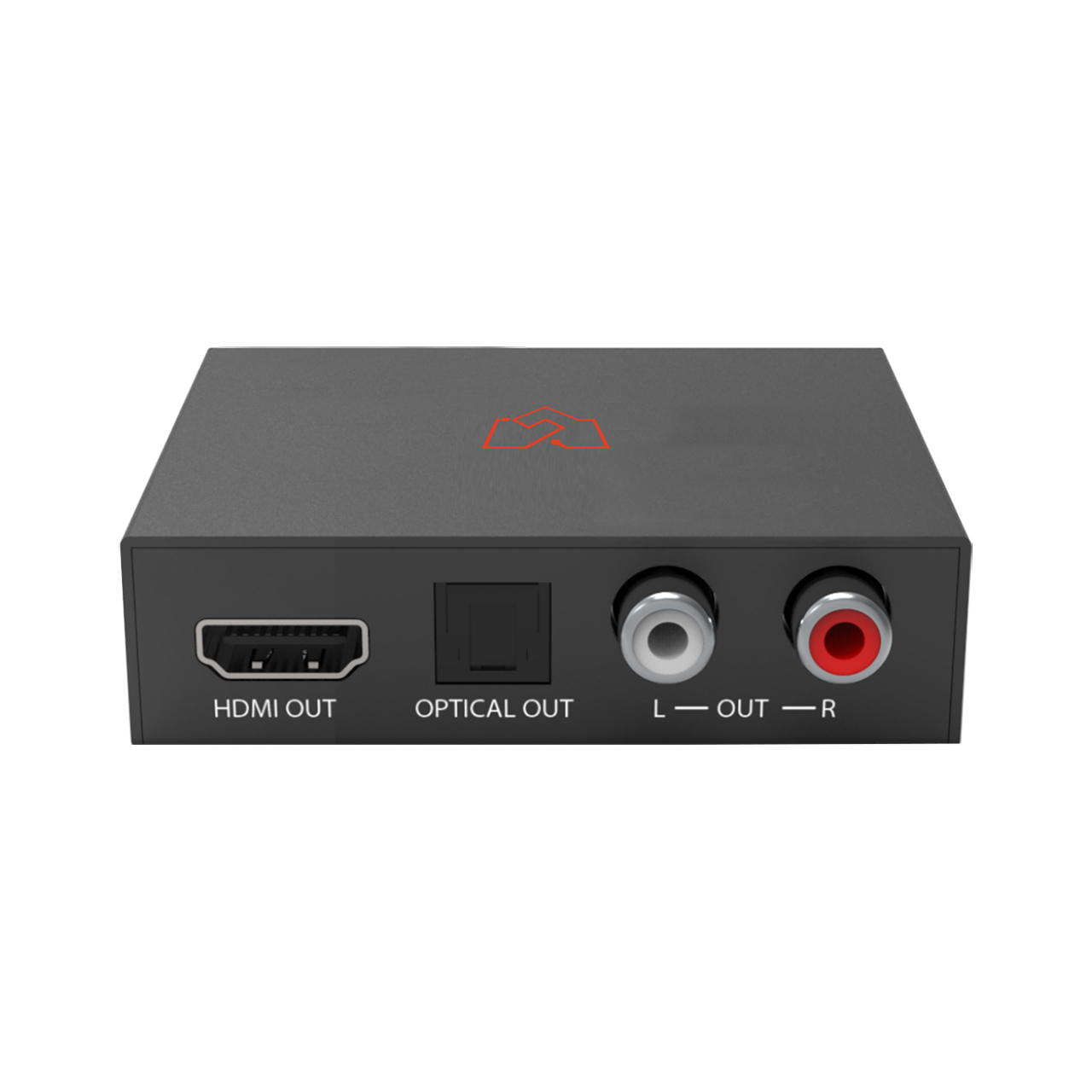

- Outputs:
  - 1x HDMI Type A [19-pin female]
  - 1x L/R Audio Out [RCA]
  - 1x Optical Out [S/PDIF]

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 2.90" x 2.39" x 0.79" / 73.5mm x 60.7mm x 20mm
- Weight: 0.30 lbs / 135g
- Power Supply:
  - Input: AC100 - 240V 50/60Hz
  - Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
- Power Consumption: 1.25W (Max)
- Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
- Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
- Relative Humidity: 20 - 90% RH (No condensation)
Item Includes:
- 1x HDMI 18Gbps Audio Extractor
- 1x 5V/1A Power Adapter
- 1x User Manual
Warranty:
- 6 Years
