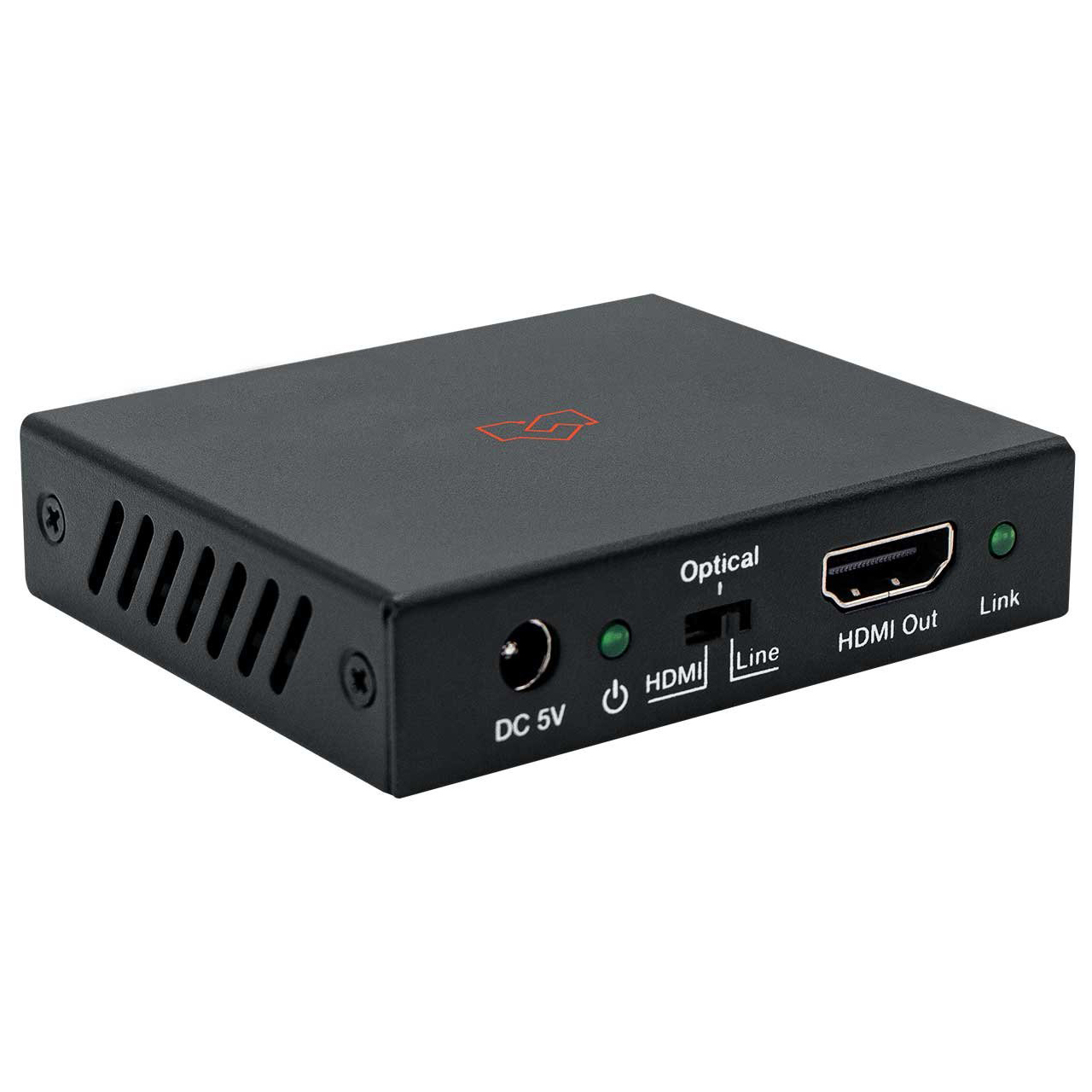

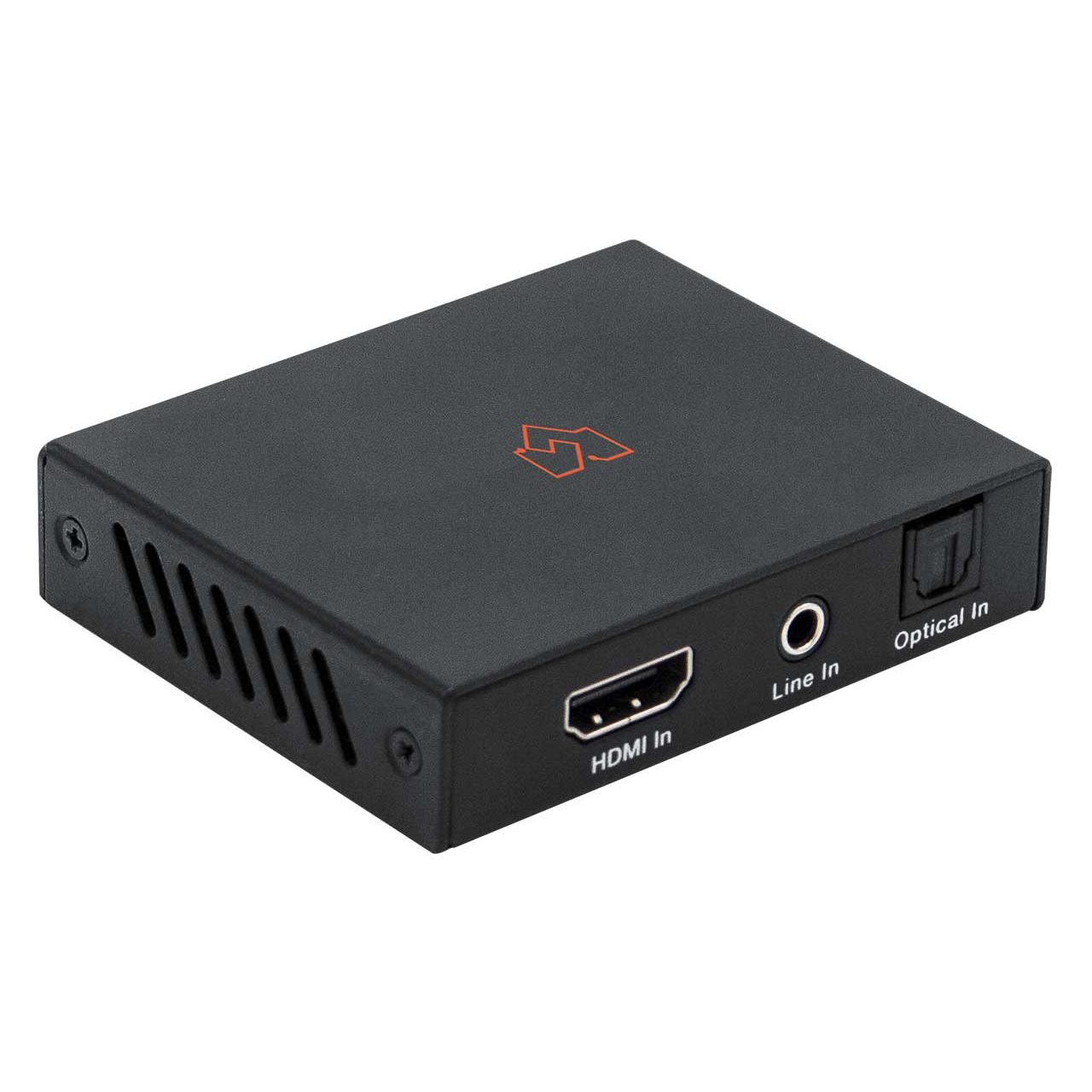

VigilLink VLHA-EMR HDMI 2.0 18Gbps 4K/2K 50/60Hz Audio Embedder - HDMI 2.0b / HDCP 2.2 and DVI 1.0 Compliant

VLHA-EMR - Overview

• Features:

  • Embeds multi-channel optical (SPDIF) or Line analog audio to HDMI output
  • Optical audio supports LPCM 2CH, Dolby Digital 2/ 5.1CH, DTS 2/5.1CH
  • Analog audio supports PCM2.0
  • HDMI 2.0b (18Gbps), HDCP 2.2, and DVI 1.0 compliant
  • Video resolutions up to 4K2K@50/60Hz (YUV444)
  • Supports HDMI High Bit Rate (HBR) audio pass-through
  • 10bits HDR (High Dynamic Range) pass-through
  • Supports CEC bypass


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution: up to 4K2K@50/60Hz (YUV4:4:4),4K2K@ 30Hz,1080P@120Hz and 1080P3D@60Hz
  • Color Depth: 10-bit, 12-bit
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:0
  • HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Optical Audio Formats: LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
  • L/R Audio Formats: Analog Stereo 2CH
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

    Connections

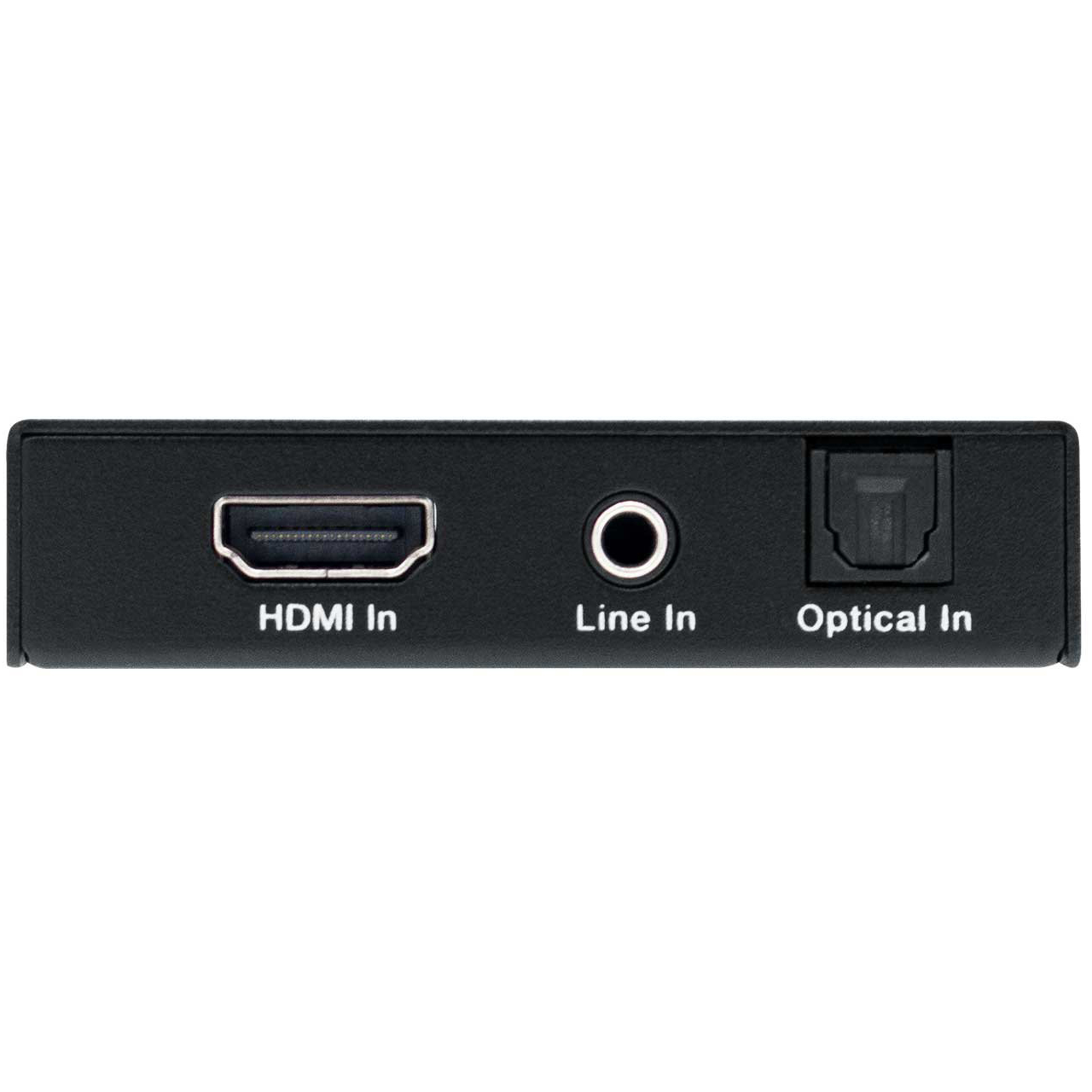

  • Inputs:
    - 1x HDMI Type A [19-pin female]
    - 1x Line In [3.5mm Stereo Mini-jack]
    - 1x Optical In [S/PDIF]

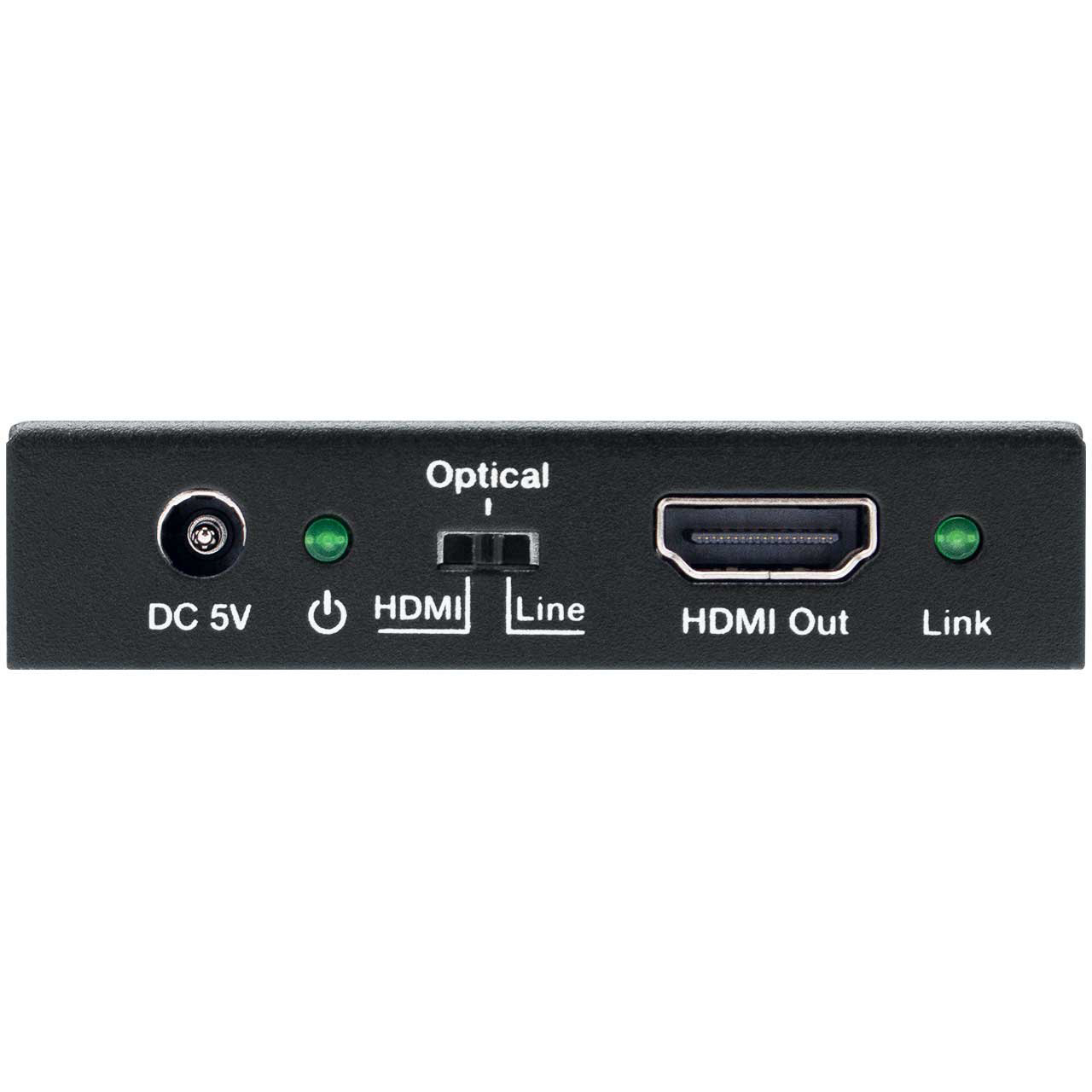

  • Outputs: 1x HDMI Type A [19-pin female]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 2.90" x 2.40" x 0.67" / 73.5mm x 60.7mm x 17mm
  • Weight: 0.27 lbs / 122g
  • Power Supply:
    - Input: AC100 - 240V 50/60Hz
    - Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 1.25W
  • Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
  • Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
  • Relative Humidity: 20 - 90% RH (No condensation)


• Item Includes:

  • 1x HDMI 18Gbps Audio Embedder
  • 1x 5V/1A Power Adapter
  • 1x User Manual


• Warranty:

  • 6 Years
