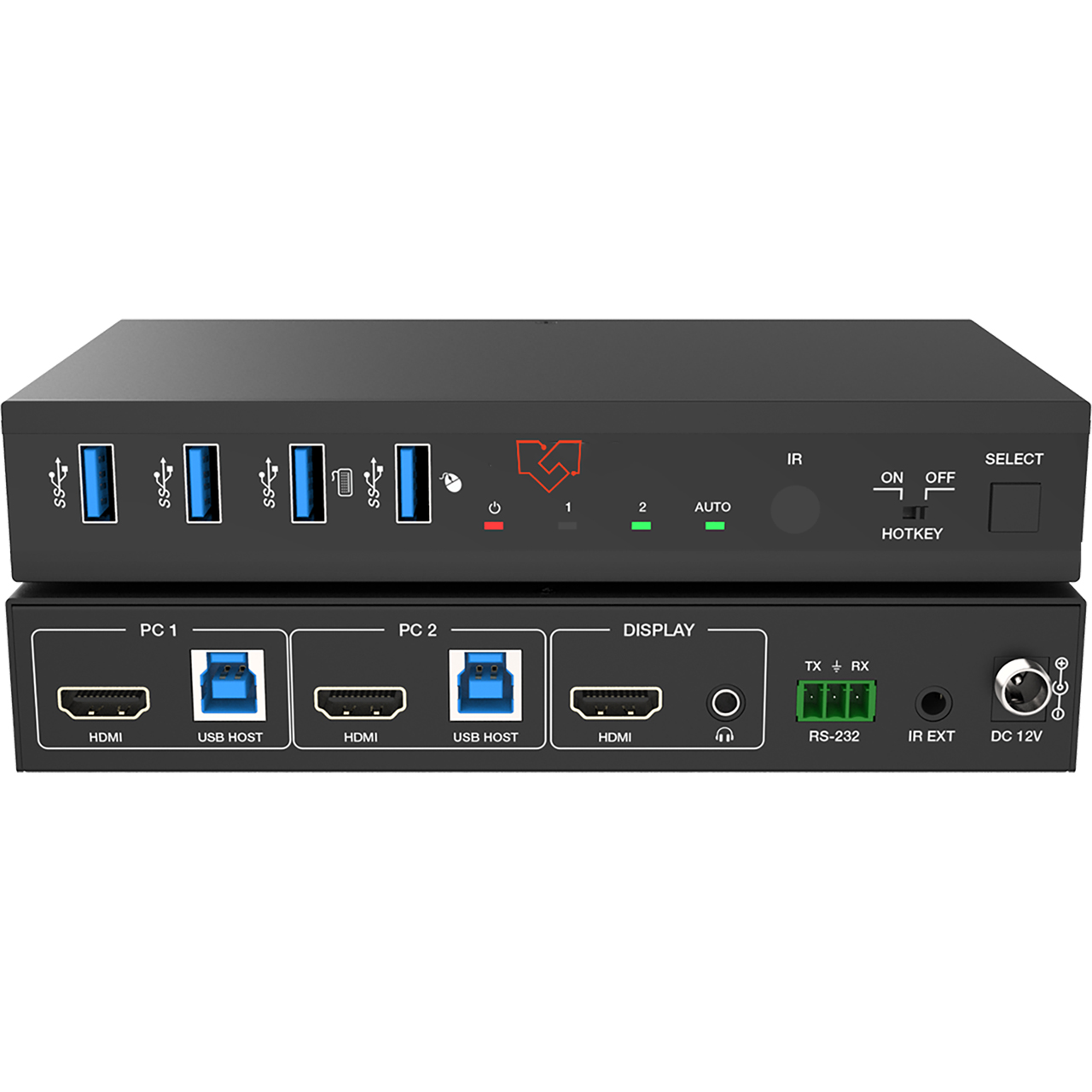

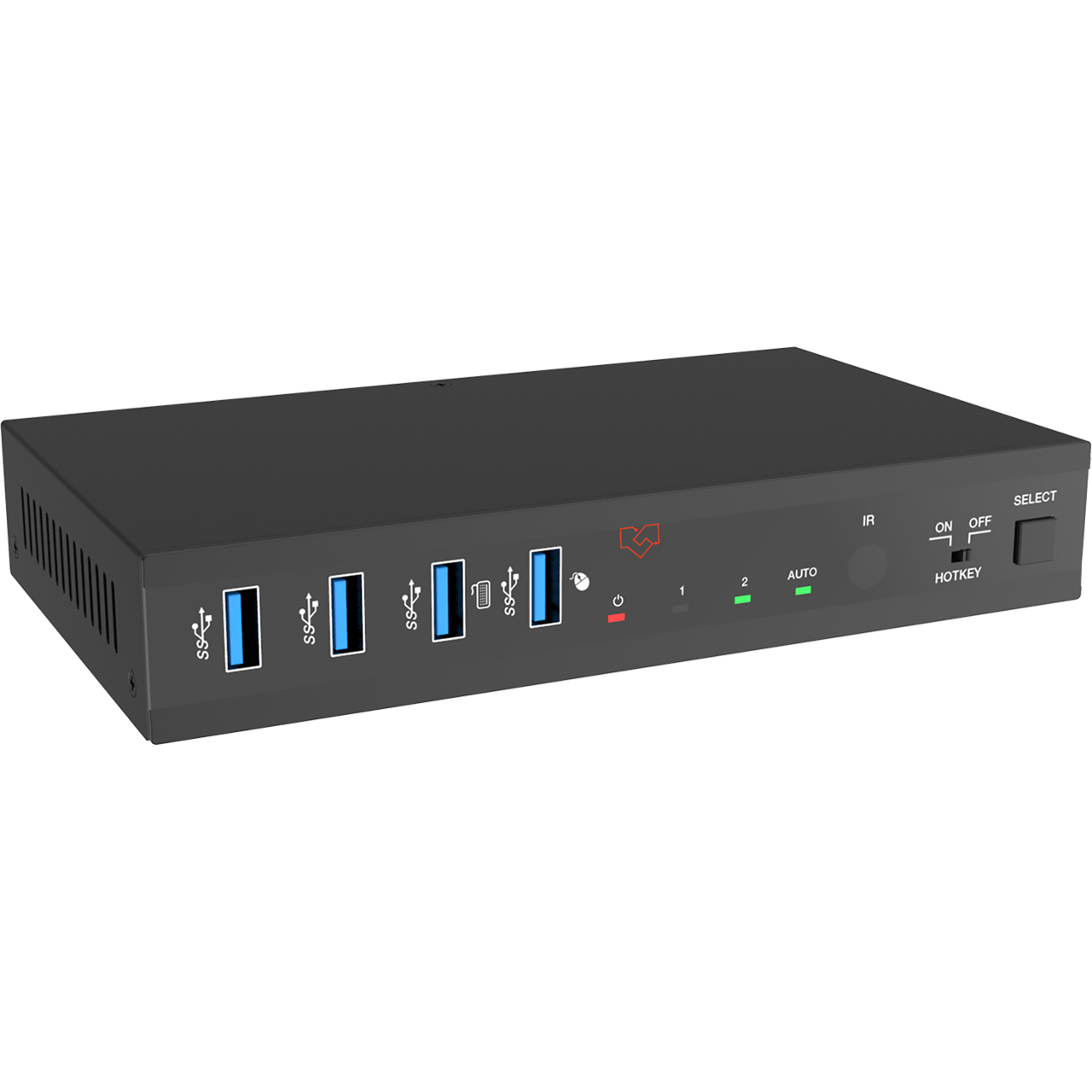

VigilLink VLKV-H2021 2x1 4K60 KVM Switcher with Hotkey Switching Functionality - HDCP 2.3 Compliant

ITEM #: VGL-VLKV-H2021 MFG #: VLKV-H2021

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$268.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLKV-H2021 - Overview

Introducing the VigilLink VLKV-H2021 2x1 KVM Switcher with hotkey switching functionality for seamless control. This versatile switcher supports resolutions up to 4K@60Hz 4:4:4 8bit and transmits USB 3.0 signals at speeds up to 5Gbps for efficient KVM operations.

Enhanced with a virtual interaction function, the switcher automatically wakes up connected PCs in standby mode, minimizing switching time. Enjoy the flexibility of direct switching through front panel buttons, an IR remote, or hotkeys via a keyboard/mouse connected to the dedicated USB port.

Designed for user convenience, it offers wide compatibility across various operating systems, including Windows, Mac OS, and Linux. No drivers are required - plug and play for a hassle-free experience.

  • Features:

    • HDCP 2.3 compliant
    • Support Ultra-wide Screen, resolution up to 4K@60Hz, 2K@60Hz/144Hz as specified in HDMI 2.1
    • HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
    • Using only 1 set of keyboard, mouse, and monitor to control 2 computers
    • Support video fast switching and keyboard/mouse seamless switching
    • Each input port has an EDID emulator to provide the correct information for the PC
    • Support hot plug, disconnect, or connect devices to the KVM at any time
    • Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232 commands
    • Support auto switching
    • Advanced hardware/software design and production ensure zero latency
    • The integrated USB 3.0 ports allow you to share USB peripherals like printers, scanners, webcam, and hard disk between computers with data transfer ratess up to 5Gbp/s
    • Compact design for easy and flexible installation


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3
    • Video Bandwidth: 18Gbps
    • Audio Latency: No Latency
    • Video Latency: No Latency
    • Video Resolution: Up to 4K@60Hz, 2K@60Hz/144Hz
    • IR Level: 5Vp-p
    • IR Frequency: Fixed frequency 38KHz
    • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
    • Color Depth: 8/10/12bit
    • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
    • CEC: Support
    • Audio Formats:
      - HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
      - Audio, DTS:X, DSD
    • L/R OUT: PCM 2.0CH
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connection
    • Input: 2x HDMI input (Type A, 19-pin female)
    • Output:
      - 1x HDMI output (Type A, 19-pin female)
      - 1x L/R audio output (3.5mm Stereo Mini-jack)
    • Control Ports:
      - 1x RS-232 (3pin-3.81mm phoenix connector)
      - 1x IR EXT (3.5mm Stereo Mini-jack)
      - 2x USB HOST (USB Type B)
      - 4x USB DEVICES (USB Type A)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 3.94" x 6.89" x 1.18" (175mm x 100mm x 30mm)
    • Weight: 1.34lbs (506g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
    • Power Consumption:
      - Typical Value: 7W
      - Standby Mode: 0.7W
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)


  • Item Includes:

    • 1x 4K60 2x1 KVM Switcher
    • 1x IR Remote
    • 1x 3pin-3.81mm Phoenix Connector (male)
    • 1x Fixed Frequency 38KHz IR Receiver Cable (1.5 meters)
    • 2x USB Cable (USB 3.0, AM to BM, 1.8 meters)
    • 2x HDMI Cable (male to male, 1.5 meters)
    • 2x Mounting Ears
    • 4x Machine Screws (KM3*4)
    • 1x 12V/1A Multinational Locking Power Supply
    • 1x User Manual


  • Warranty:

    • 6 Years
