VigilLink VLKV-H20P2D 2x1 Dual Monitor 4K60 HDMI/DP KVM Switcher with Hotkey Switching - HDCP 2.3 and DP1.2a Compliant

ITEM #: VGL-VLKV-H20P2D MFG #: VLKV-H20P2D

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$356.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLKV-H20P2D - Overview

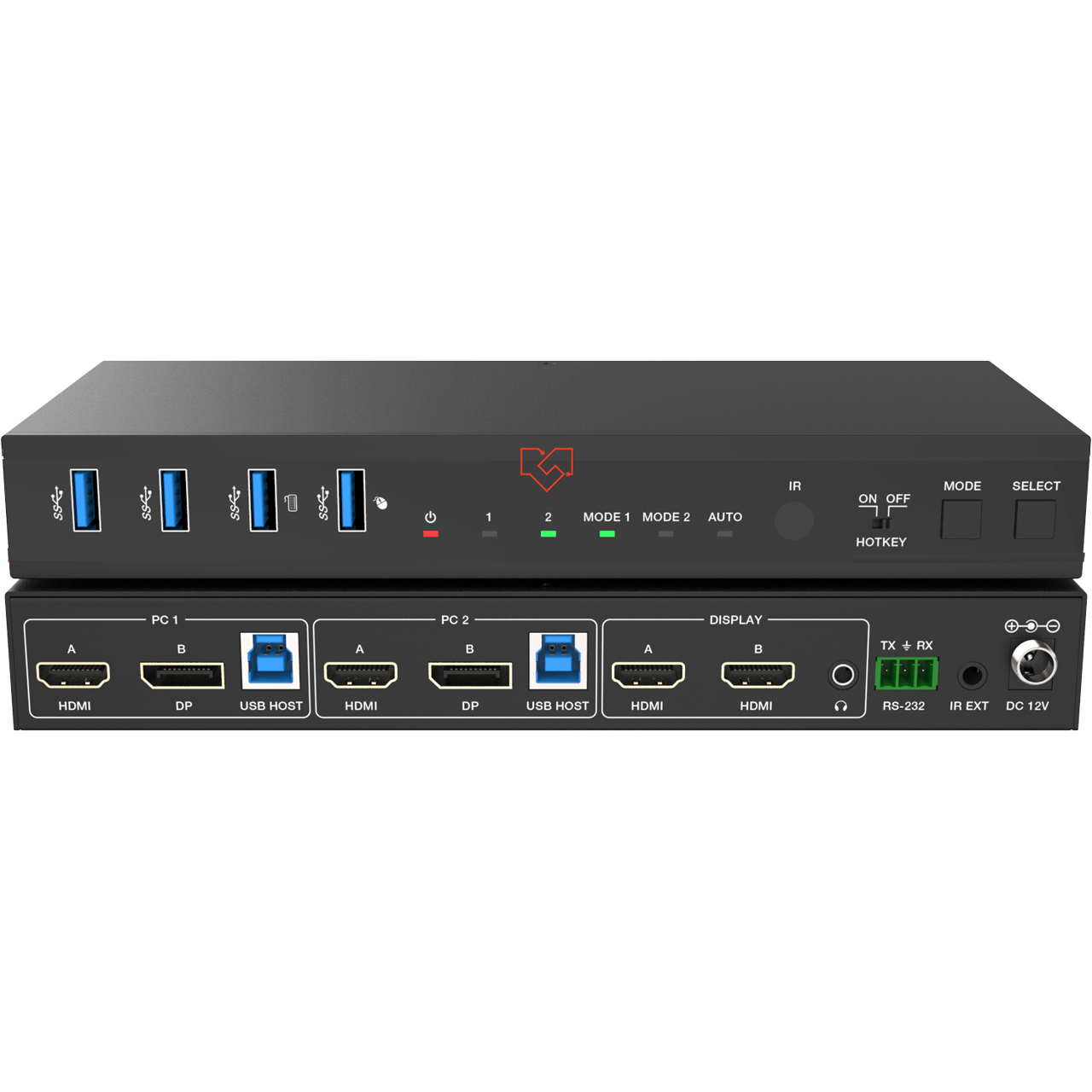

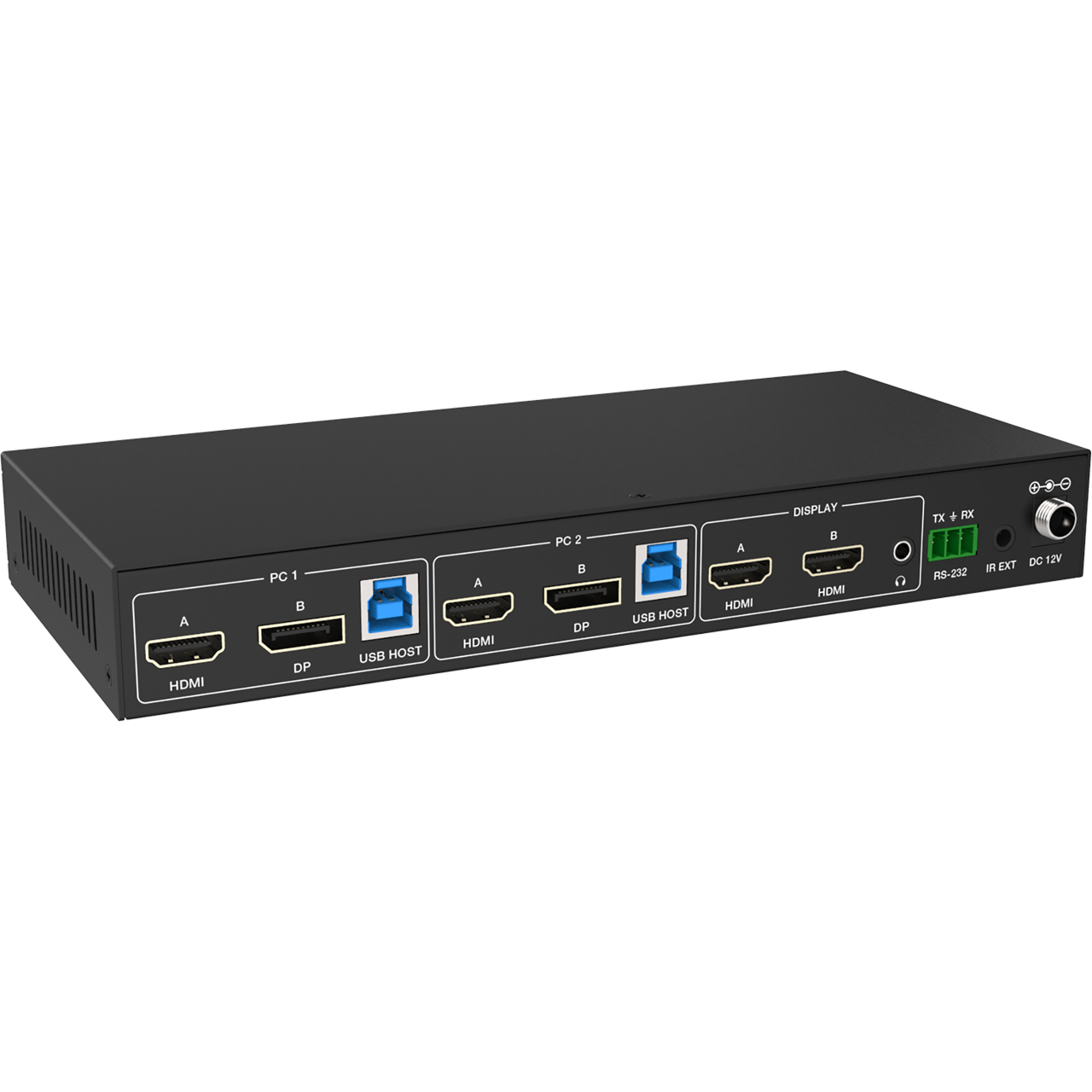

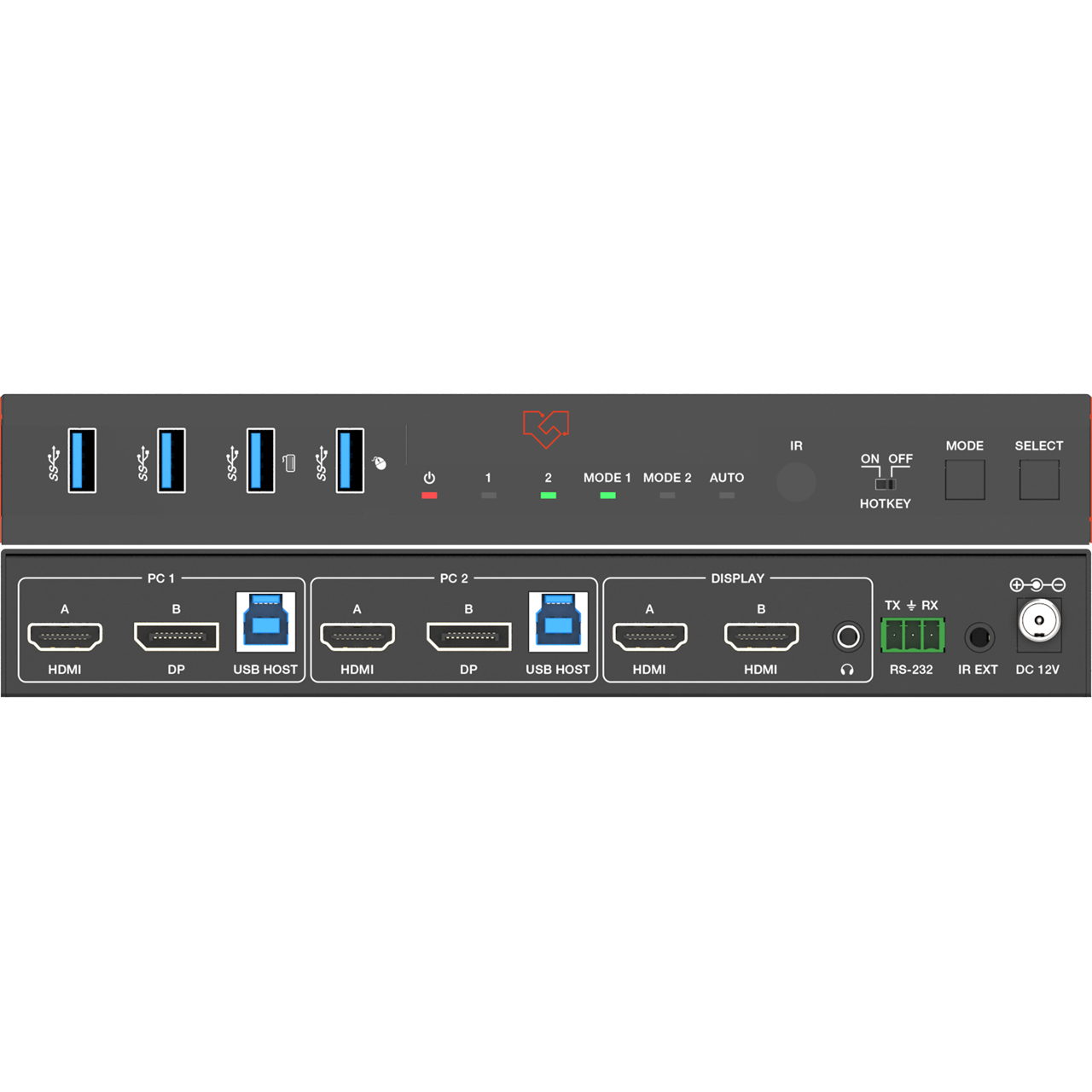

VigilLink VLKV-H20P2D is a 2x1 HDMI/DP KVM Switcher with dual channel switching and hotkey switching. It supports resolutions up to 4K@60Hz 4:4:4 8bit and can transmit USB 3.0 signal up to 5Gbps for KVM function. It can share two monitors and USB devices between two PCs and supports two modes of operation.

The switcher features a virtual interaction function to automatically wake up the connected PC in standby mode, which can reduce the switching time. It also supports direct switching through buttons on the front panel, IR remote, and hotkeys through the keyboard/mouse connected to the special USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS, and Linux, with no driver required and simple plug-and-play.

  • Features:

    • HDCP 2.3 and DP1.2a compliant
    • Supports Ultra-wide Screen, resolution up to 4K@60Hz, 2K@60Hz/144Hz as specified in HDMI 2.0
    • HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

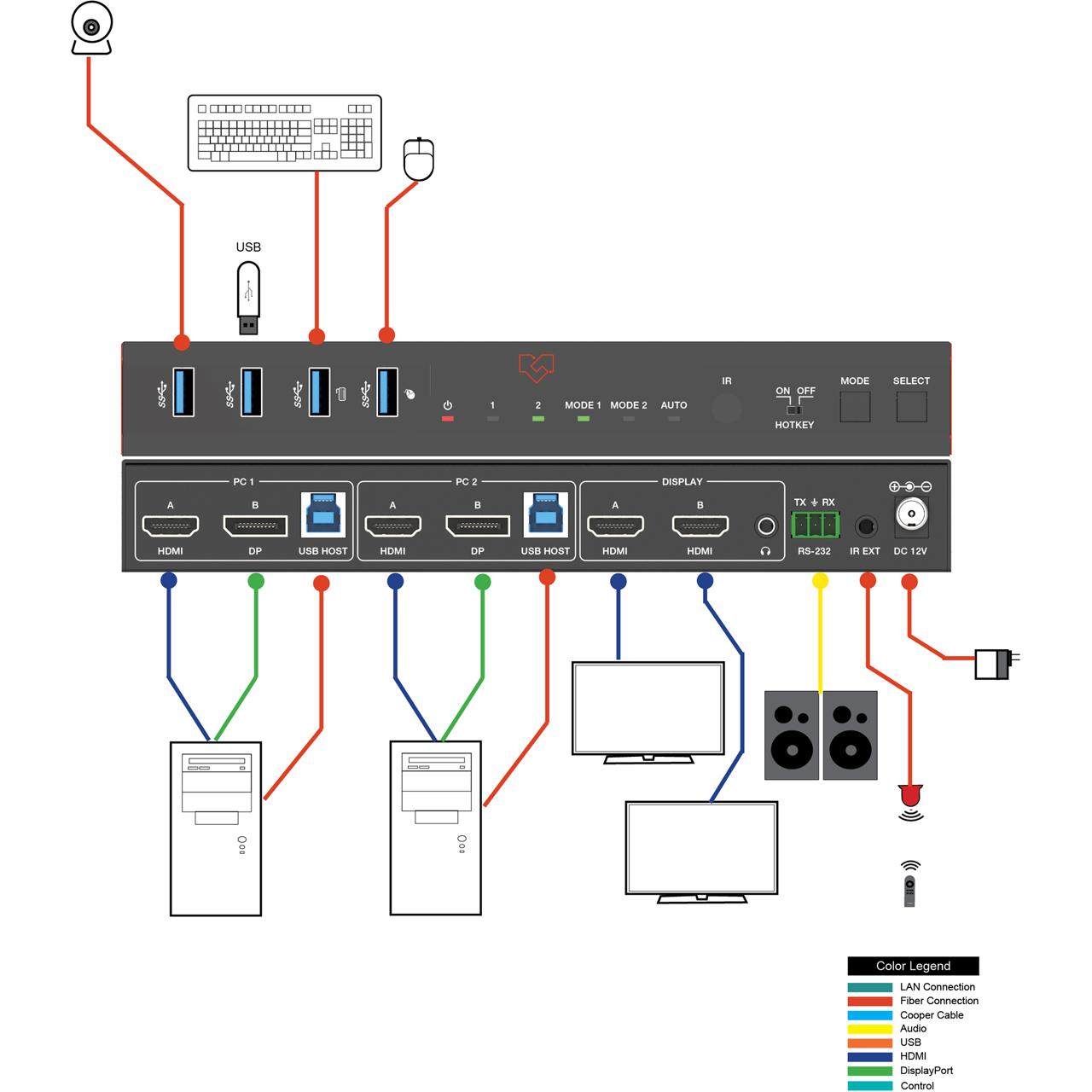

    • Using only 1 set of keyboard, mouse, and monitor to control 2 computers
    • Support video fast switching and keyboard/mouse seamless switching
    • Each input port has an EDID emulator to provide the correct information for the PC
    • Supports hot plug, disconnect, or connect devices to the KVM at any time
    • Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232 commands
    • Supports auto switching
    • Input supports 2x DP ports and 2x HDMI ports
    • Advanced hardware/software design and production ensure zero latency
    • The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam, and hard disk between computers with data transfer rates up to 5Gbp/s
    • Compact design for easy and flexible installation

  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.0
    • HDCP Compliance: HDCP 2.3
    • DP Compliance: DP1.2a
    • Video Bandwidth: 18Gbps
    • Audio Latency: No Latency
    • Video Latency: No Latency
    • Video Resolution: Up to 4K@60Hz, 2K@60Hz/144Hz
    • IR Level: 5Vp-p
    • IR Frequency: Fixed frequency 38KHz
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
    • Color Depth: 8/10/12bit
    • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
    • Audio Formats:
      - HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
      - L/R OUT: PCM 2.0CH
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections
    • Input: 2x HDMI input [Type A, 19-pin female]
    • 2x DP input [20-pin female]
    • Output:
      - 2x HDMI output [Type A, 19-pin female]
      - 1x L/R audio output [3.5mm Stereo Mini-jack]
    • Control ports:
      - 1x RS-232 [3pin-3.81mm phoenix connector]
      - 1x IR EXT [3.5mm Stereo Mini-jack]
      - 2x USB HOST [USB Type B]
      - 4x USB DEVICES [USB Type A]

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 3.94" x 6.89" x 1.18" (175mm x 100mm x 30mm)
    • Weight: 1.34lbs (505g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
    • Power Consumption:
      - Typical Value: 8.4W
      - Standby Mode: 0.6W
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)

  • Item Includes:

    • 1x 4K60 2x1 HDMI/DP Dual Monitor KVM Switcher
    • 1x IR Remote
    • 1x 3pin-3.81mm Phoenix Connector (male)
    • 1x Fixed Frequency 38KHz IR Receiver Cable (1.5 meters)
    • 2x USB Cable (USB 3.0, Type A to Type B, 1.8 meters)
    • 2x HDMI Cable (male to male, 1.5 meters)
    • 2x DP Cable (male to male, 1.5 meters)
    • 2x Mounting Ears
    • 4x Machine Screws (KM3*4)
    • 1x 12V/1A Multinational Locking Power Supply
    • 1x User Manual

  • Warranty:

    • 6 Years
