VigilLink VLML-4X1H20 4x1 18Gbps HDMI Switcher 4K60 with Multi-Viewer - HDMI 2.0b/HDCP 2.2 and HDCP 1.x Compliant

Name: VigilLink VLML-4X1H20 4x1 18Gbps HDMI Switcher 4K60 with Multi-Viewer - HDMI 2.0b/HDCP 2.2 and HDCP 1.x Compliant
Brand: VigilLink
SKU: VGL-VLML-4X1H20
Price: 685.00 USD
Availability: InStock

ITEM #: VGL-VLML-4X1H20 MFG #: VLML-4X1H20

VigilLink

Our Price:

$685.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLML-4X1H20 - Overview

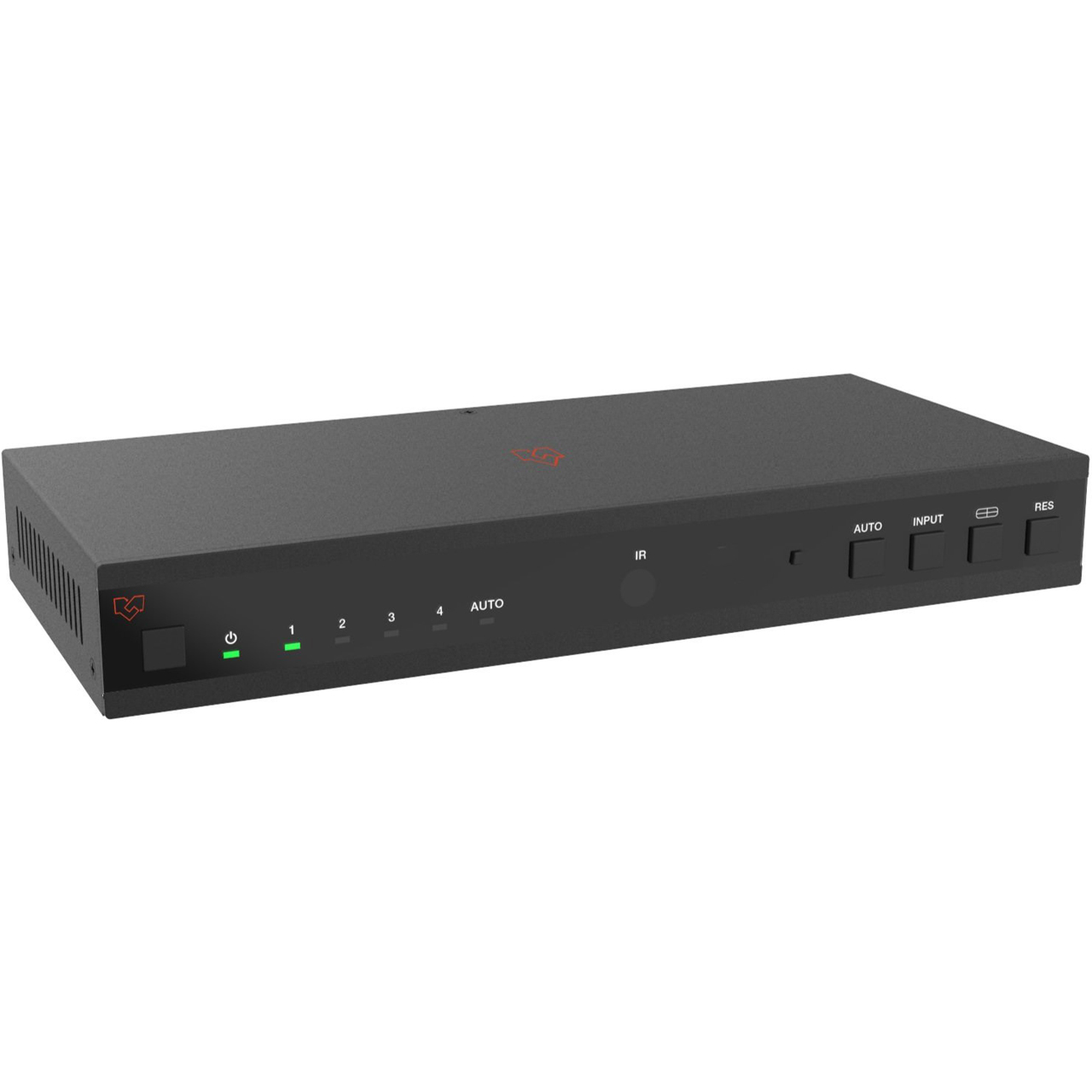

The VigilLink VLML-4X1H20 4K60 4x1 Multiview Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K @ 60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the four inputs on a single monitor. This device supports the full range of input video resolutions up to 4K @ 60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.

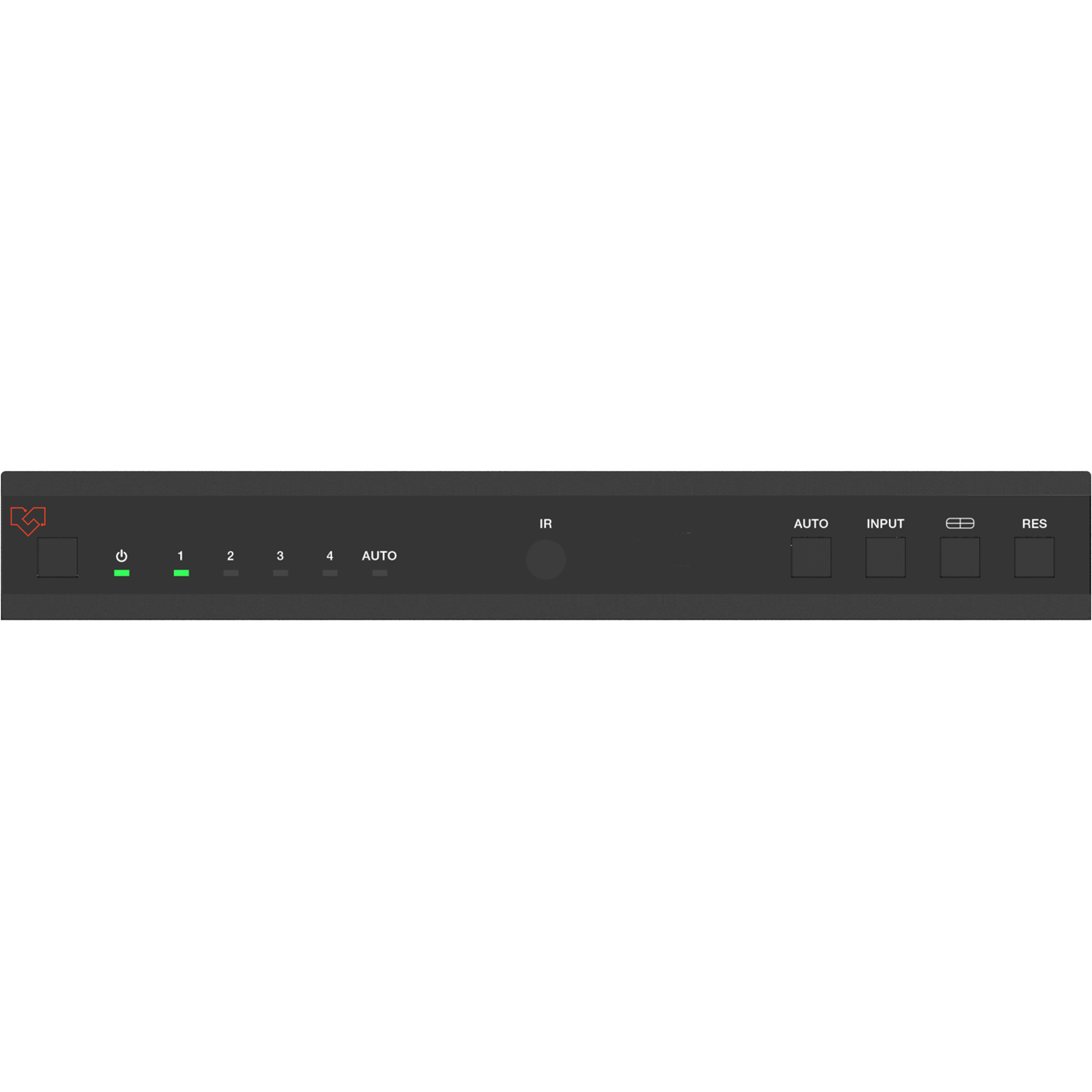

This device can be controlled via front panel buttons, IR remote, and RS-232 commands.

Features:
- HDMI 2.0b, HDCP 2.2, and HDCP 1. x compliant
- Supports 18Gbps video bandwidth
- Input and output resolutions support up to 4K@60Hz
- Supports LPCM, AC3, DD+, DTS, DTS-HD, and up to 7.1 audio channel
- Seamless switching between input channels and combined multiple images on a single UHD monitor
- Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
- Seamless switching on single-screen display mode
- Fast switching on Multiview display mode
- Audio de-embedding via analog and optical fiber audio ports
- Supports volume control and independent audio selection
- Supports OSD navigation for advanced setting
- EDID management
- Control via front panel buttons, IR remote, and RS-232 commands
- Compact design for easy and flexible installation
Specifications:
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2/1.x
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4K @ 60Hz
- IR Level: 5Vp-p
- IR Frequency: 38kHz
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8bit
- Audio Formats:
  - HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
  - Analog audio (3.5mm L/R): PCM2.0
  - SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0.
  *Note: It does not support HBR audio.
- Audio Output: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
- ESD Protection: Human-Body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

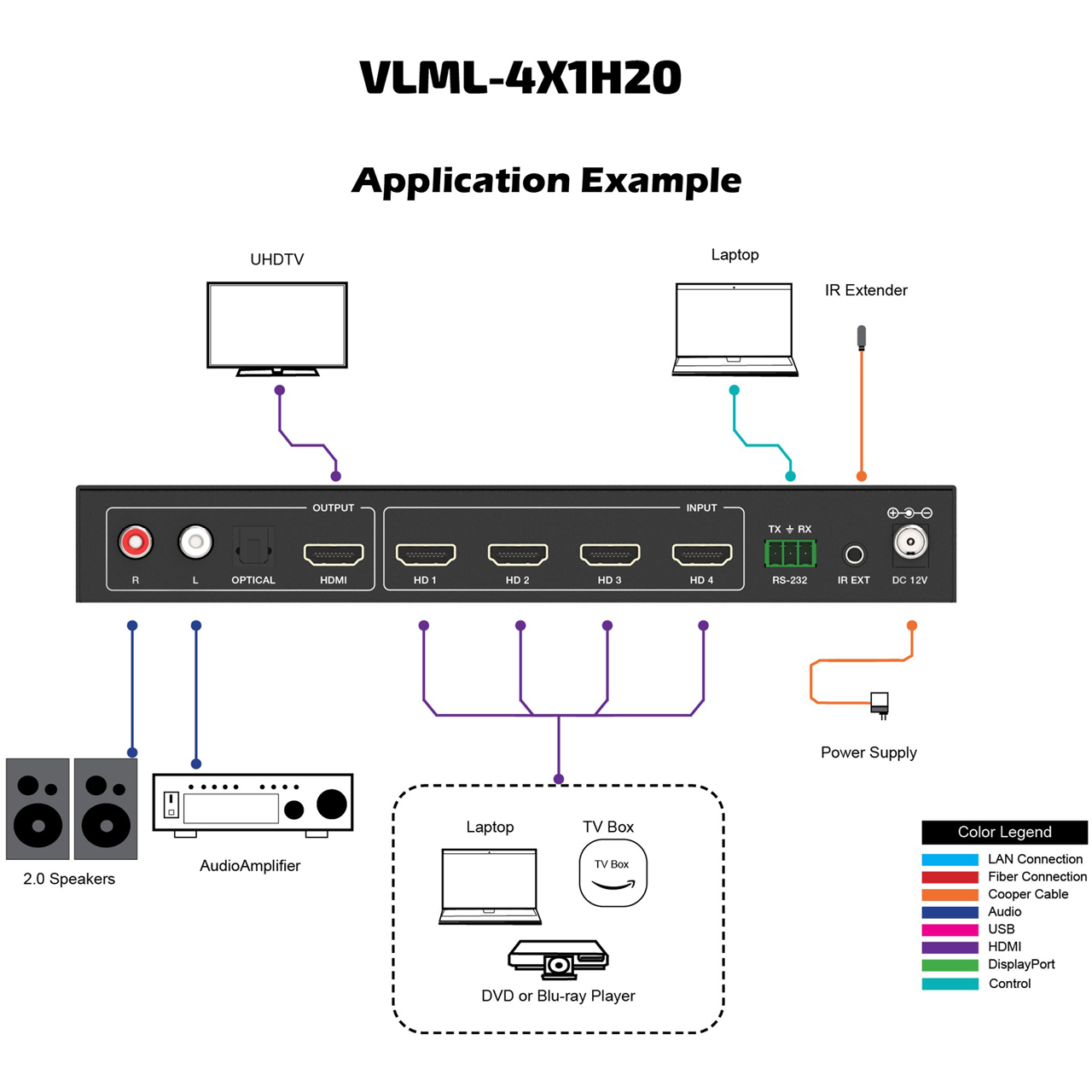

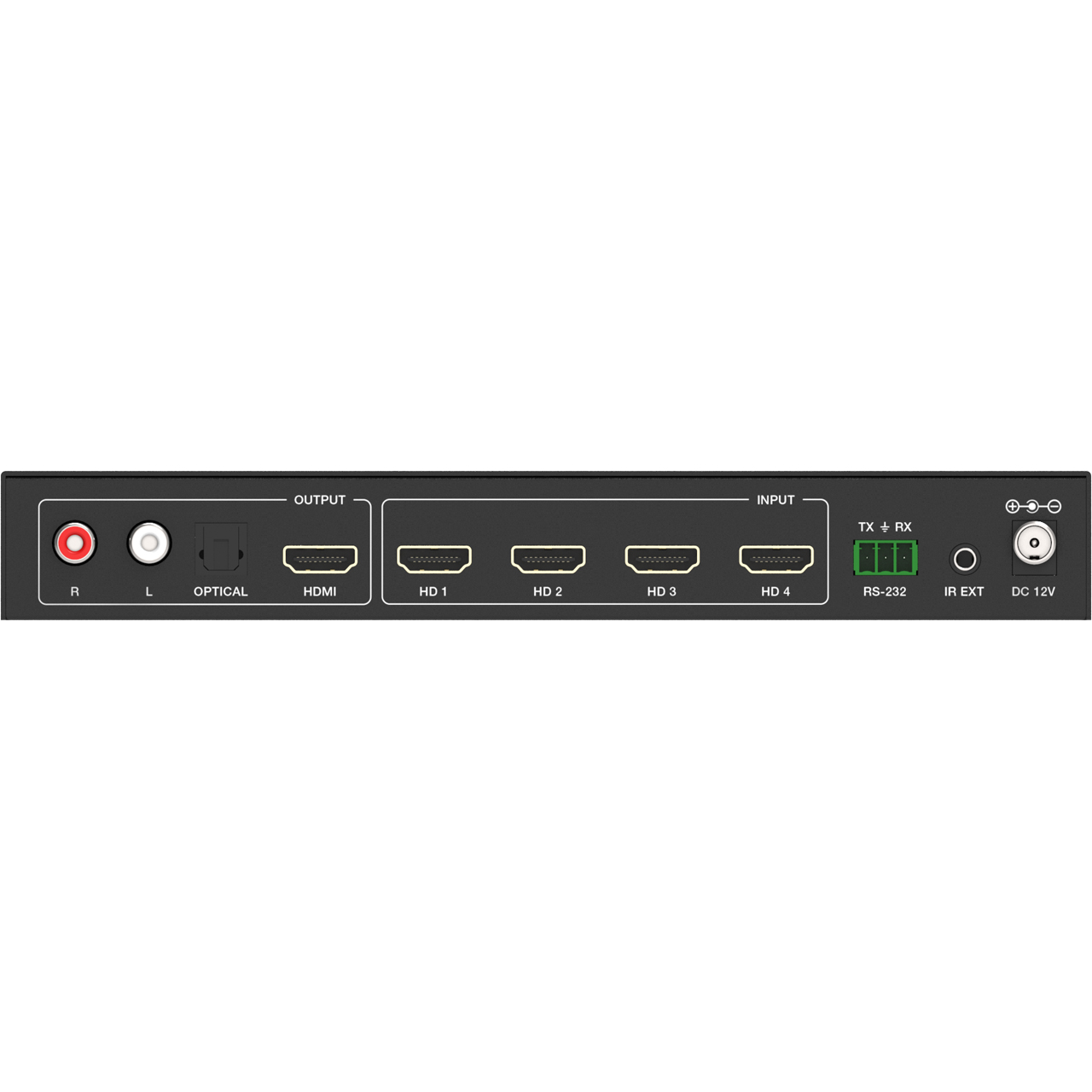

  Connections
- Input Ports: 4x HDMI IN (Type A, 19-pin female)
- Output Ports:
  - 1x HDMI OUT (Type A, 19-pin female)
  - 1x L/R OUTPUT (RCA)
  - 1x OPTICAL OUTPUT (S/PDIF)

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 8.66" x 3.94" x 1.18" (220mm x 100mm x 30mm)
- Weight: 1.37lbs (620g)
- Power Supply:
  - Input: AC 100V - 240V, 50/60Hz
  - Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
- Power Consumption: 10W (Max)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (No condensation)
Item Includes:
- 1x 4K60 4x1 Multiview Seamless UHD Video Switcher
- 1x IR Remote
- 1x 3pin-3.81mm Phoenix Connector (male)
- 1x 38KHz IR Wideband Receiver Cable (1.5 meters)
- 2x Mounting Ears
- 4x Machine Screws (KM3*4)
- 4x Rubber Feet
- 1x 12V/2.5A Locking Power Adapter
- 1x User Manual
Warranty:
- 6 Years
