VigilLink VLMX-0402 4x2 HDMI 2.0 18Gbps Matrix Switcher with 4K Output to 1080p Down Scaling

ITEM #: VGL-VLMX-0402 MFG #: VLMX-0402

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$270.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLMX-0402 - Overview

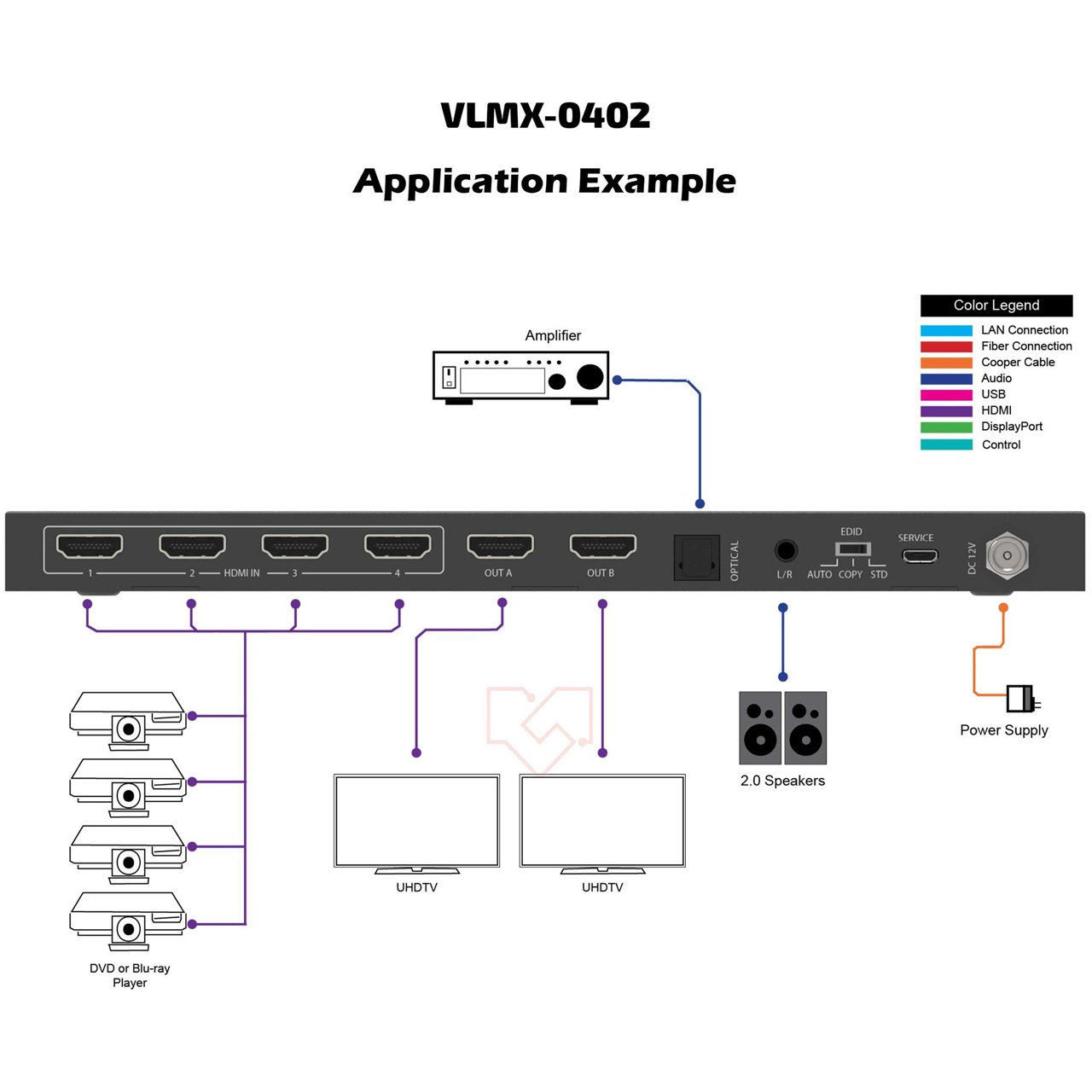

This VigilLink VLMX-0402 high-performance HDMI Matrix Switcher can switch any of these four HDMI sources to two HDMI displays. It supports resolution up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2. It can extract HDMI source device audio to optical and analog L/R output. It supports 4K→1080P downscale function if the source is 4K, but the TV only supports up to 1080P. It also supports ARC and EDID (AUTO/COPY/STD) functions, with its 18Gbps bandwidth and the additional features with the latest HDMI standards, and flexible control via front panel buttons and IR remote.

  • Features:

    • HDMI 2.0, HDCP 2.2 / HDCP 1.4, and DVI 1.0 compliant
    • Supports 4 HDMI inputs and 2 HDMI outputs
    • Video resolution up to 4K2K@60Hz YCbCr 4:4:4
    • Supports 18Gbps uncompressed bandwidth on all HDMI
    • Supports Dolby Vision, HDR 10+, HLG
    • Supports extracting HDMI input source device audio of OUT A or OUT B to optical and analog L/R output
    • OUT A and OUT B support 4K to 1080P downscale function
    • Supports ARC (Audio Return Channel) function
    • Supports advanced EDID management including AUTO, COPY, and STD

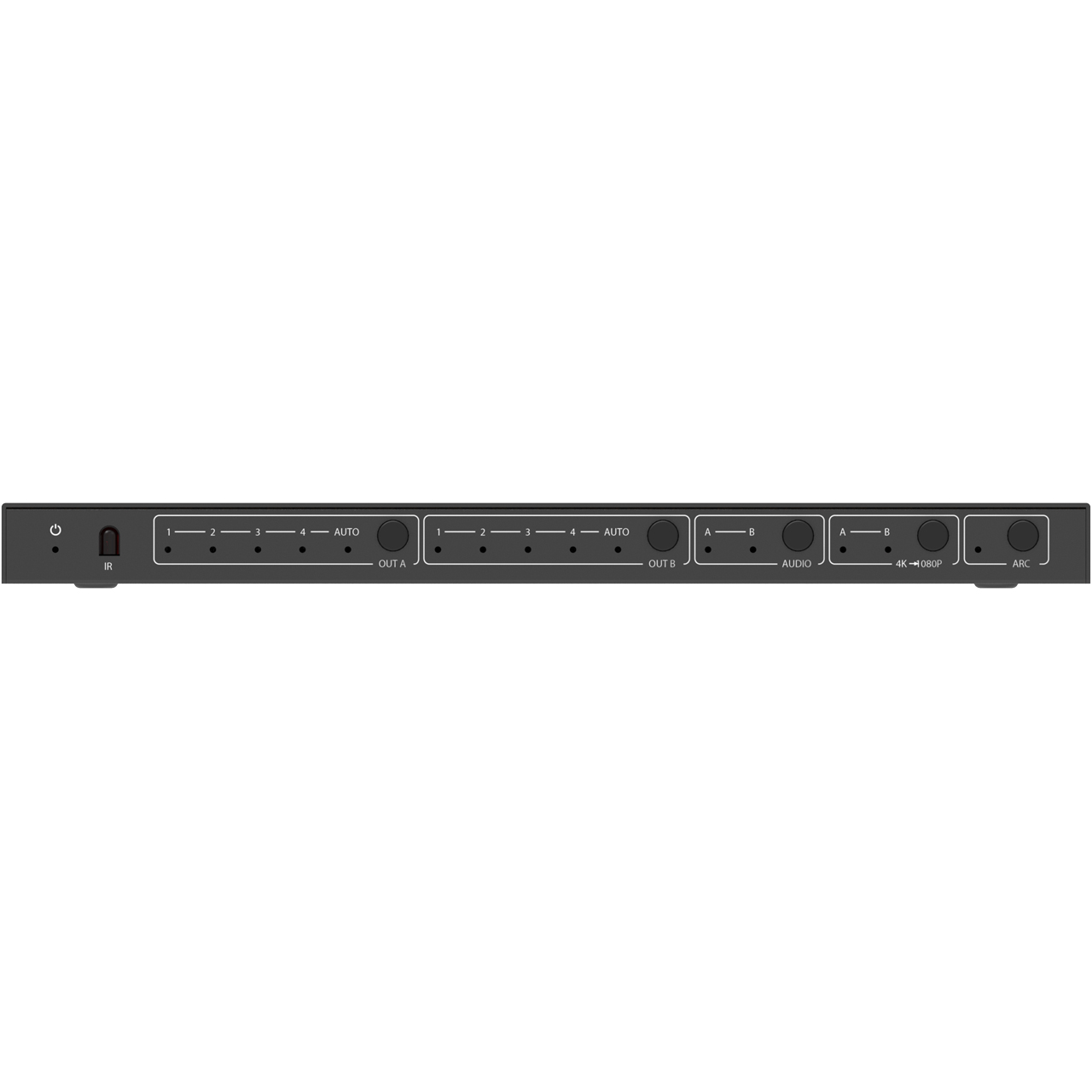

    • Control is via front panel buttons and IR remote


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.0
    • HDCP Compliance: HDCP 2.2 and HDCP 1.4
    • Video Bandwidth: 18 Gbps
    • Video Resolution: Up to 4K2K @ 50/60Hz (YCbCr 4:4:4), 4K2K @ 30Hz. All HDMI 3D TV format, etc.
    • Color Space: RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)], 8-bit [4K60Hz (YCbCr4:4:4)]
    • HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • Optical Audio Formats: PCM2.0, Dolby Digital/Plus, DTS
    • L/R Audio Formats: PCM2.0CH (Note: If the ARC function is turned on, the audio port will mute.)
    • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

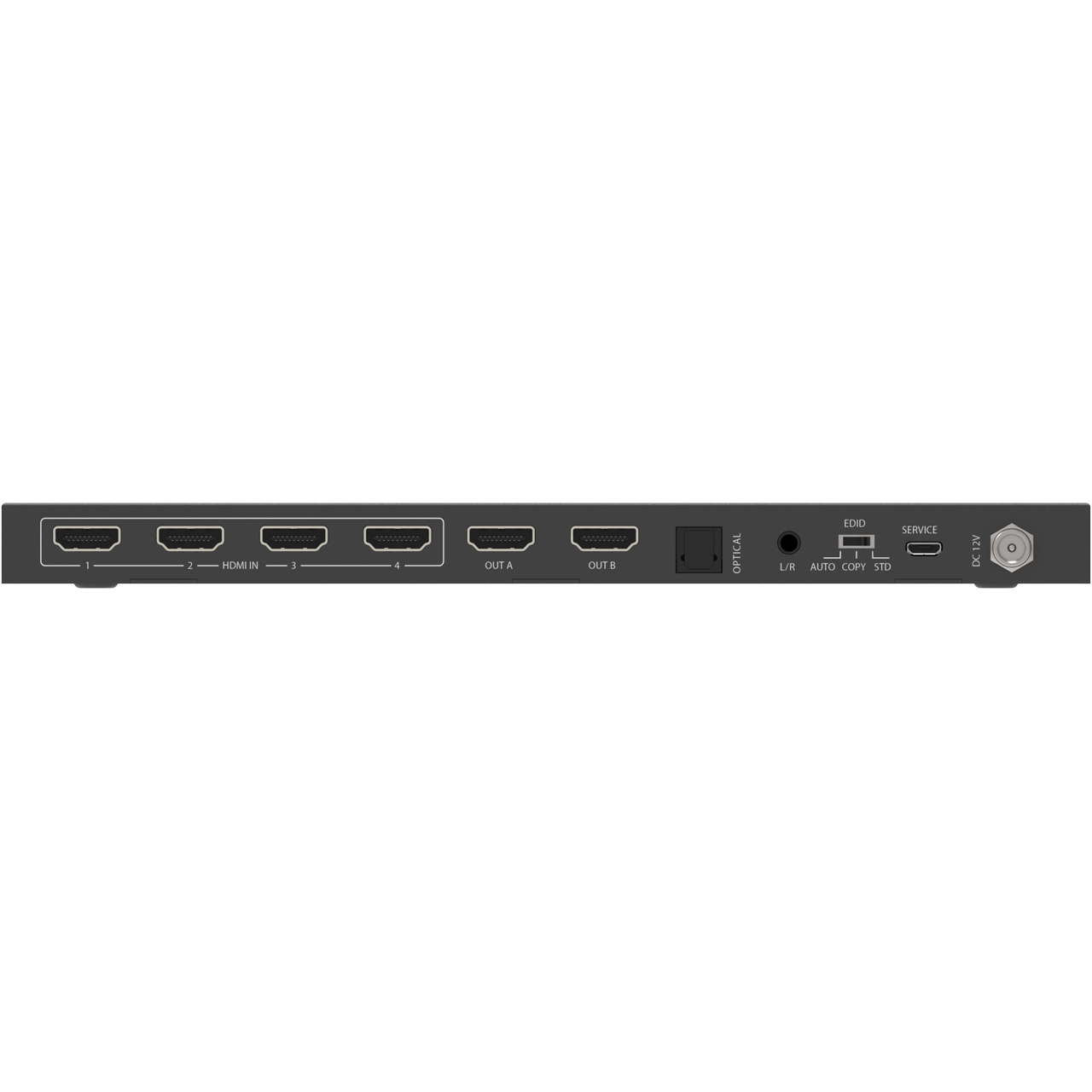

      Connection
    • Inputs: 4x HDMI Type A (19-pin female)
    • Outputs:
      - 2x HDMI Type A (19-pin female)
      - 1x L/R audio out (3.5mm Stereo Mini-jack)
      - 1x OPTICAL audio out (S/PDIF)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 9.88" x 4.13" x 0.78" (251mm x 105mm x 20mm)
    • Weight: 1.36lbs (620g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 12V/1A
    • Power Consumption: 3.8W (max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)


  • Item Includes:

    • 1x 4x2 HDMI2.0 Matrix Switcher
    • 1x 12V/1A Locking Power Adapter
    • 2x Mounting Ears
    • 1x IR Remote
    • 1x User Manual


  • Warranty:

    • 6 Years
