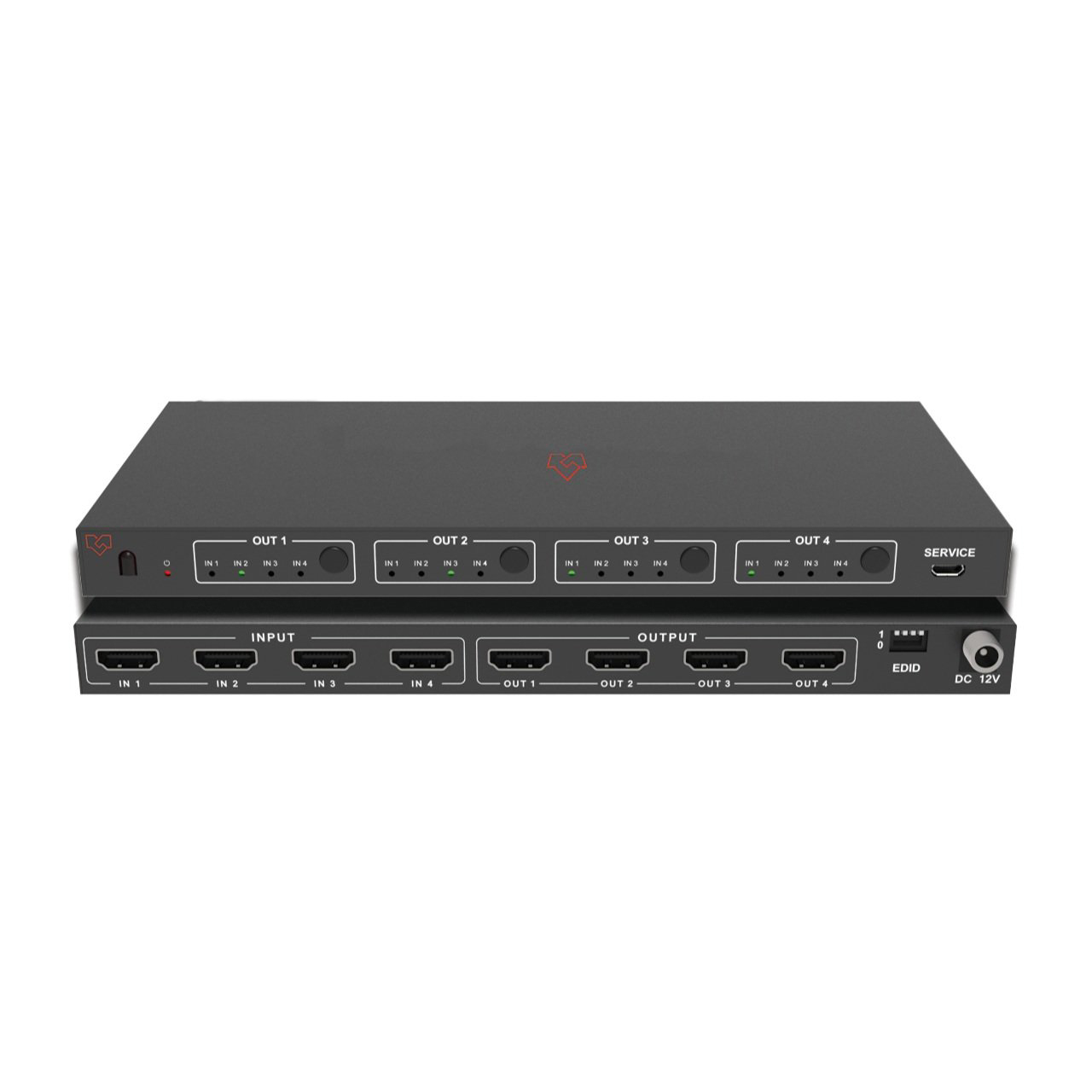

VigilLink VLMX-0404 4x4 18Gbps HDMI 2.0 Matrix Switcher with 4K Output to 1080p Down Scaling

VLMX-0404 - Overview

• Features:

  • HDCP 2.2 compliant
  • Up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
  • HDR, HDR10, HDR10+, Dolby Vision pass-through
  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • Supports 4K -> 1080P Downscaler
  • Supports advanced EDID management

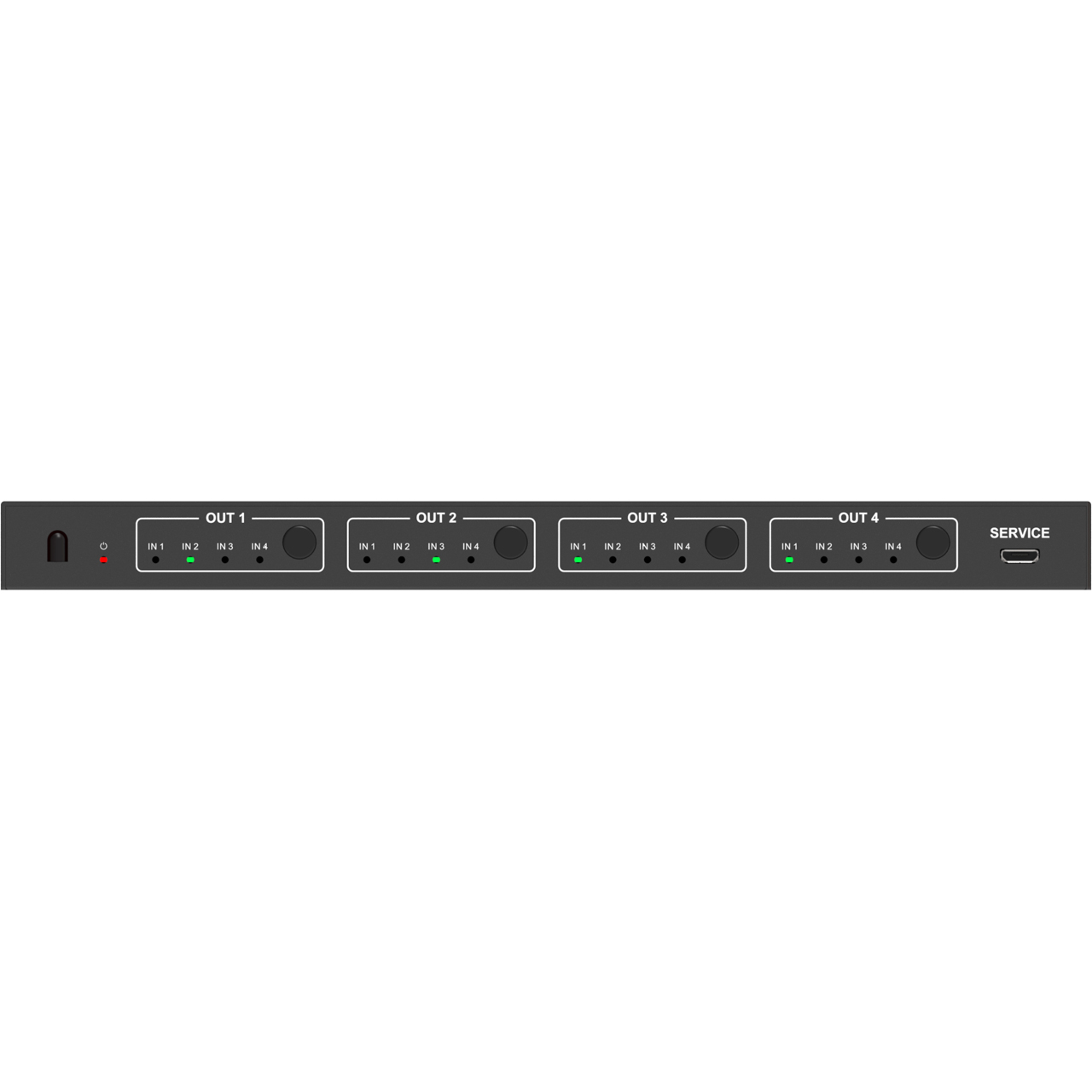

  • Flexible control via panel or IR remote control


• Specifications:

  Technical
  • HDCP Compliant: HDCP 2.2/1.x
  • Video Bandwidth: 594MHz/18Gbps
  • Video Resolution: 480i - 1080p 50/60Hz, 4Kx2K @ 24/30Hz, 4K2K @ 60Hz
  • Color Space: RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0
  • Color Depth:
    - 8-bit, 10-bit, 12-bit (1080p @ 60Hz)
    - 8-bit (4K2K @ 60Hz YUV4:4:4)
    - 8-bit, 10-bit, 12-bit (4K2K @ 60Hz YCbCr 4:2:2/4:2:0)
  • HDMI Audio Formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Connection
  • Inputs:
    - 4x HDMI Type A (19-pin female)
    - 1x IR Receiver Window
    - 1x Micro USB (RJ45)

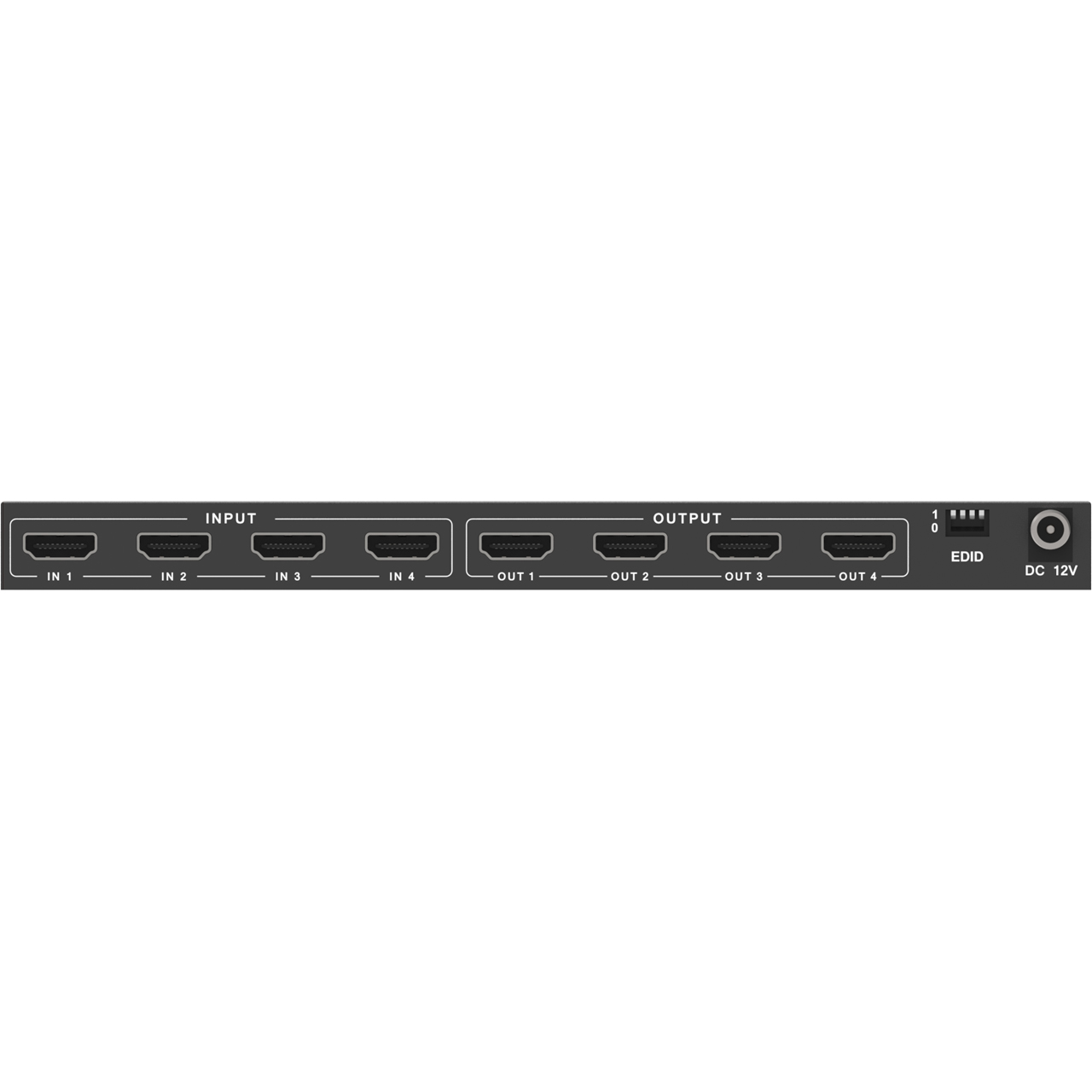

  • Outputs: 4x HDMI Type A (19-pin female)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 8.66" x 8.07" x 0.75" (220mm x 205mm x 19mm)
  • Weight: 1.18lbs (535g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
  • Power Consumption: 11.04W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x 4x4 HDMI Matrix
  • 1x 12V/2.5A Power Adapter
  • 1x Matrix IR Remote Control
  • 1x User Manual
  • 2x Mounting Ears


• Warranty:

  • 6 Years
