VigilLink VLSW-41H20ER 4x1 18Gbps HDMI 2.0 4K2K Switch with Audio eARC - HDMI 2.0b/HDCP 2.2/1.x & DVI 1.0 Compliant

VLSW-41H20ER - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0 compliant
  • Video resolution up to 4K2K @ 60Hz RGB/YCbCr 4:4:4
  • Supports 18Gbps video bandwidth
  • Supports 3D, HDR, HDR10, HDR10+, Dolby Vision pass-through
  • Supported audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Supports auto/manual switching mode for input source
  • Supports ARC/eARC function
  • Supports advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH selectable)

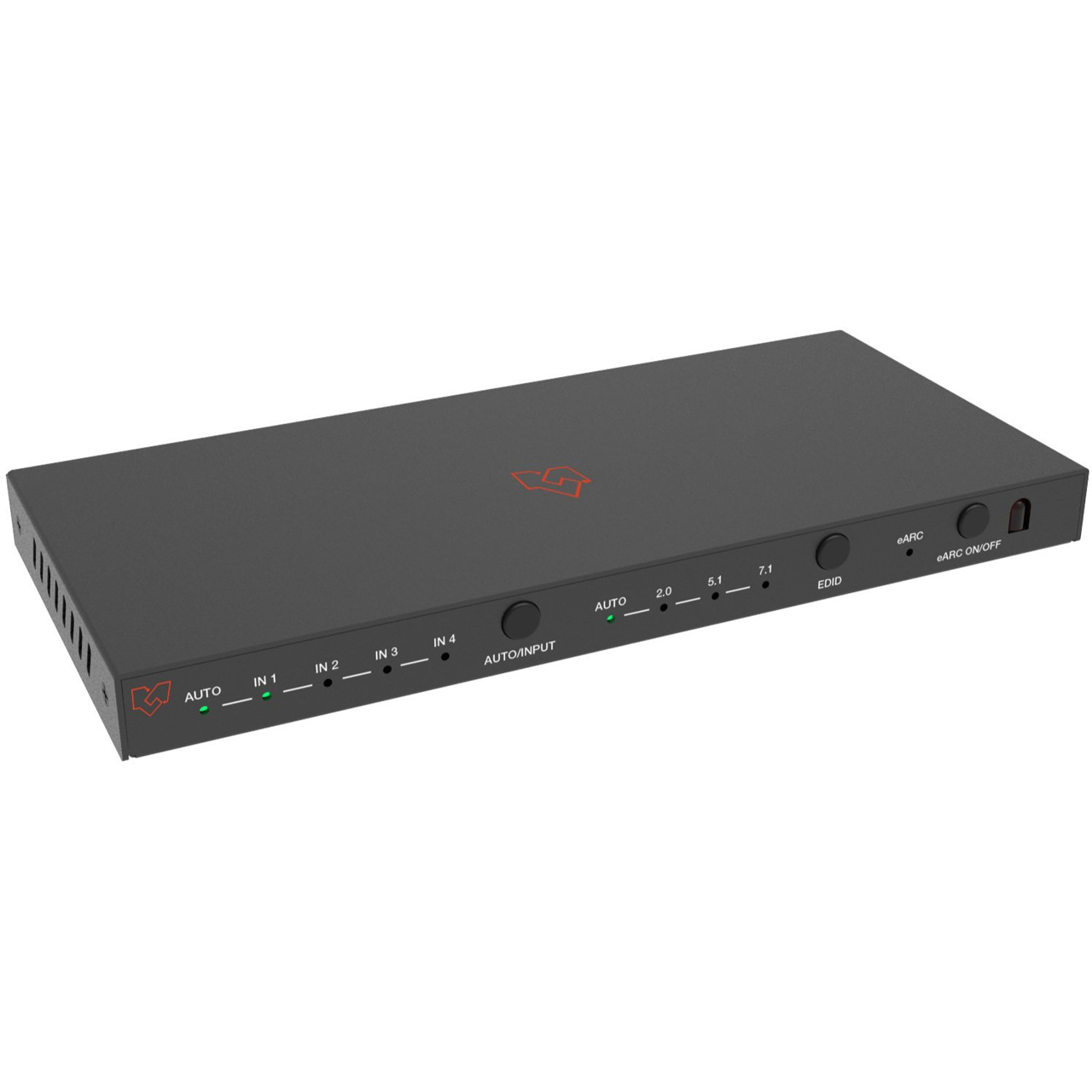

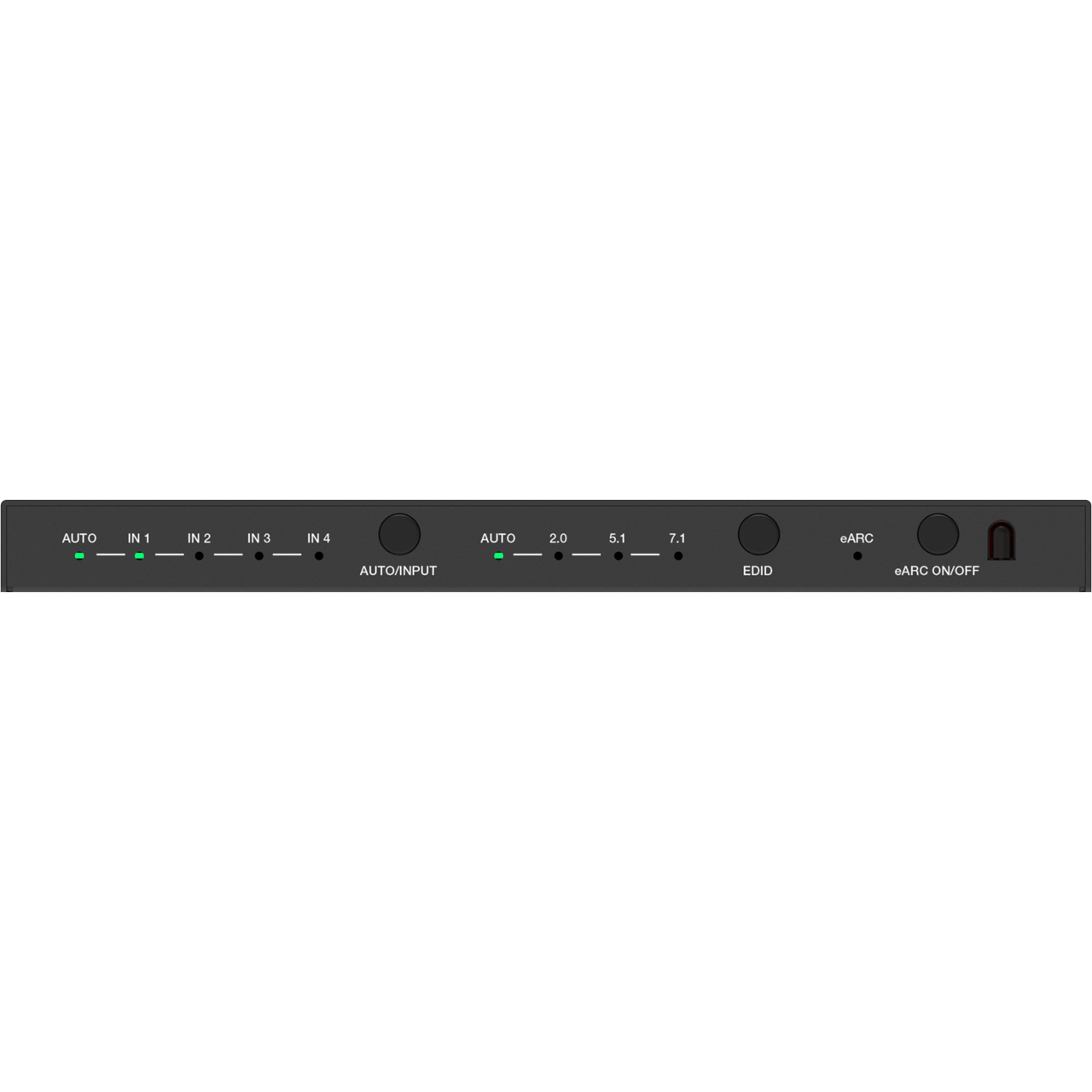

  • Flexible control via front panel buttons or IR remote control


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2 / 1.x
  • Video Bandwidth: 18Gbps
  • Video Resolution: 4Kx2K @ 24/30Hz, 4K2K @ 60Hz
  • Color Depth:
    - 8-bit, 10-bit, 12-bit (1080p @ 60Hz)
    - 8-bit (4K2K @ 60Hz YUV4:4:4)
    - 8-bit, 10-bit, 12-bit (4K2K @ 60Hz YCbCr 4:2:2/4:2:0)
  • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • HDR: Support HDR, HDR 10, HDR 10+, and Dolby vision
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

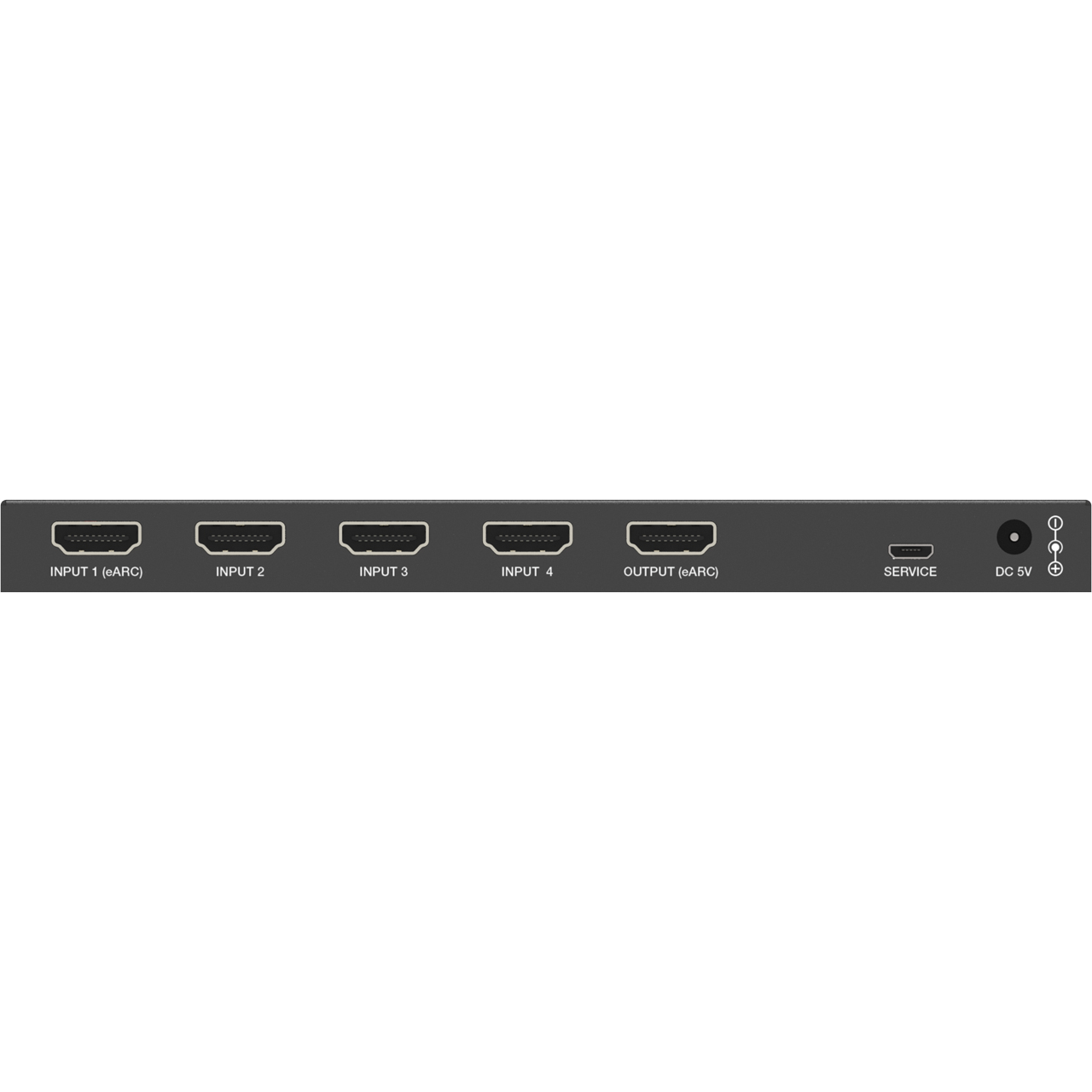

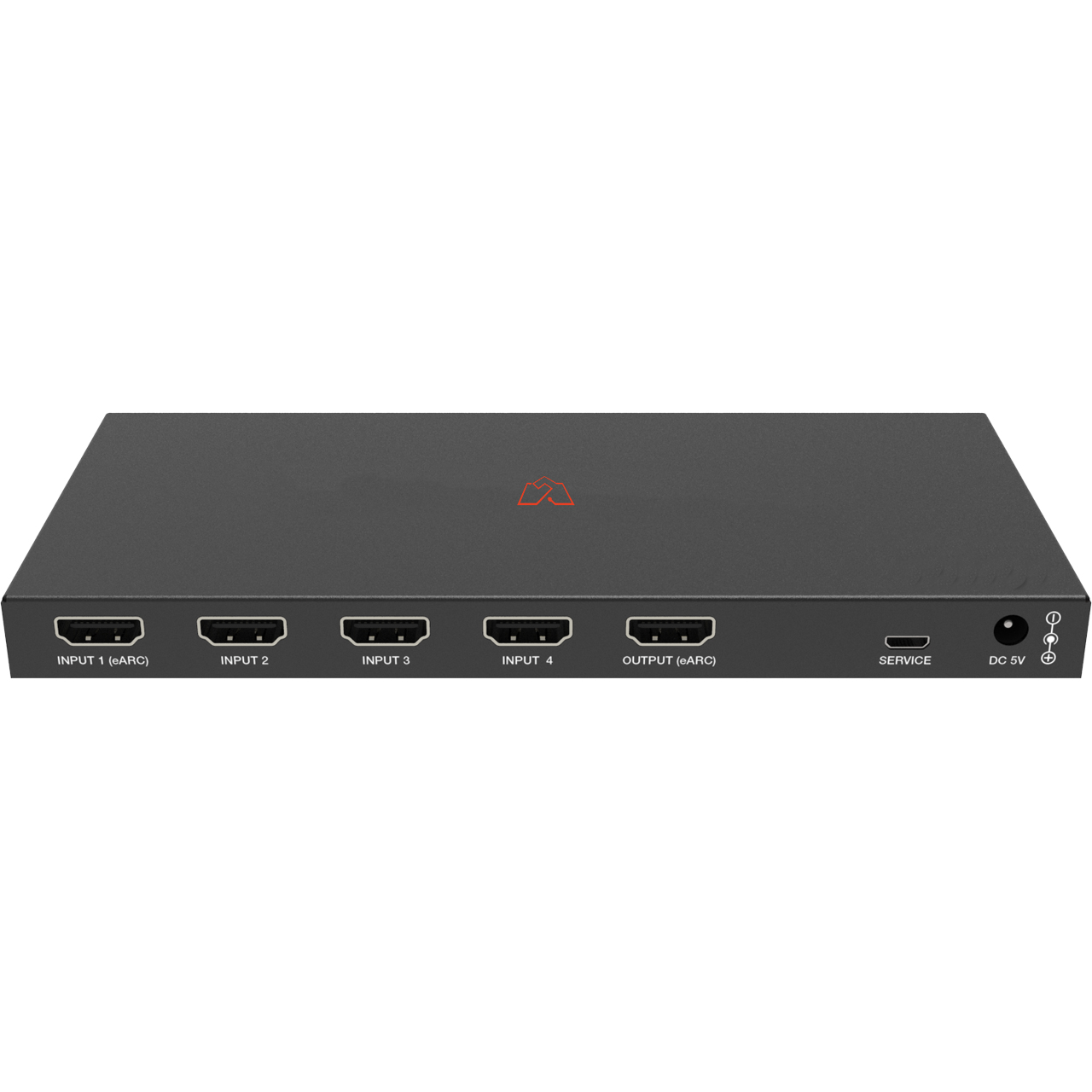

    Connections
  • Input: 4x HDMI IN (Type A 19-pin female)
  • Output: 1x HDMI OUT (Type A 19-pin female)
  • Control: 1x SERVICE (Micro USB port)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 7.17" x 3.31" x 0.61" (182mm x 84mm x 15.5mm)
  • Weight: 0.82lbs (370g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 5V/1A
  • Power Consumption: 2W (Max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x 18Gbps HDMI 4x1 Switcher
  • 1x 5V/1A Power Adapter (USA Standard)
  • 1x IR Remote
  • 1x User Manual


• Warranty:

  • 6 Years
