VigilLink VLSW-41H20R 4x1 18Gbps HDMI 2.0 4K2K Switcher with Audio ARC

VLSW-41H20R - Overview

• Features:

  • Compliant with HDMI 2.0a, DVI 1.0 standards
  • HDCP 2.2 and HDCP 1.4 compliant
  • Video formats up to 4Kx2K @ 60 and all HDMI 3D video formats
  • Supports PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH
  • Digital and analog audio output
  • Supports smart EDID management (Auto/2CH/5.1CH/7.1CH selectable)
  • Supports input port auto-switching or manual switching mode
  • Audio Return Channel (ARC) support


• Specifications:

  • Technical
  • HDCP Compliance: HDCP 1.4, 2.2
  • Video Bandwidth: 18Gbps
  • HDMI Audio Output: PCM2.1/5.1/7.1CH,Dolby5.1, DTS5.1, Dolby-TrueHD, DTS-HD
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

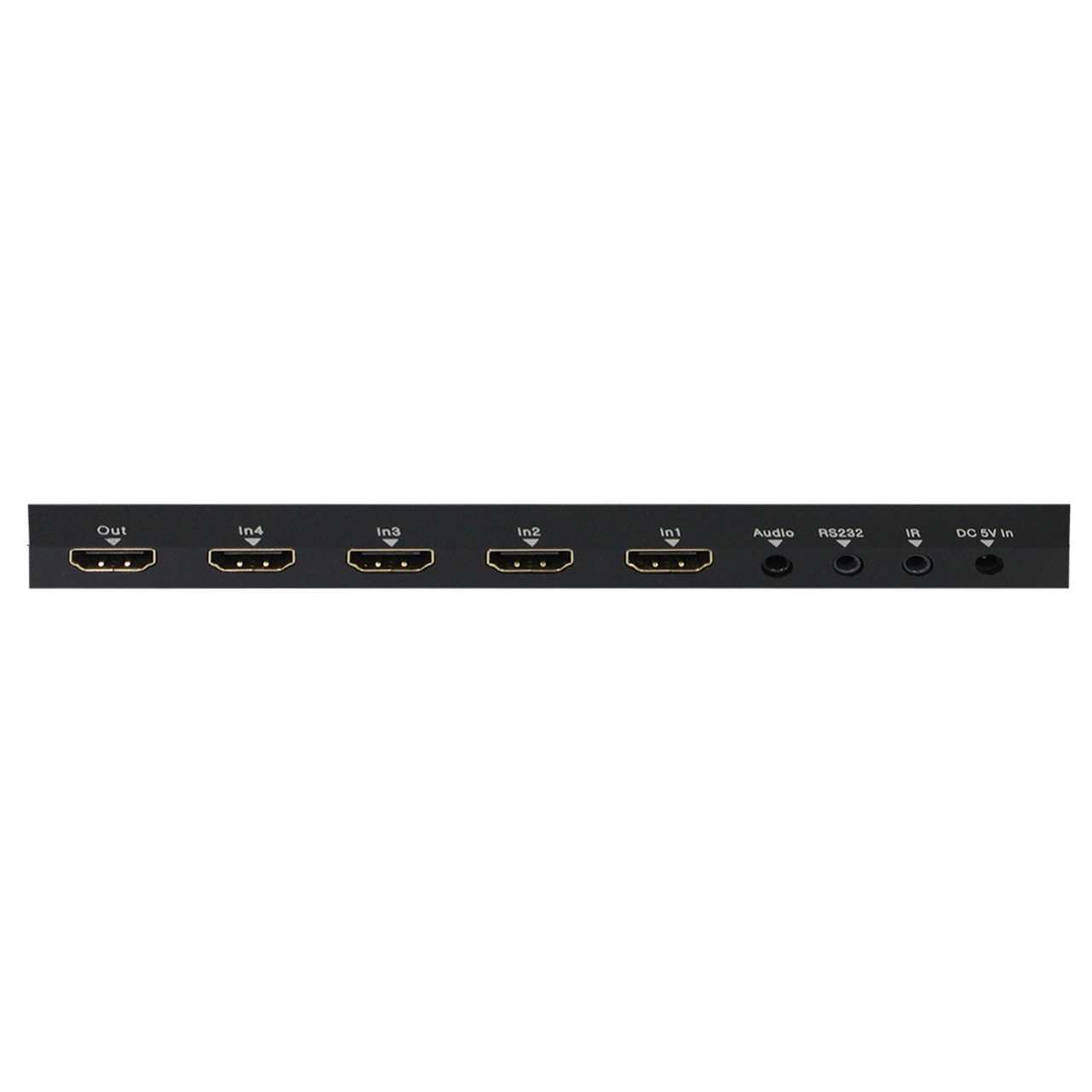

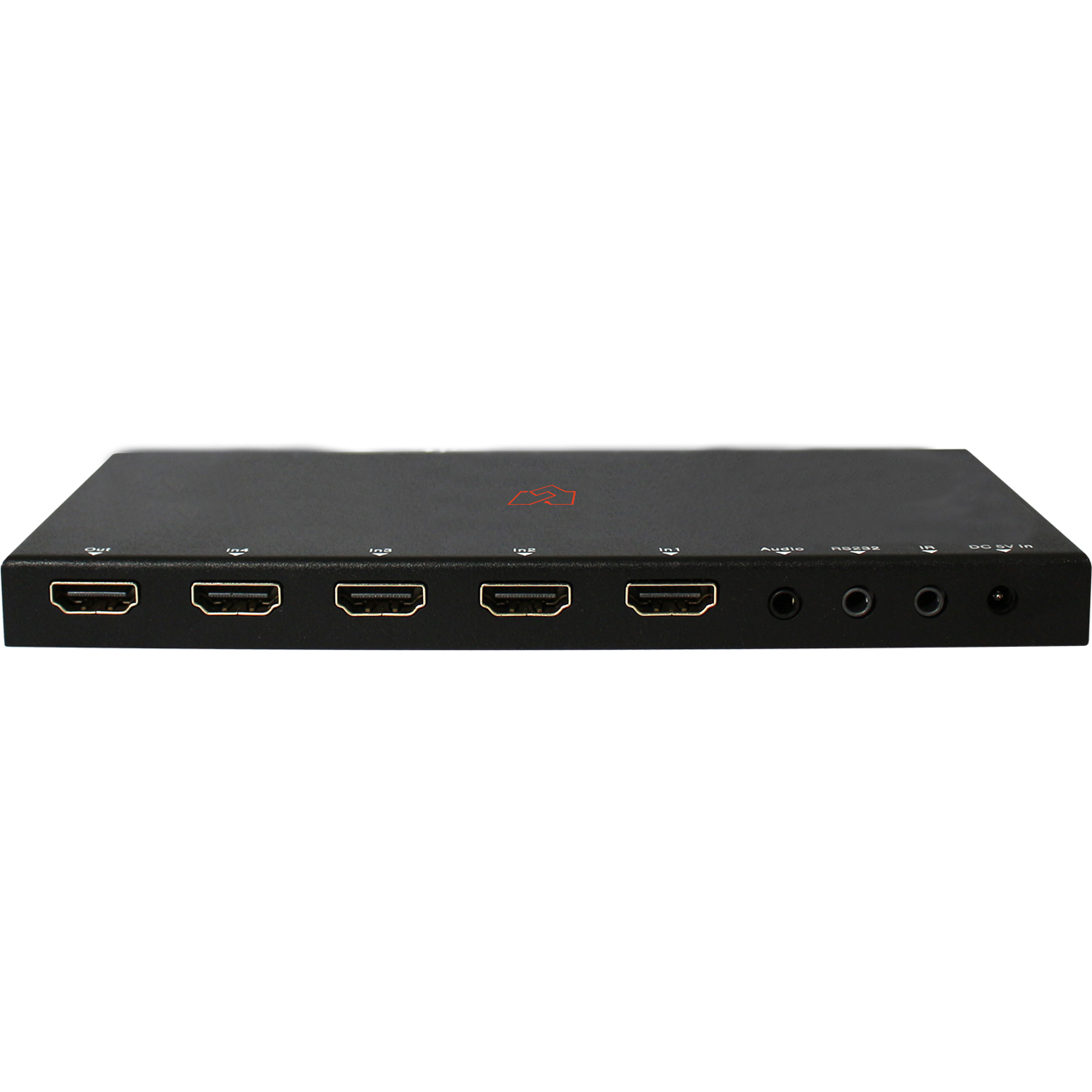

    Connections
  • Input Ports:
    - 4x HDMI (Female ports)
    - 1x IR (Receive port)
    - 1x RS 232 port
  • Output Ports:
    - 1x HDMI (Female port)
    - 1x L/R & Optical port

    Mechanical
  • Dimensions: 7.09" x 3.35" x 0.46" (180mm x 85mm x 11.6mm)
  • Weight: 0.66lbs (300g)
  • Power Consumption: 2.5W (Max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)


• Item Includes:

  • 1x HDMI 4x1 Switcher
  • 1x 5V/1APower Adapter
  • 1x 38KHz IR Rx cable
  • 1x Optical convert header (for SPDIF audio output)
  • 1x HDMI 4x1 IR Remote
  • 1x Operation Manual


• Warranty:

  • 6 Years
