VigilLink VLSW-41H21 4x1 48Gbps 8K HDMI 2.1 Switch - HDMI 2.1 and HDCP 2.3 Compliant

ITEM #: VGL-VLSW-41H21 MFG #: VLSW-41H21

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$185.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLSW-41H21 - Overview

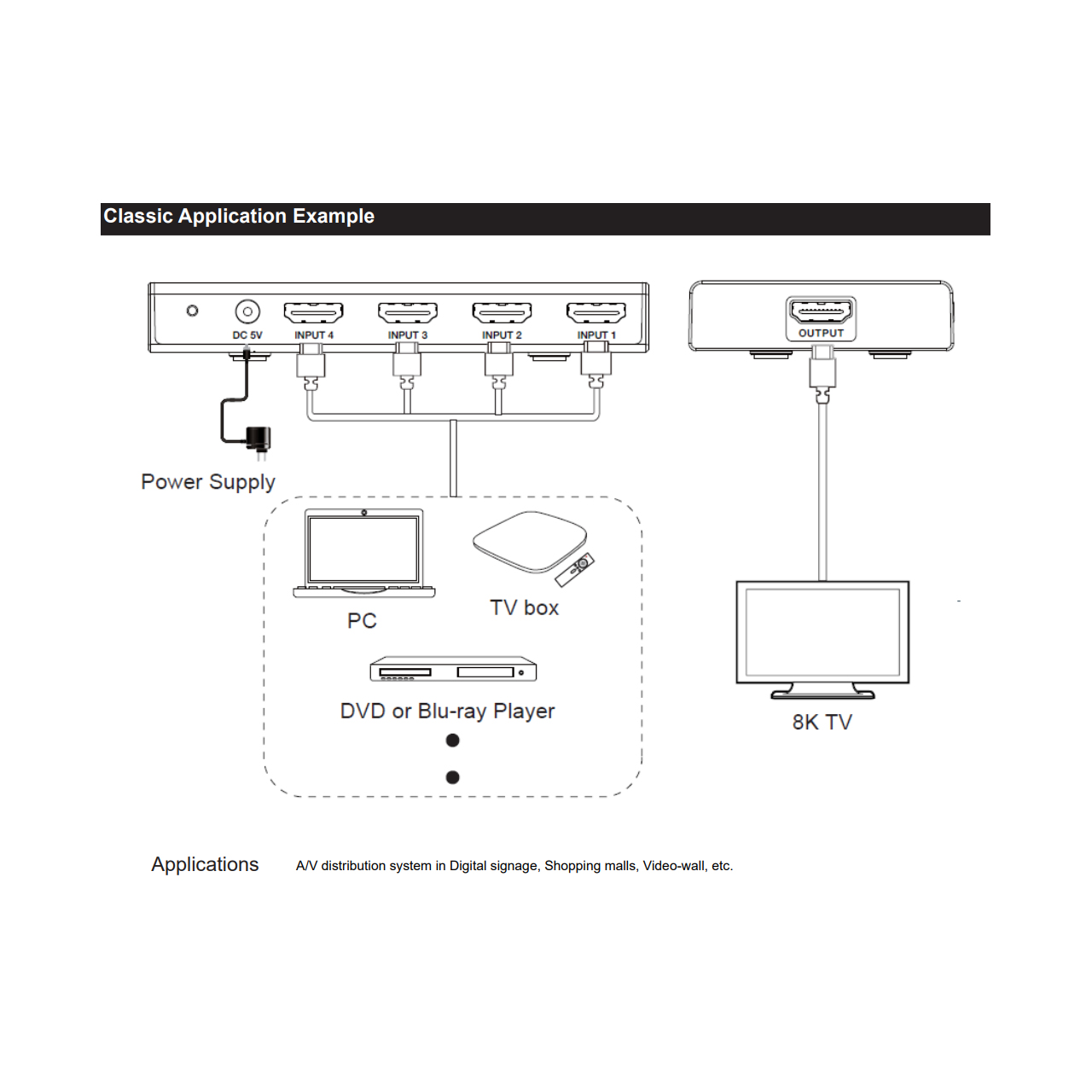

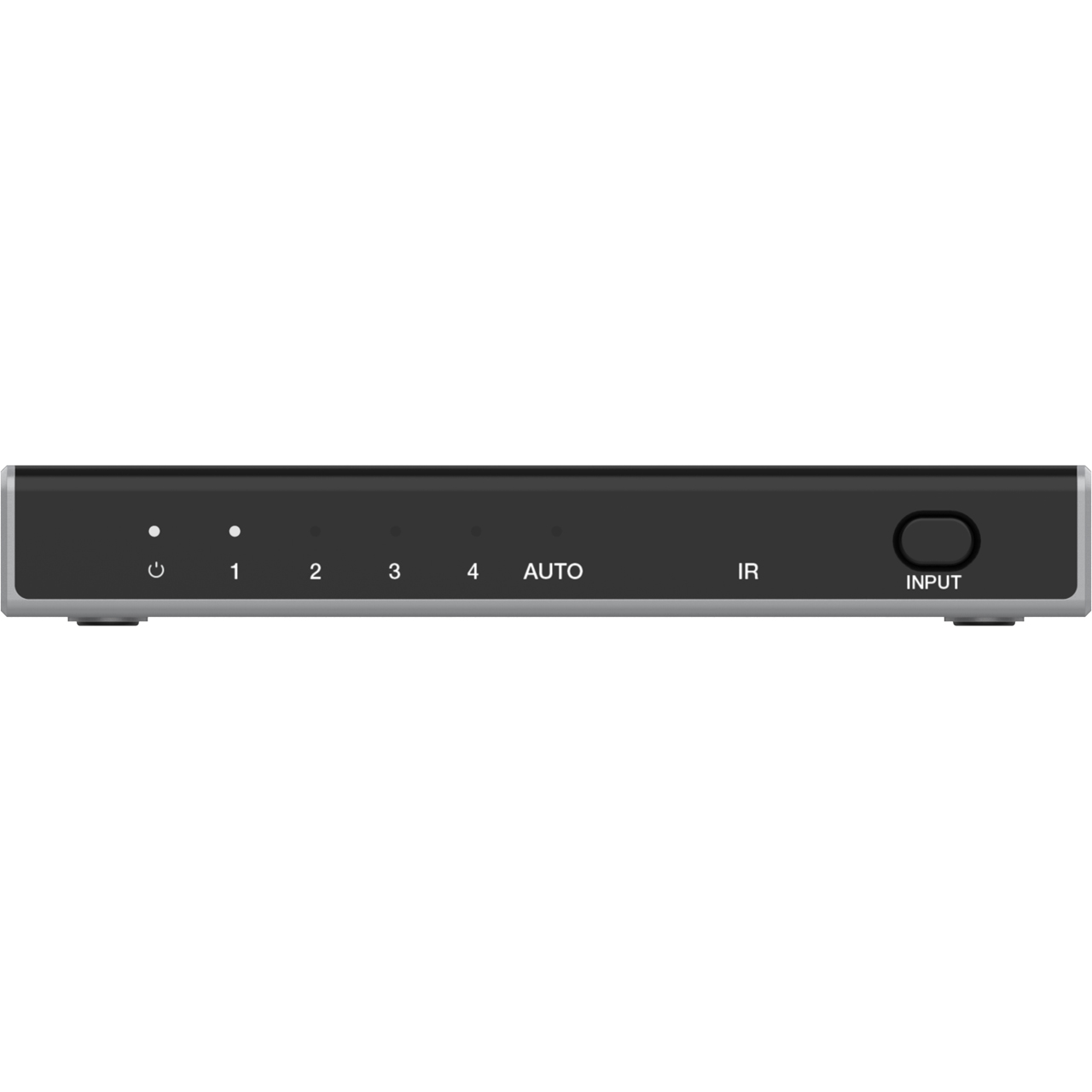

The VigilLink VLSW-41H21 8K HDMI 4x1 Switcher can switch any of 4 HDMI sources to 1 HDMI display. It supports video resolution up to 8K @ 60Hz 4:2:0, 48Gbps video bandwidth. It is suitable for outdoor display, video conference, security monitoring, home theater and other applications. By using this HDMI 8K switcher, you are allowed to connect from four HDMI INPUT ports to four HDMI source devices via an individual HDMI cable, then connect from HDMI OUTPUT port to your external monitor (such as HDMI projector, HDMI TV or HDMI ordinary display). You can switch between four sources by pressing the switch button on the front panel of the switcher.

Please Note: this switcher is not a bi-directional switcher, you can only use from four sources to one display (only 4 in 1 out, not 1 in 4 out). It can work well with xbox or PS5 to achieve 4K@120hz on your TVs or relative monitors.

  • Features:

    • HDMI 2.1 and HDCP 2.3 compliant
    • Supports 48Gbps video bandwidth
    • 8K @ 60Hz 4:2:0 12-bit, 8K @ 30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support
    • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
    • VRR, FVA, ALLM support
    • Supports HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
    • 4x1 switch output, auto switch is supported
    • Built-in Equalizer and Driver
    • Auto EDID management
    • Compact design for easy and flexible installation

  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3
    • Video Bandwidth: 48Gbps
    • Video Resolution: Up to 8K @ 60Hz 4:2:0 12-bit, 8K @ 30Hz 4:4:4 10-bit, 4K @ 120Hz 4:4:4 10-bit
    • Color Depth: 8/10/12-bit
    • Color Space: RGB, YCbCr 4:4:4/4:2:2/4:2:0
    • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections

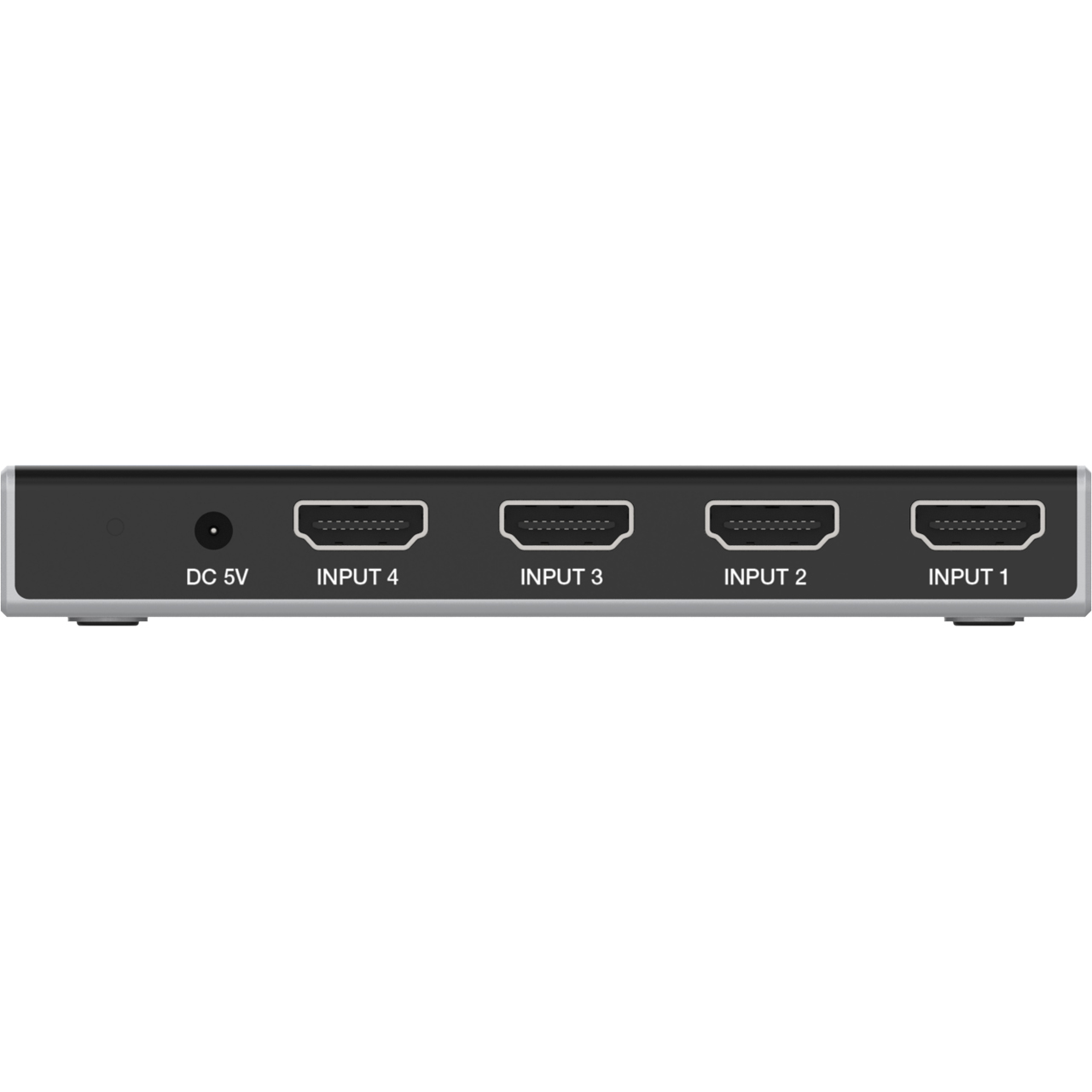

    • Input: 4x HDMI INPUT (Type A, 19-pin female)

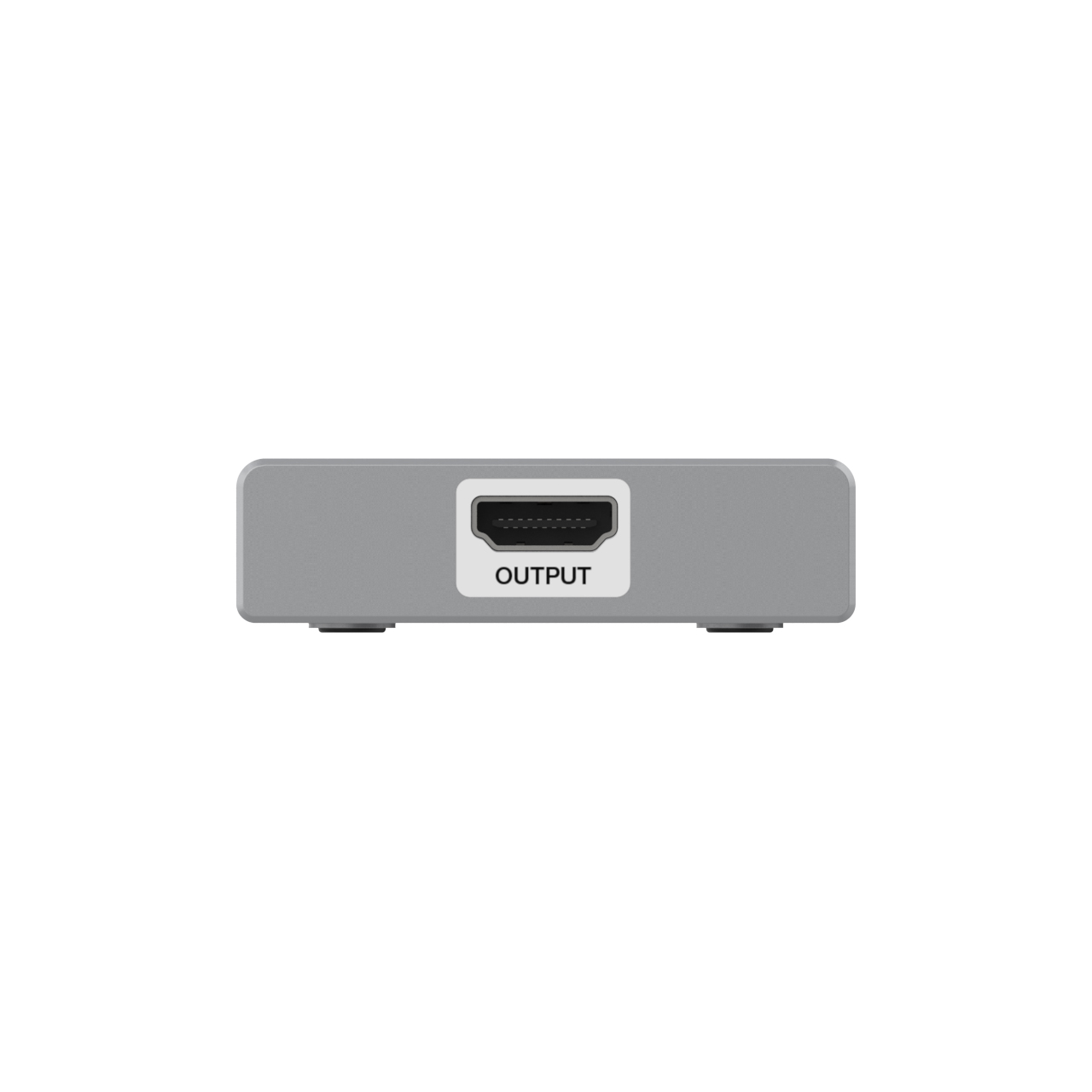

    • Output: 1x HDMI OUTPUT (Type A, 19-pin female)

      Mechanical
    • Housing: Plastic Enclosure
    • Color: Black
    • Dimensions: 4.80" x 2.56" x 0.75" (122mm x 65mm x 19mm)
    • Weight: 0.20lbs (88g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 3.4W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)

  • Item Includes:

    • 1x 8K HDMI 4x1 Switcher
    • 1x IR Remote
    • 1x 5V/1A Multinational Power Supply
    • 1x User Manual

  • Warranty:

    • 6 Years
