VigilLink VLUC-USB22K 1080p HDMI to USB2.0 10.2Gbps Video Capture Dongle - HDMI 1.4 and HDCP 1.4 Compliant

ITEM #: VGL-VLUC-USB22K MFG #: VLUC-USB22K

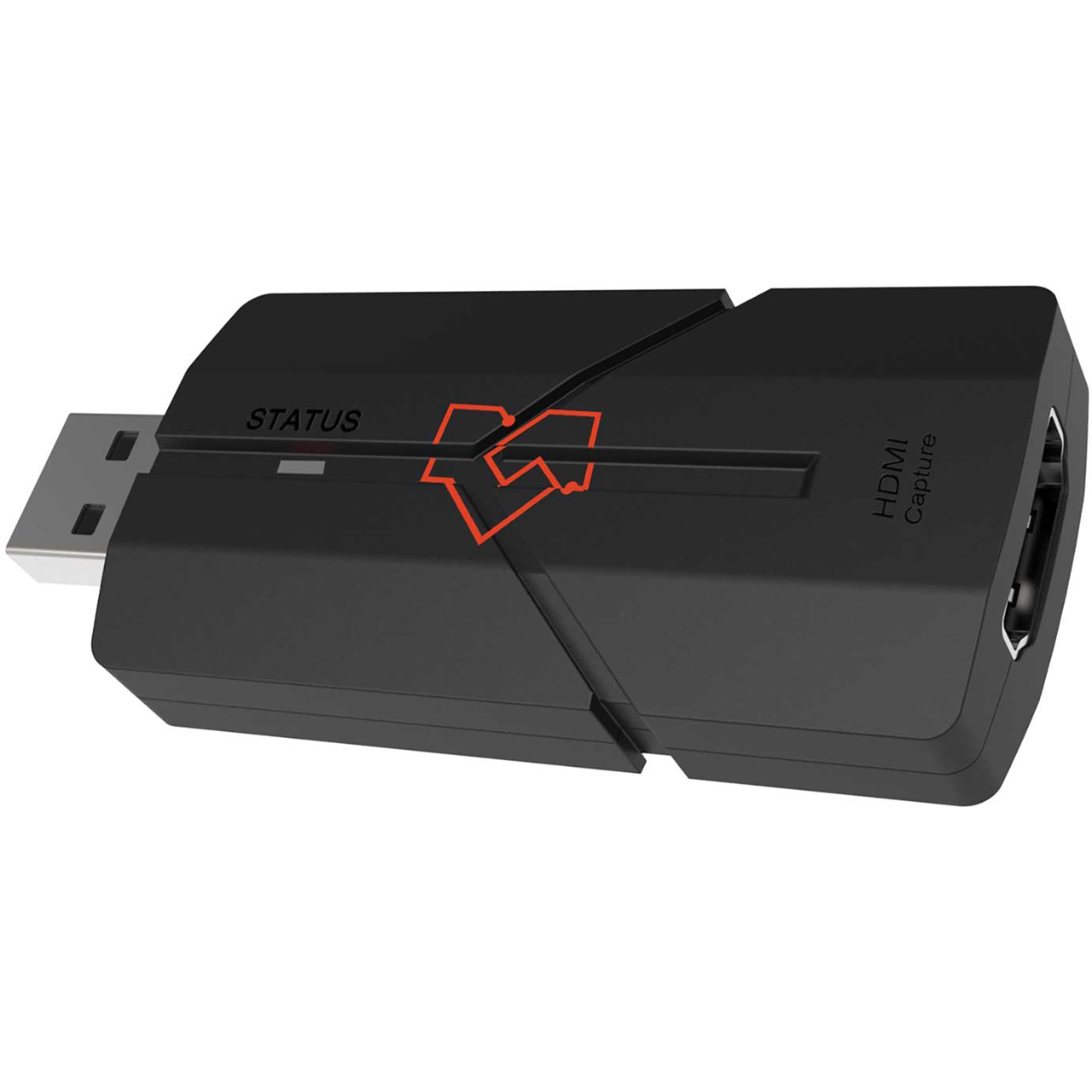

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$43.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLUC-USB22K - Overview

VigilLink VLUC-USB22K HDMI to USB2.0 video capture device can collect HDMI audio & video input signals. The captured video resolution is up to 4K2K@30Hz, and the output resolution is up to 1080P@60Hz. The product has the advantages of high performance, high compatibility, and manageable carrying and installation. It is compatible with Windows, Linux, Mac OS X operating system, USB2.0 port, plug and play, and easy to use.

  • Features:

    • HDMI 1.4 and HDCP 1.4 compliant
    • Supports 10.2Gbps video bandwidth
    • The captured video resolution is up to 4K2K@30Hz, and the output resolution is up to 1080P@60Hz
    • Be compatible with Windows, Linux, Mac OS X operating system, and USB2.0 port
    • Supports automatic recognition of input video format

  • Specifications:

      Technical
    • HDMI Compliance: HDMI 1.4
    • HDCP Compliance: HDCP 1.4
    • Video Bandwidth: 10.2 Gbps
    • Video Resolution:
      - Input: Up to 4k2k@30Hz
      - Output: Up to 1080P@60Hz
    • Color Depth:
      - 8/10/12-bit (1080P@60Hz)
      - 8-bit (4K2K@30Hz YUV4:4:4)
    • Color Space: RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
    • HDMI Audio Format: LPCM2.0
    • USB Version: USB 2.0
    • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections
    • Input: 1x HDMI [Type A 19-pin female]
    • Output: 1x USB [Type A male]

      Mechanical
    • Housing: Plastic Enclosure
    • Color: Black
    • Dimensions: 2" x 1.22" x 0.51" / 51mm x 31mm x 13mm
    • Weight: 0.035lb / 16g
    • Power Supply: PC USB 5V
    • Power Consumption: 1.75W
    • Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
    • Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
    • Relative Humidity: 20 - 90% RH (No condensation)

  • Item Includes:

    • 1x HDMI Capture
    • 1x User Manual

  • Warranty:

    • 6 Years


VLUC-USB22K - Required Accessories
